SANY STC800E5 80-Ton Hydraulic Truck Crane

ReflowX SKU: REF-1799

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

Surplus
OEM

FC Machinery Equipment Co. Limited
Equipment code
Shipping Rate

Get Quotation Whatsapp

Short Description

The SANY STC800E5 is an 80-ton class truck crane featuring a 50-meter U-shaped boom, 17.5-meter jib, and 3410.4 kN·m lifting moment. Equipped with a 294 kW Weichai WP12.400E62 engine and a full counterweight system for high stability and efficient lifting.

Description

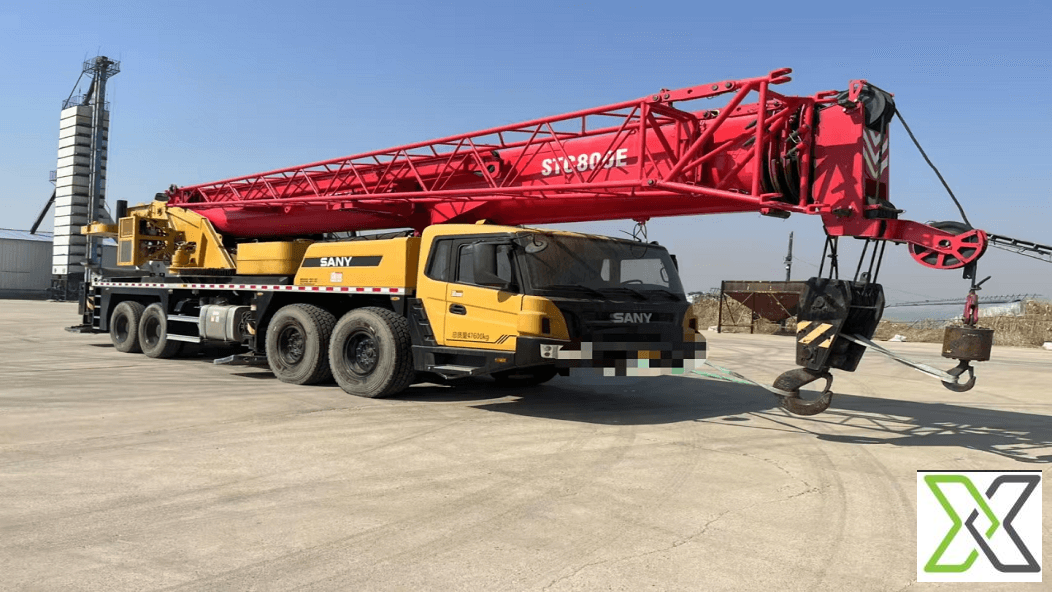

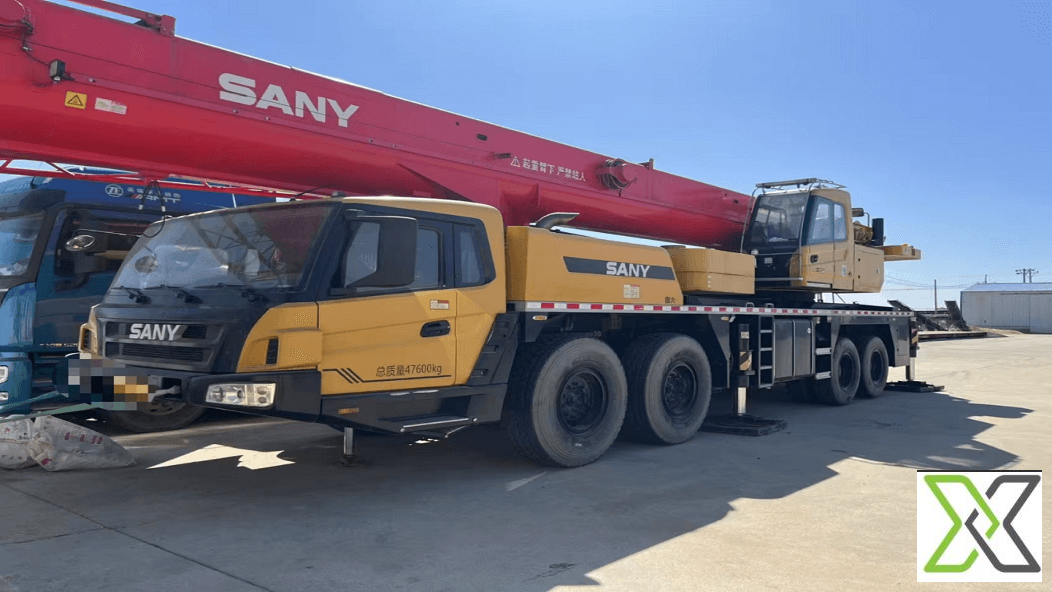

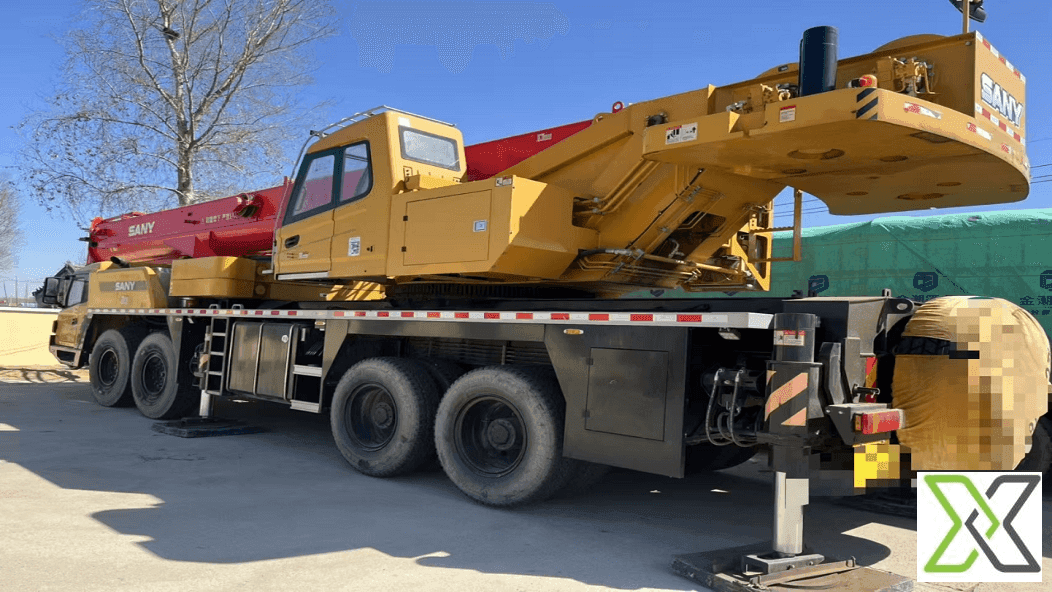

SANY STC800E5 80-Ton Hydraulic Truck Crane
Description:

The SANY STC800E5 is a robust and high-performance 80-ton truck crane, designed for demanding construction and industrial lifting operations. It features a 50-meter, 5-section U-shaped main boom, constructed with an optimized single-plate arm head that delivers a strong 42-meter hoisting range.

To extend its vertical reach, the STC800E5 comes with a 9.5-meter boom extension and a 17.5-meter standard jib, enabling a maximum lifting height of 77 meters. It is powered by the efficient Weichai WP12.400E62 engine (China VI emission standard), which delivers 294 kW of rated power, ensuring strong and reliable operation even under heavy load.

A full 20.2-ton counterweight system (with optional 5-ton extension) supports the crane's maximum lifting moment of 3410.4 kN·m. The advanced dual-cylinder rope-pulley system allows the boom to fully extend in just 125 seconds, improving jobsite efficiency.

The overall dimensions ensure highway mobility without compromising on structural strength, while the total machine weight of 47,600 kg reflects its robust, heavy-duty build.

Specifications:

– Product Type: Hydraulic Truck Crane
– Brand: SANY
– Model: STC800E5
– Rated Lifting Capacity: 80 tons
– Max. Boom Length: 50 meters
– Max. Jib Length: 17.5 meters
– Max. Lifting Height (with jib): 77 meters
– Max. Lifting Moment: 3410.4 kN·m
– Counterweight: 20.2 tons (standard), optional +5 tons
– Engine Model: Weichai WP12.400E62 (China VI)
– Engine Rated Power: 294 kW
– Boom Type: 5-section U-shaped boom with single-plate head
– Boom Extension Mechanism: Dual-cylinder rope-pulley system
– Boom Full Extension Time: 125 seconds
– Total Weight: **47,600 kg**
– Overall Dimensions (L × W × H): 14970 × 2800 × 3920 mm
– Typical Applications: Building construction, infrastructure works, energy and plant installation
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	STC800E5
Manufacturer Name	SANY
Counterweight	20.2 tons
Max. Lifting Capacity	80 tons
Max. Boom Length	50 meters
Max. Jib Length	17.5 meters
Max. Lifting Moment(KN.m)	3410.4
Engine Model	Weichai WP12.400E62
Overall dimensions (length x width x height) (mm)	14970 × 2800 × 3920 mm
