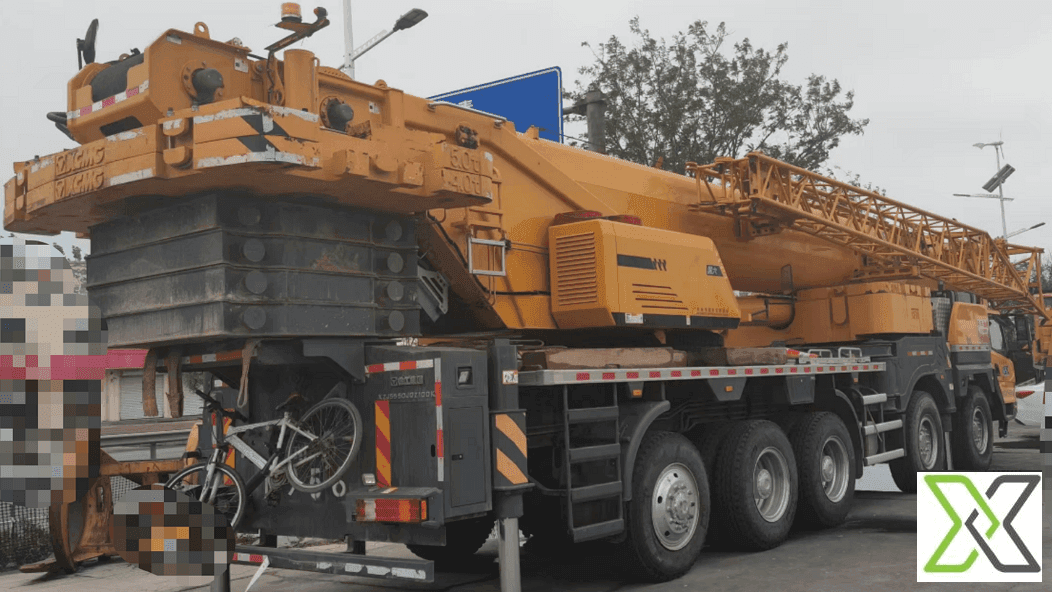

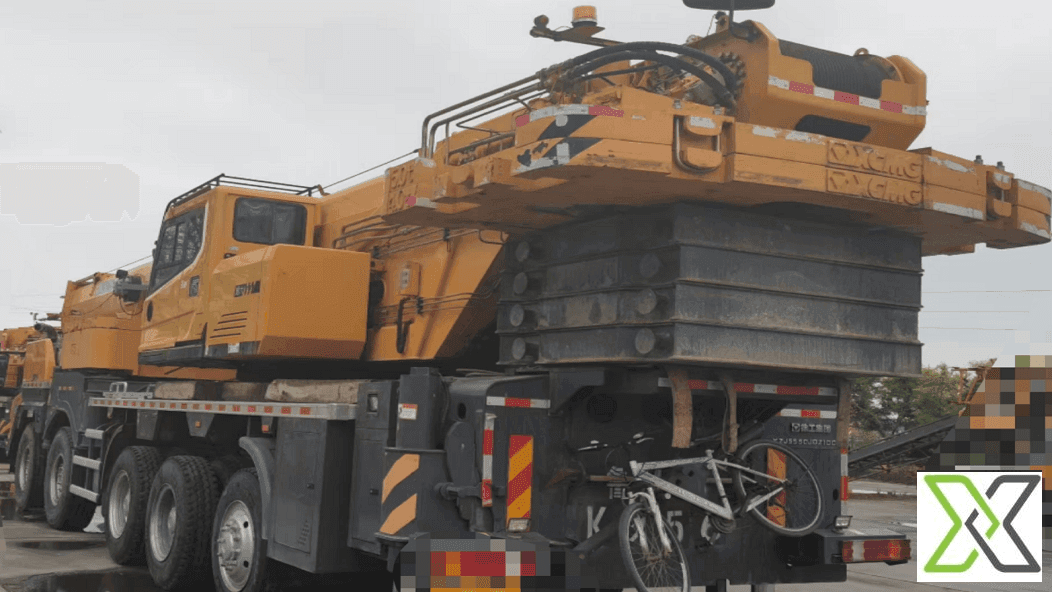

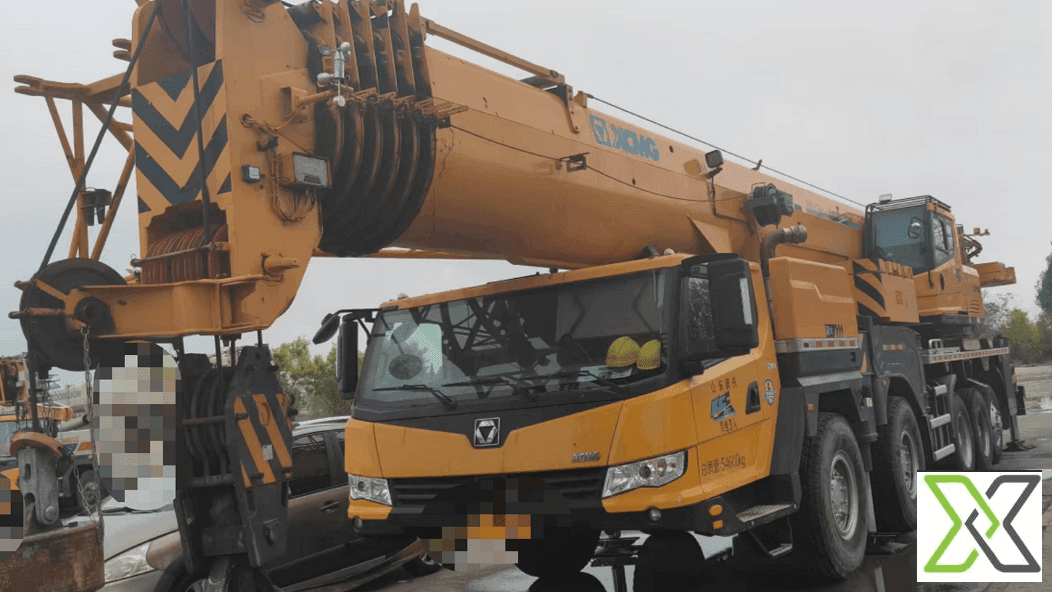

XCMG QY100K5C 100-Ton Hydraulic Truck Crane
Description:

The XCMG QY100K5C is a high-performance 100-ton truck crane designed for maximum lifting efficiency across a wide range of construction, infrastructure, and industrial projects. It features a five-section 50.5-meter U-shaped main boom that utilizes a dual-cylinder rope telescoping system, allowing for smooth and fast extension and retraction.

This model is powered by the WP10H400E62 diesel engine, offering 294 kW (400 hp) and a travel speed of up to 80 km/h, with an impressive 47% gradeability for hilly terrain or off-road approaches. The full counterweight capacity of 32 tons ensures balanced and stable lifting operations, while its ability to carry 24.6 tons onboard during heavy-duty transitions covers 92% of typical working conditions, enhancing jobsite flexibility.

With an 18-meter jib, the crane achieves a maximum lifting height beyond 68 meters and a lifting moment between 4000 and 5000 kN·m. The compact overall dimensions (14985 × 2800 × 3886 mm) ensure road compliance and ease of transport, making it a powerful and mobile solution for demanding lifting operations.

Specifications:

– Product Type: Hydraulic Truck Crane
– Brand: XCMG
– Model: QY100K5C
– Max. Lifting Capacity: 100 tons
– Max. Boom Length: 50.5 meters
– Max. Jib Length: 18 meters
– Max. Lifting Height: ~68.5 meters
– Max. Lifting Moment: 4000–5000 kN·m
– Boom Type: 5-section U-shaped telescopic boom
– Boom Extension: Dual-cylinder rope telescoping system
– Engine Model: WP10H400E62 (294 kW / 400 hp)
– Counterweight: 32 tons (24.6 tons transportable)
– Gradeability: 47%
– Max. Travel Speed: 80 km/h
– Overall Dimensions (L × W × H): 14985 × 2800 × 3886 mm
– Estimated Operating Weight: **~48,000 kg**
– Application Areas: Construction, infrastructure, industrial erection, heavy logistics
