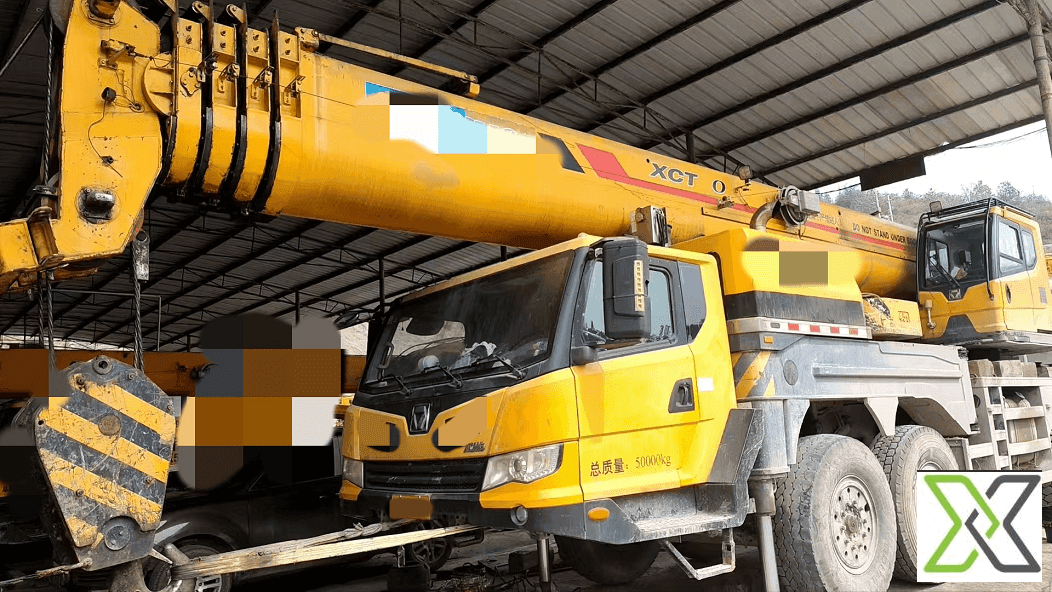

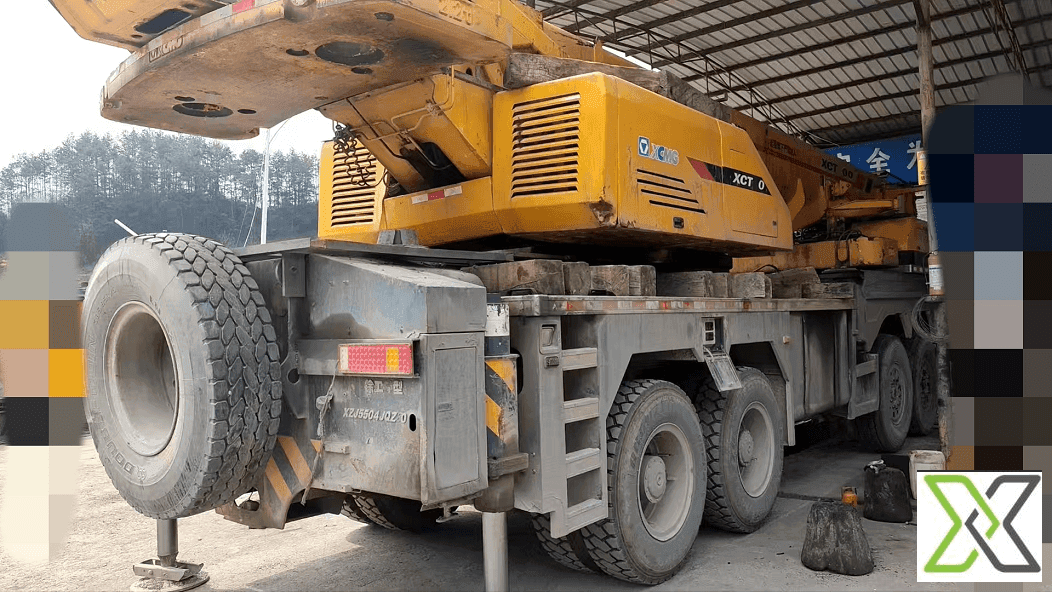

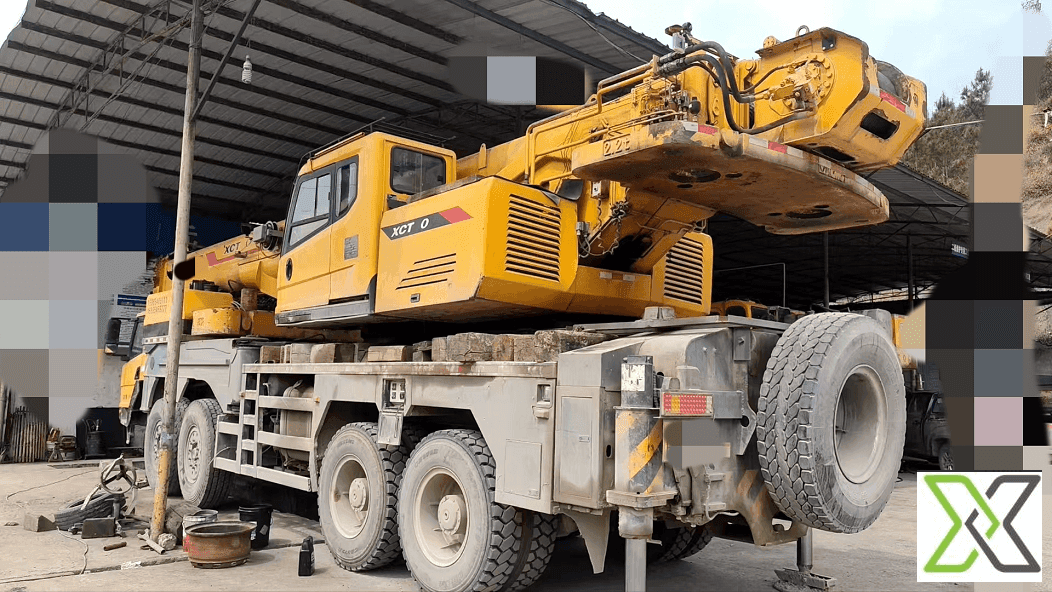

XCMG XCT80L5 80-Ton Hydraulic Truck Crane
Description:

The XCMG XCT80L5 is an 80-ton class hydraulic truck crane engineered for high-demand lifting operations in construction and infrastructure sectors. It features a 50.5-meter 5-section main boom, supplemented by a 17.5-meter jib, offering a maximum lifting height of 75.5 meters.

This crane delivers a maximum lifting moment of 3352 kN·m and operates with a 16-ton counterweight, ensuring strong lifting stability. It is driven by the reliable MC11.40-50 or MC11.40-60 engine (China Stage V/VI) rated at 297 kW, allowing for a maximum travel speed of 90 km/h and gradeability of 47%, which is ideal for challenging terrain.

Equipped with K-shaped outriggers, it enhances stability during lifting operations. With a total weight of 47,000 kg, the XCT80L5 ensures a solid and dependable lifting platform across various heavy-duty applications.

Specifications:

– Product Type: Hydraulic Truck Crane
– Brand: XCMG
– Model: XCT80L5
– Rated Lifting Capacity: 80 tons
– Max. Boom Length: 50.5 meters (5-section main boom)
– Max. Jib Length: 17.5 meters
– Max. Lifting Height: 75.5 meters (with jib)
– Max. Lifting Moment: 3352 kN·m
– Counterweight: 16 tons
– Engine Model: MC11.40-50 / MC11.40-60
– Engine Power: 297 kW
– Travel Speed: 90 km/h
– Gradeability: 47%
– Outriggers: K-shaped type
– Total Weight: **47,000 kg**
– Overall Dimensions (L × W × H): 15000 × 2750 × 3990 mm
– Applications: Infrastructure, industrial construction, heavy lifting
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
