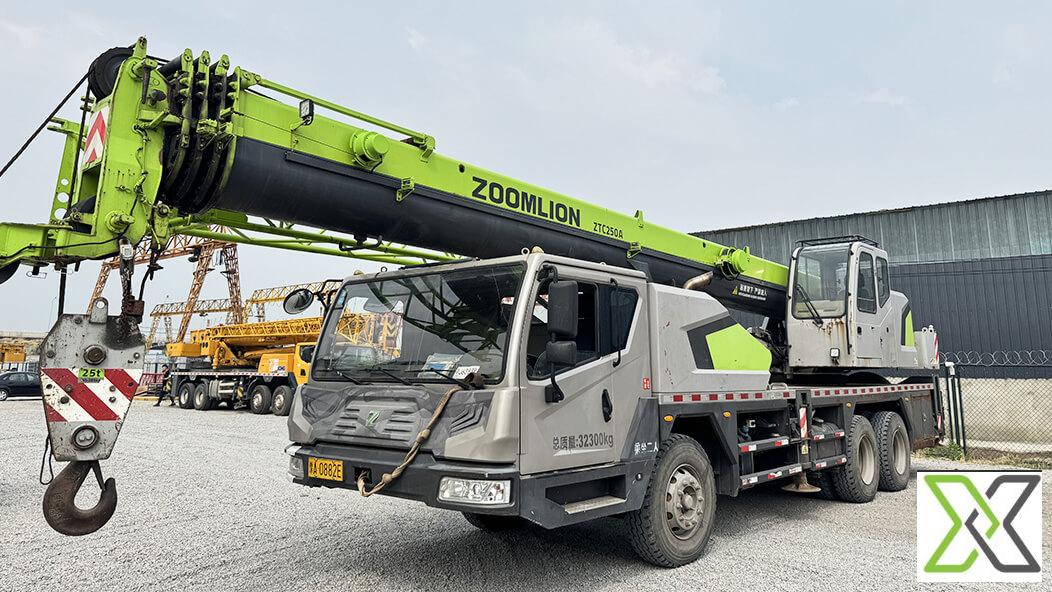

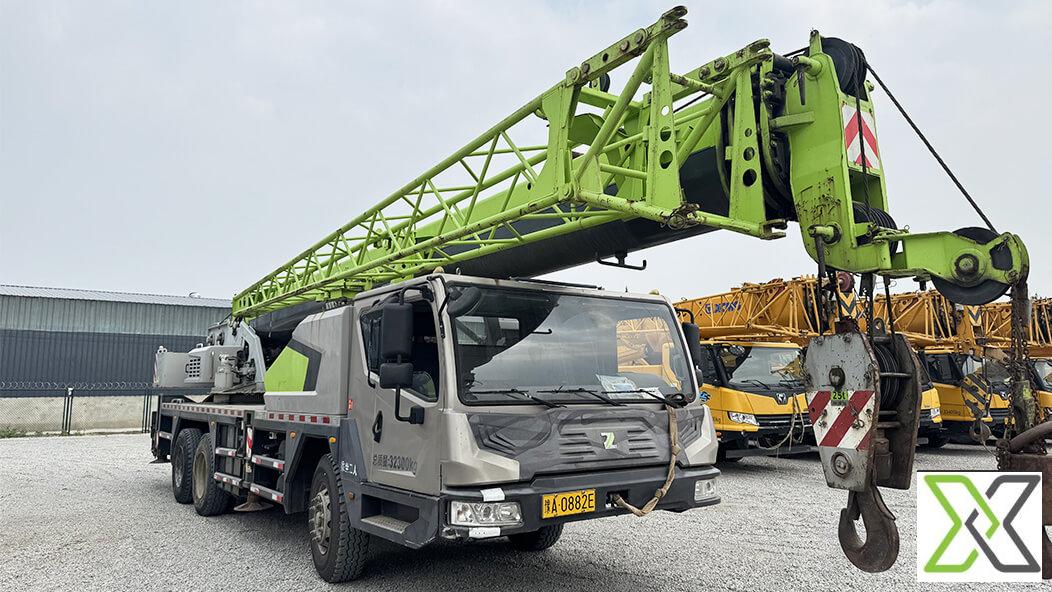

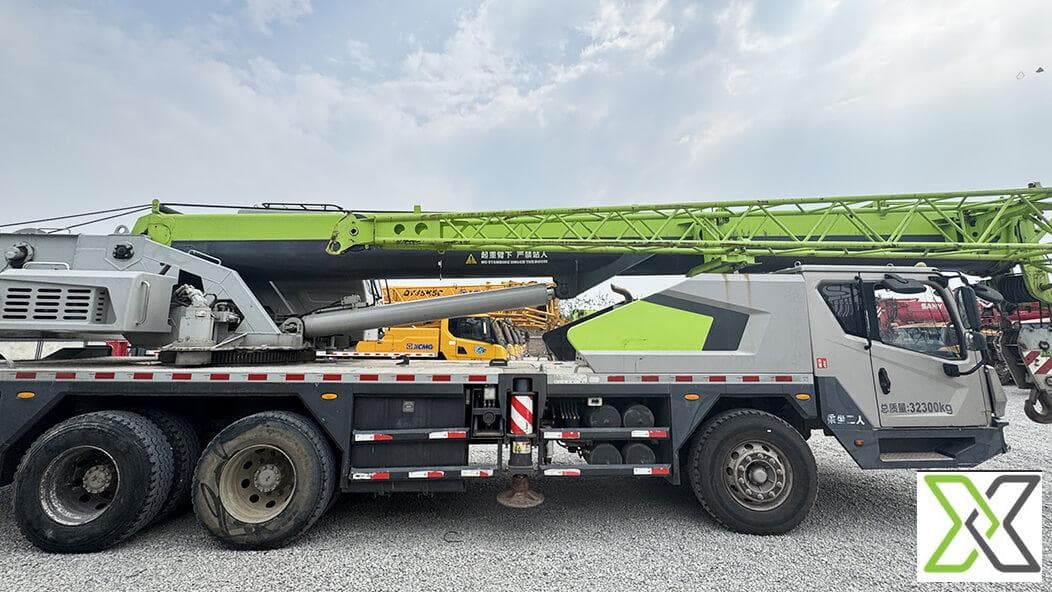

ZOOMLION 250A 25-Ton Hydraulic Truck Crane
Description:

The ZOOMLION 250A truck crane is a high-performance mobile lifting solution designed for versatile construction and infrastructure applications. Built with a robust chassis and engineered for optimal lifting efficiency, the 250A features a powerful hydraulic telescopic boom and precise control systems for reliable and accurate operation. Its strong lifting capacity, combined with advanced fuel-efficient technology, ensures low operating costs and high return on investment. The crane offers excellent mobility across urban and rural terrains, thanks to its efficient drive system and well-balanced design. Stability is enhanced through wide outriggers and optimized counterweights, making the Zoomlion 250A a dependable partner for both light and heavy lifting tasks.

Specification:

– Product Type: Hydraulic Truck Crane
– Brand: ZOOMLION
– Model: 250A
– Rated Lifting Capacity: 25 tons
– Max Boom Length: Approx. 40–42 meters
– Boom Type: 5-section fully hydraulic telescopic boom
– Jib Length: Optional, approx. 8–15 meters
– Max Lifting Height (with jib): Approx. 50 meters
– Counterweight: Approx. 3.5–6 tons (configuration-dependent)
– Engine Power: Approx. 200–220 kW
– Max Travel Speed: Up to 85 km/h
– Gradeability: Approx. 35–40%
– Axle Configuration: 6×4 or 6×6 drive
– Steering Type: Hydraulic power steering
– Brake System: Full air brake with parking brake
– Suspension: Leaf spring + hydraulic shock absorbers
– Tires: 11.00R20 or similar
– Outrigger Span (L × W): Approx. 5.1 m × 6.1 m
– Control System: Dual control (driving + operation cabin)
– Operator Cabin: Enclosed panoramic cab with ergonomic seating
– Fuel Efficiency: Optimized diesel engine for low fuel consumption
– Safety Features: Load moment limiter, boom angle limiter, emergency cut-off, anti-tipping system
– Application Areas: Building construction, machinery installation, bridge erection, infrastructure projects
– Overall Dimensions (L × W × H): Approx. 12.3 m × 2.5 m × 3.4 m
– Operating Weight: Approx. 32,000–33,500 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
