Zoomlion 35H 35-Ton Hydraulic Truck Crane

ReflowX SKU: REF-2328

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

Surplus
OEM

FC Machinery Equipment Co. Limited
Equipment code
Shipping Rate

Get Quotation Whatsapp

Short Description

The Zoomlion 35H is a 35-ton truck crane with a 40.7-meter boom and 10.1-meter jib, designed for stable, efficient, and safe lifting operations.

Description

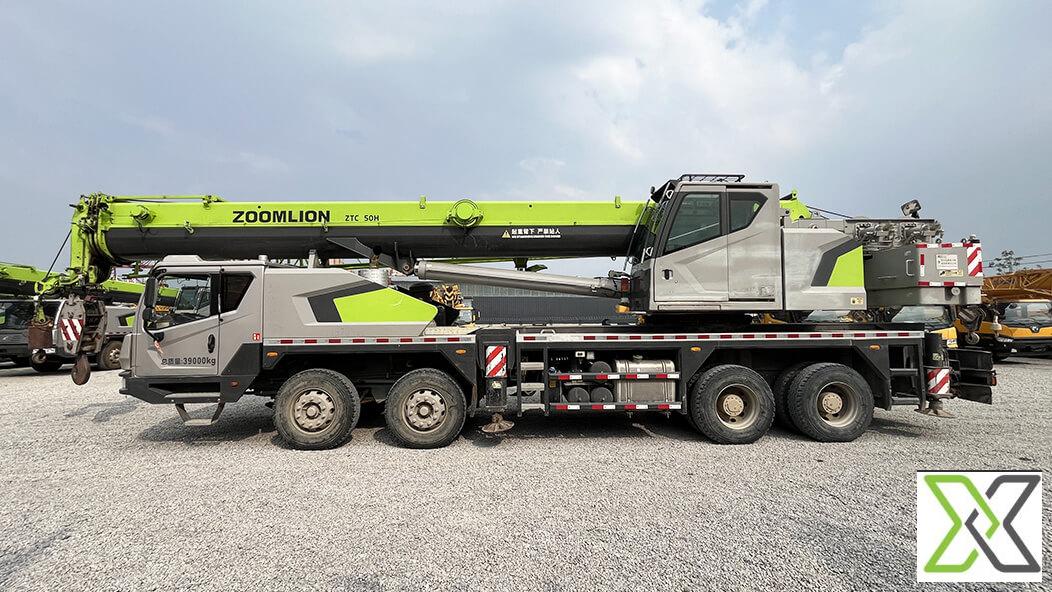

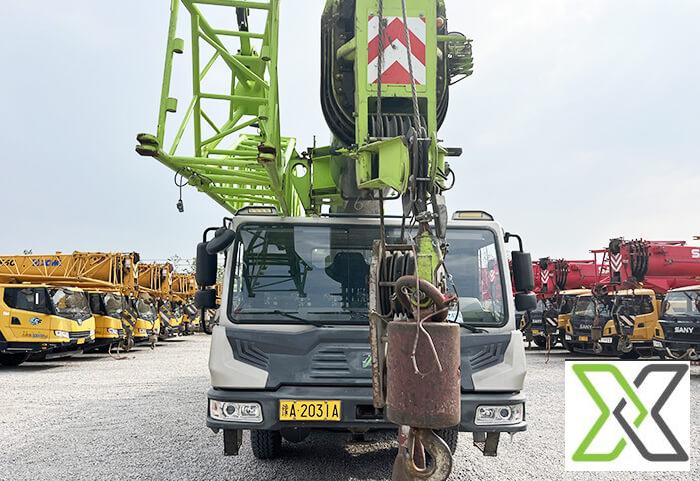

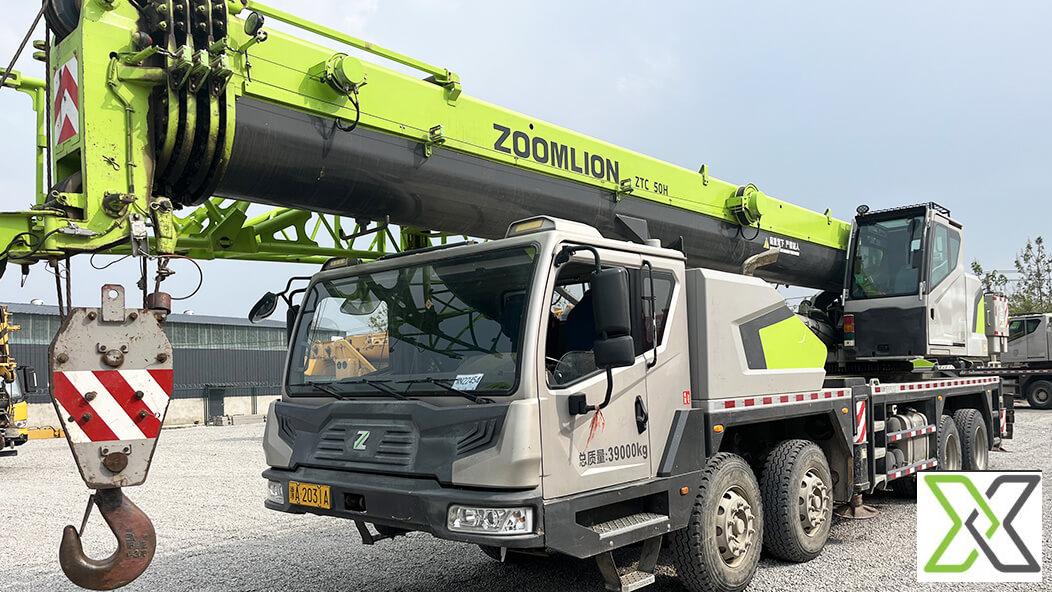

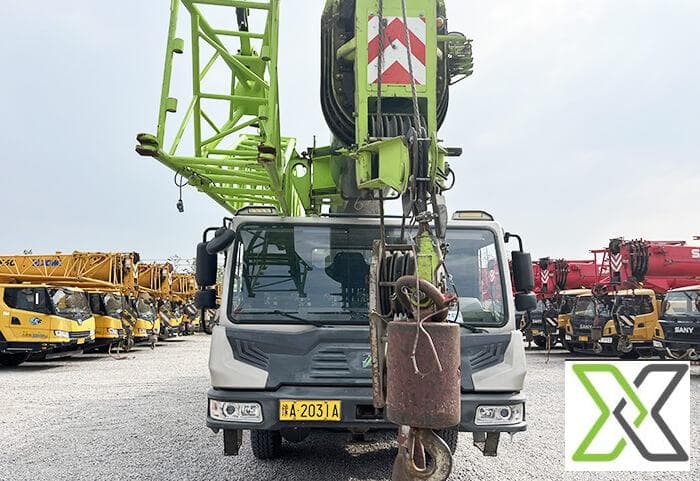

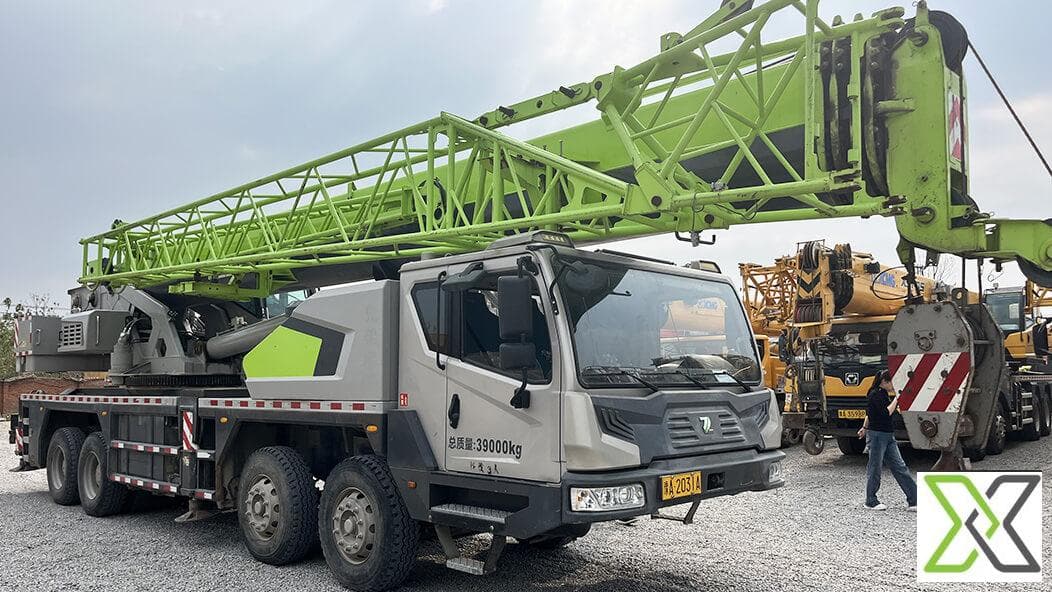

Zoomlion 35H 35-Ton Hydraulic Truck Crane
Description:

The Zoomlion 35H truck crane is designed for high performance in diverse and demanding lifting environments. With a rated lifting capacity of 35 tons and a maximum boom length of 40.7 meters, it provides an expansive working range and strong lifting performance. Its 6-ton counterweight ensures enhanced stability, while the robust chassis and superstructure are optimized for balanced load distribution. The crane features advanced safety systems for real-time monitoring and emergency control, guaranteeing operator security and equipment protection. Compact in design and user-friendly in operation, the Zoomlion 35H is ideally suited for construction, infrastructure, and industrial lifting operations under complex conditions.

Specification:

– Product Type: Hydraulic Truck Crane
– Brand: Zoomlion
– Model: 35H
– Rated Lifting Capacity: 35 tons
– Max. Boom Length: 40.7 meters
– Max. Jib Length: 10.1 meters
– Max. Lifting Moment: 1200 kN·m
– Counterweight: 6 tons
– Engine Model: Not specified
– Drive Type: Likely 6×4 or 6×6 (dependent on configuration)
– Transmission: Manual or automatic (varies by version)
– Max. Travel Speed: Approx. 80 km/h
– Gradeability: Approx. 30%
– Steering System: Hydraulic power steering
– Brake System: Dual-circuit air brake with auxiliary system
– Suspension: Heavy-duty leaf spring suspension
– Tires: 11.00R20 or equivalent
– Outrigger Span (L × W): Approx. 5.2 m × 6.2 m
– Operator Cabin: Enclosed cab with ergonomic controls and digital monitoring systems
– Safety Features: Overload protection, anti-overturn system, boom angle limiter, emergency shut-off
– Fuel Efficiency: Designed for reduced fuel consumption and low operating cost
– Applications: Construction, heavy equipment installation, infrastructure projects
– Overall Dimensions (L × W × H): 12850 mm × 2550 mm × 3480 mm
– Operating Weight: Estimated 32,000–34,000 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	35H
Manufacturer Name	Zoomlion
Counterweight	6
Max. Lifting Capacity	35
Max. Boom Length	40.7
Max. Jib Length	10.1
Max. Lifting Moment(KN.m)	1200
Overall dimensions (length x width x height) (mm)	12850×2550×3480
