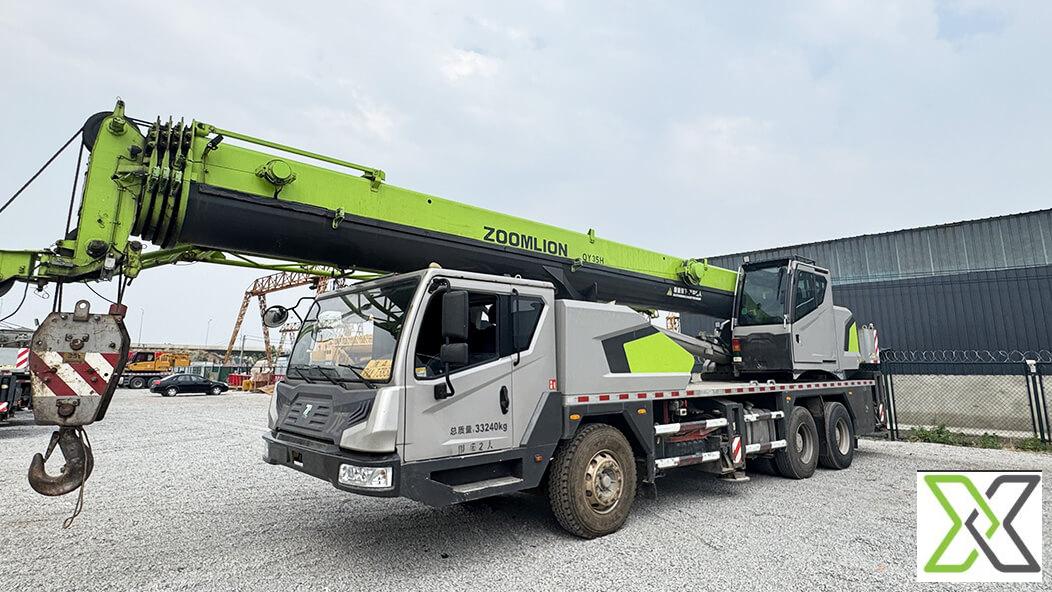

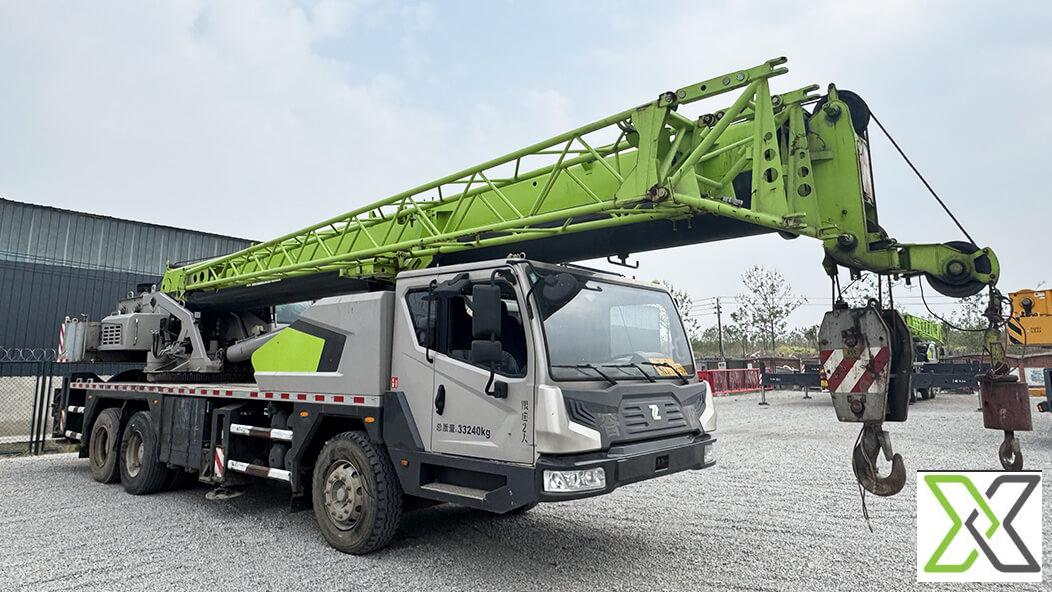

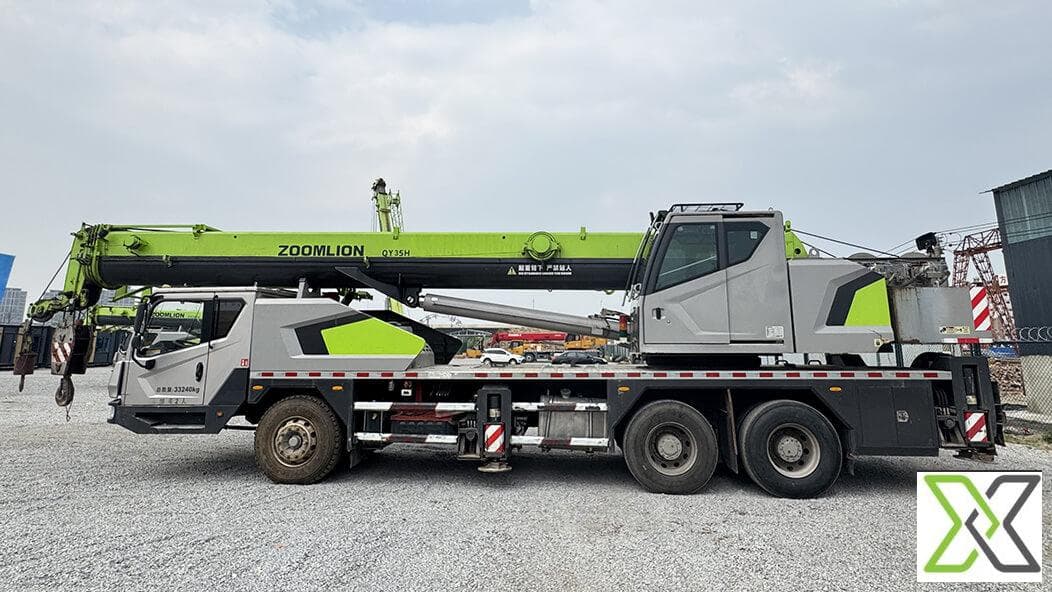

ZOOMLION QY25H 25-Ton Hydraulic Truck Crane
Description:

The ZOOMLION QY25H truck crane is a powerful and versatile 25-ton lifting solution built for demanding construction and infrastructure tasks. Featuring a long telescopic boom and high rope speed, it provides broad working range and improved hoisting efficiency. Its robust chassis and wide outriggers ensure excellent stability during operation, even in challenging conditions. With advanced fuel-efficient engine systems, the QY25H delivers cost-effective performance over extended operation cycles. The crane is equipped with an ergonomic cab for operator comfort, precise hydraulic controls, and an optimized counterweight system for maximum lifting safety. It's an ideal machine for heavy-duty lifting in urban and off-road settings.

Specification:

– Product Type: Hydraulic Truck Crane
– Brand: ZOOMLION
– Model: QY25H
– Rated Lifting Capacity: 25 tons
– Max Boom Length: Approx. 40–42 meters
– Max Boom Height (with Jib): Approx. 50 meters
– Boom Type: 5-section full hydraulic telescoping
– Counterweight: Approx. 5 tons
– Engine Power: Approx. 199–220 kW
– Max Rope Speed: High-speed winch system (industry-leading)
– Max Travel Speed: Approx. 80–85 km/h
– Gradeability: Approx. 40%
– Axle Configuration: 6×4 or 6×6 (depending on version)
– Steering Type: Power steering with multiple modes
– Brake System: Air brake with auxiliary exhaust brake
– Outrigger Span (L × W): Approx. 5.1 m × 6.1 m
– Total Weight: Approx. 33,000 kg
– Dimensions (L × W × H): Approx. 12.2 m × 2.5 m × 3.4 m
– Cabin Type: Fully enclosed, vibration-reduced with panoramic view
– Suspension: Leaf spring with shock absorbers
– Tires: 11.00R20 or equivalent
– Emission Standard: Euro III or China Stage III
– Applications: Building construction, heavy lifting, bridge erection, infrastructure
– Safety Features: Load moment limiter, anti-overload alarm, hydraulic locking, emergency shut-off
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
