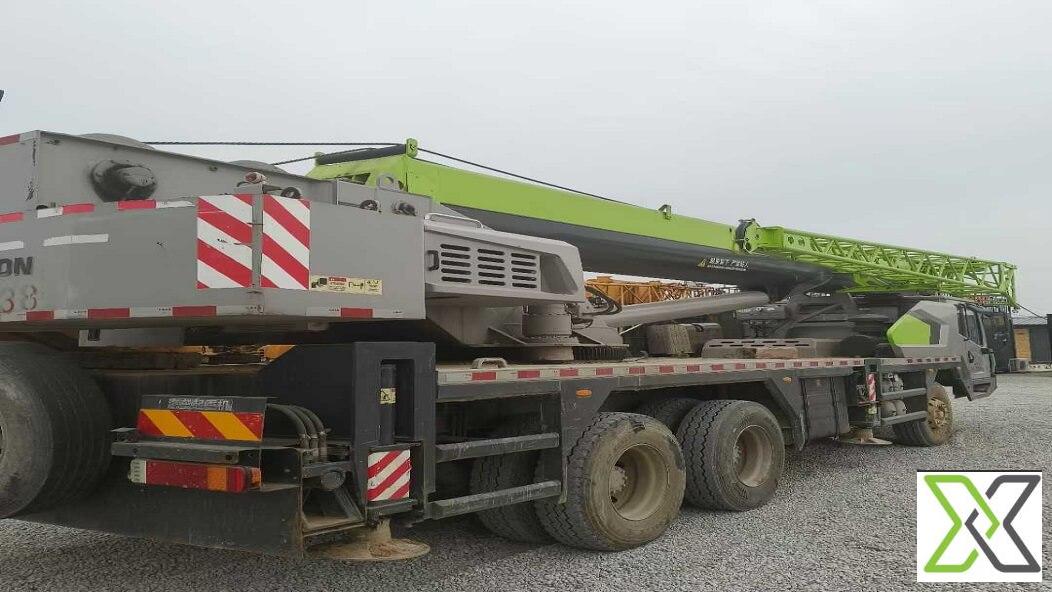

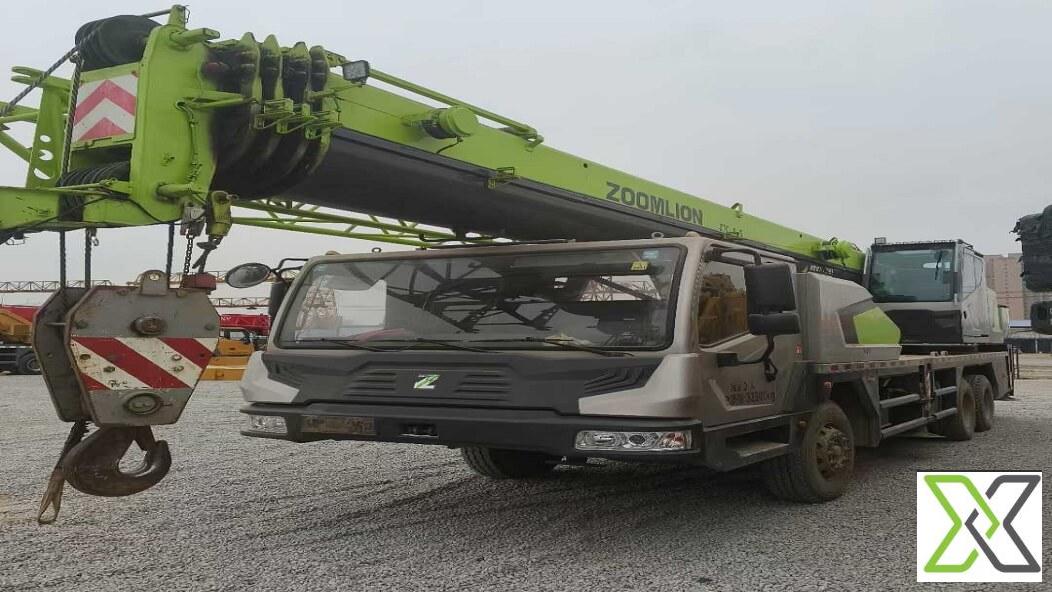

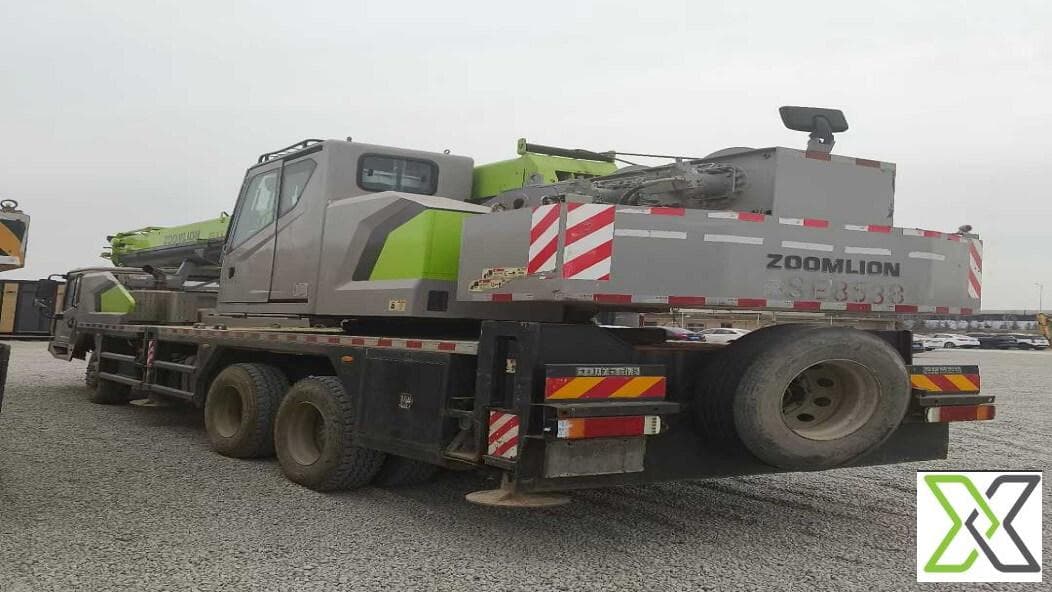

ZOOMLION ZTC252E-1 (252E) 25-Ton Hydraulic Truck Crane

ReflowX SKU: REF-2248

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

Surplus
OEM

ZOOMLION
Equipment code

Get Quotation Whatsapp

Short Description

The ZOOMLION ZTC252E-1 is a powerful 25-ton truck crane with a 42-meter U-type boom, 1100 kN·m lifting moment, Weichai 320 hp engine, and intelligent operation system—ideal for construction and lifting projects.

Description

ZOOMLION ZTC252E-1 (252E) 25-Ton Hydraulic Truck Crane
Description:

The ZOOMLION ZTC252E-1 (also known as 252E) is a rugged and high-performance 25-ton truck crane engineered for demanding construction, infrastructure, and lifting applications. It features a 5-section, 42-meter U-shaped telescopic main boom and an optional 8-meter jib, delivering exceptional reach and height capabilities. Its basic arm offers a maximum lifting moment of 1100 kN·m, and at full extension, it can lift up to 6.8 tons—showcasing its power and versatility across a wide range of lifting tasks.

Under the hood, the crane is powered by a robust 320-horsepower 8-liter Weichai diesel engine, mated to a Fast manual transmission system, ensuring smooth gear changes and fuel-efficient operation even on rough terrains. With an overall machine weight of 33.24 tons, the crane maintains excellent ground stability, supported by a wide outrigger span of 5.39 m × 6.3 m.

Fast operational response is a key advantage, with the boom rising in just 34 seconds and fully extending in 75 seconds. The operator cabin is equipped with an advanced 4.0A intelligent touch-screen monitor, enhancing control, safety, and ease of use. Compact, capable, and highly efficient, the ZTC252E-1 is a practical choice for professional lifting environments.

Specifications:

– Product Type: Hydraulic Truck Crane
– Brand: ZOOMLION
– Model: ZTC252E-1 (252E)
– Rated Lifting Capacity: 25 tons
– Max. Boom Length: 42 meters
– Max. Jib Length: 8 meters
– Max. Lifting Moment (Base Boom): 1100 kN·m
– Max. Lifting Moment (Full Extension): 700 kN·m
– Max. Lift at Full Extension: 6.8 tons
– Counterweight: 7 tons
– Engine Model: Weichai (8-liter, 320 hp)
– Transmission: Fast manual gearbox
– Boom Type: 5-section, U-shaped telescopic
– Boom Raise Time: 34 seconds
– Boom Extension Time: 75 seconds
– Max. Travel Speed: Approx. 80–90 km/h
– Gradeability: Approx. 40–45%
– Operating Weight: **33.24 tons**
– Outrigger Span (L × W): 5.39 × 6.3 meters
– Hydraulic System: High-efficiency with intelligent load sensing
– Control System: 4.0A intelligent touch-screen monitor
– Cab Features: Ergonomic seat, AC, enhanced visibility
– Overall Dimensions (L × W × H): 12800 × 2550 × 3500 mm
– Applications: Building construction, installation, infrastructure, logistics, utility projects
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	ZTC252E-1 (252E)
Manufacturer Name	Zoomlion
Counterweight	7 tons
Max. Lifting Capacity	25
Max. Boom Length	42
Max. Jib Length	8
Max. Lifting Moment(KN.m)	1100
Engine Model	Weichai (8-liter, 320 hp)
Overall dimensions (length x width x height) (mm)	12800 × 2550 × 3500 mm
