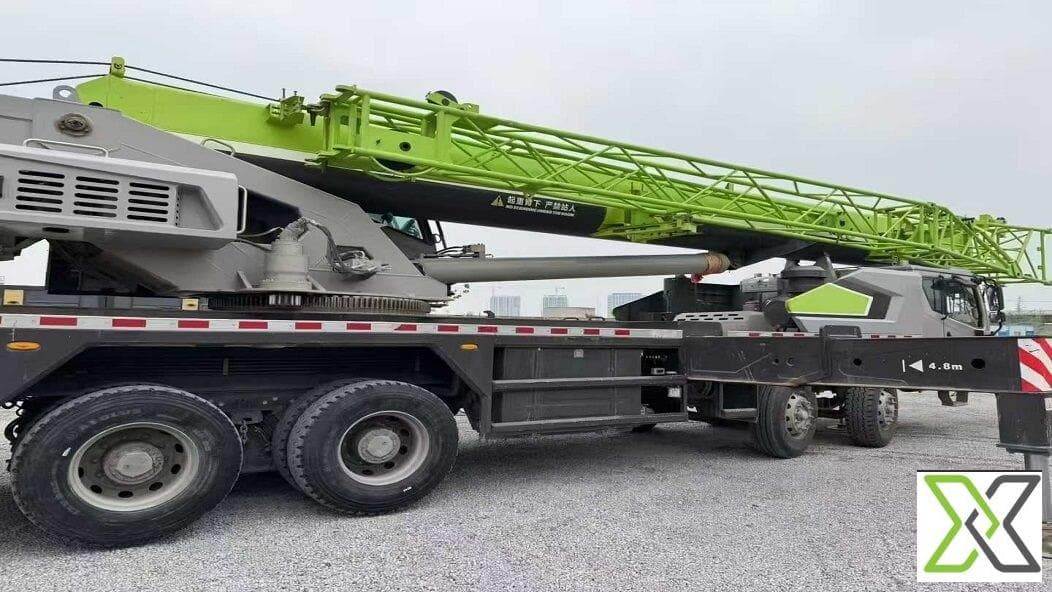

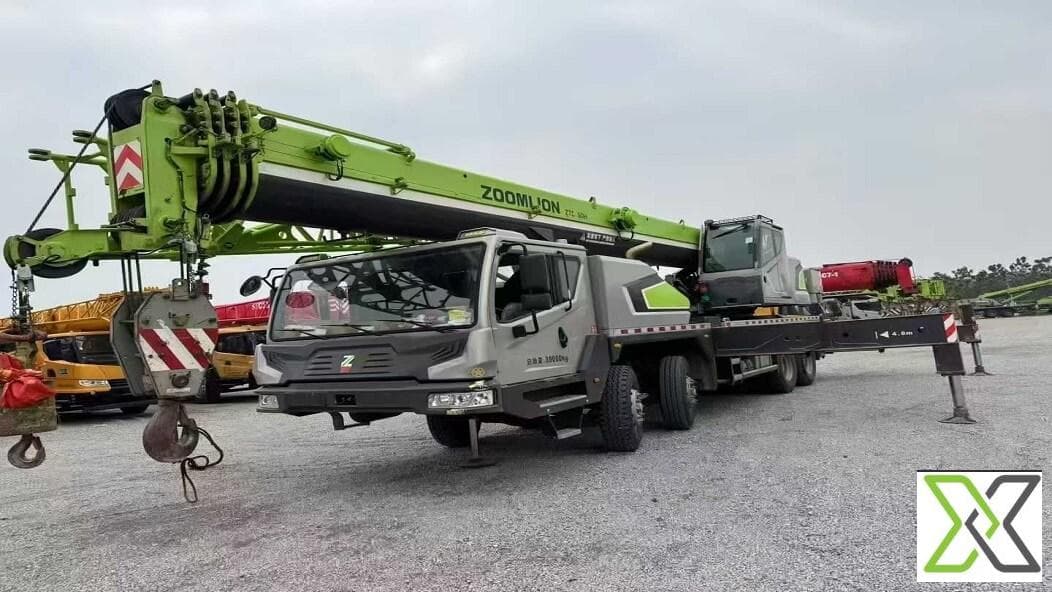

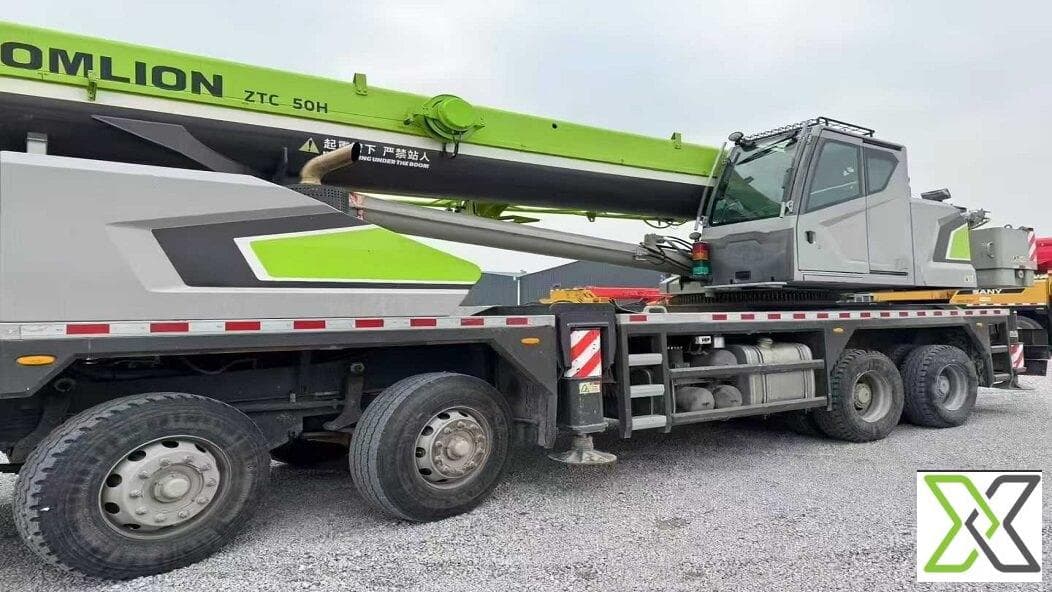

ZOOMLION ZTC350H 35-Ton Hydraulic Truck Crane
Description:

The ZOOMLION ZTC350H is a premium 35-ton class truck crane designed to meet the lifting needs of construction, infrastructure, and industrial worksites. Boasting a 44-meter, 5-section main boom—the longest in its class—and an optional 8-meter jib, this model ensures outstanding vertical and horizontal reach. The basic-arm lifting moment of 1568 kN·m provides strong performance across demanding lifting tasks.

Powered by the Weichai WP8.350E61 engine, this crane delivers high torque and smooth mobility, achieving a top speed of 85 km/h, enabling rapid relocation between job sites. The ZTC350H features robust construction with a vehicle operating weight of 39,000 kg (39 tons), including an additional 1.5-ton auxiliary counterweight, ensuring superior on-ground stability. Its 7.3-meter wide outrigger span enhances anti-tipping performance, while its intelligent hydraulic system provides safe, stable, and efficient lifting operations.

The cabin is ergonomically designed for operator comfort and features intuitive controls for seamless performance, making the ZTC350H a reliable workhorse in heavy-lift environments.

Specifications:

– Product Type: Hydraulic Truck Crane
– Brand: ZOOMLION
– Model: ZTC350H
– Rated Lifting Capacity: 35 tons
– Max. Boom Length: 44 meters
– Max. Jib Length: 8 meters
– Max. Lifting Moment (Base Boom): 1568 kN·m
– Counterweight: 8 tons + 1.5-ton additional counterweight
– Engine Model: Weichai WP8.350E61
– Engine Power: 350 HP
– Transmission: Manual, Heavy-Duty
– Max. Travel Speed: 85 km/h
– Gradeability: Approx. 40%
– Outrigger Span (L × W): 7.3 meters (fully extended)
– Hydraulic System: High-efficiency load-sensing
– Crane Weight (Driving Mode): **39,000 kg (39 tons)**
– Boom Type: 5-section, U-shaped telescopic boom
– Operator Cabin: Ergonomic with air conditioning, enhanced visibility
– Overall Dimensions (L × W × H): 13450 × 2550 × 3550 mm
– Applications: Building construction, plant installation, structural lifting, utility work
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
