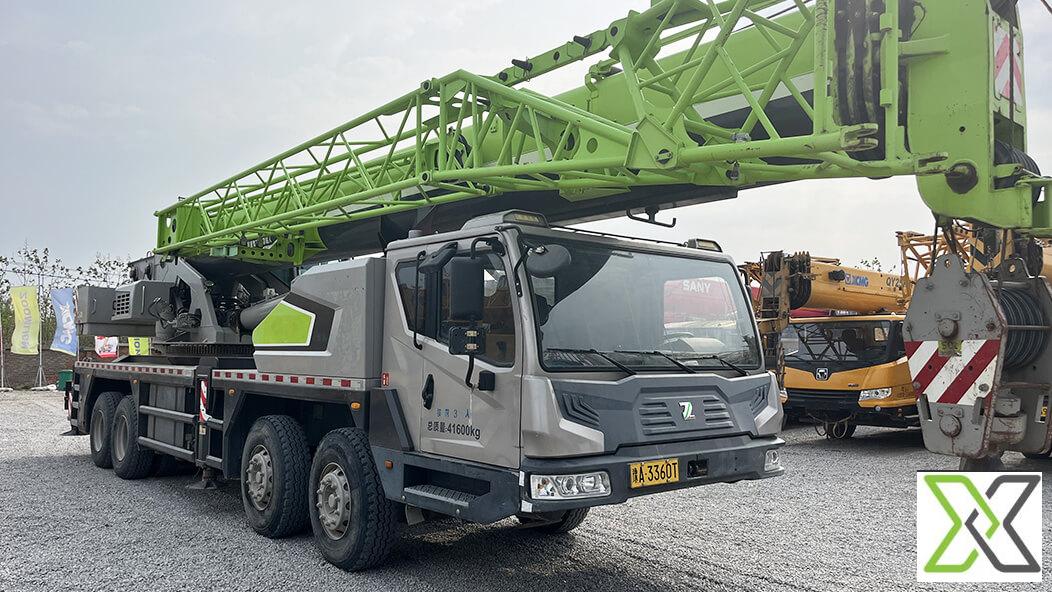

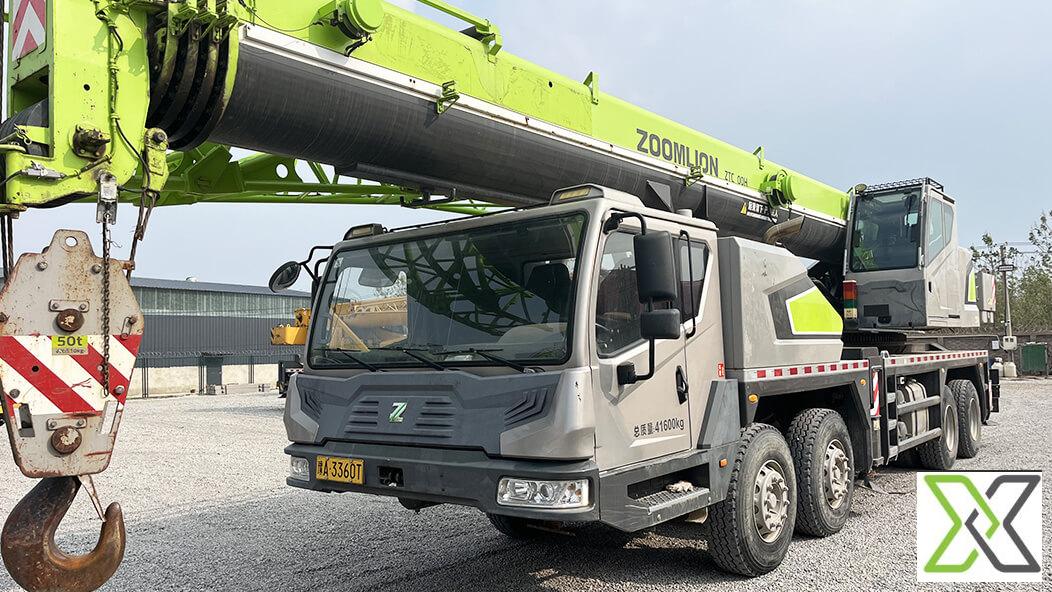

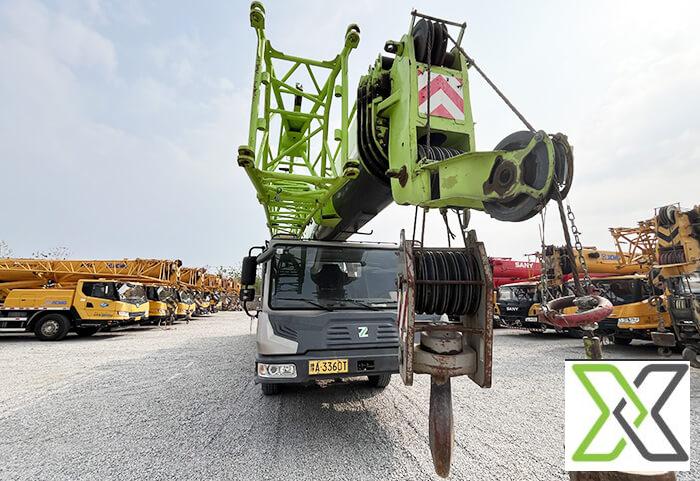

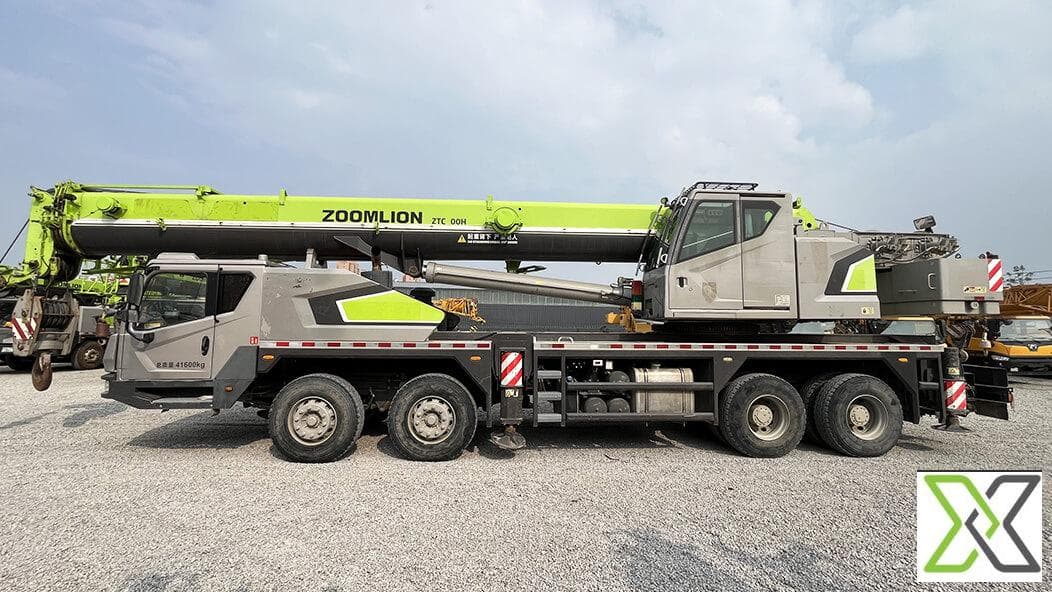

Zoomlion ZTC500H552 50-Ton Hydraulic Truck Crane
Description:

The Zoomlion ZTC500H552 truck crane is engineered for high-efficiency lifting tasks in demanding environments. With a maximum lifting capacity of 50 tons and a boom length of up to 45.5 meters, it delivers a broad operational range and powerful lifting performance. The crane is powered by the WP9H336E50 high-efficiency engine, offering excellent driving power and mobility. Enhanced with a 6-ton counterweight and a wide outrigger span, the ZTC500H552 ensures stable and safe operation under heavy load conditions. Its intelligent control systems, low-maintenance structure, and user-friendly interface make it ideal for a wide array of industrial and construction lifting operations.

Specification:

– Product Type: Hydraulic Truck Crane
– Brand: Zoomlion
– Model: ZTC500H552
– Rated Lifting Capacity: 50 tons
– Max. Boom Length: 45.5 meters
– Max. Jib Length: 15.5 meters
– Max. Lifting Moment: 1813 kN·m
– Counterweight: 6 tons
– Engine Model: WP9H336E50
– Drive Type: Likely 6×4 or 6×6 (depending on configuration)
– Max. Travel Speed: Approx. 85 km/h
– Gradeability: Approx. 40%
– Outrigger Span (L × W): Wide span for enhanced stability (dimensions not specified)
– Brake System: Dual-circuit air brake with auxiliary braking
– Transmission: Manual or automatic transmission (model-dependent)
– Suspension: Heavy-duty multi-leaf spring suspension
– Tires: 12.00R20 or equivalent
– Operator Cabin: Ergonomic closed cab with digital controls
– Control System: Electronic monitoring and load safety management system
– Safety Features: Overload limiter, boom angle warning, emergency shut-off, anti-overturn system
– Applications: Industrial lifting, construction, infrastructure installation
– Fuel Efficiency: Engineered for low fuel consumption and reduced emissions
– Maintenance: Easy access design with low maintenance cost
– Overall Dimensions (L × W × H): 14100 mm × 2650 mm × 3800 mm
