Zoomlion ZTC800V552 80-Ton Hydraulic Truck Crane

ReflowX SKU: REF-9345

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

China
Condition

Surplus
OEM

FC Machinery Equipment Co. Limited
Equipment code
Shipping Rate

Get Quotation Whatsapp

Short Description

The Zoomlion ZTC800V552 is a high-performance 80-ton truck crane equipped with a 49-meter main boom, 15-ton counterweight, and a robust WP12.357E50 engine. It delivers 3180 kN·m of lifting moment and superior lifting performance for heavy-duty applications.

Description

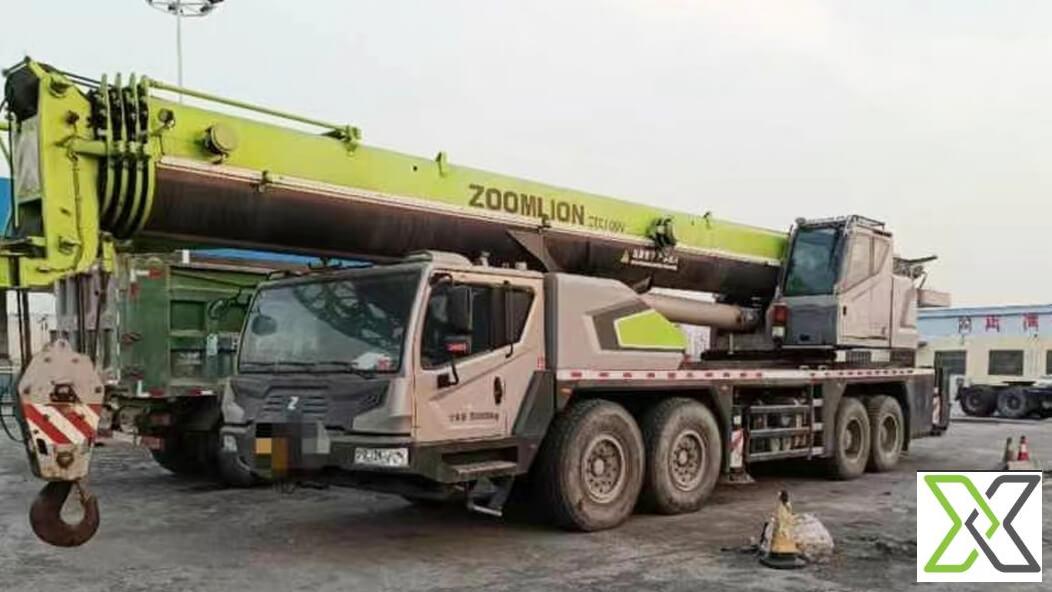

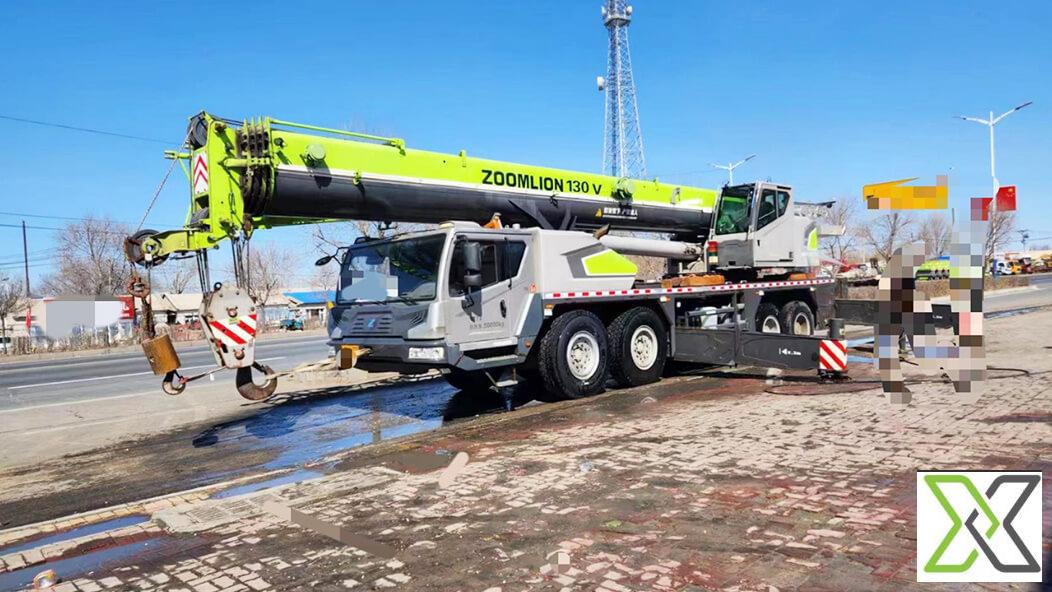

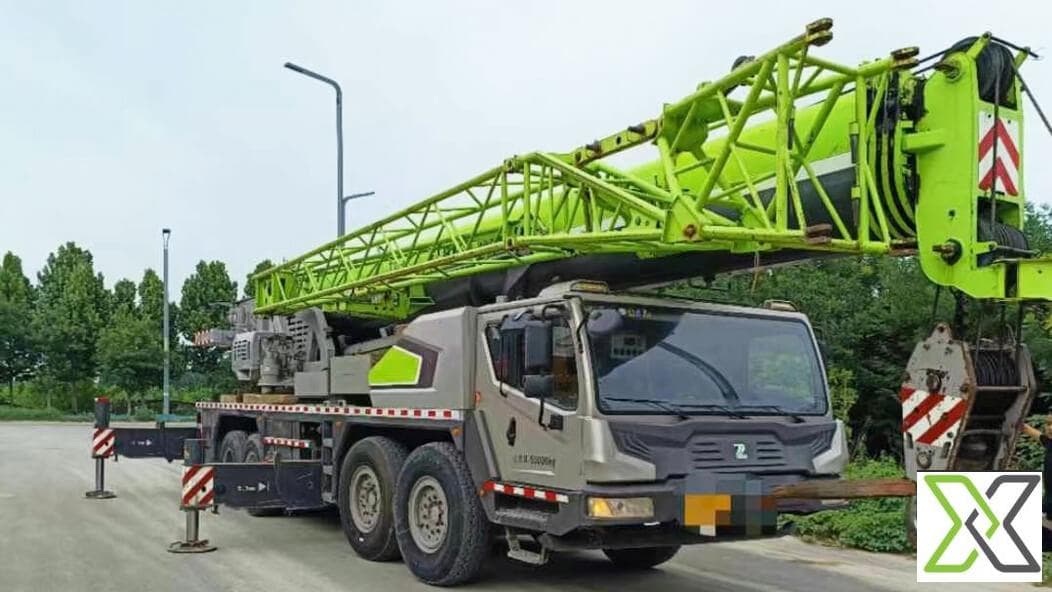

Zoomlion ZTC800V552 80-Ton Hydraulic Truck Crane
Description:

The Zoomlion ZTC800V552 is a premium-class 80-ton hydraulic truck crane engineered for high-load lifting, operational efficiency, and field durability. Built using high-grade structural components, this crane ensures long-term reliability even in the most demanding job sites.

Its 49-meter main boom offers outstanding reach and lifting height, while the 15-ton counterweight ensures stable and balanced lifting operations across various terrains. With a maximum lifting moment of 3180 kN·m, the crane delivers superior hoisting power, making it ideal for tasks such as bridge construction, wind turbine assembly, and large-scale industrial lifting.

The machine is powered by the Weichai WP12.357E50 engine, offering high torque and energy efficiency. Its advanced hydraulic system and intelligent control interface enhance safety, load management, and operator comfort. A well-designed operator cabin improves visibility and control with intuitive displays and ergonomic seating, reducing operator fatigue during long working hours.

The ZTC800V552 combines high performance with robust build quality, ensuring a long lifecycle and reduced maintenance downtime.

Specifications:

– Product Type: Hydraulic Truck Crane
– Brand: Zoomlion
– Model: ZTC800V552
– Rated Lifting Capacity: 80 tons
– Max. Boom Length: 49 meters
– Max. Jib Length: (Not specified; typical optional jib: 16–18 m)
– Max. Lifting Moment: 3180 kN·m
– Counterweight: 15 tons
– Engine Model: Weichai WP12.357E50
– Engine Power: Approx. 263 kW (357 HP)
– Transmission: Heavy-duty truck-grade gearbox
– Boom Sections: Likely 5-section U-shaped telescopic boom
– Outrigger Span: Estimated 7.4 m (based on class)
– Suspension: Reinforced for stability under load
– Control System: Intelligent control with electronic LMI and safety interlocks
– Travel Speed: Approx. 80–85 km/h
– Gradeability: Approx. 40–45%
– Crane Weight: Estimated 48,000–52,000 kg
– Overall Dimensions (L × W × H): 15,000 × 2850 × 3820 mm
– Applications: Industrial lifting, infrastructure works, petrochemical installations, port logistics, wind energy
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	ZTC800V552
Manufacturer Name	Zoomlion
Counterweight	15 tons
Max. Lifting Capacity	80T
Max. Boom Length	49m
Max. Lifting Moment(KN.m)	3180
Engine Model	Weichai WP12.357E50
Overall dimensions (length x width x height) (mm)	15,000 × 2850 × 3820 mm
