2000 HP KERUI DC Fast Moving Land Rig, Oman, YOM 2014

TECHNICAL OVERVIEW

Rating: 2000 HP

Hook load: 1,300,000 lbs @ 14 Lines

Drilling depth: 20,000 ft (6000 m)

Year of Manufacture: 2014

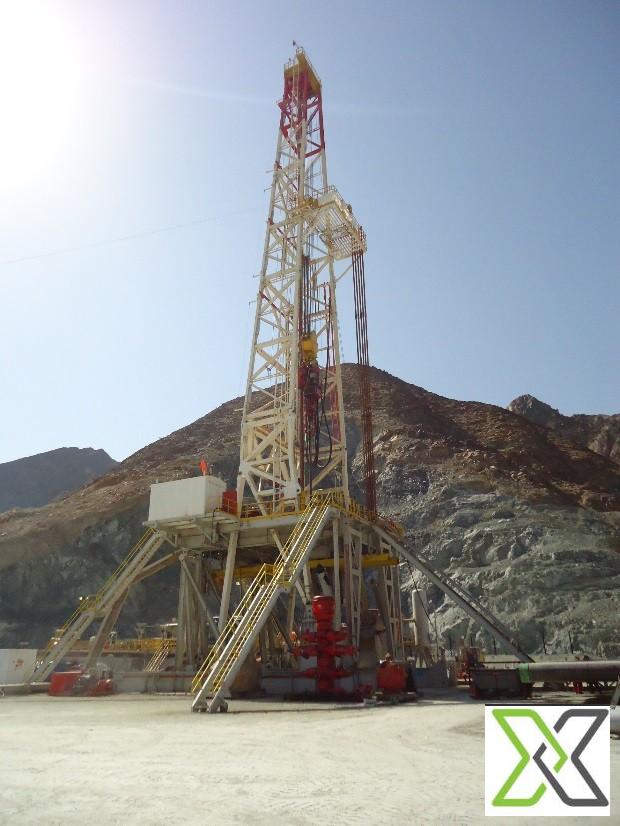

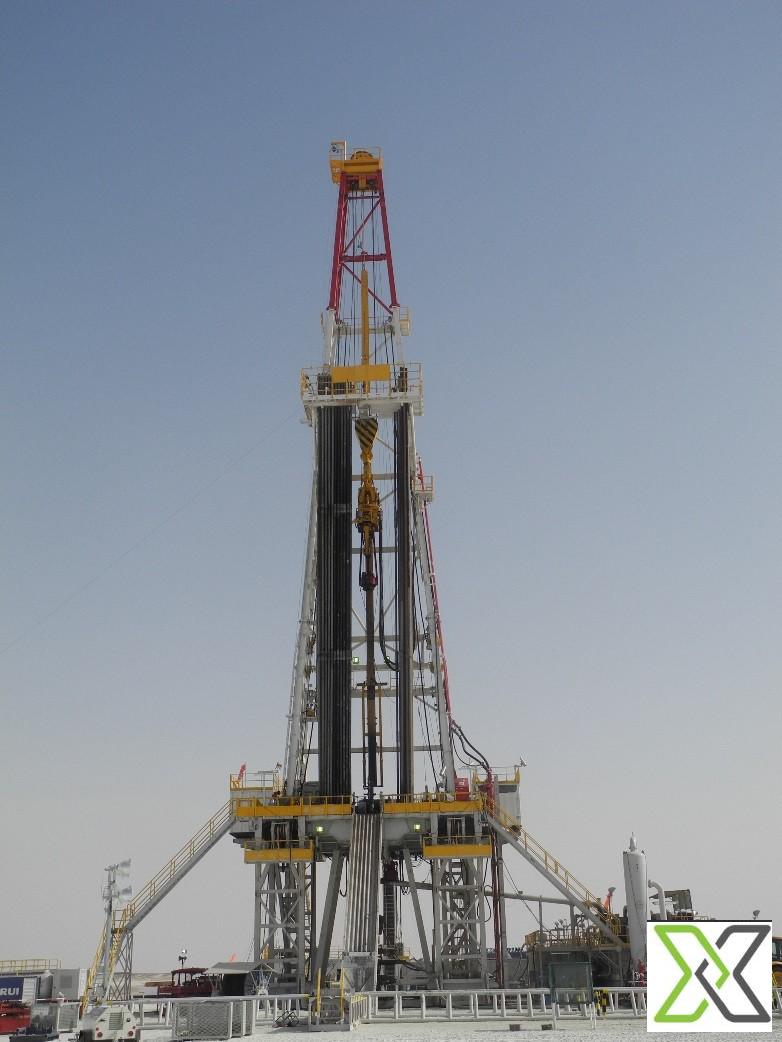

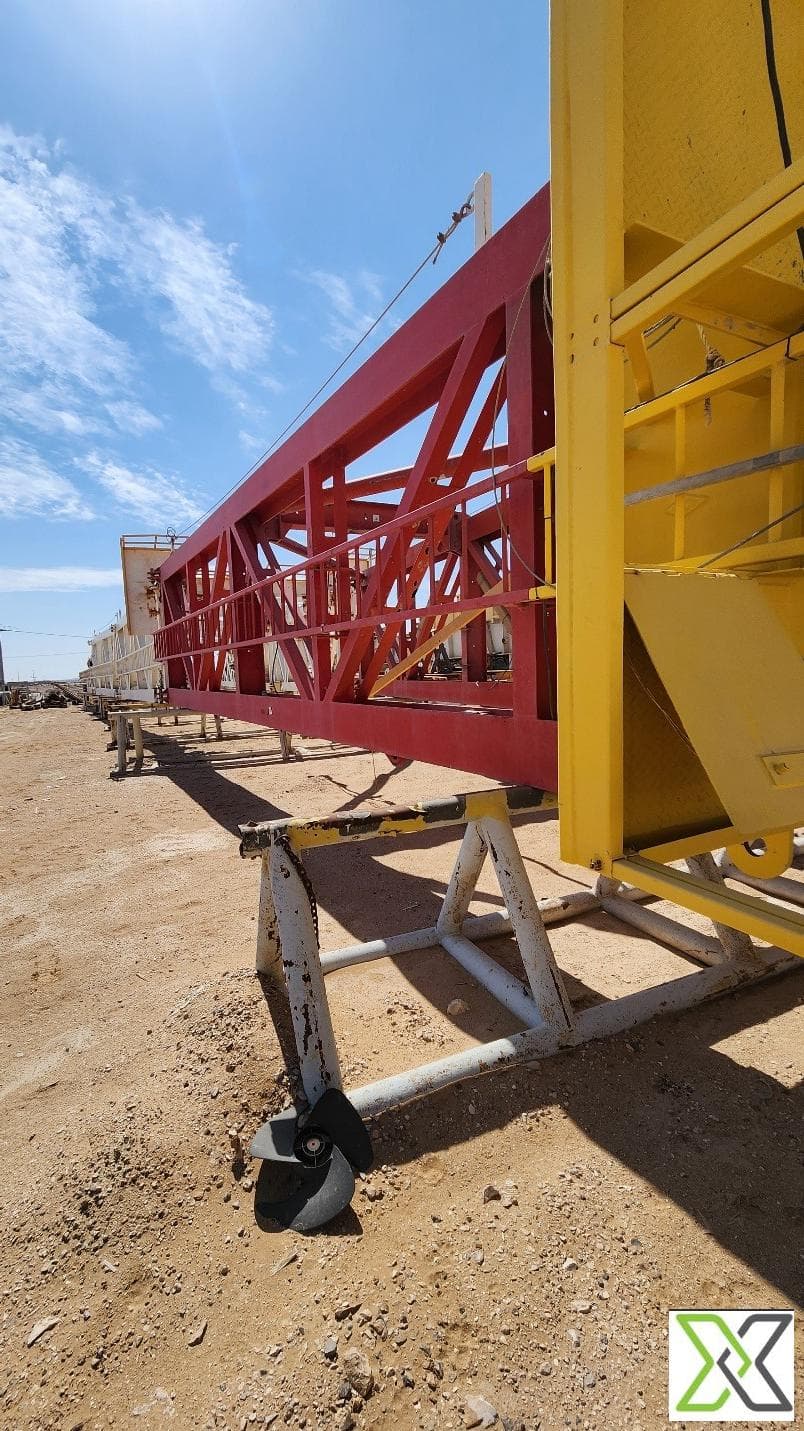

MAST

Type: Kerui, Cantilever

Height: 152 ft

Static Hook Load (14 lines): 1,300,000 lbs

Static Hook Load (12 lines): 1,000,000 lbs

SUBSTRUCTURE

Type: Kerui, Self elevating

Height: 34 ft

Casing load: 1,300.000 lbs

Setback load: 800,000 lbs

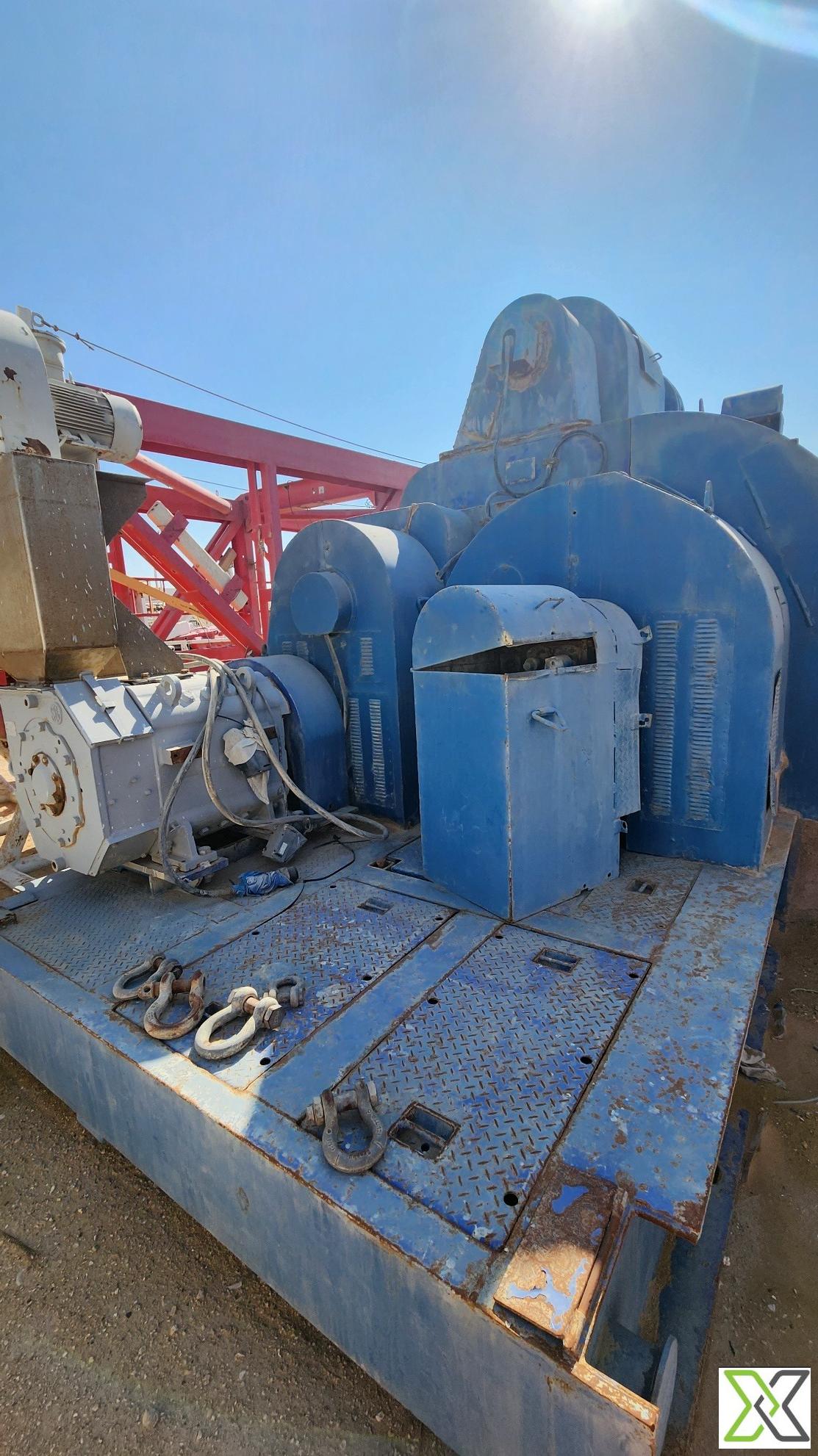

DRAWWORKS

Type: Kerui, Electric DC

Horsepower rating: 2,000 HP

Max line pull: 1,000,000 lbs with 12 lines

Drilling line diameter: 1-1/2”

Auxiliary brake: Baylor Eddy Current Model 7838

TOP DRIVE

Type: TDS NOV-11SA

Capacity: 444,840 daN

Torque: 5084 daN.m

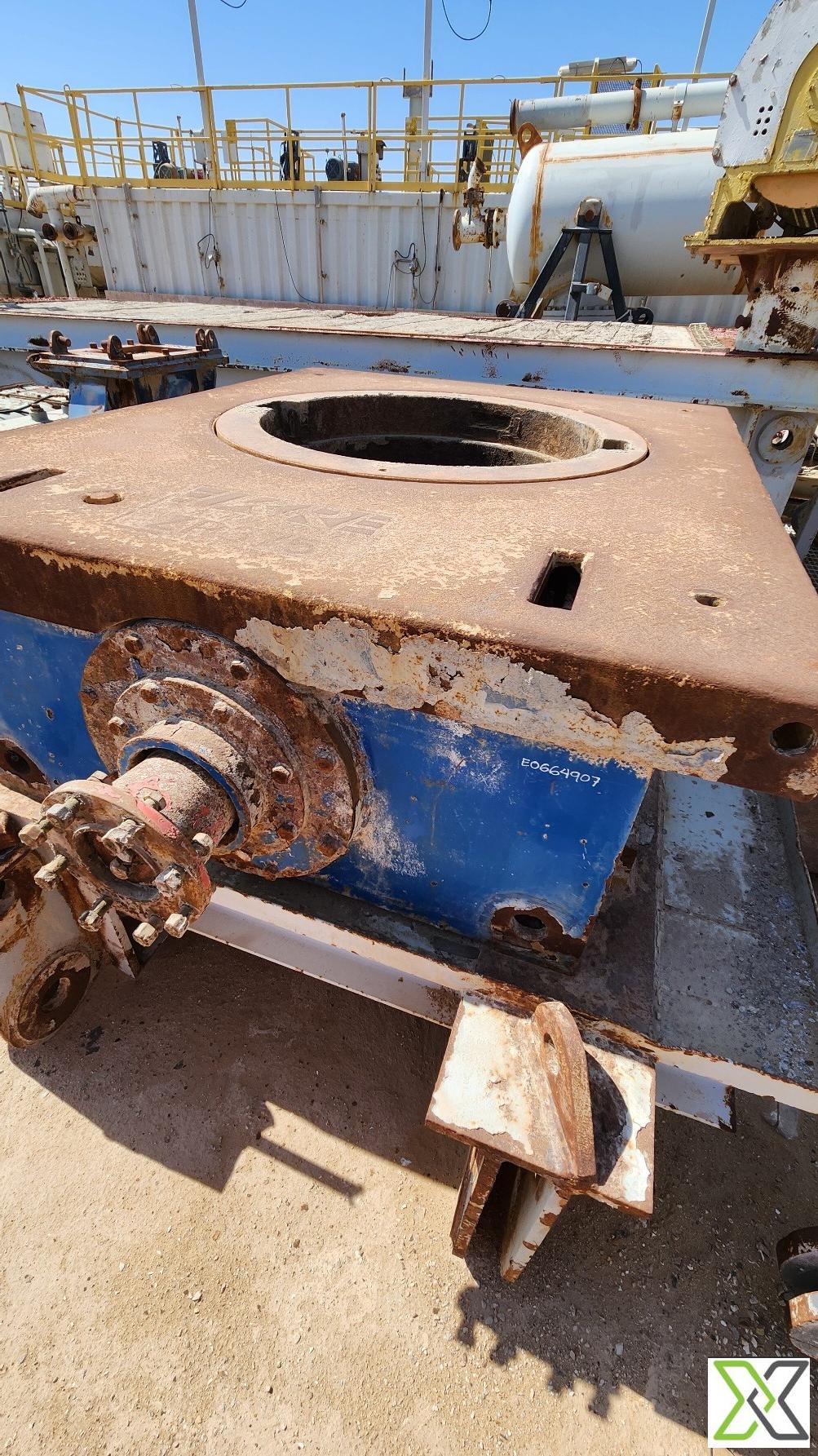

ROTARY TABLE

Type: Kerui ZP-375

Opening: 37 ½”

DRIVE GROUP

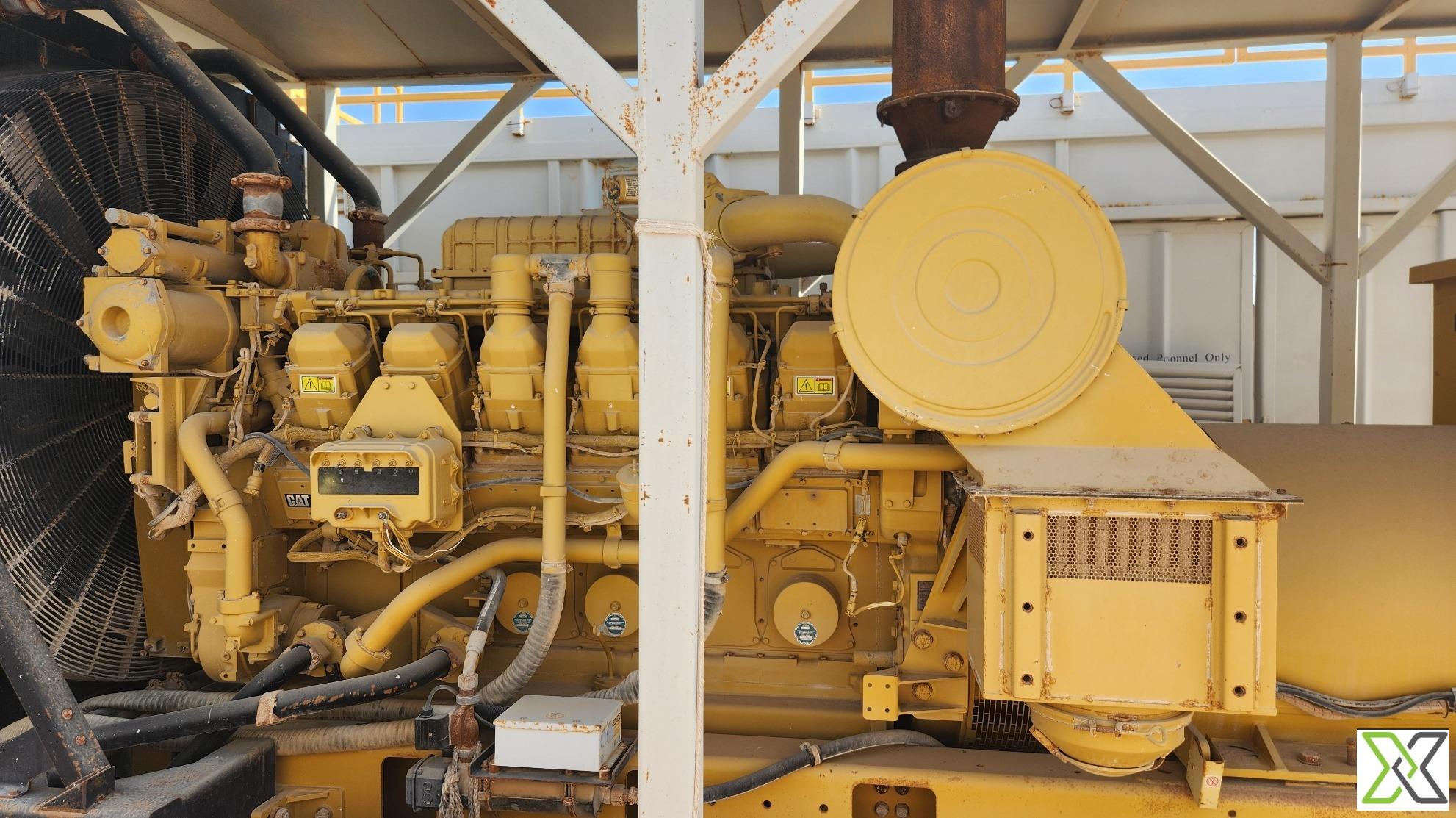

Engine type: Cat 3512B

Horsepower rating: 5 x 1476 HP

Generator type: Caterpillar SR4B

Generator rating: 4 x 1101 kW

Voltage: 600V, 60 Hz

Control Unit: SCR Ross Hill

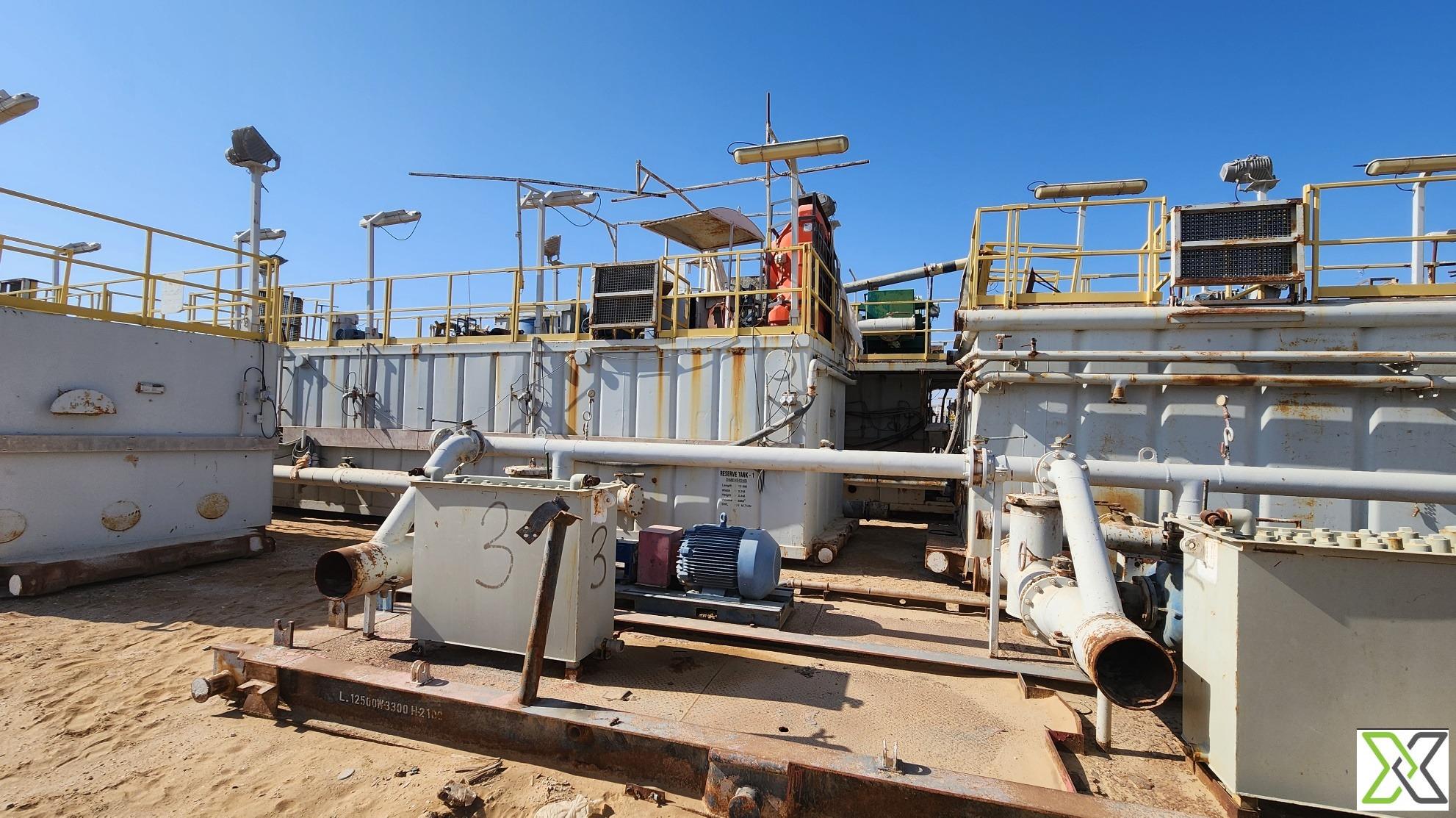

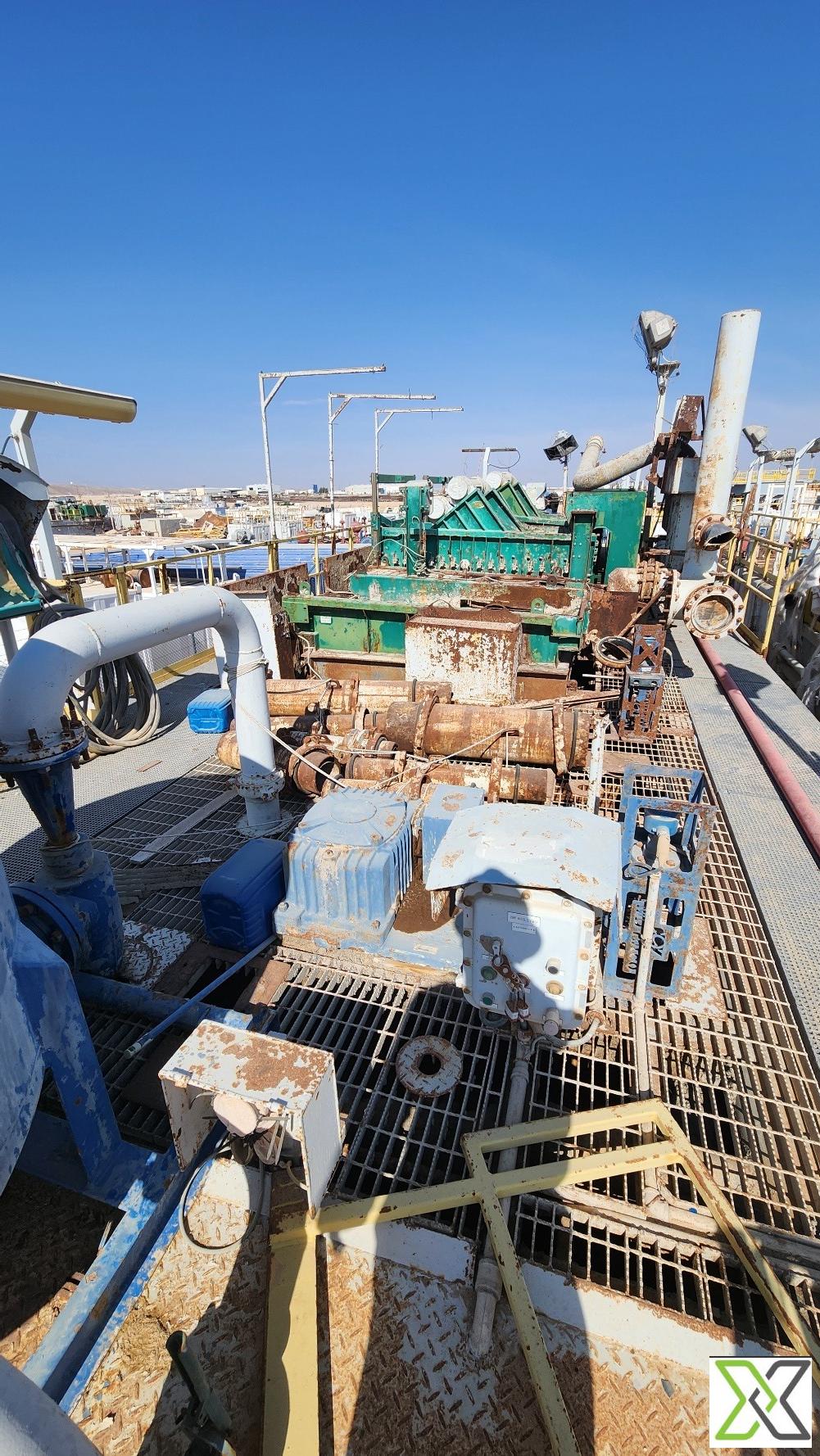

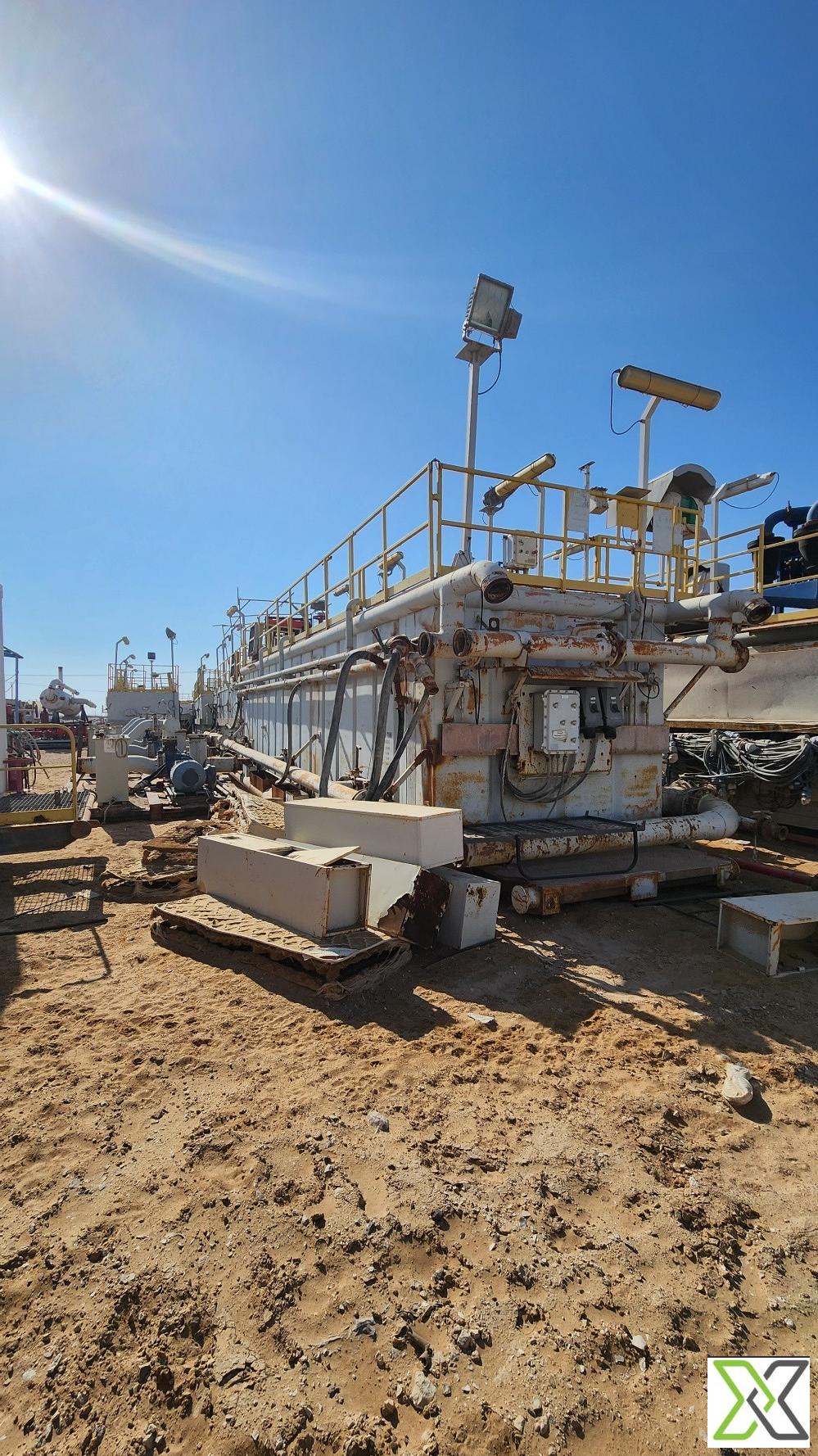

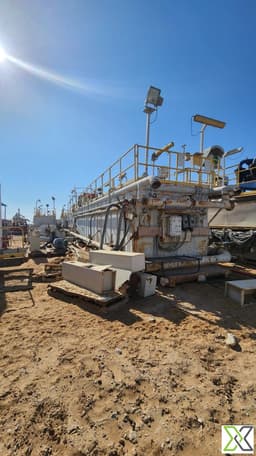

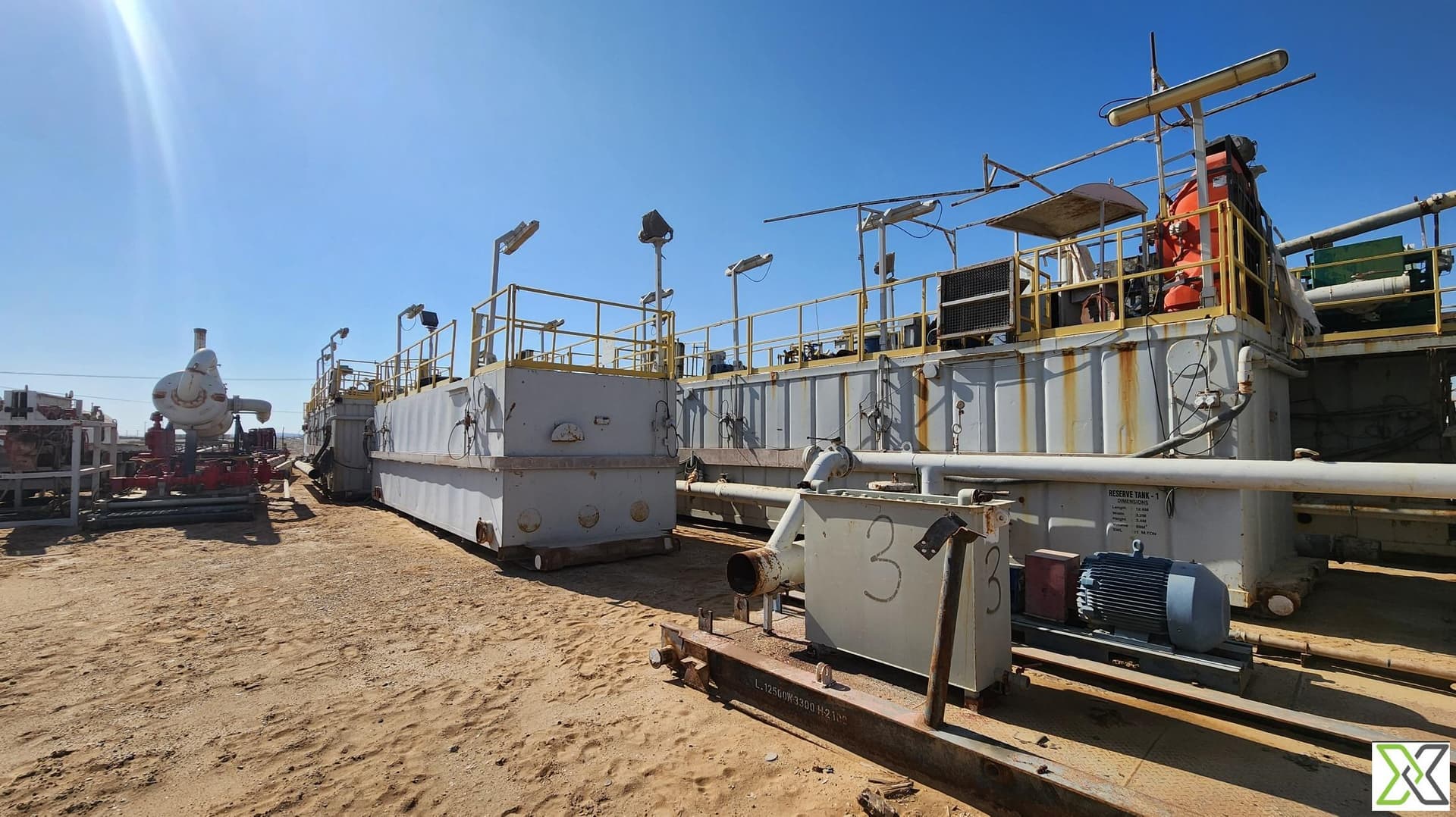

MUD SYSTEM

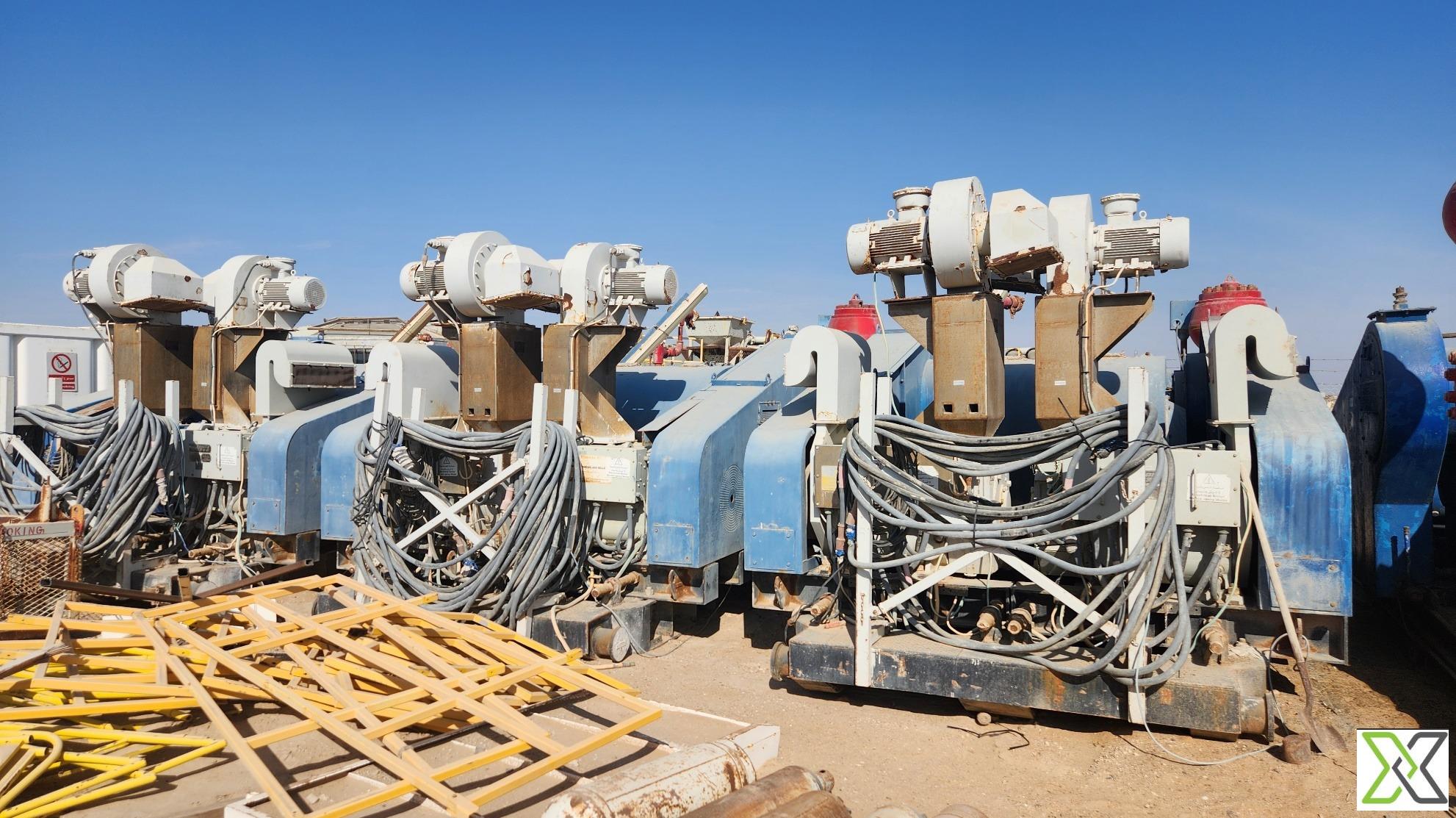

Pump type: 3 x LS China F-1600L Triplex

Horsepower rating: 3 x 1600 HP

Standpipe pressure: 5000 psi

Shale shaker: 3 ea.

Shale shaker type: Derrick Flow, Linear

Active mud system: 1600 bbl

Reserve mud system: 1000 bbl

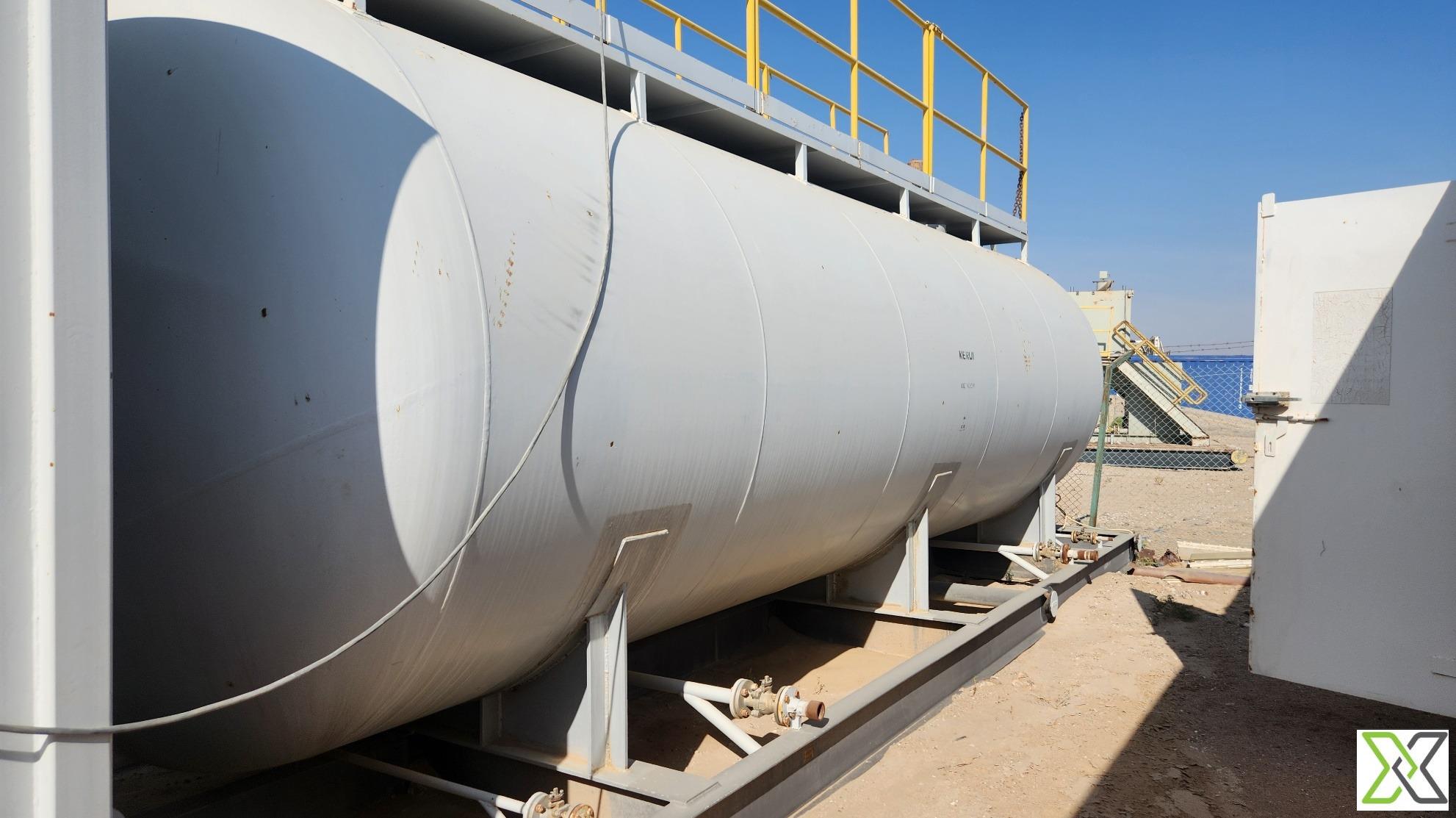

Water Tanks: 1300 bbl

ADDITIONAL EQUIPMENT

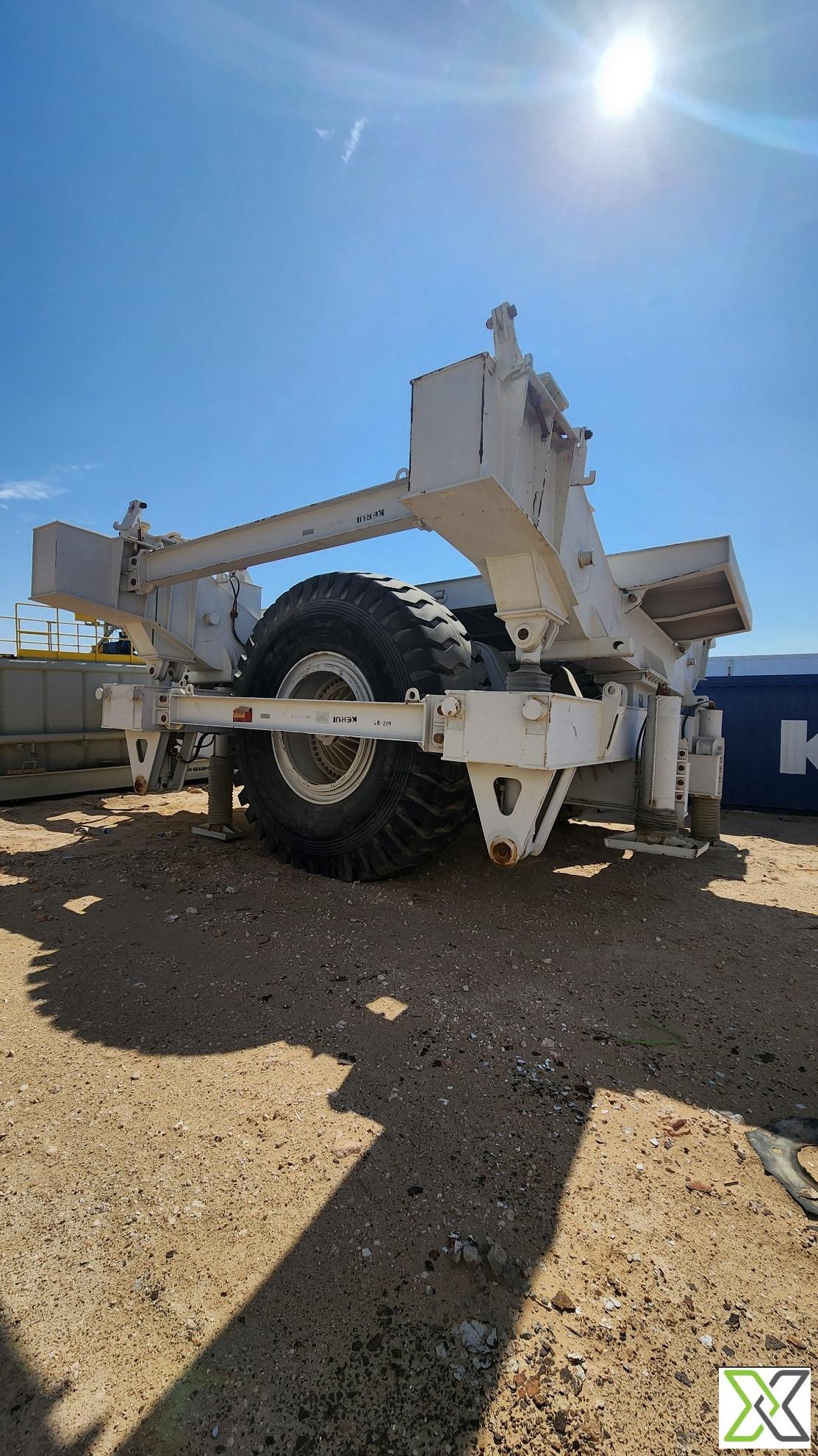

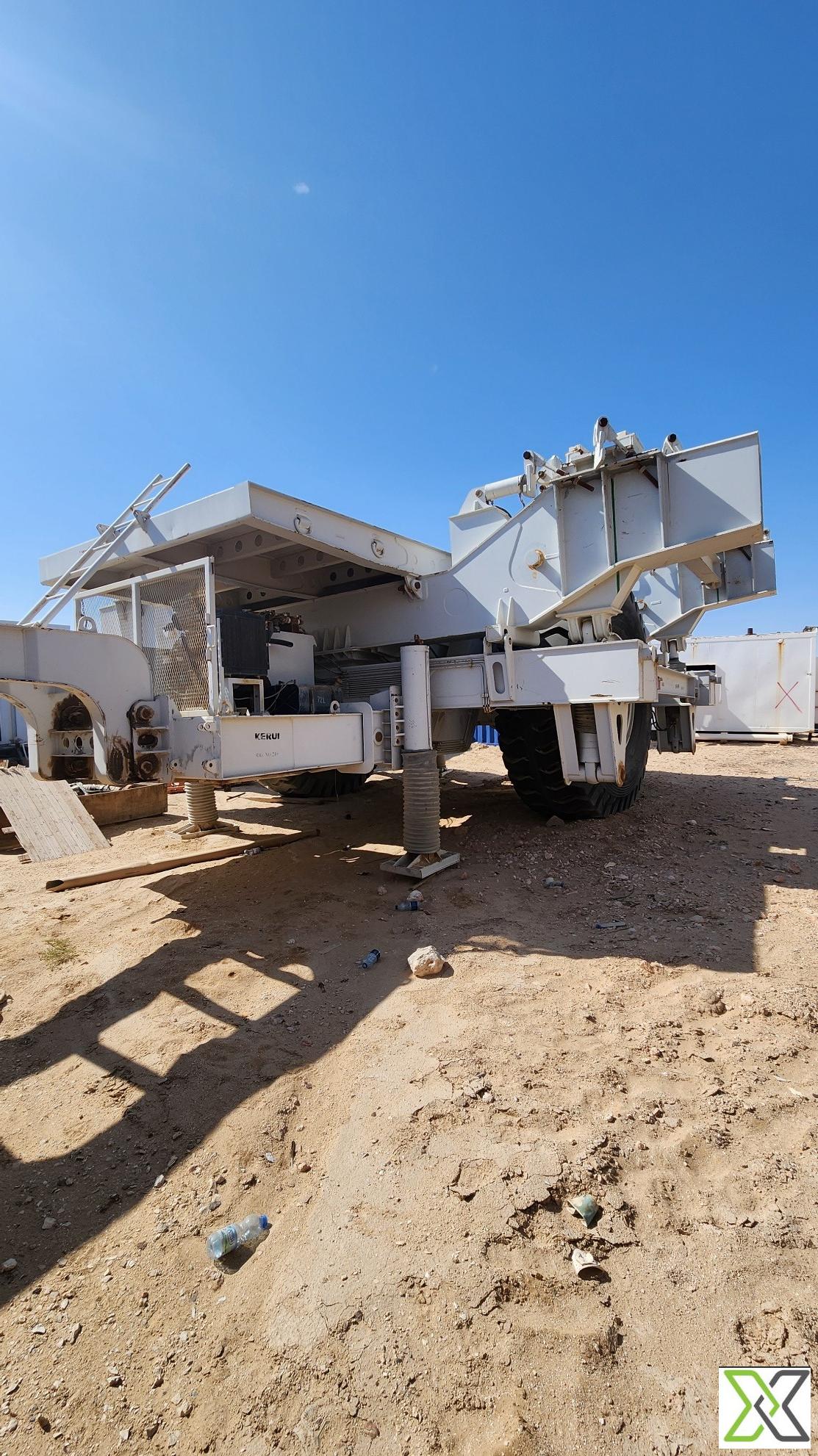

Dolly and wheels for mast and substructure

Anti-Collision System

CCTV Camera

KEMS


Last CAT IV in 2019

Stacked since Dec 2020

BOP, rig camp, tubulars, handling tools and other auxiliary equipment are not included.

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Oman
