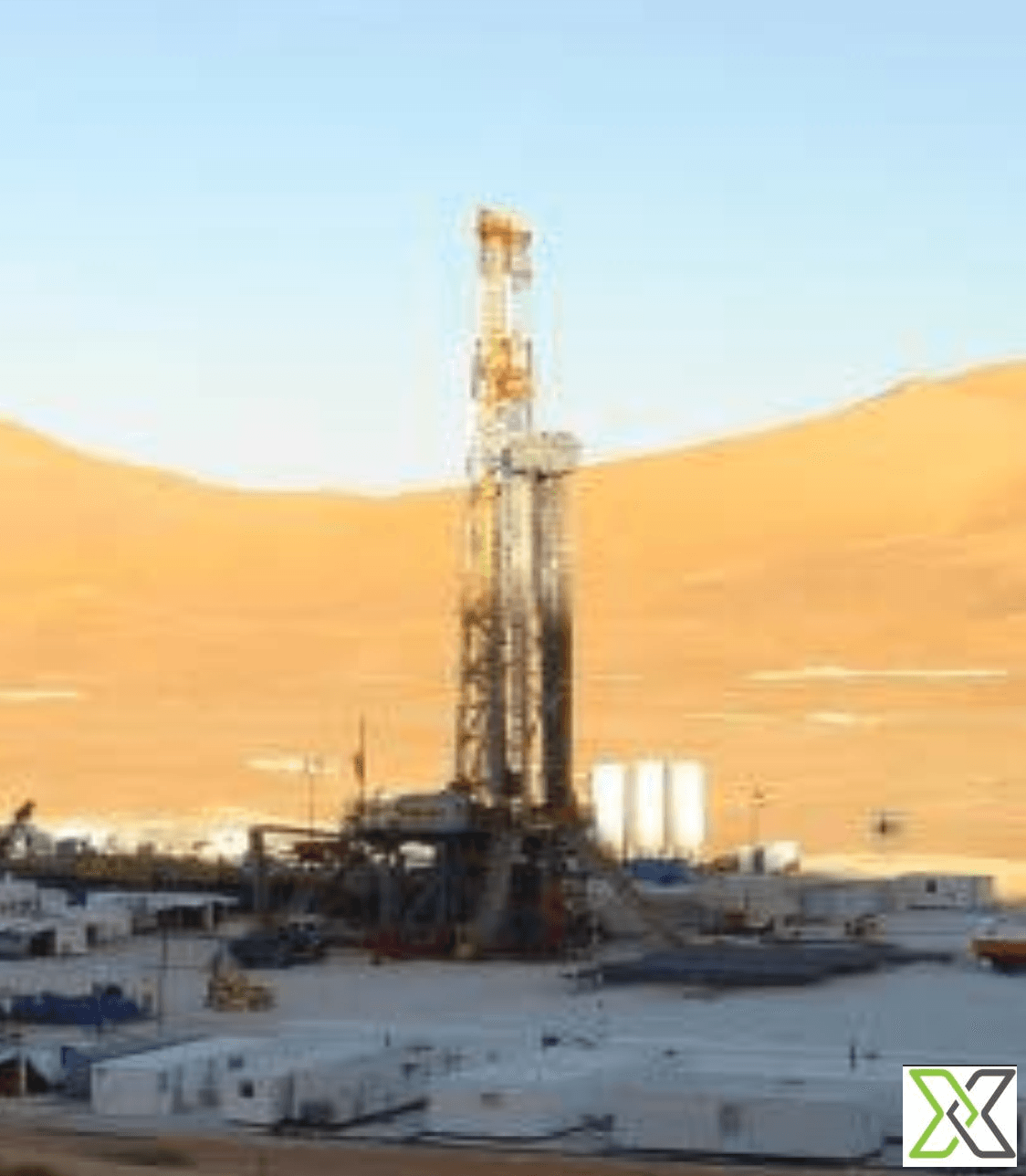

TECHNICAL OVERVIEW

Rating: 1500 HP

Hook load: 1,000,000 lbs

Drilling depth: 16,500 ft

Year of construction: 1979

MAST

Maker & Model: Lee C. Moore cantilever type

Height: 141 ft

Static Hook Load Capacity: 1,000,000 lbs

Suitable for: Triple stand range 2 drill pipes

SUBSTRUCTURE

Maker & Model: Lee C. Moore swing lift

Height: 30 ft

Rotary Capacity: 1,000.000 lbs

Setback Capacity: 500,000 lbs

Clearance: 22 ft Ground to Rotary Beam

DRAWWORKS

Maker & Model: National 110UE

Rated input power: 1,500 HP

Drum brake type: Band

Auxiliary brake: Baylor Elmagco 6032

TOP DRIVE

Maker & Model: Canrig 1250-AC

Rated Load Capacity: 454 mt

Max. continuous output torque: 51,400 ft.lbs @ 120 rpm

ROTARY TABLE

Maker & Model: National C-375

Maximum Opening: 37 ½”

IRON ROUGHNECK

N/A

MUD PUMPS

Quantity: 3

Maker & Model:
IDECO T1600 x 1 ea.

National 12-P-160 x 1 ea.

National 10-P-130 x 1 ea.

Rated input power: 1,600 HP x 2 + 1,300 HP

Working Pressure: 5000 psi

LOW PRESSURE MUD SYSTEM

Number of mud tanks: 8

Mud tanks total capacity: Approx. 4151 bbl

Water tanks total capacity: Approx. 1210 bbl

SHALE SHAKERS

Quantity: 4 + 1 (Mud Cleaner)

Maker & Model: 4 x Brandt King Cobra

Mud cleaner: 1 x MI Swaco

BOP

As per detailed specs

CHOKE MANIFOLD

As per detailed specs

ELECTRIC GENERATION SYSTEM

Engine type: Caterpillar D399

Horsepower Rating: 5 x 1,250 HP

Control Unit: SCR, Bentec PCR

CAMP

Mini Camp: available

Main Camp: available, approx. 100 people capacity

Stacked since mid 2019

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Morocco
