TECHNICAL OVERVIEW

Rating: 2000 HP

Hook load: 1,000,000 lbs @ 12 Lines

Drilling depth: 20,000 ft

Year of construction: 1986

Refurbished in 2015

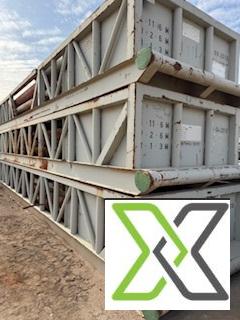

MAST

Type: Pyramid Cantilever

Height: 142 ft

Hook Load: 1,000,000 lbs

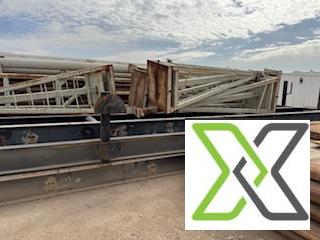

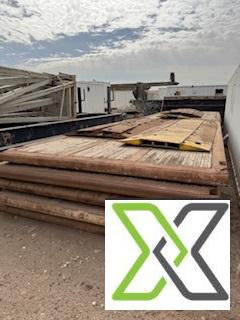

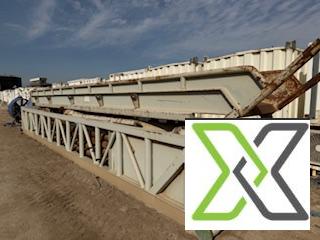

SUBSTRUCTURE

Type: Pyramid Swing-Up

Height: 31 ft incl. 5 ft pony base (9.5 m)
Clear Height: 25 ft 6 in (7.8 m)

Casing load: 1,000,000 lbs

Setback load: 600,000 lbs

DRAWWORKS

Type: National 1320-UE

Horsepower rating: 2,000 HP

Max line pull: 98,900 lbs

Drilling line diameter: 1-1/2”

Auxiliary brake: Elmagco 7838

TOP DRIVE

Type: Bentec TD-500-HT

Capacity: 1,000,000 lbs

Torque cont.: 46,000 ft-lbs

ROTARY TABLE

Type: National C-375

Table Opening: 37 ½”

IRON ROUGHNECK

Type: Blohm & Voss “Floorhand”

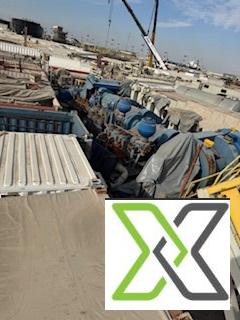

DRIVE GROUP

Engine type: Caterpillar 3512 B

Horsepower rating: 5 x 1476 HP

Generator type: Caterpillar SR4

Generator rating: 5 x 1500 kVA

Voltage: 600/440 V, 60 Hz

Control Unit: SCR, Ross Hill Model 1400

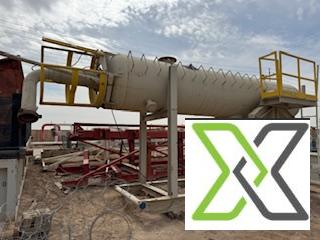

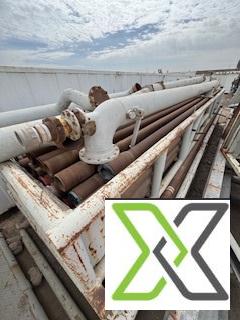

MUD SYSTEM

Pump type: 1 x National 12P-160, 2 x Gardner Denver PZ-11

Horsepower rating: 3 x 1600 HP

Standpipe pressure: 5000 psi

Shale shaker: 3 ea., King Cobra, Linear

Active mud system: 1890 bbl

Reserve mud system: 1410 bbl

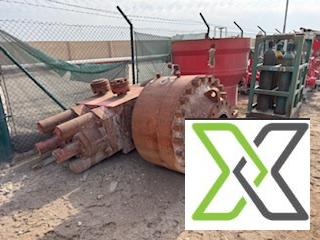

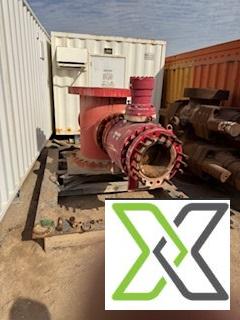

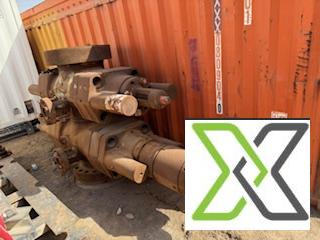

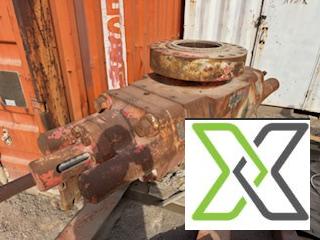

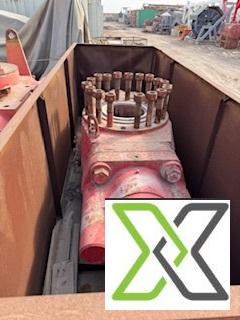

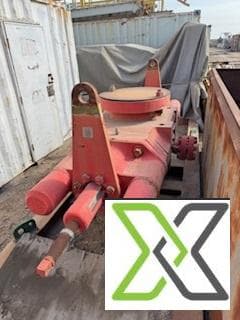

BOP EQUIPMENT

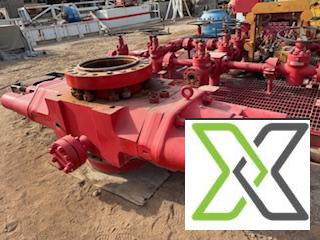

Diverter 29 ½”, 500 psi

Annular: 21 ¼” MSP, 2000 psi
Single Rams: 20 ¾” x 2ea., 3000 psi

Annular: 13 5/8”, 5000 psi

Double Rams: 13 5/8”, 10000 psi

Single Rams: 13 5/8”, 10000 psi

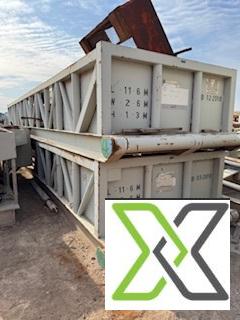

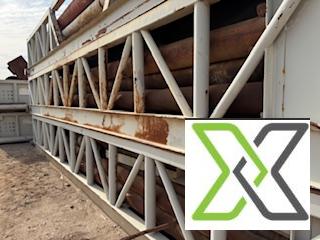

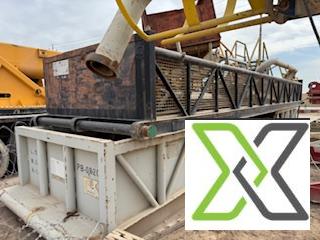

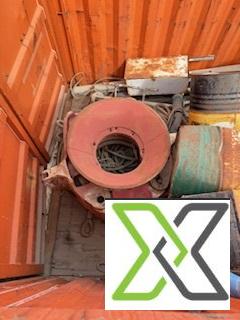

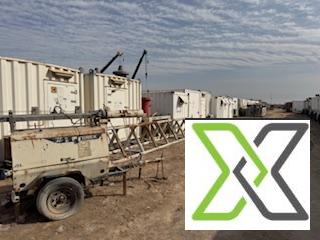

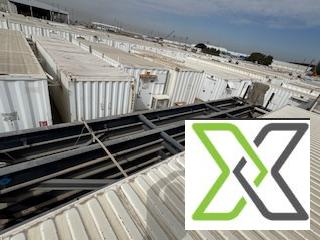

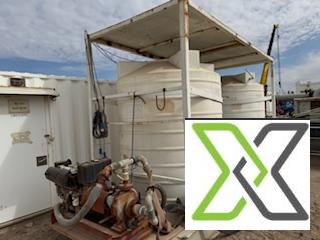

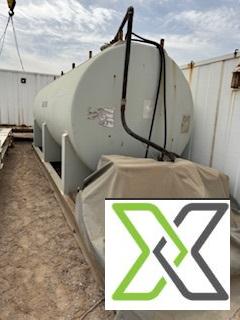

CAMP EQUIPMENT

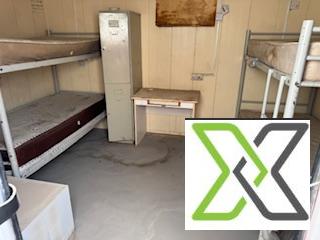

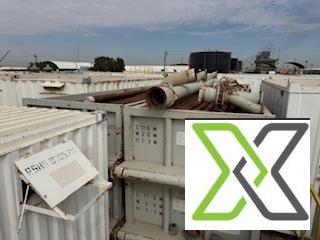

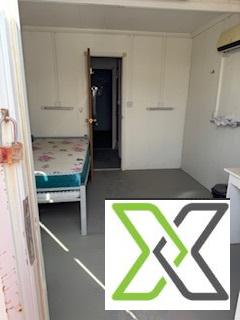

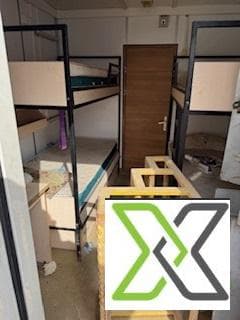

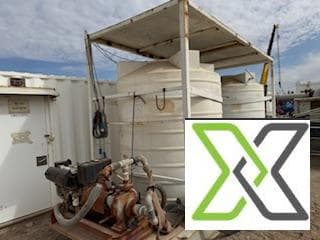

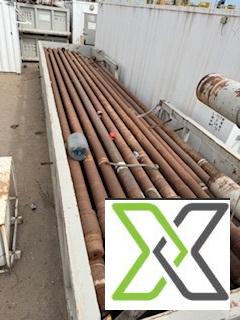

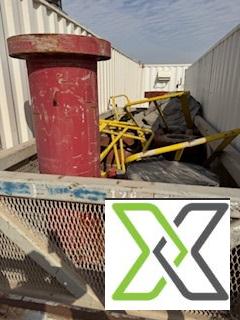

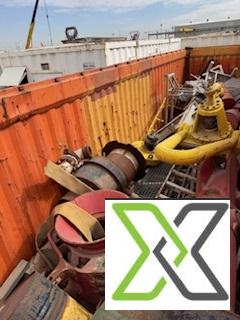

Full Rig and Base Camp

CAT IV structure due in 2024, hoisting - 2020

Stacked since July 2020

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Iraq
