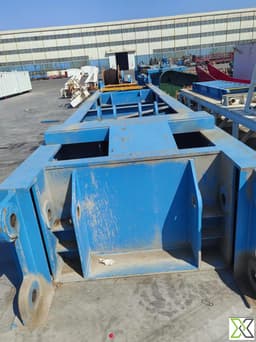

Thumbnail 23
Thumbnail 24
Thumbnail 25
Thumbnail 26
Thumbnail 27
Thumbnail 28
Thumbnail 29
Thumbnail 30

Description

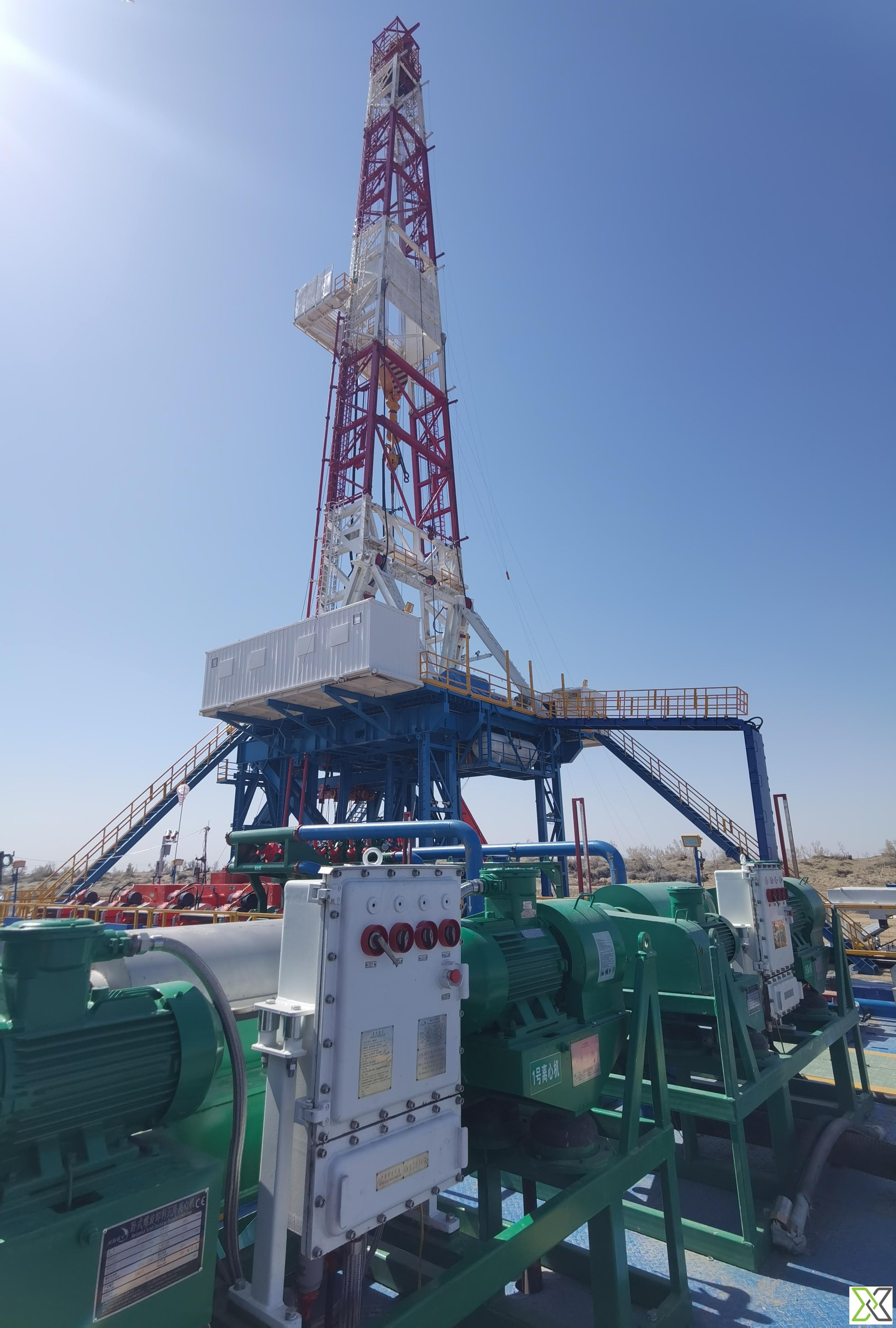

Land rig in excellent condition available for sale in China

TECHNICAL OVERVIEW

Rating: 2000 HP

Model: ZJ-70

Max hook load: 1,000,000 lbs

Year of Construction: 2021

MAST

Type: JJ450/45-K

Height: 45.5 m

Static Hook Load: 1,000,000 lbs

Setback capacity: 7000 m of 5” DP or 6000 m of 5.5” DP

API Spec 4F, API monogrammed
Manufacturer: CNPC CPLEC (LIAOHE)

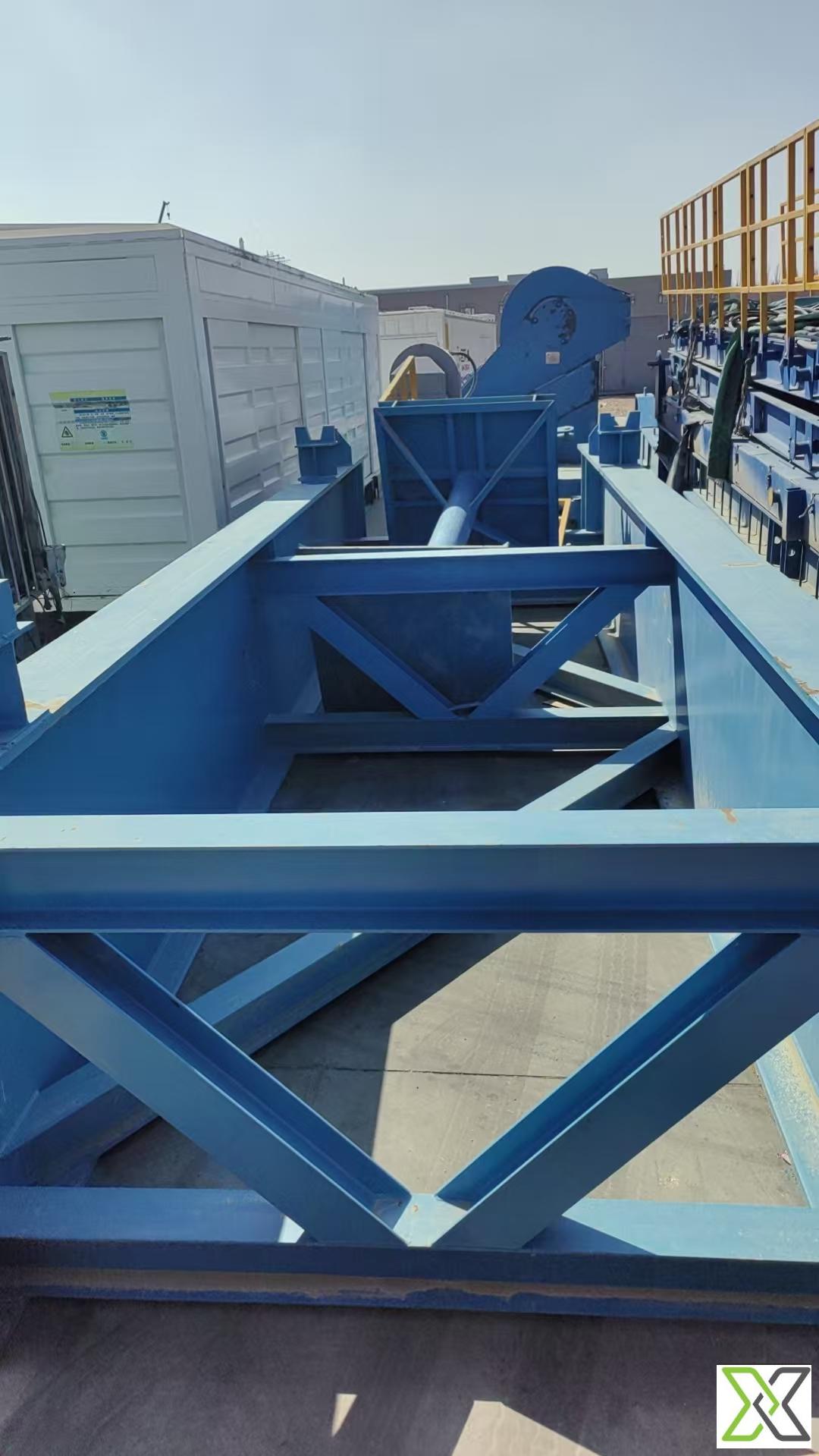

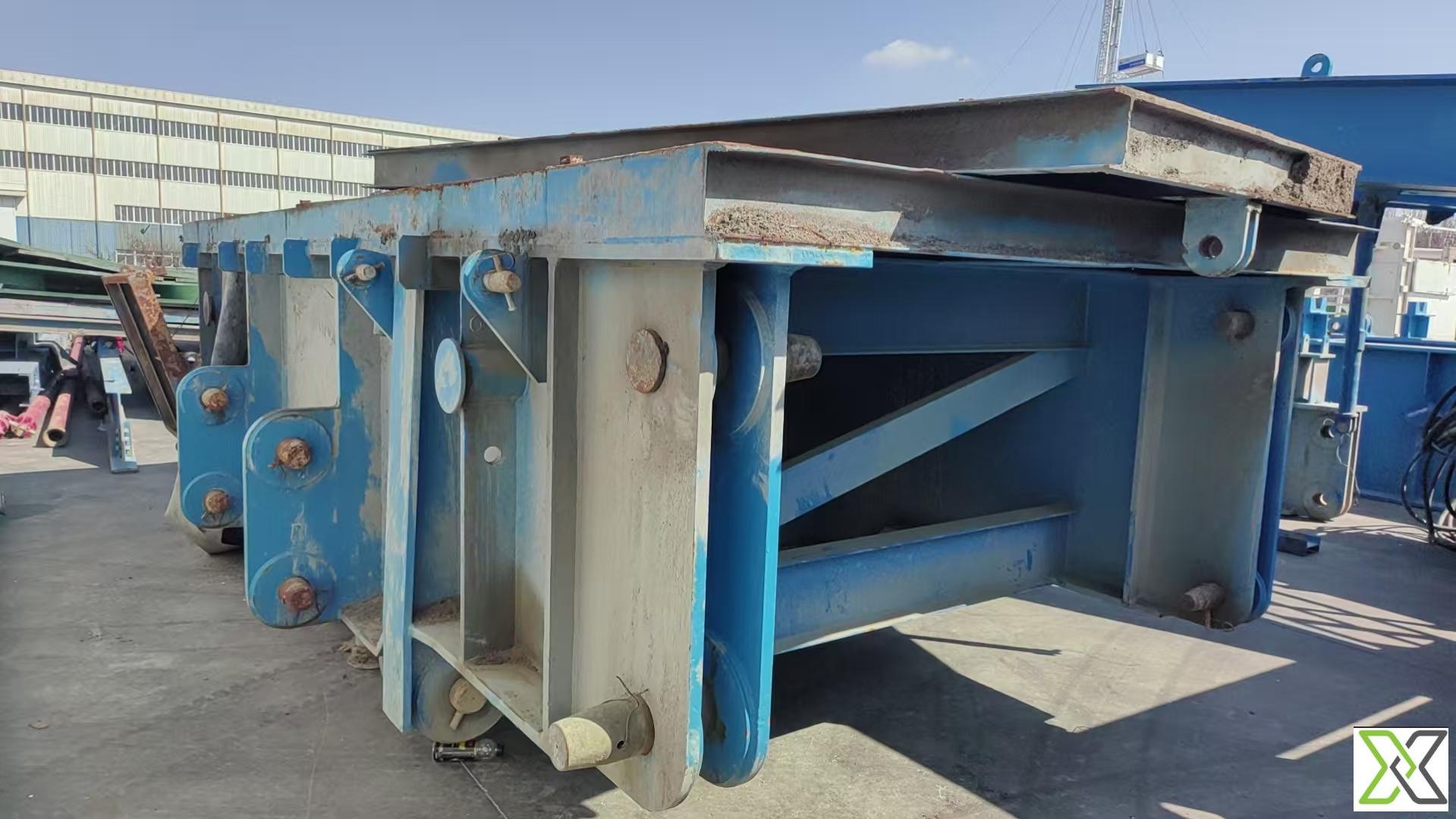

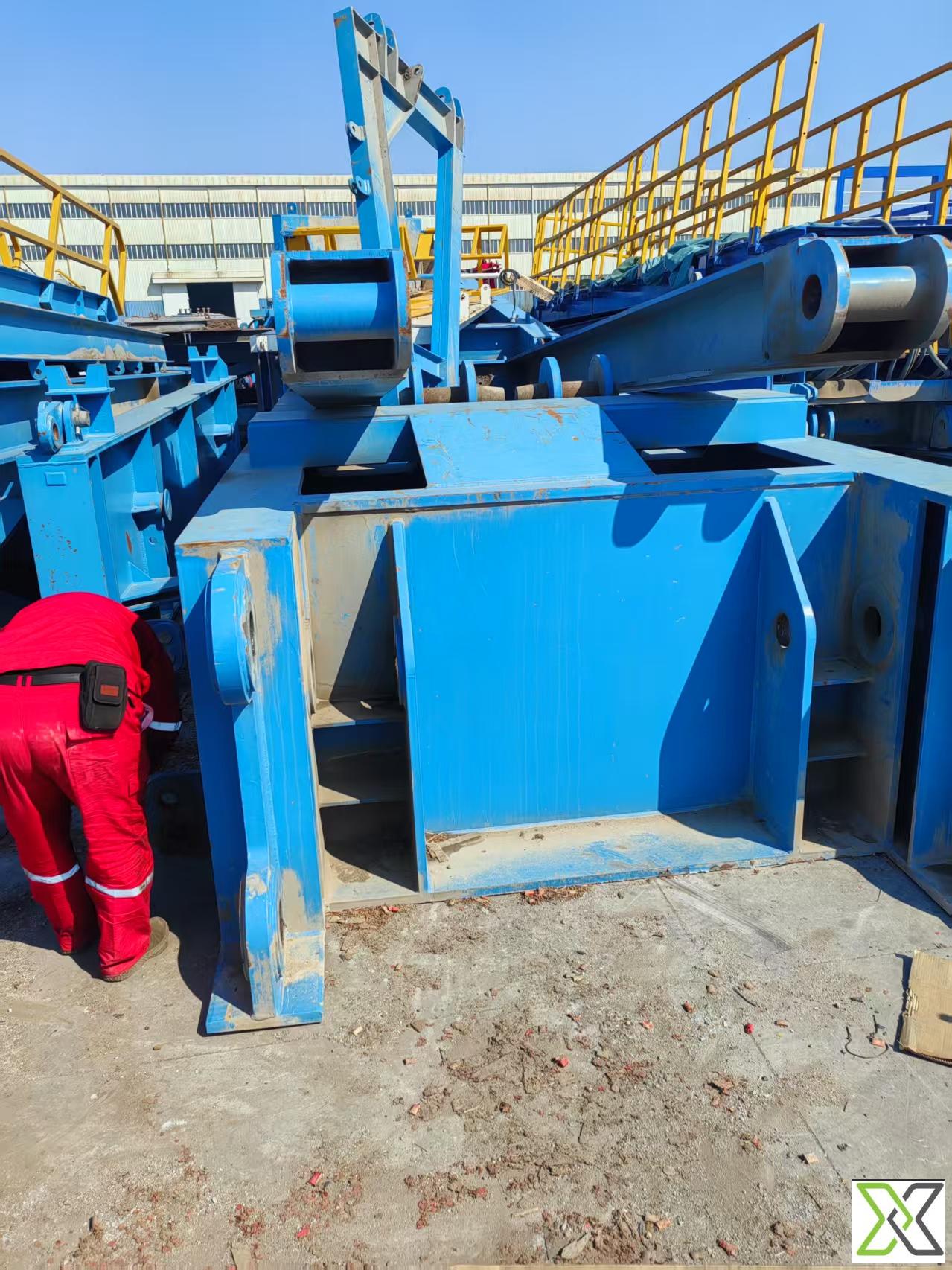

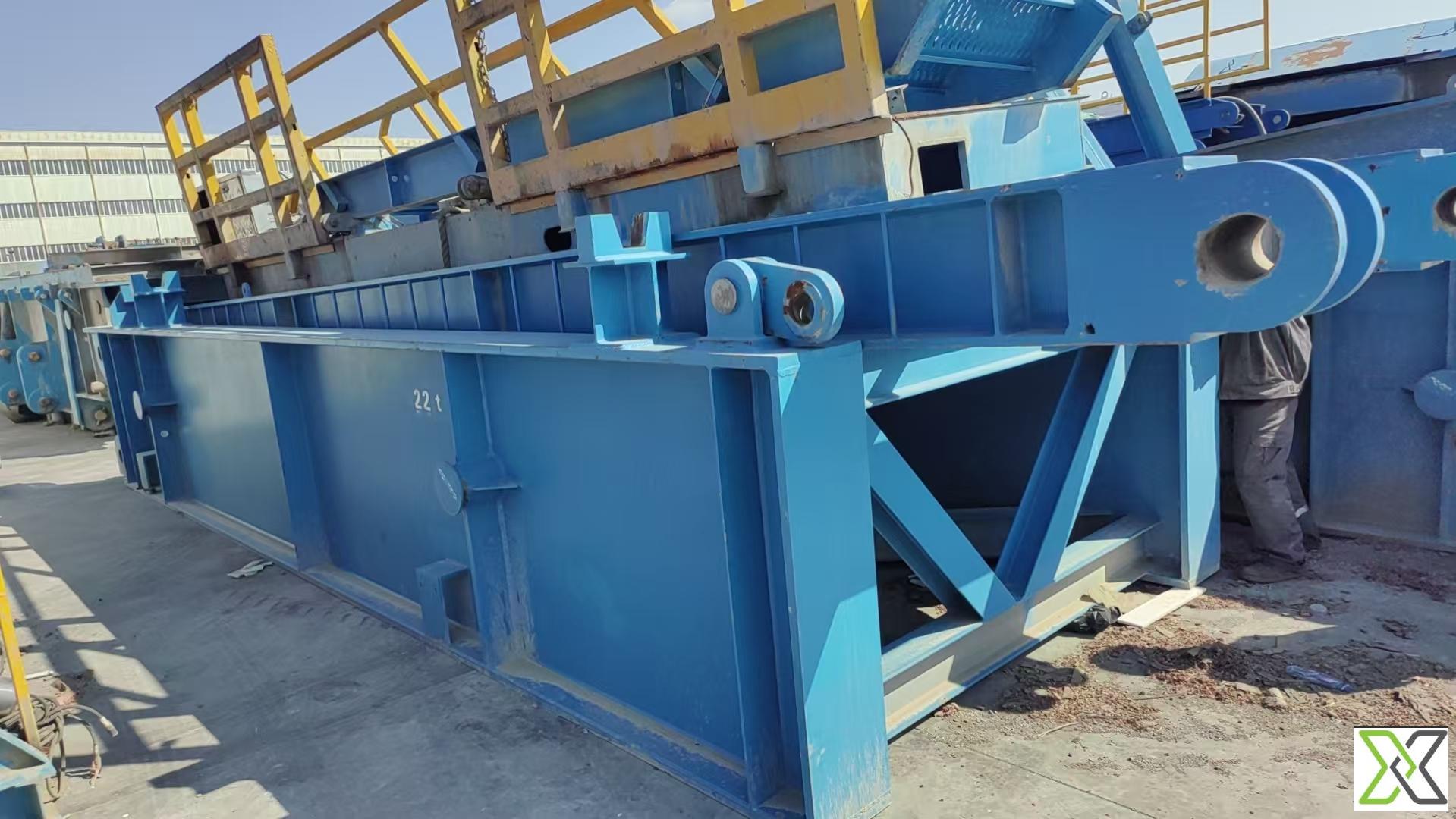

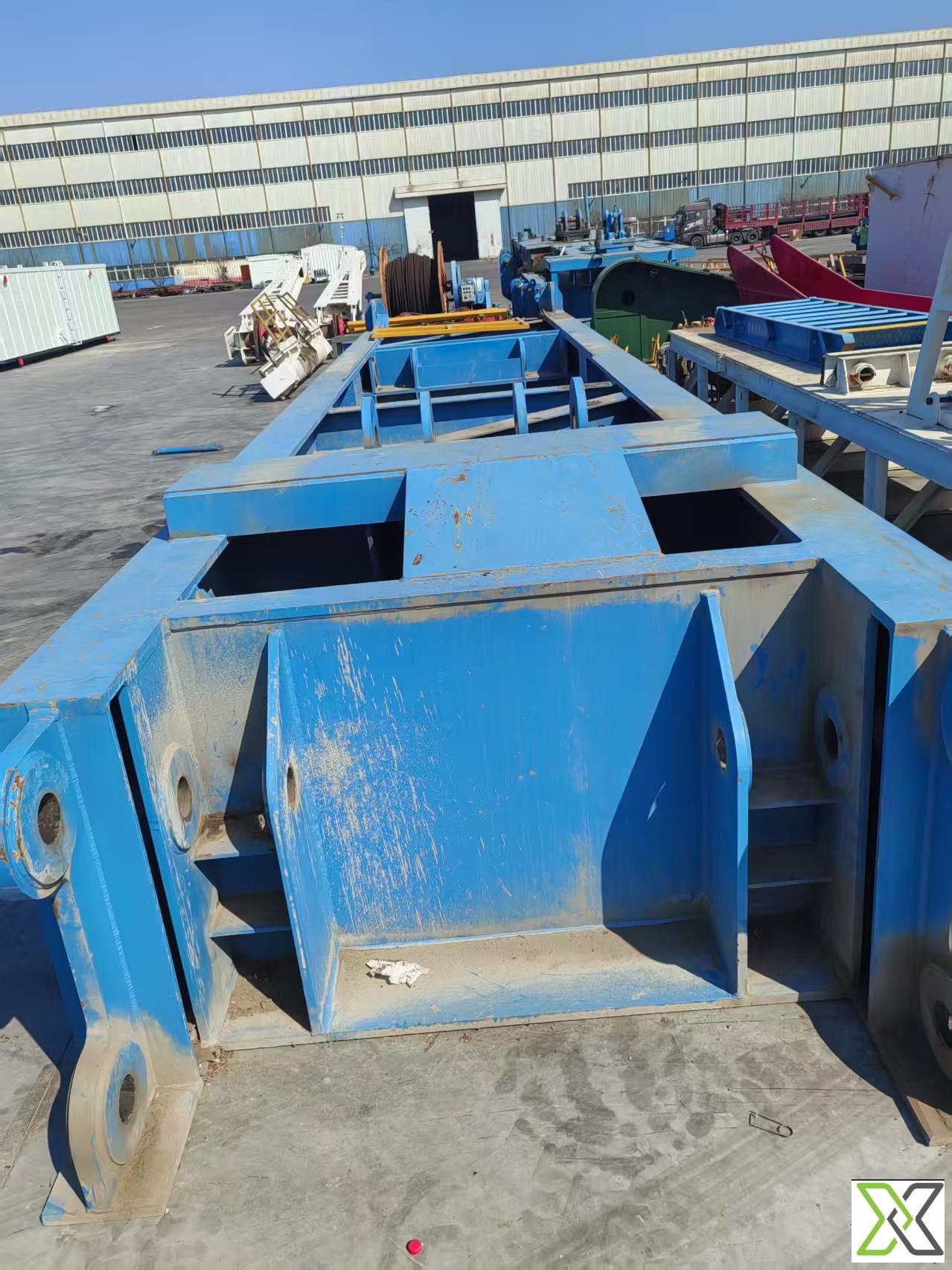

SUBSTRUCTURE

Type: DZ/450-10.5

Height: 10.5 m

Rig floor area: 12 m x 10.3 m

Max static load: 1,000.000 lbs

Setback load: 488,900 lbs

API Spec 4F, API monogrammed

Manufacturer: CNPC CPLEC (LIAOHE)

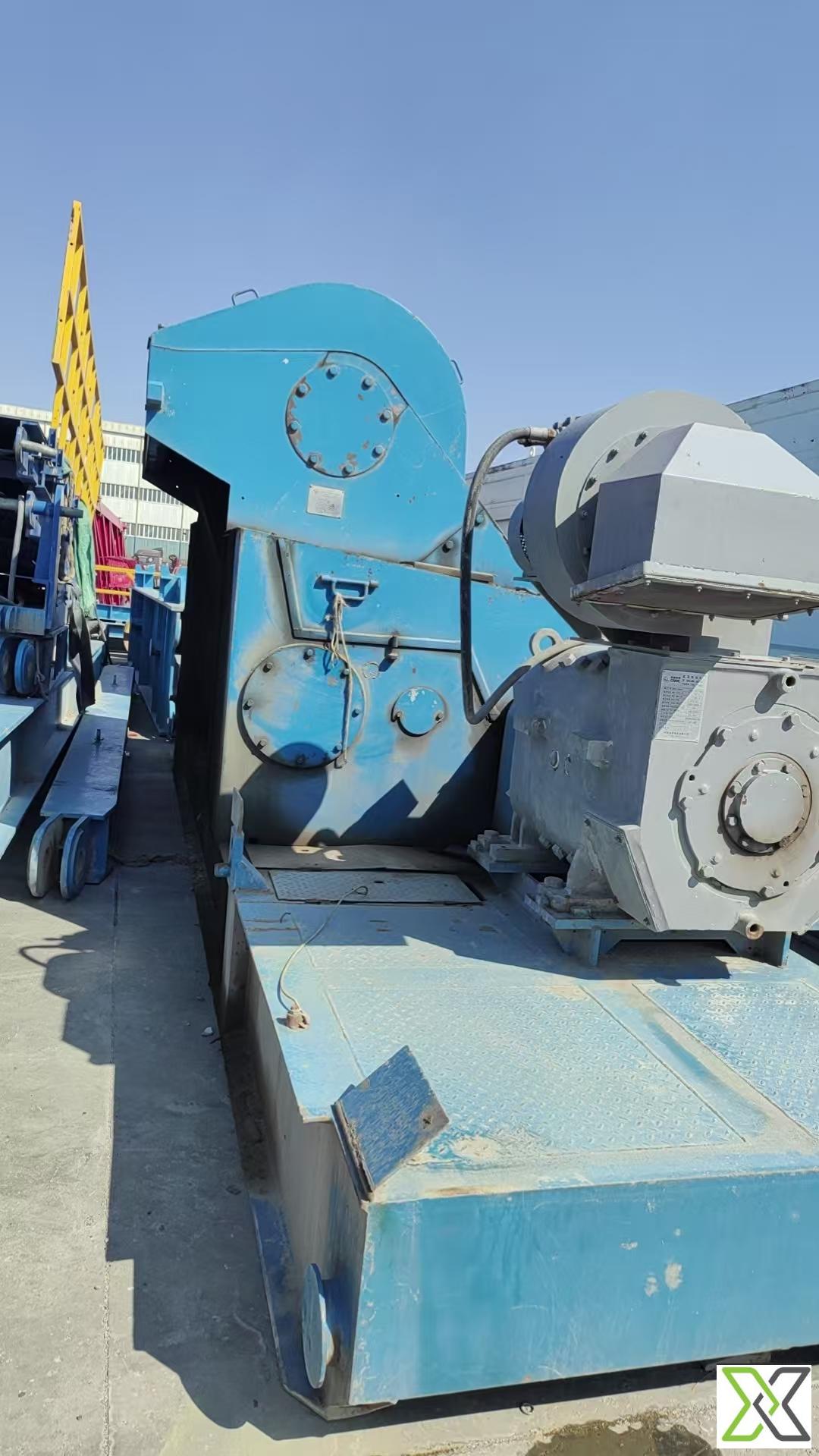

DRAWWORKS

Type: JC-70D, DC

Horsepower rating: 2,000 HP

Max line pull: 1,000,000 lbs with 12 lines

Drilling line diameter: 1-1/2”

Manufacturer: CNPC CPLEC (LIAOHE)

Auxiliary brake: water-cooled electromagnetic eddy current brake DWS70 (SHENTONG)

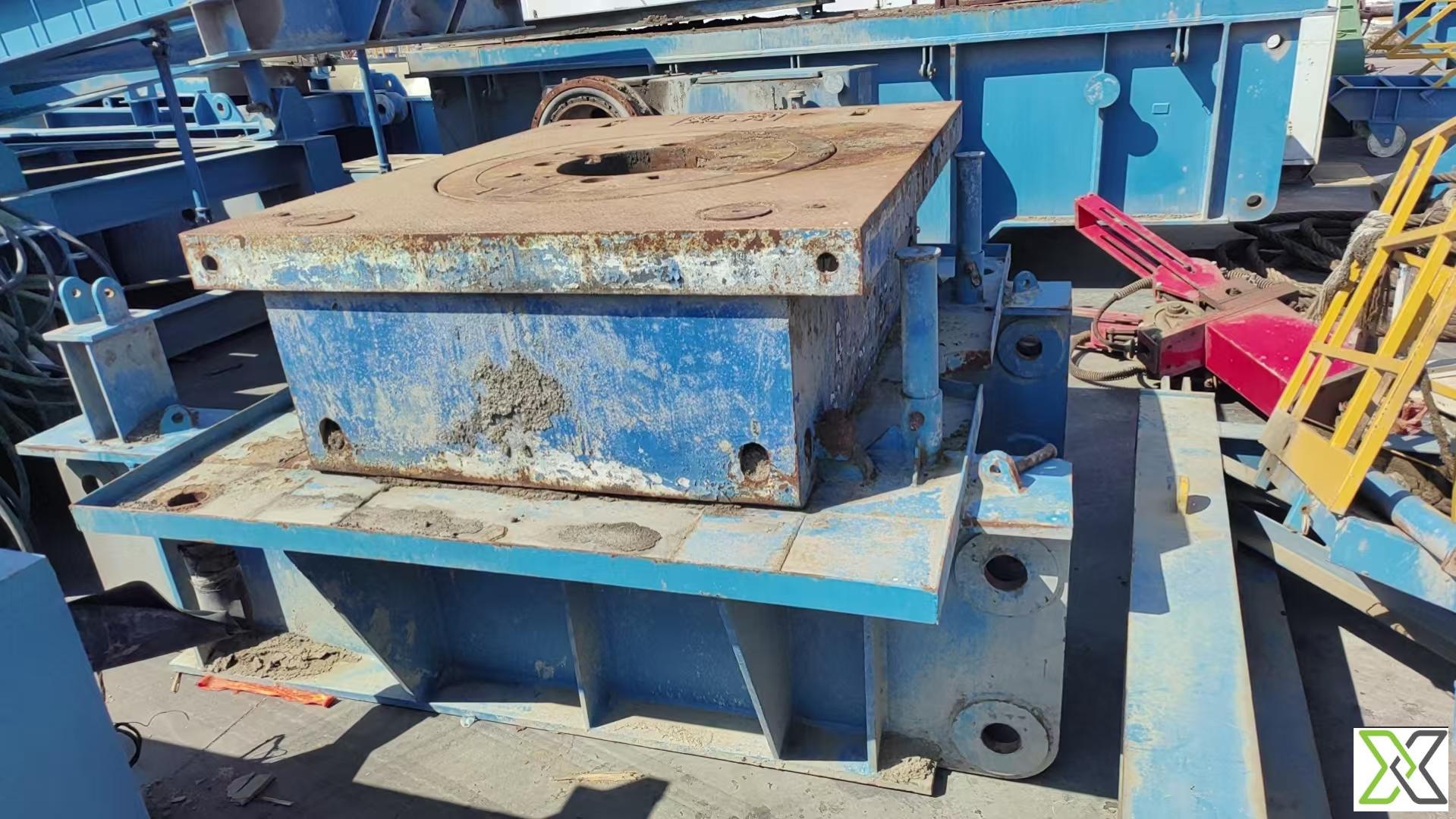

ROTARY TABLE

Type: ZP-375

Opening: 37 ½”

DRIVE GROUP

Main diesel generator set: 4 ea. x 1200KW Cummins KTA50-GS/ Stamford S7L1D-J4 (brand new)

Voltage: 600V, 50 Hz

Control Unit: SCR 70D (HEYU, brand new)

MUD SYSTEM AND SOLIDS CONTROL EQUIPMENT

Mud Pumps: 3 ea. x F-1600L Triplex (BOMCO/other, brand new)

Standpipe pressure: 5000 psi

Shale shaker: 3 ea. x Linear BZS584 (GUANNENG / XIBUSHIYOU, brand new)

Vacuum degasser: 1 ea. x BZCQ270 (GUANNENG / XIBUSHIYOU, brand new)

Desander: 1 ea. BZCS250-2S (GUANNENG / XIBUSHIYOU, brand new)

Desilter: 1 ea. x BZCN100-10N (GUANNENG / XIBUSHIYOU, brand new)

Intermediate speed centrifuge: 1 ea. x BZLW450-1000 (GUANNENG / XIBUSHIYOU, brand new)

High speed centrifuge: 1 ea. x BZLW355-1250 (GUANNENG / XIBUSHIYOU, brand new)

Mud tanks: 7 ea. x 12x3x2.4 m3 (HEYU, brand new)

RIG CAMP

60-person rig camp including Living Caravans, Canteen, Offices, Meeting room, etc. (brand new)



NOT EQUIPPED WITH

- Well Control / BOP Equipment

- Top Drive System

- Tubulars: Drill Pipes / HWDP / DC

- Pipe Handling Tools

The above items can be sourced in a prompt manner (subject to additional charges)



The complete detailed list of equipment is available for review by qualified buyers



Condition: LIKE NEW, with minimal use (only 2 wells drilled)

Delivery terms: EXW China

Technical Details

Model NumberZJ-70
Year of Manufacturing2021
Manufacturer NameCNPC CPLEC (LIAOHE)
