TECHNICAL OVERVIEW

Rating: 3000 HP

Hook load: 2,000,000 lbs

Drilling depth: 28,000 ft

Year of construction: 1984

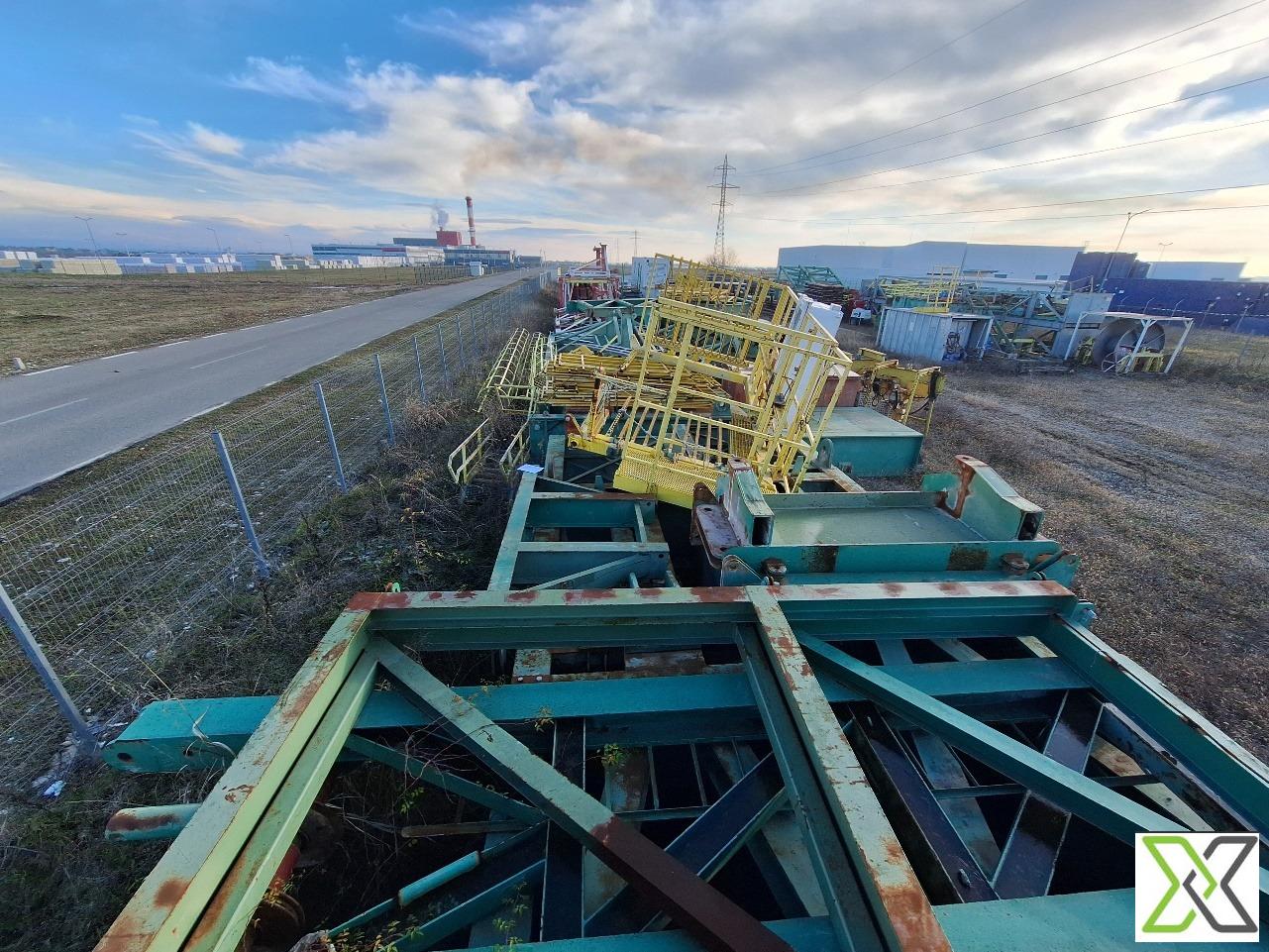

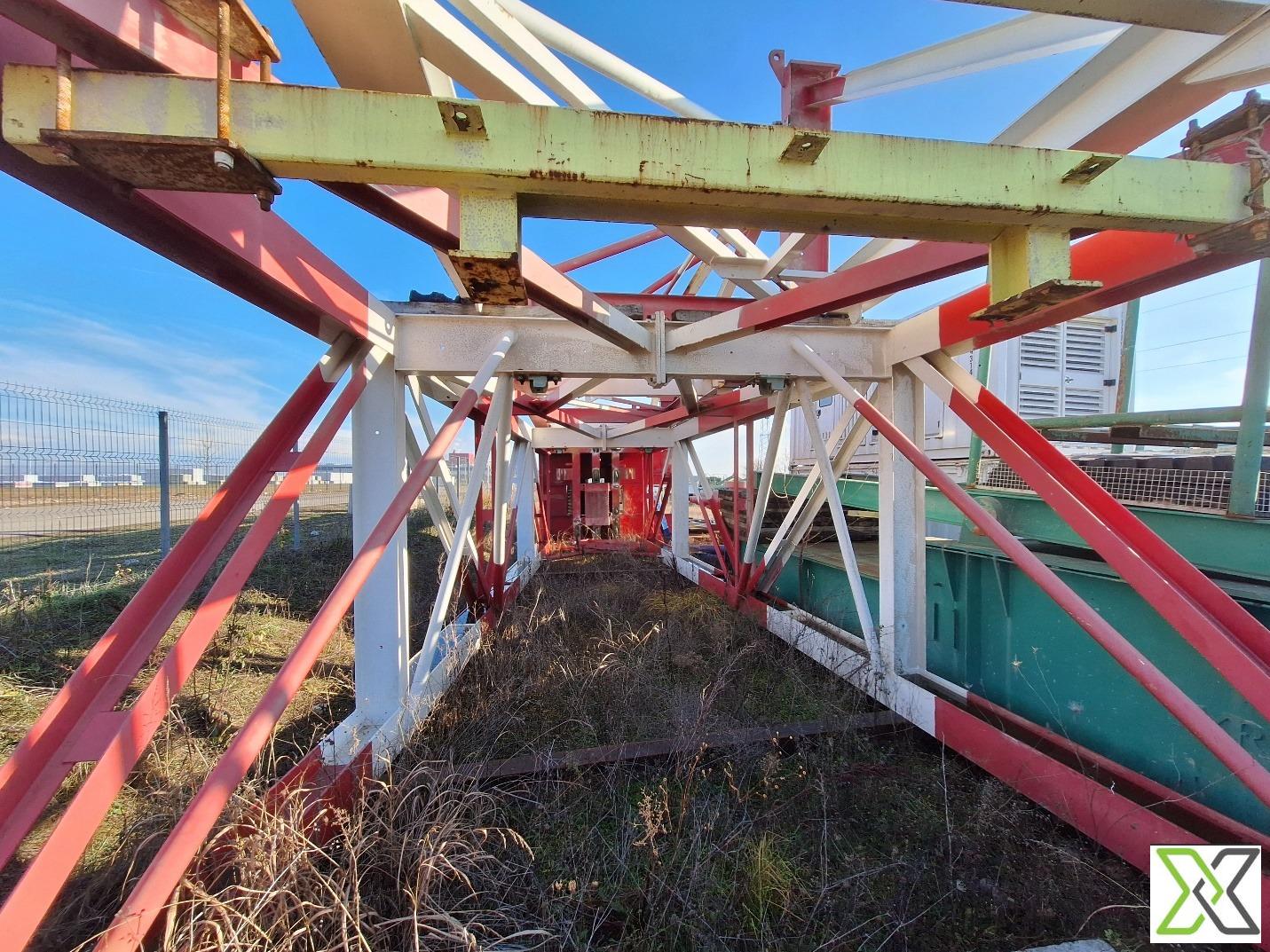

MAST

Maker & Model: Pyramid cantilever type

Clear Height: 149 ft

Static Hook Load Capacity: 2,000,000 lbs

Suitable for: Triple stand range 2 drill pipes

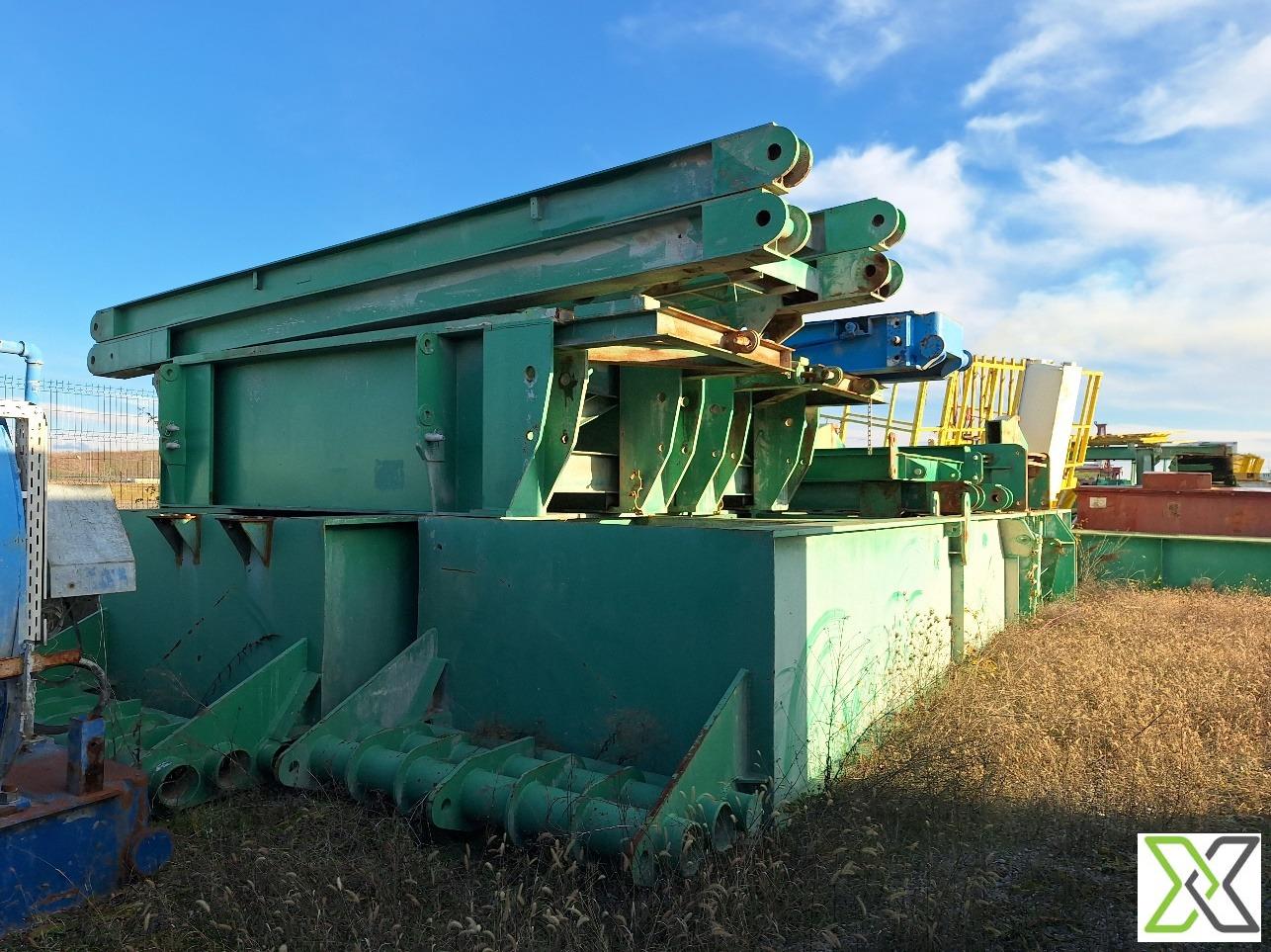

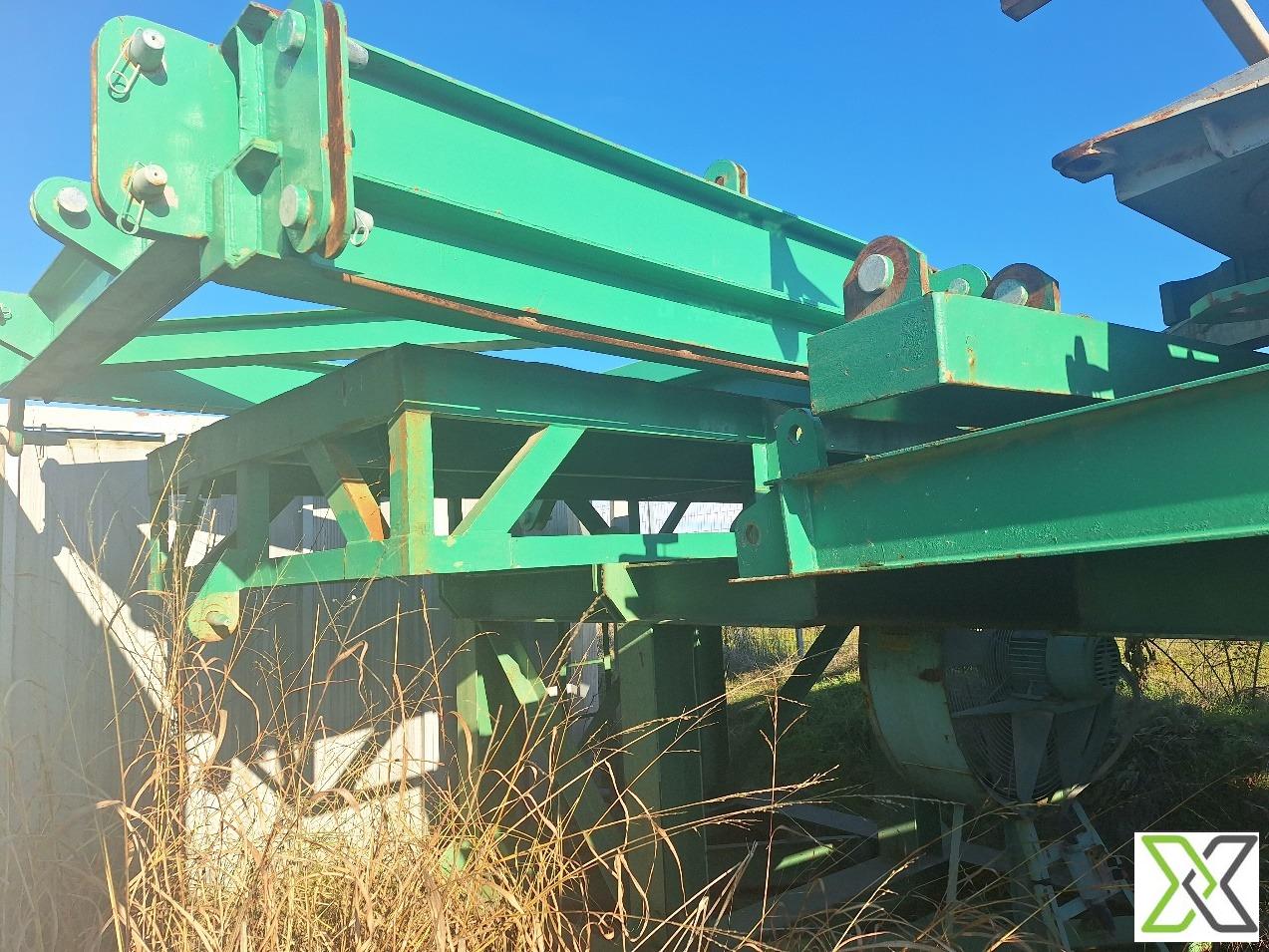

SUBSTRUCTURE

Maker & Model: Pyramid Tilt-Up

Clearance: 30.5 ft Ground to Rotary beam

Rotary Capacity: 1,600,000 lbs

Setback load: 1,100,000 lbs

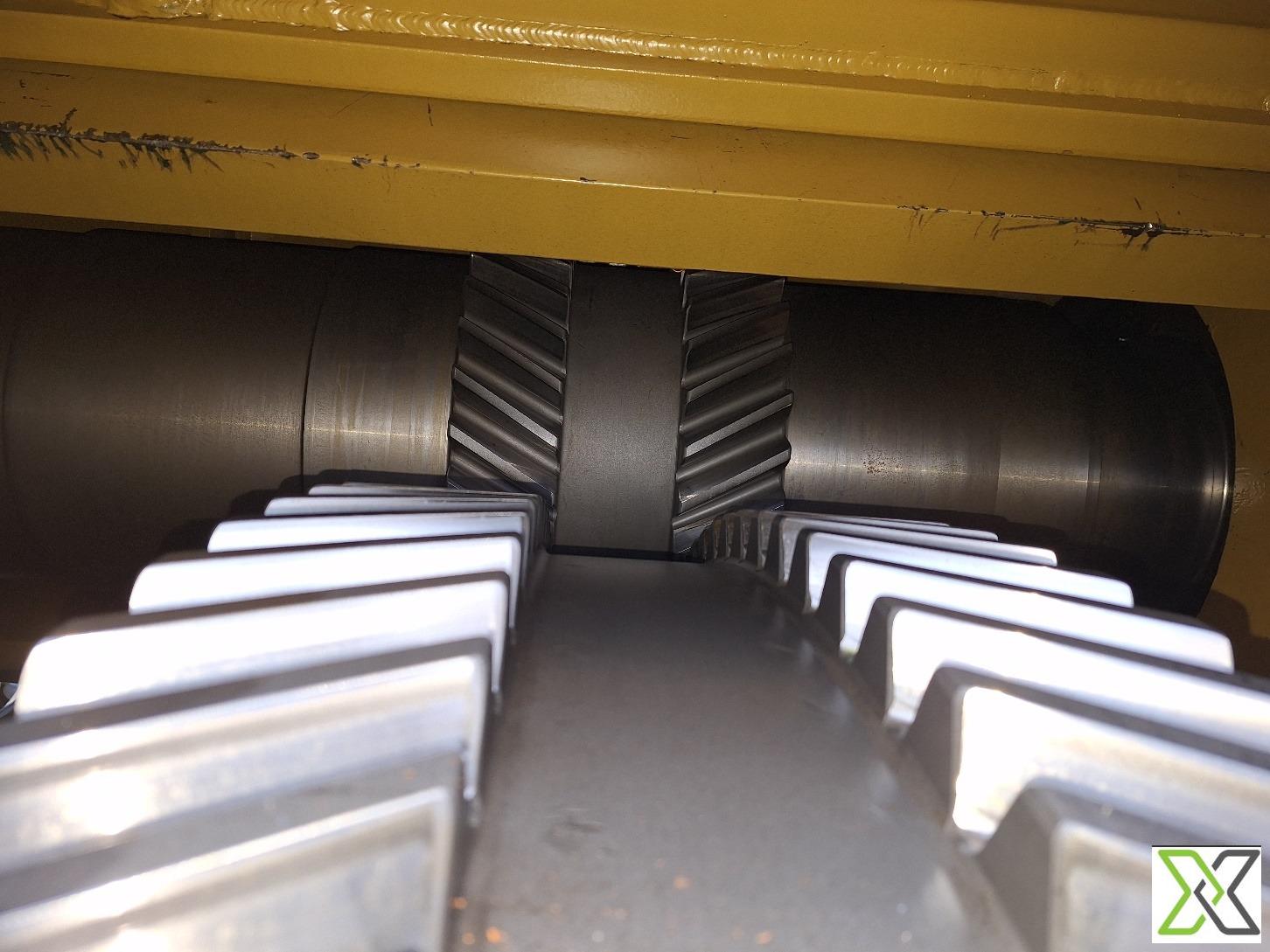

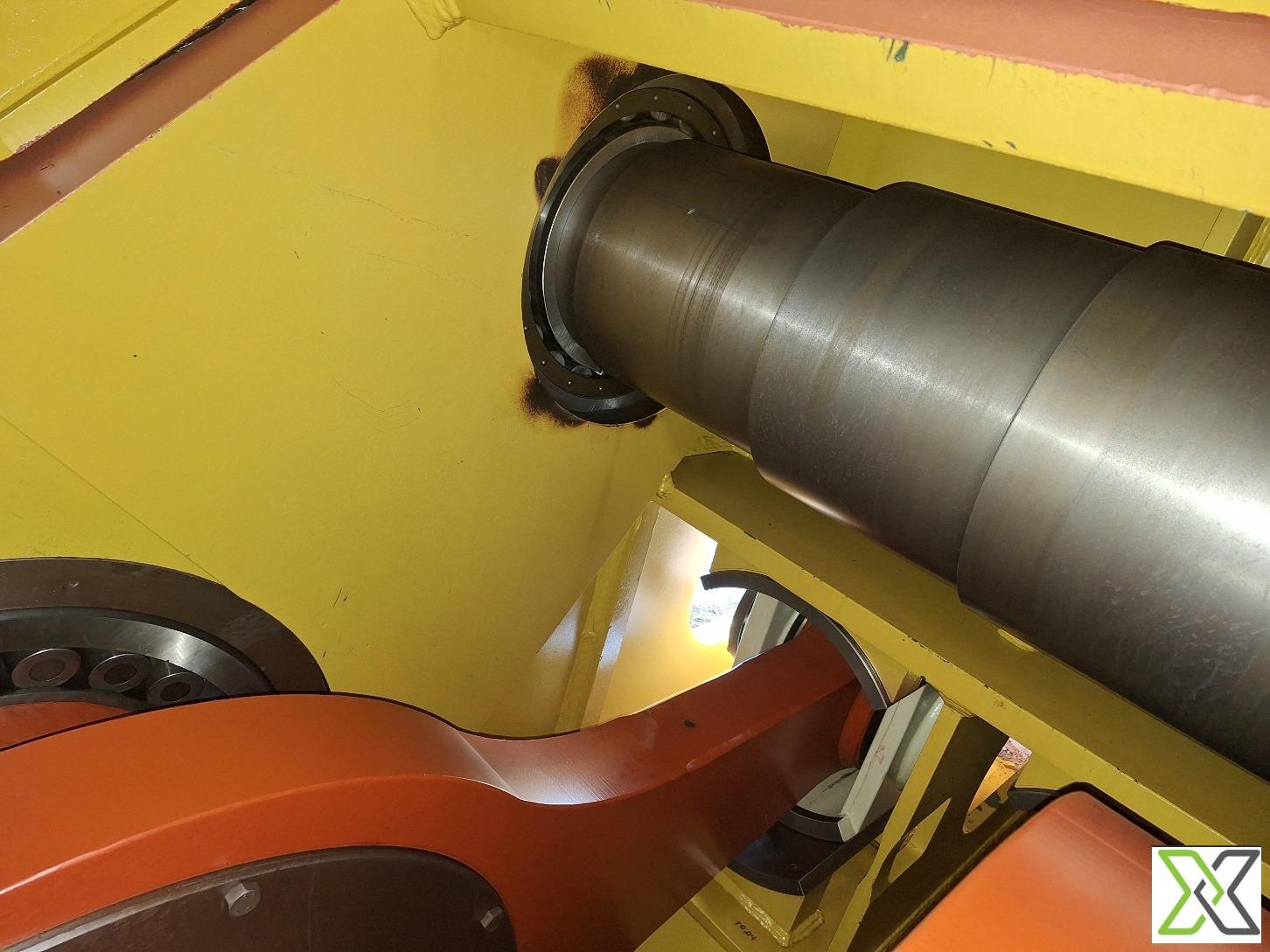

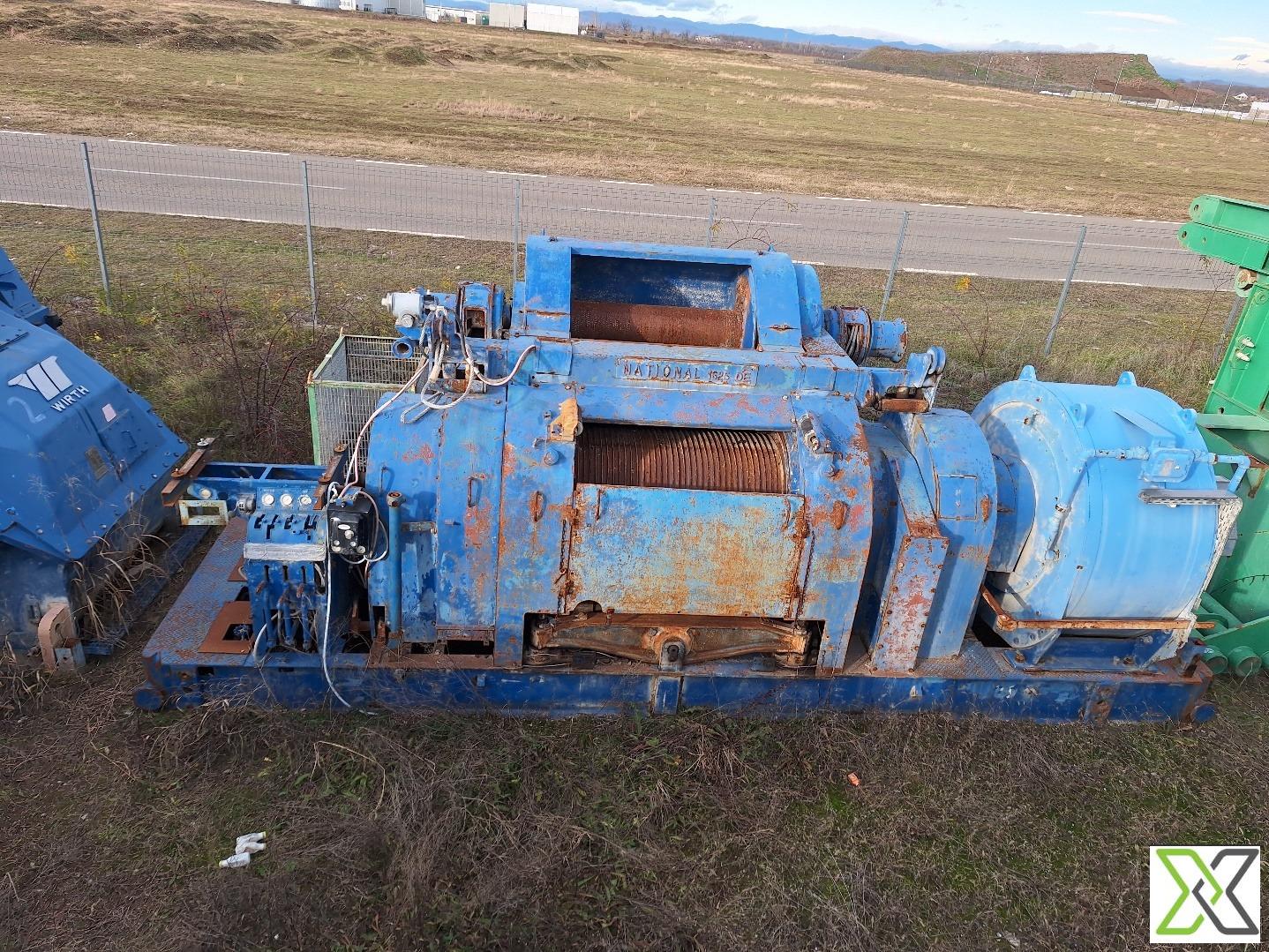

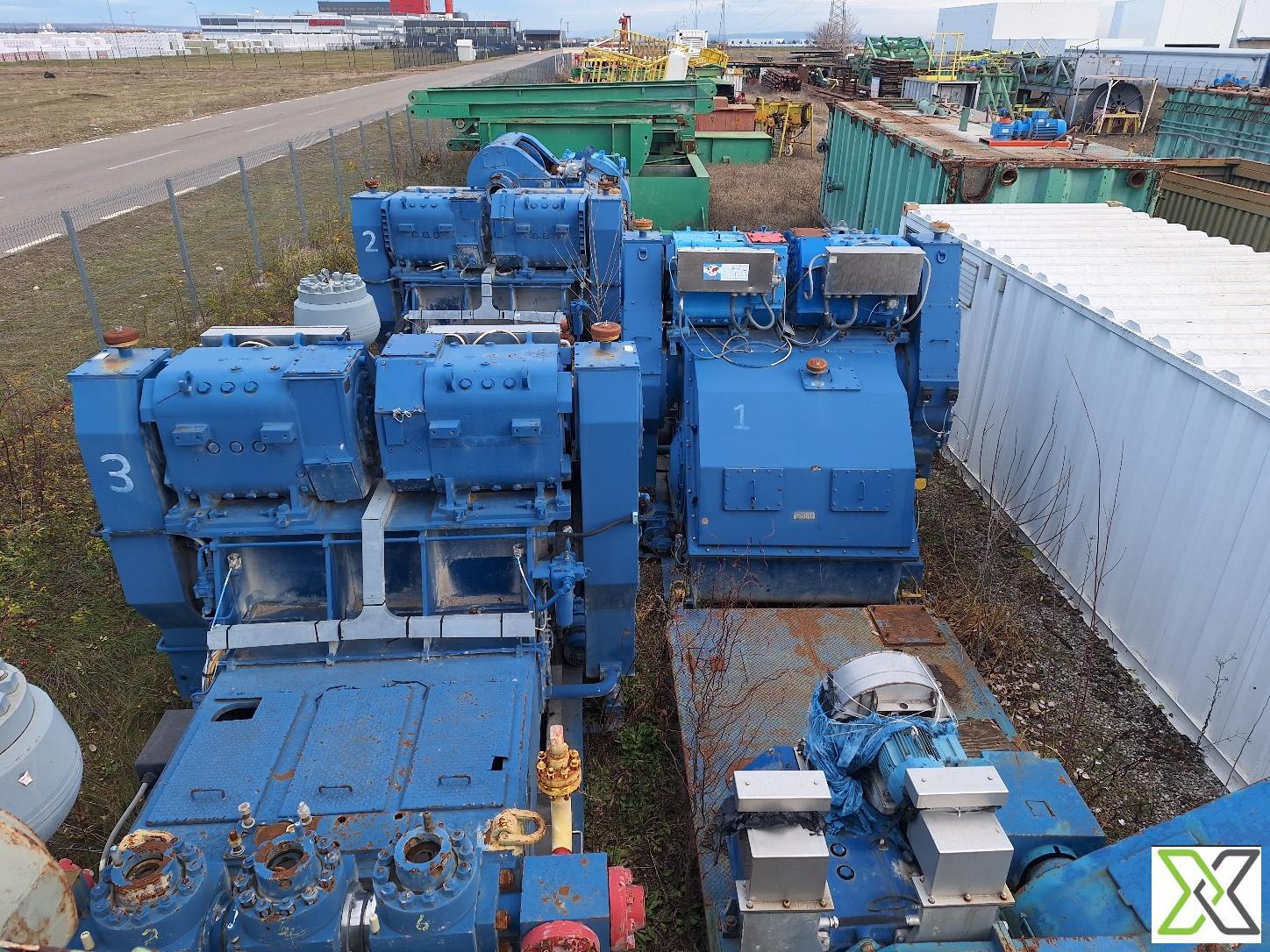

DRAWWORKS

Maker & Model: National 1625 DE

Rated input power: 3,000 HP

Drum brake type: Band

Auxiliary brake: Baylor Elmagco 7838

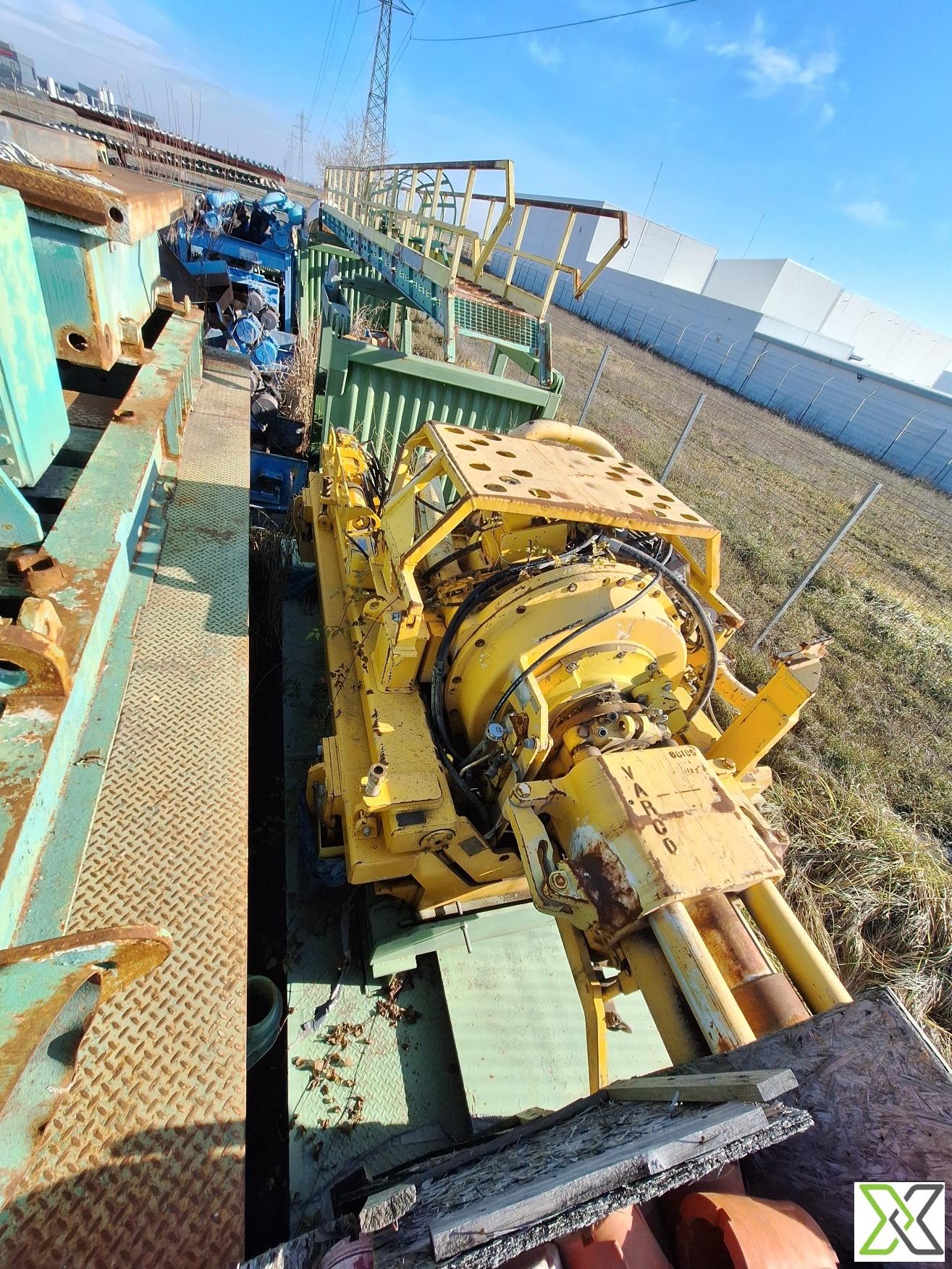

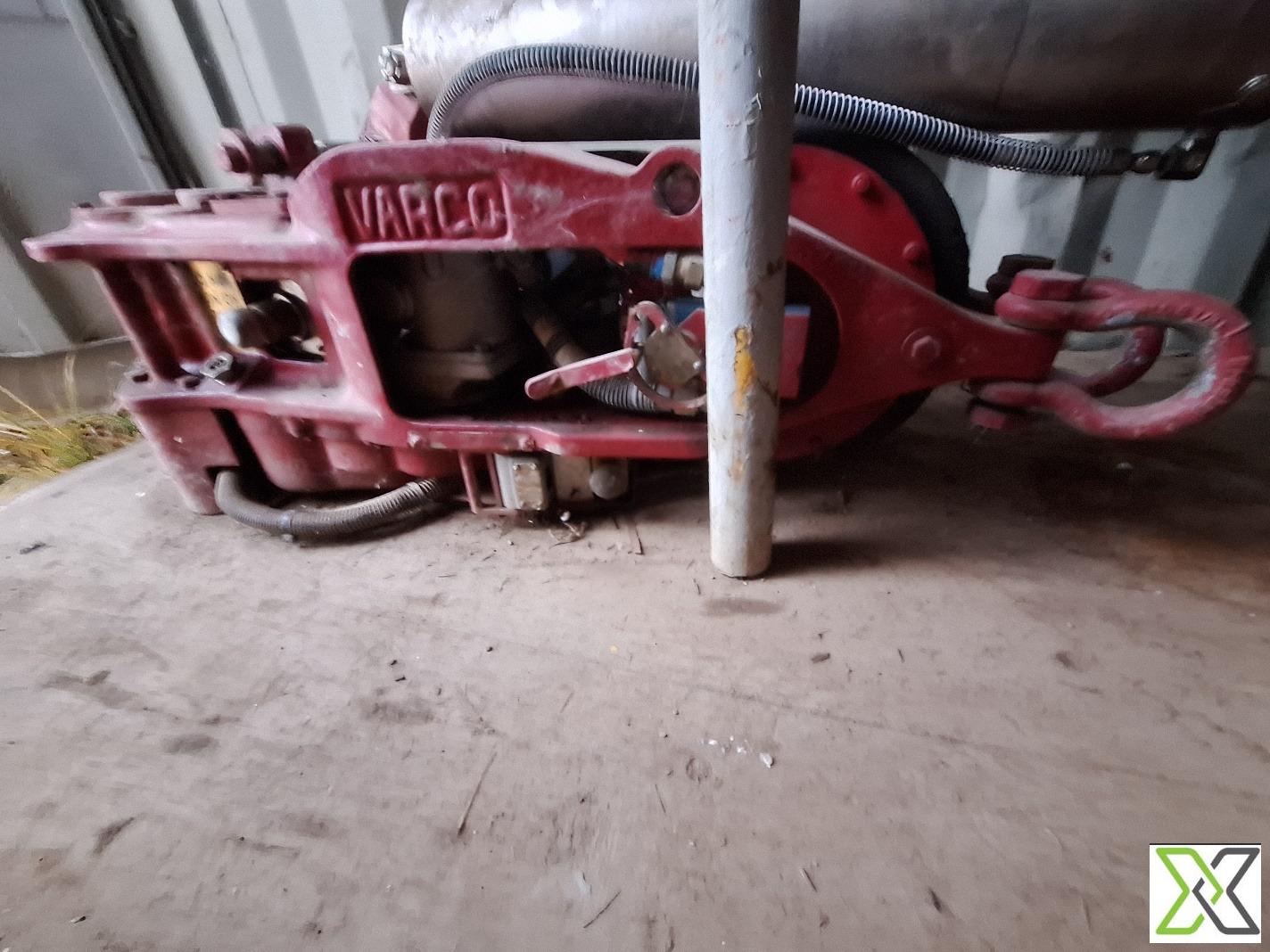

TOP DRIVE

Maker & Model: Varco TDS-3S

Rated load capacity: 590 mt

Max. continuous output torque: 31,000 lbs.ft @ 165 rpm

ROTARY TABLE

Maker & Model: National C-375

Maximum Opening: 37 ½”

IRON ROUGHNECK

N/A

MUD PUMPS

N/A

LOW PRESSURE MUD SYSTEM

Number of mud tanks: 9

Mud tanks total capacity: Approx. 4635 bbl

Water tanks total capacity: Approx. 1210 bbl

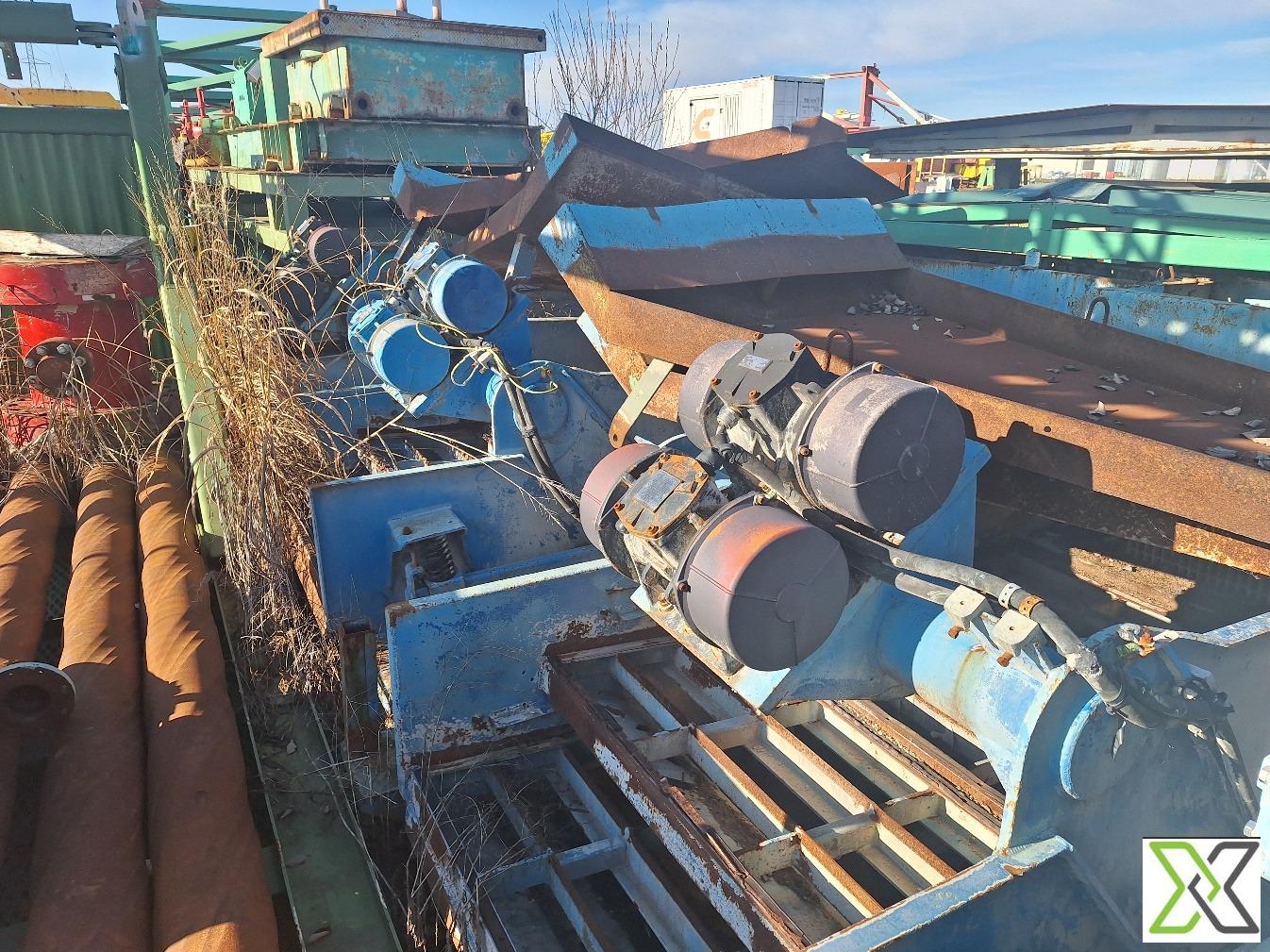

SHALE SHAKERS

Quantity: 4

Maker & Model: Brandt King Cobra

Mud cleaner: Desander and desilter installed on the fourth shale shaker

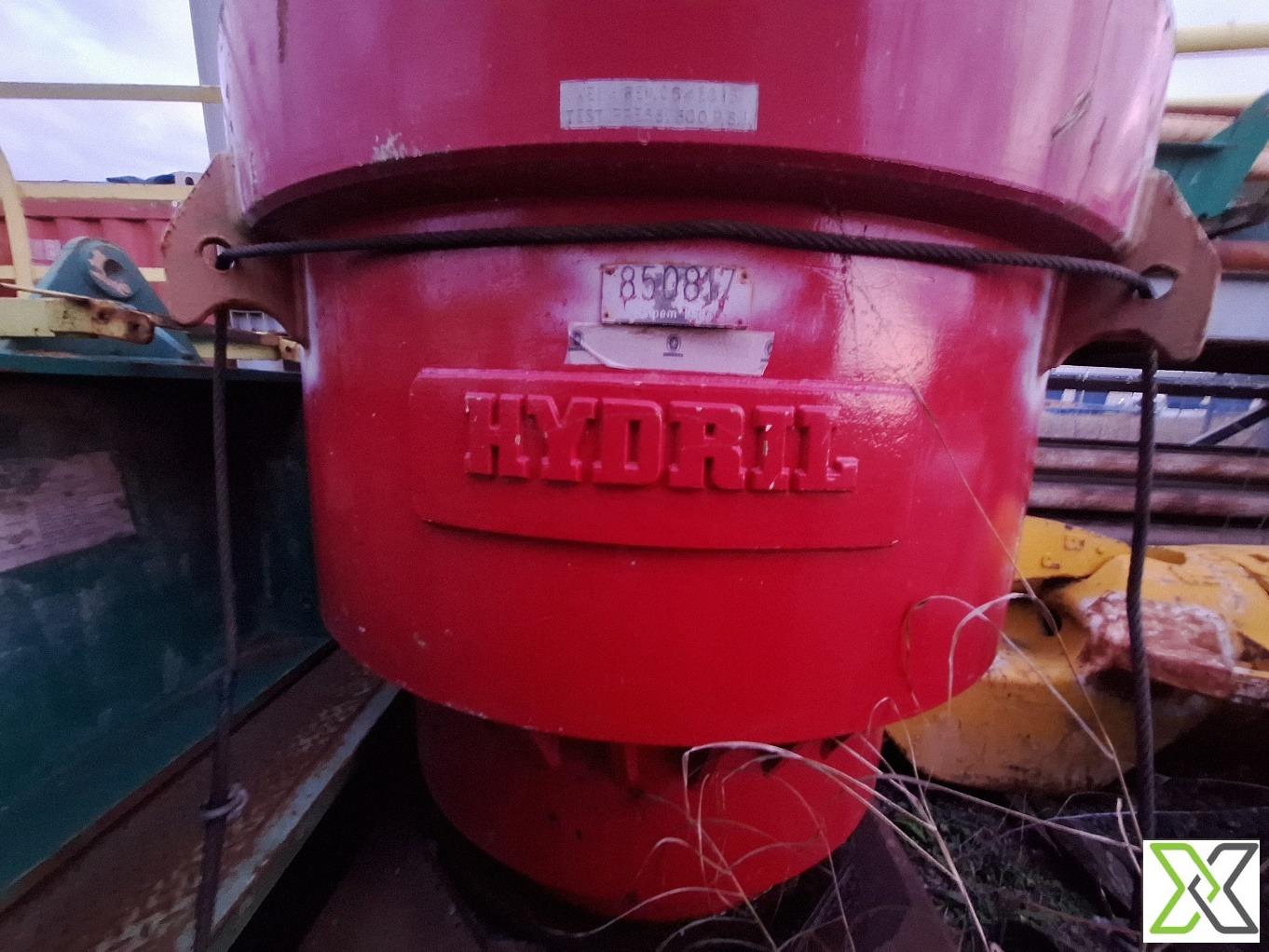

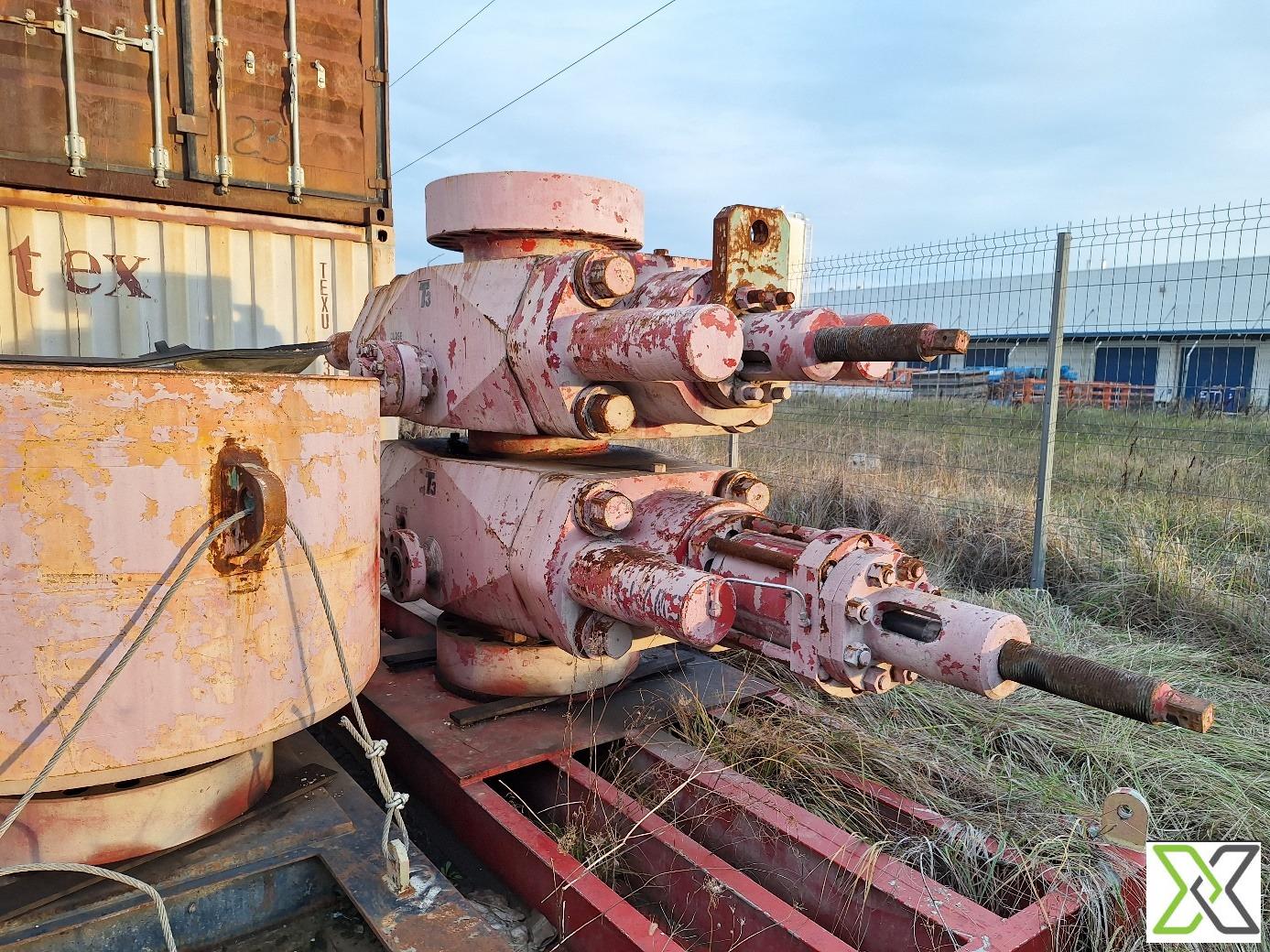

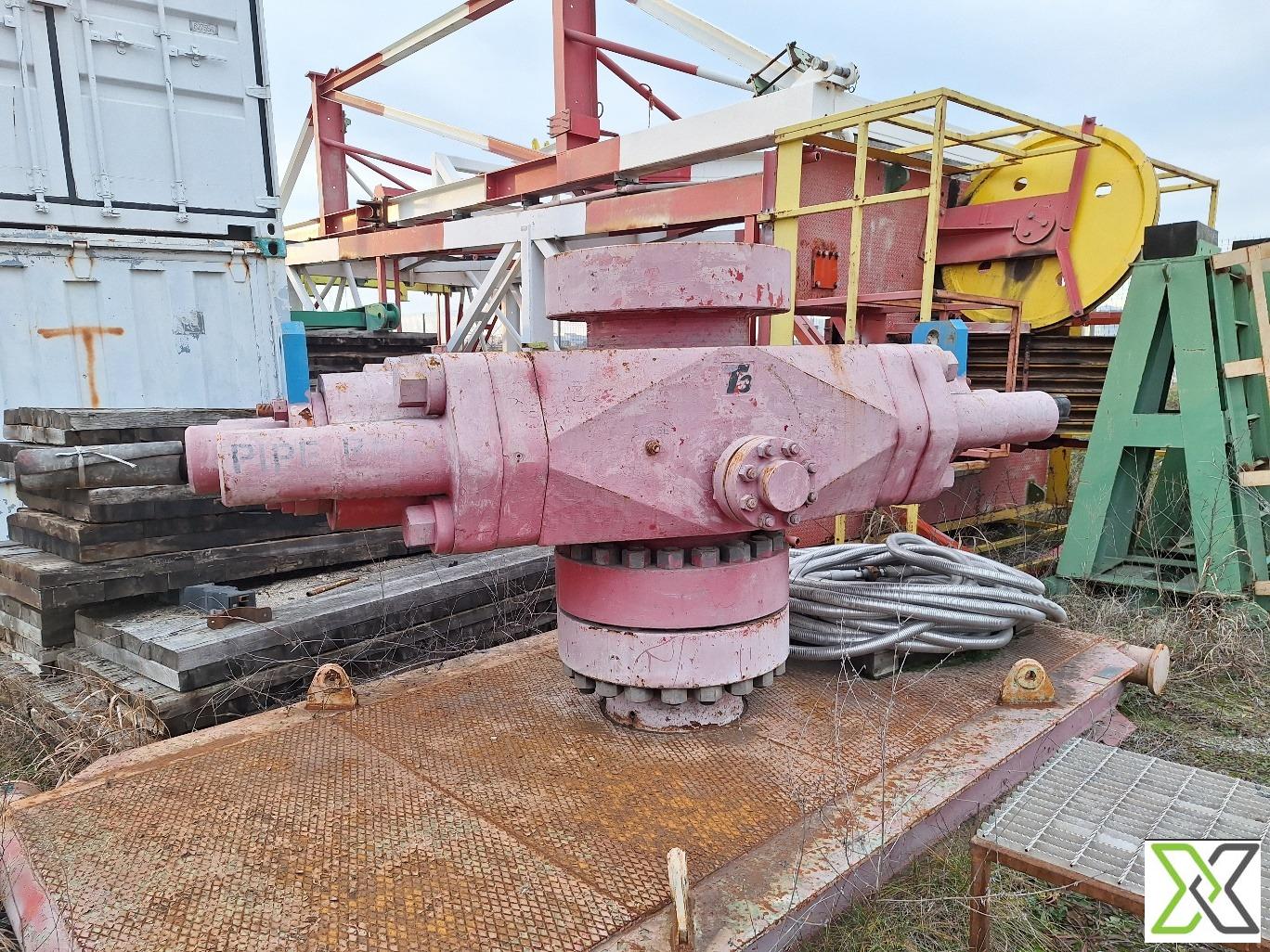

BOP

As per detailed specification

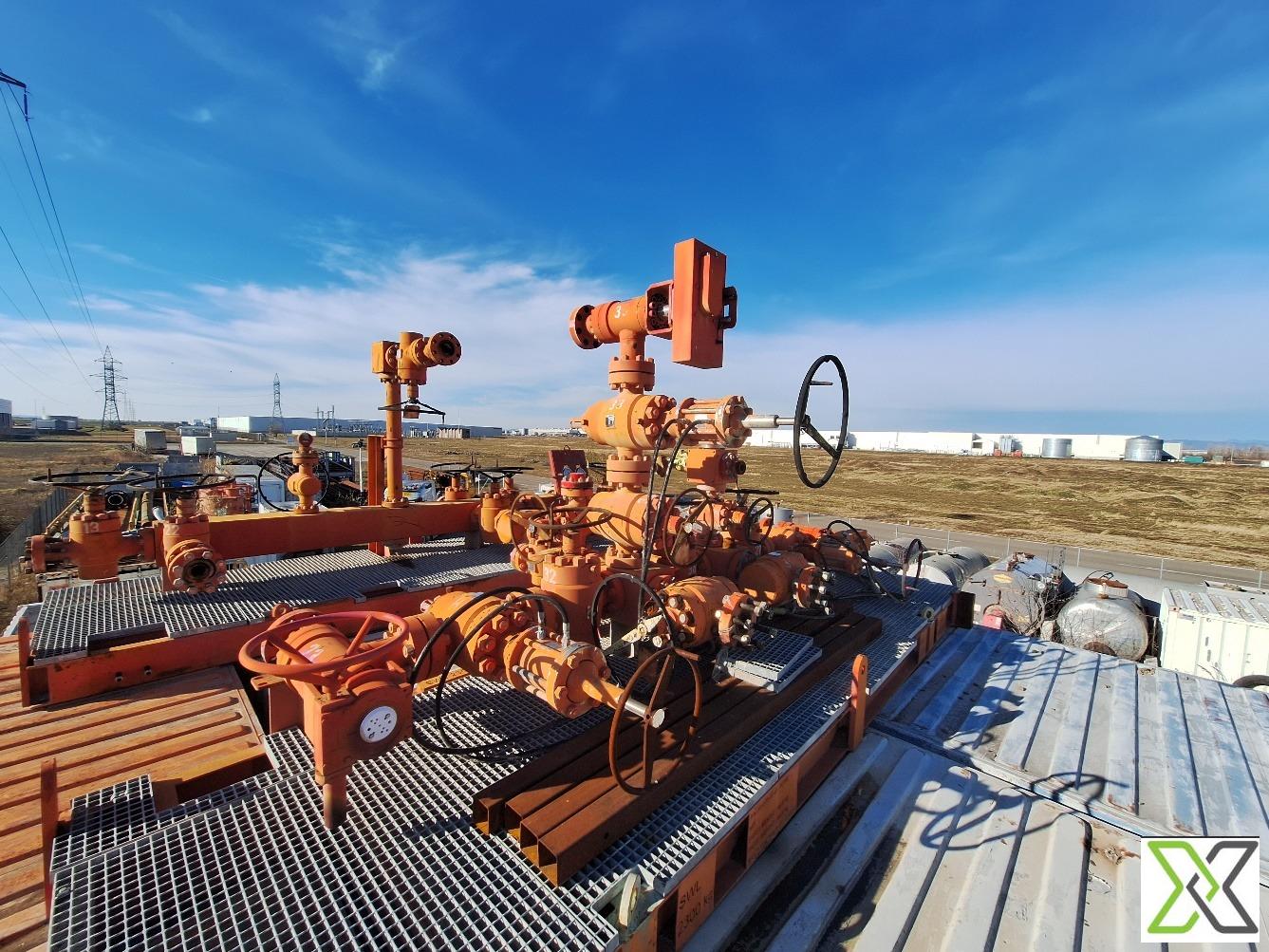

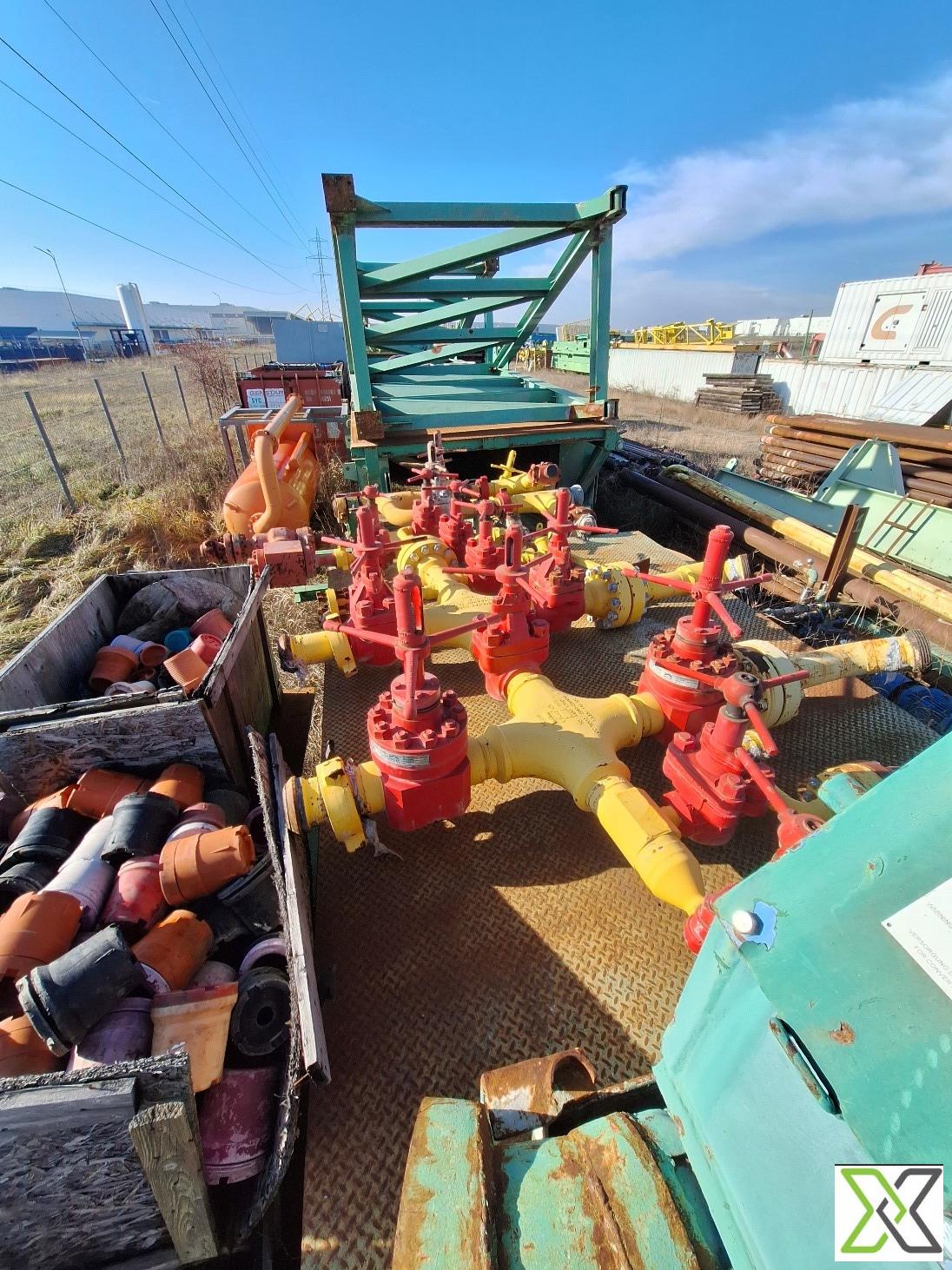

CHOKE MANIFOLD GENERAL

Choke manifold: Cameron

Size & pressure: 3-1/16", 15000 psi

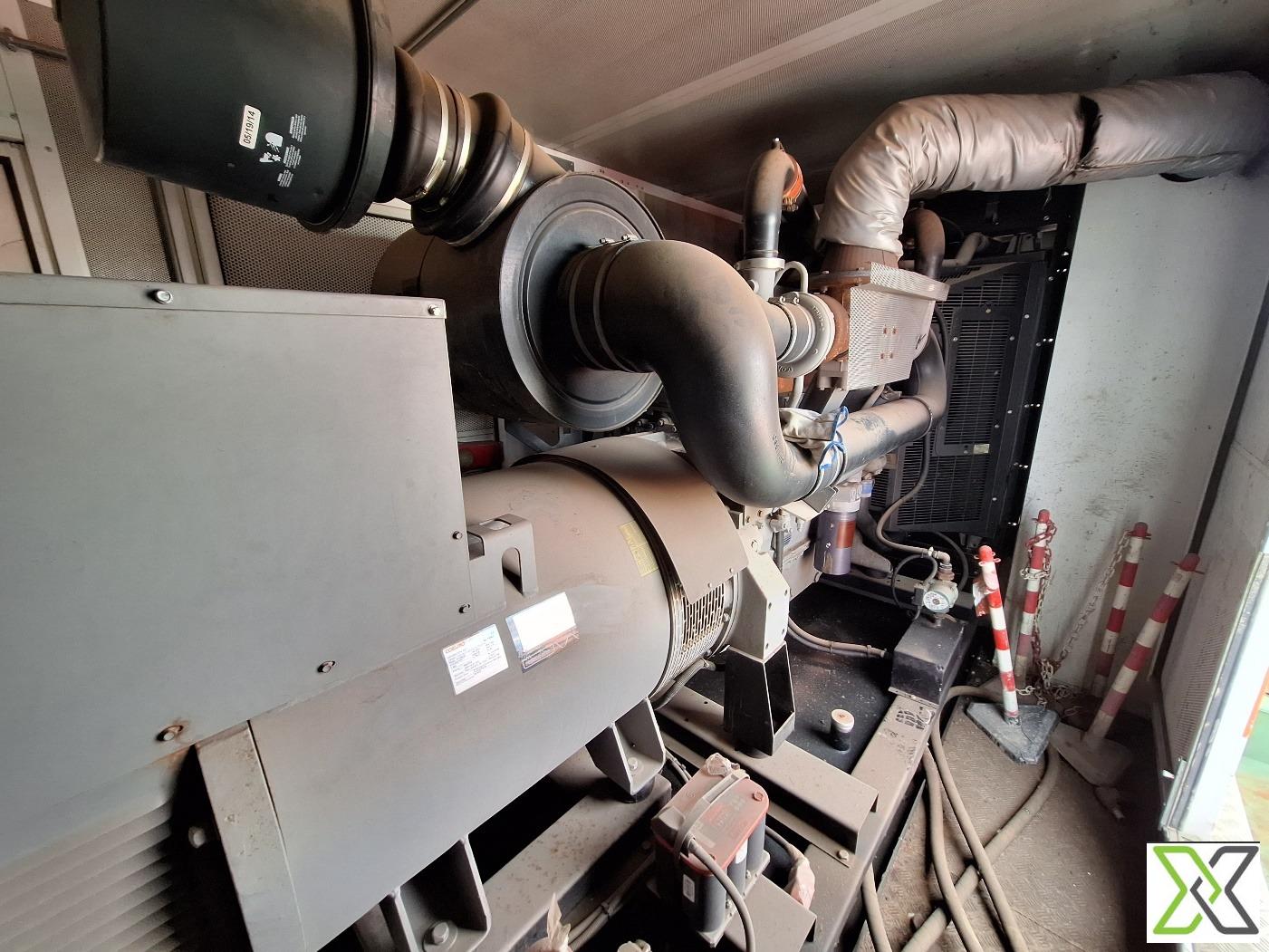

ELECTRIC GENERATION SYSTEM

N/A

CAMP EQUIPMENT

Mini Camp

----

Detailed specification is available on request for serious buyers.

This equipment is offered for dismantling and components reuse.

The equipment is available at an attractive price, providing excellent value for buyers seeking spare parts.

The equipment is sold AS IS, WHERE IS (without warranty or guarantee of functionality).

Delivery terms: EXW ROMANIA
