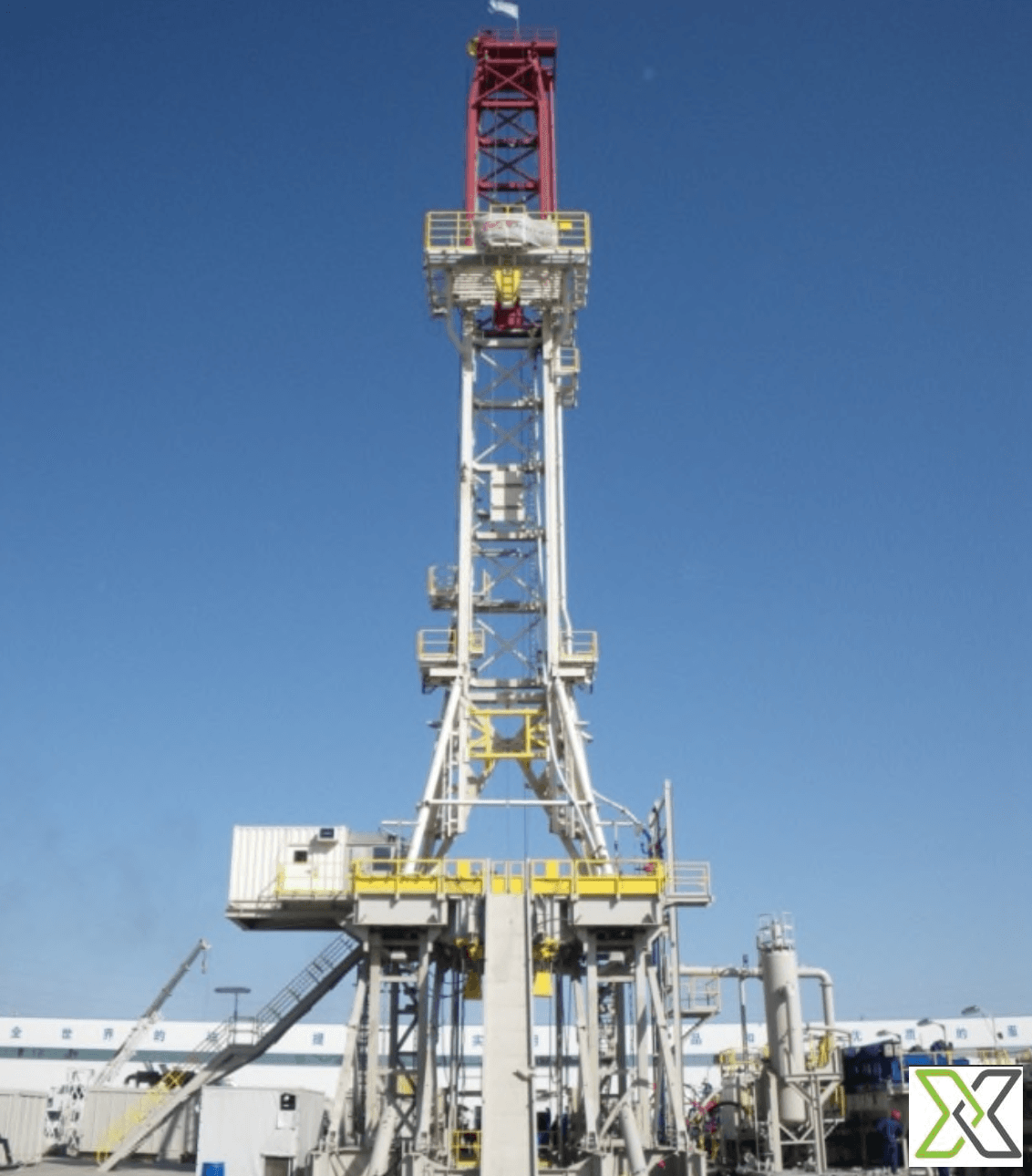

LAND DRILLING RIG, 1500 HP, BENTEC, AC, Iraq, YoM 2011

ReflowX SKU: REF-3854

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Iraq
Condition

Used
OEM

BENTEC
Equipment code

Get Quotation Whatsapp

Short Description

LAND DRILLING RIG, 1500 HP, BENTEC, AC, Iraq, YoM 2011

Description

TECHNICAL OVERVIEW
FAST MOVING DESERT RIG

Rating: 1500 HP

Hook load: 800,000 lbs @ 12 Lines

Drilling depth: 18,000 ft (5500m)

Year of construction: 2011

MAST

Type: Bentec, Open face self-elevating

Height: 142 ft

Hook Load: 800,000 lbs

SUBSTRUCTURE

Type: Bentec Parallel lift

Height: 30 ft

Rotary load: 800,000 lbs

Setback load: 500,000 lbs

DRAWWORKS

Type: Bentec E-1500-AC-SG, single speed gearbox

Horsepower rating: 1500 HP

Max line pull: 78,600 lbs

Drilling line diameter: 1-3/8”

Auxiliary brake: Disc Brake + power breaking via AC motors

TOP DRIVE

Type: Bentec TD-500-HD

Capacity: 1,000,000 lbs

Torque cont.: 46,500 ft-lbs

ROTARY TABLE

Type: Kerui ZP-375

Table Opening: 37 ½”

DRIVE GROUP

Engine type: Caterpillar 3512 B

Horsepower rating: 4 x 1476 HP

Generator type: Caterpillar SR4B

Generator rating: 4 x 1500 kVA

Voltage: 600 V/60 Hz

Control Unit: VFD, Bentec 5 VFD bays

MUD SYSTEM

Pump type: Bomco F-1600, 7” x 12”

Horsepower rating: 2 x 1600 HP

Standpipe pressure: 5000 psi

Shale shaker: 3 pc, Brandt King Cobra

Active mud system: 1600 bbl

Reserve mud system: 940 bbl

Water Capacity: 880 bbl

BOP EQUIPMENT

Annular 13 5/8”, 5000 psi

Double Ram 13 5/8”, 10000 psi

Single Ram 13 5/8”, 10000 psi

IRON ROUGHNECK

Type: Blohm & Voss “Floorhand”

CAMP EQUIPMENT

Full Rig and Base Camp

ADDITIONAL EQUIPMENT

Bentec Drillers Controls System complete with joystick drawworks control.

Winterization package:

Substructure enclosures

Racking board wind protection

Wind walls around the shaker area

Enclosure around the mixing area

Stacked since July 2015

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Iraq

Technical Details

Year of Manufacturing	2011
Manufacturer Name	BENTEC

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
