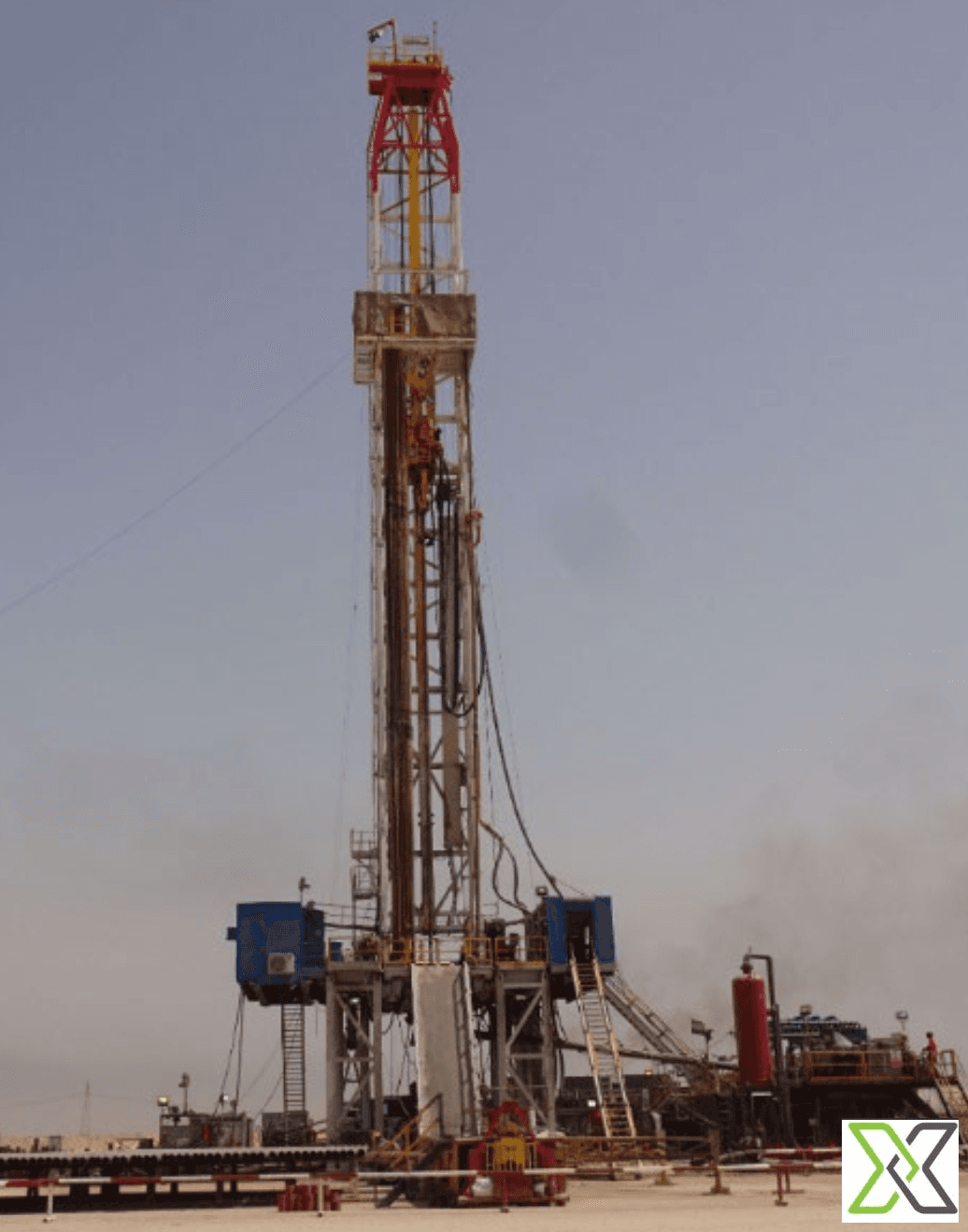

LAND DRILLING RIG, 1500 HP, NOV, DC, Iraq, YoM 2009, refurb. in 2019

ReflowX SKU: REF-2379

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Iraq
Condition

Used
OEM

National Oilwell Varco (NOV)
Equipment code

Get Quotation Whatsapp

Short Description

LAND DRILLING RIG, 1500 HP, NOV, DC, Iraq, YoM 2009, refurb. in 2019

Description

TECHNICAL OVERVIEW

NOV IDEAL RIG, CANTILEVER HYDRAULIC LIFT, TRIPLE
Rating: 1500 HP

Hook load: 750,000 lbs @ 10 Lines

Drilling depth: 14,765 ft w/ 5” DP (4500 m)

Year of construction: 2009

Refurbished in 2019

MAST

Type: NOV Cantilever Mast

Height: 142 ft

Hook Load: 750,000 lbs

SUBSTRUCTURE

Type: NOV Parallelogram, Hydr.

Height: 25 ft

Casing load: 750,000 lbs

Setback load: 500,000 lbs

DRAWWORKS

Type: NOV JC-50D

Horsepower rating: 1500 HP

Max line pull: 76,435 lbs

Drilling line diameter: 1-3/8”

Auxiliary brake: Baylor 6032W

TOP DRIVE

Type: NOV TDS-11SA

Capacity: 1,000,000 lbs

Torque cont.: 37,500 ft-lbs@125RPM

ROTARY TABLE

Type: NOV ZP-375

Table Opening: 37 ½”

IRON ROUGHNECK

Type: NOV IR-3080-ARM

DRIVE GROUP

Engine type: MTU R1638A36 16V-2000

Horsepower rating: 4 x 1481 HP

Generator type: Baylor S4370UJ-597A

Generator rating: 4 x 1750 kVA

Voltage: 600/460 V, 60 Hz

Control Unit: SCR, NOV / Ross Hill DC System

MUD SYSTEM

Pump type: NOV 12-P-160 Triplex

Horsepower rating: 2 x 1600 HP

Standpipe pressure: 5000 psi

Shale shaker: 2 x single units w/common box

Shale shaker type: MI Swaco PT Mongoose 75FT475

Active mud system: 1314 bbl

Reserve mud system: 500 bbl

Trip Tank: 100 bbl

BOP EQUIPMENT

Annular 13 5/8”, 5000 psi

Double Ram 13 5/8”, 10000 psi

Single Ram 13 5/8”, 10000 psi

CAMP EQUIPMENT

Full Rig and Base Camp

ADDITIONAL EQUIPMENT

Hydraulic Catwalk System

NOV Drillers Control System complete with Joystick and Drawworks Auto Driller System

NOV RigSense Drilling Instrumentation System

RigSmart Anti Collision System

CAT IV done in Dec 2018

Stacked since mid 2019

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Iraq
