LAND DRILLING RIG, 2000 HP, ODERCO, DC, Oman, YOM 2006

ReflowX SKU: REF-8201

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Oman
Condition

Used
OEM

ODERCO
Equipment code

Get Quotation Whatsapp

Short Description

LAND DRILLING RIG, 2000 HP, ODERCO, DC, Oman, YOM 2006

Description

LAND DRILLING RIG, 2000 HP, ODERCO, DC, Oman, YOM 2006

TECHNICAL OVERVIEW

Rating: 2000 HP (1491 kW)

Hook load: 1,000,000 lbs with 12 Lines (454 metric tones)

Drilling depth: 20,000 ft (6000 m)

Year of construction: 2006

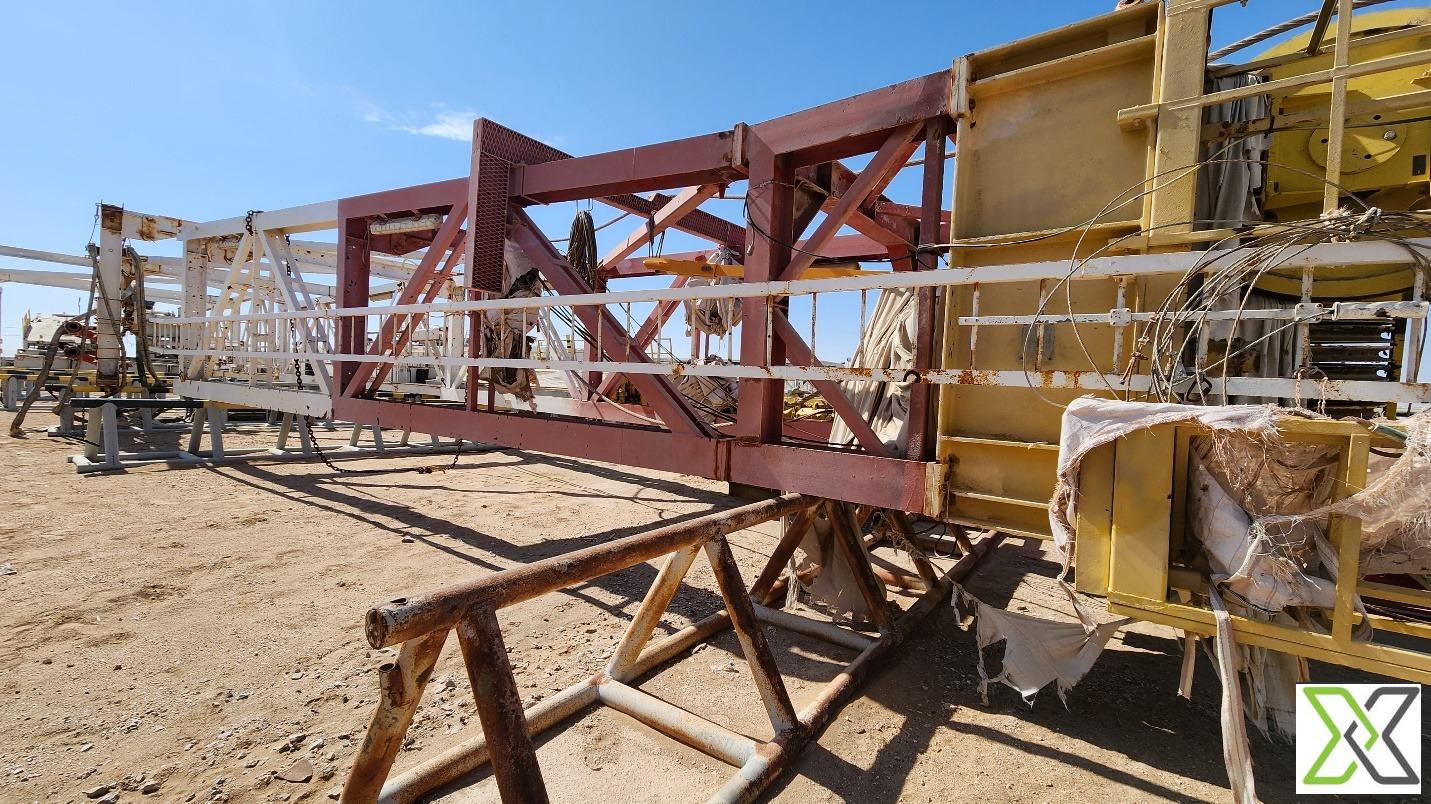

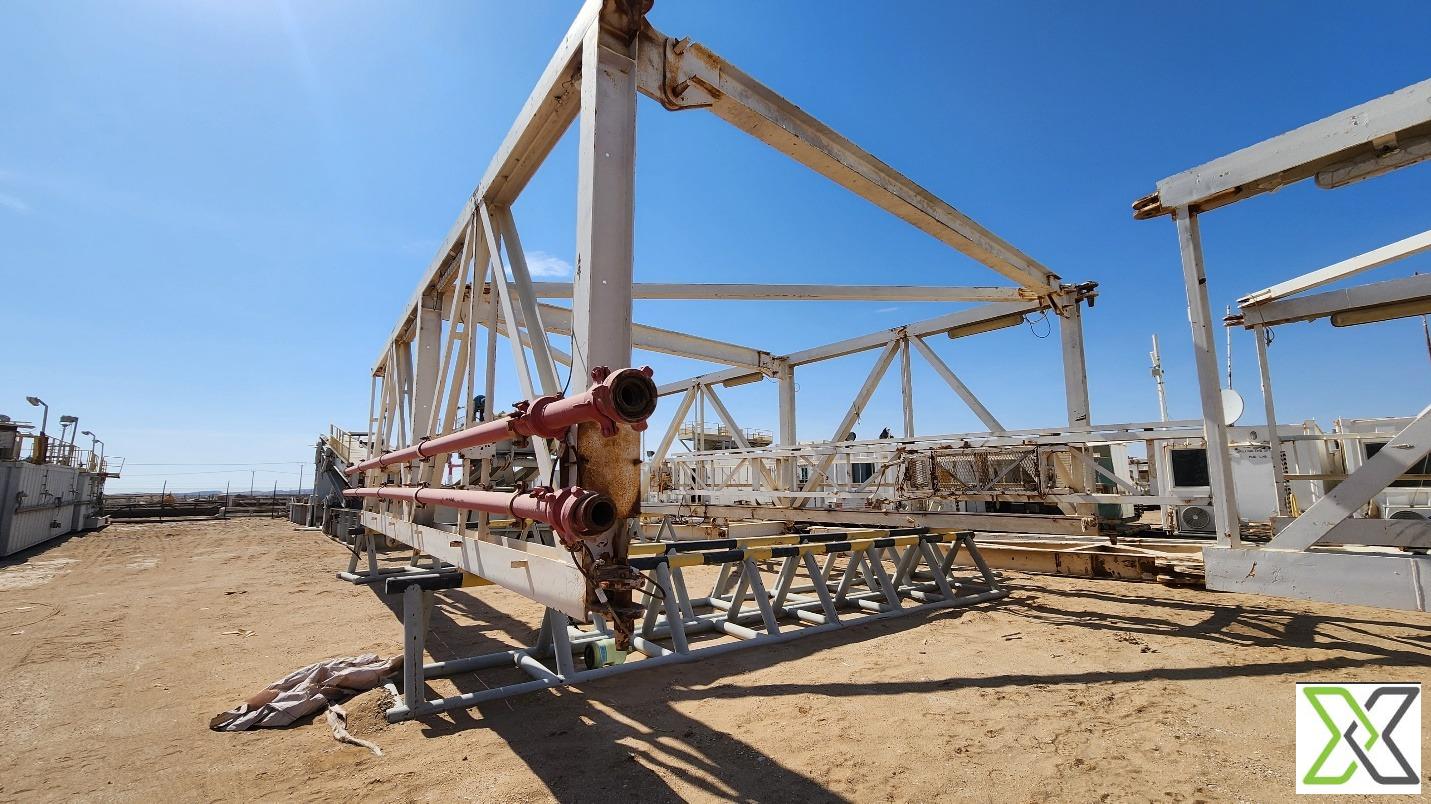

MAST

Type: ODERCO USA, swing up, self-elevating A frame

Height: 152 ft

Static Hook Load: 1,000,000 lbs with 12 lines

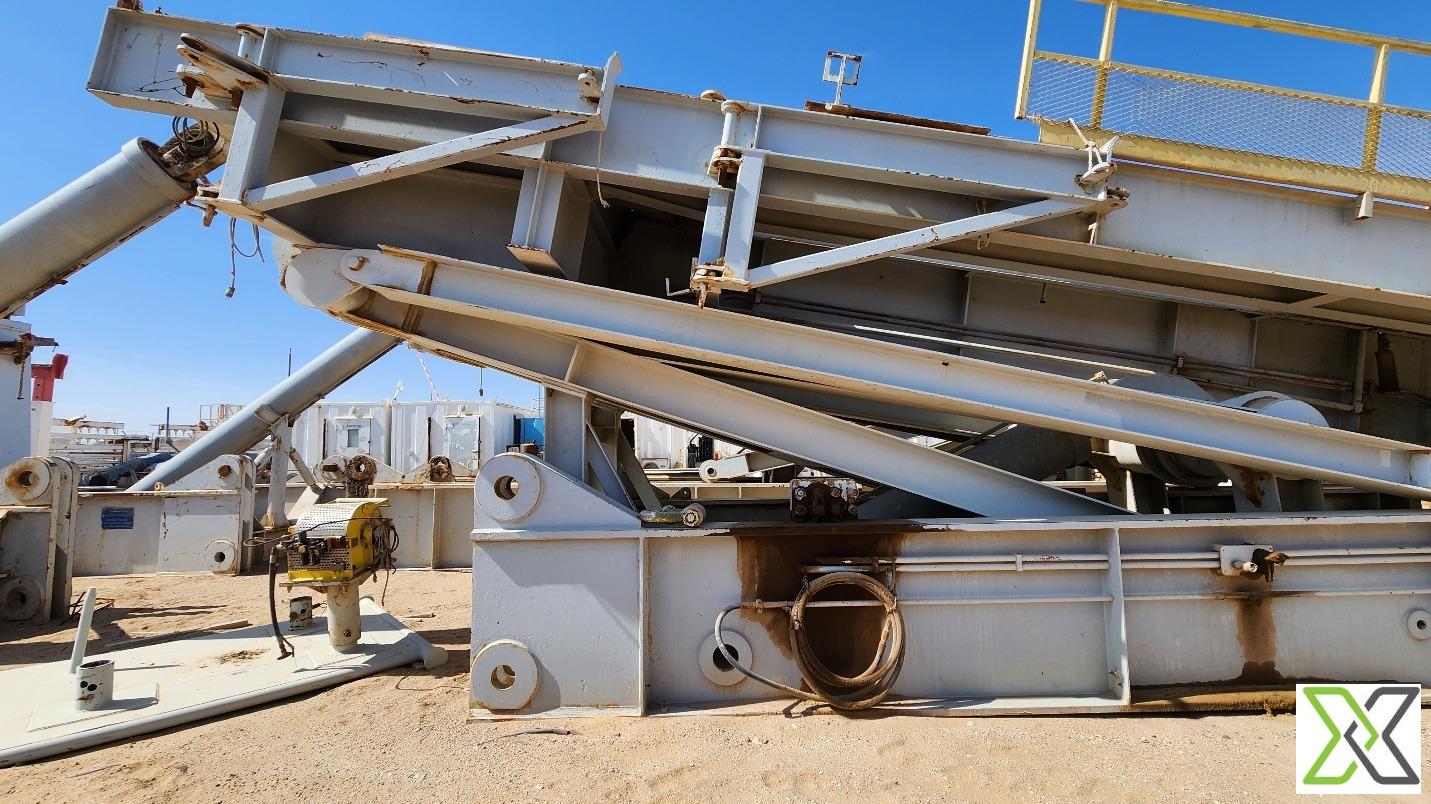

SUBSTRUCTURE

Type: ODERCO, Cantilever

Height: 34 ft

Casing load: 1,000,000 lbs

Setback load: 800,000 lbs

DRAWWORKS

Type: National 1320UE

Horsepower rating: 2,000 HP

Max. line pull: 940,000 lbs with 12 lines

Drilling line: 1-3/8”

Auxiliary brake: Eddy Current, Baylor Model 7040

TOP DRIVE

Type: TDS-11S

Capacity: 500 Tons

Torque: 37,500 ft-lbs continuous

ROTARY TABLE

Type: Ideco B-375

Opening: 37 ½”

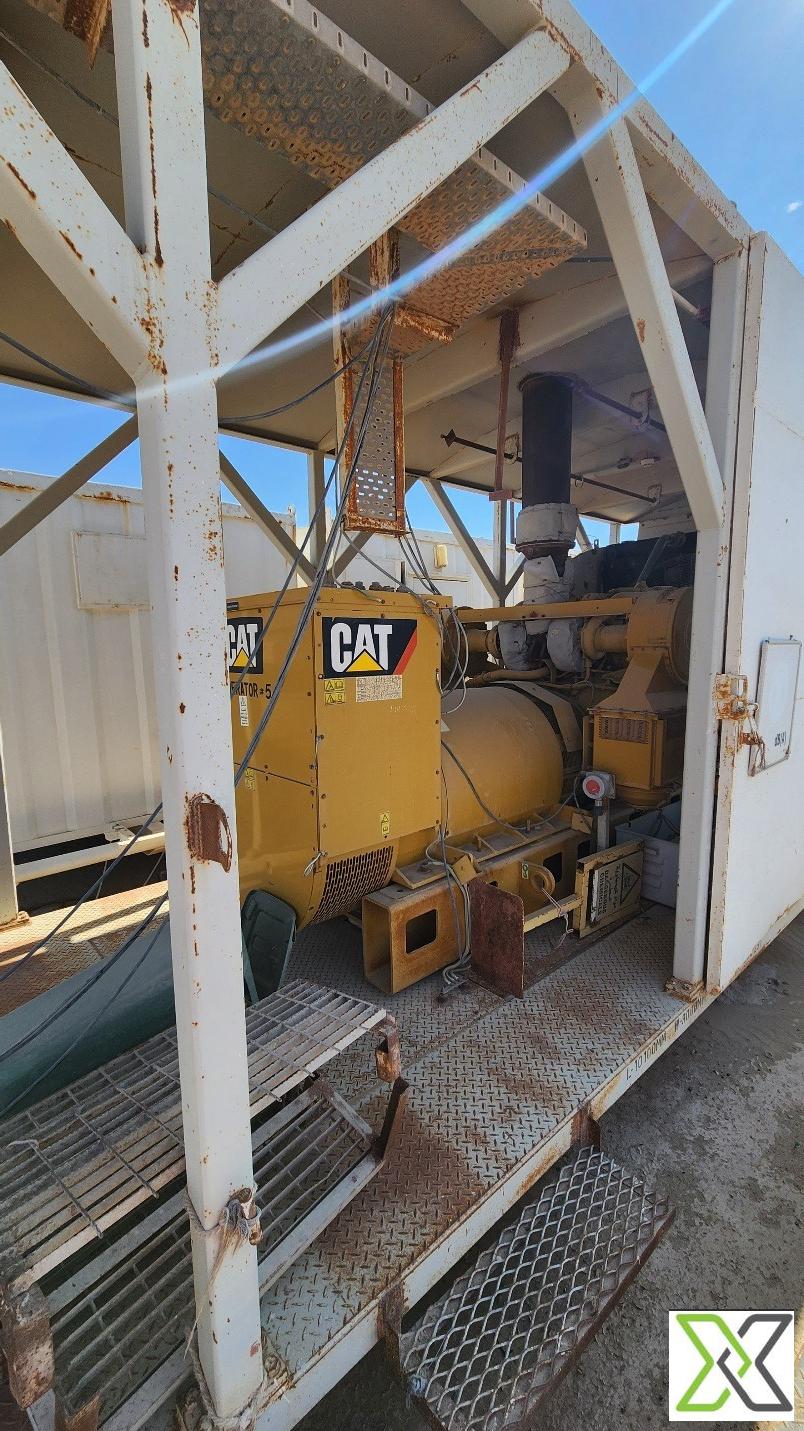

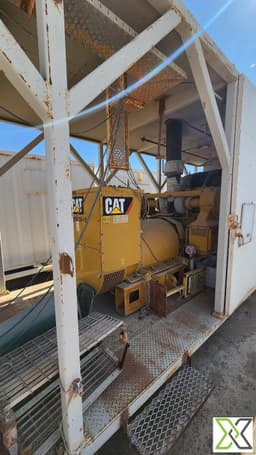

DRIVE GROUP

Engine type: Caterpillar D 3512

Horsepower Rating: 4 x 1,436 HP

Generator type: Caterpillar SR4B

Generator rating: 4 x 1,200 kVA @ 1200 rpm

Voltage: 600V, 60 Hz

Control Unit: SCR M&I

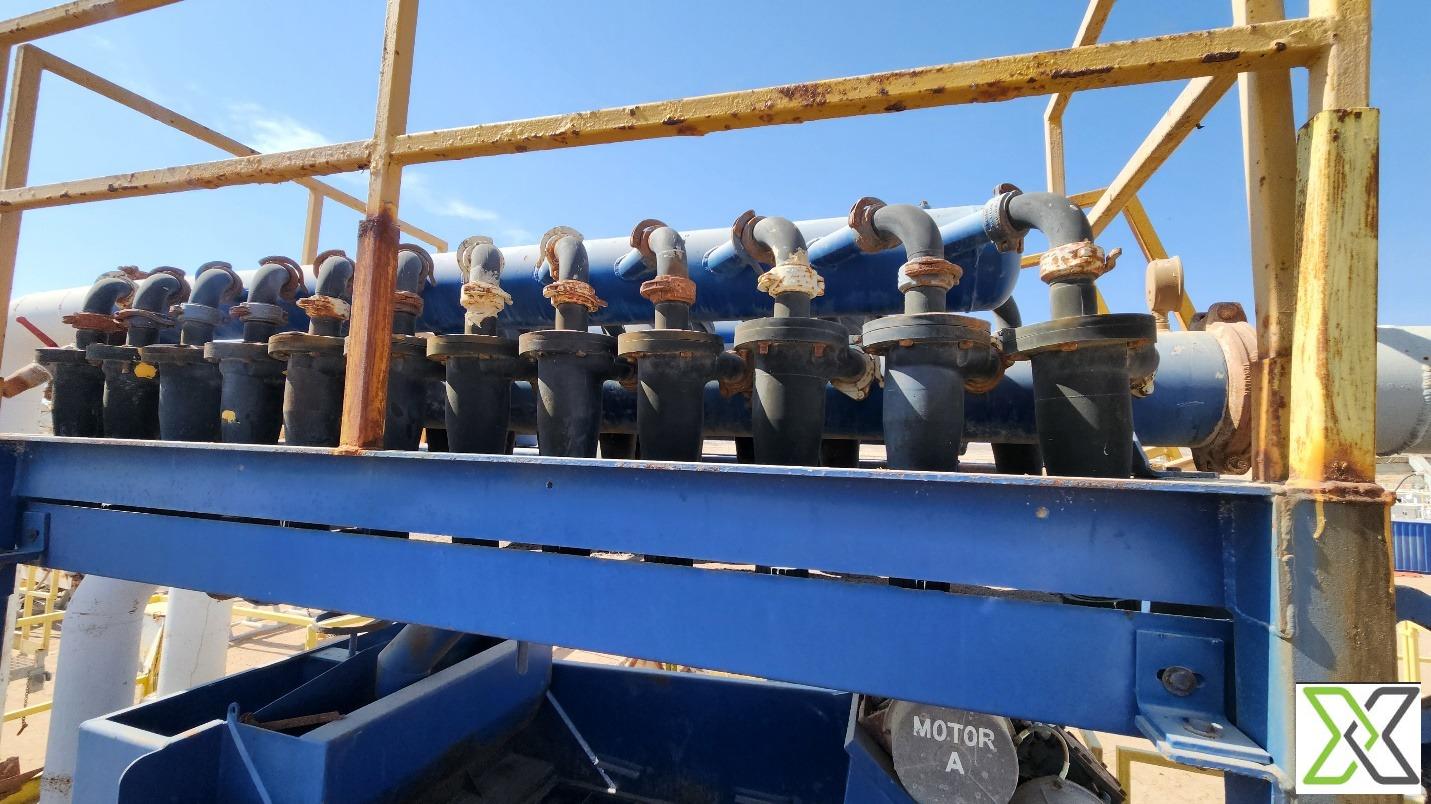

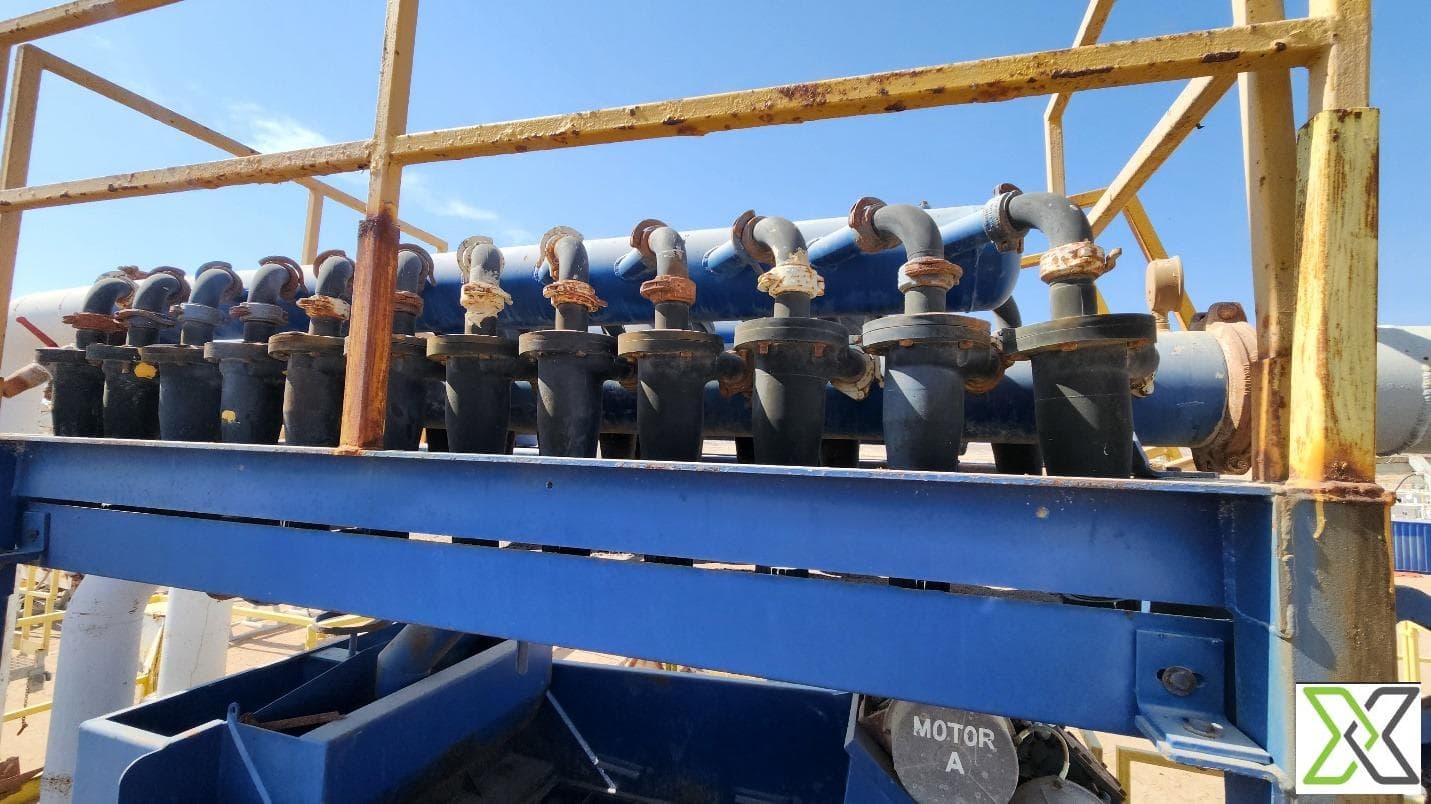

MUD SYSTEM

Pump type: 3 x PZ-11 Gardner Denver

Horsepower rating: 3 x 1,600 HP

Standpipe pressure: 5,000 psi

Shale shaker: 3 ea.

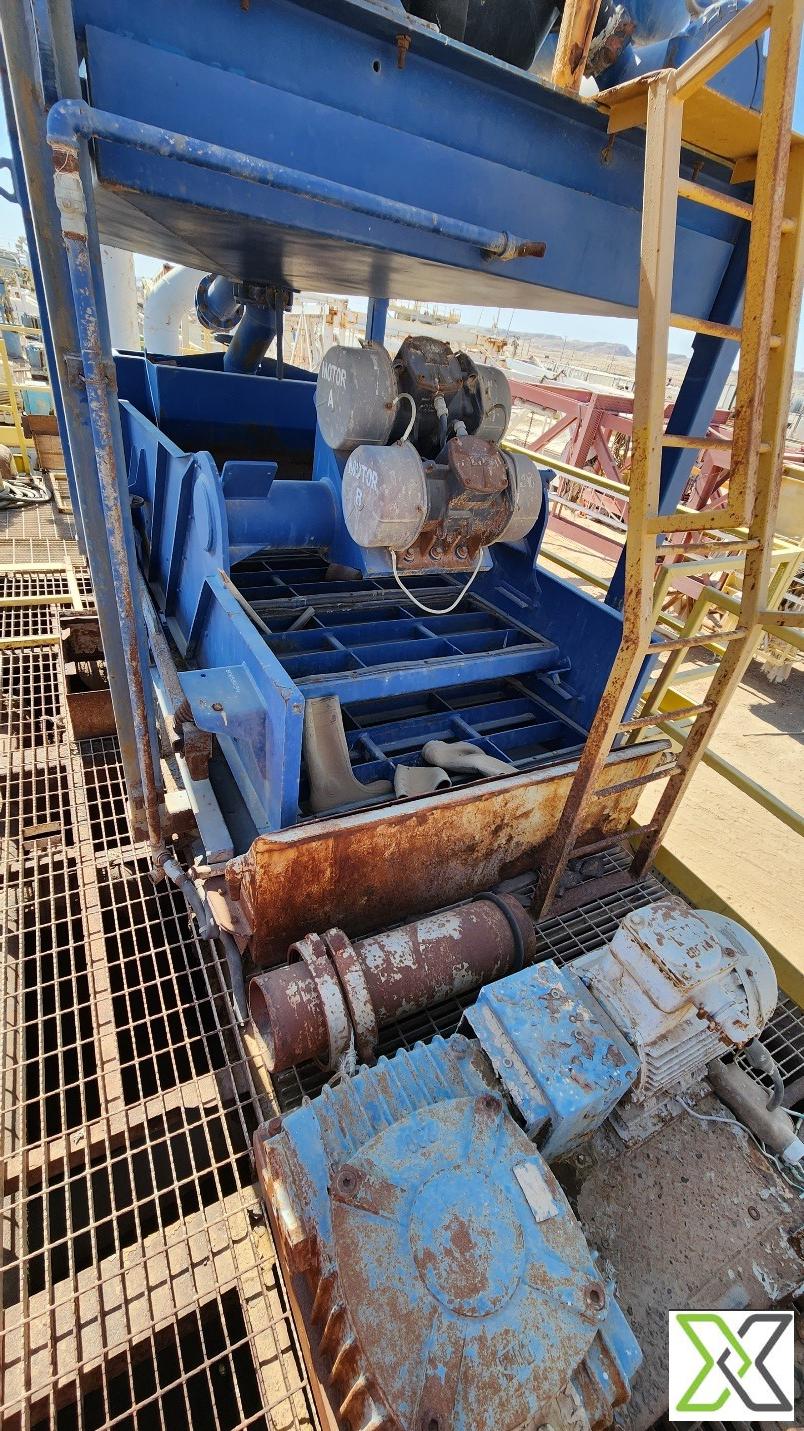

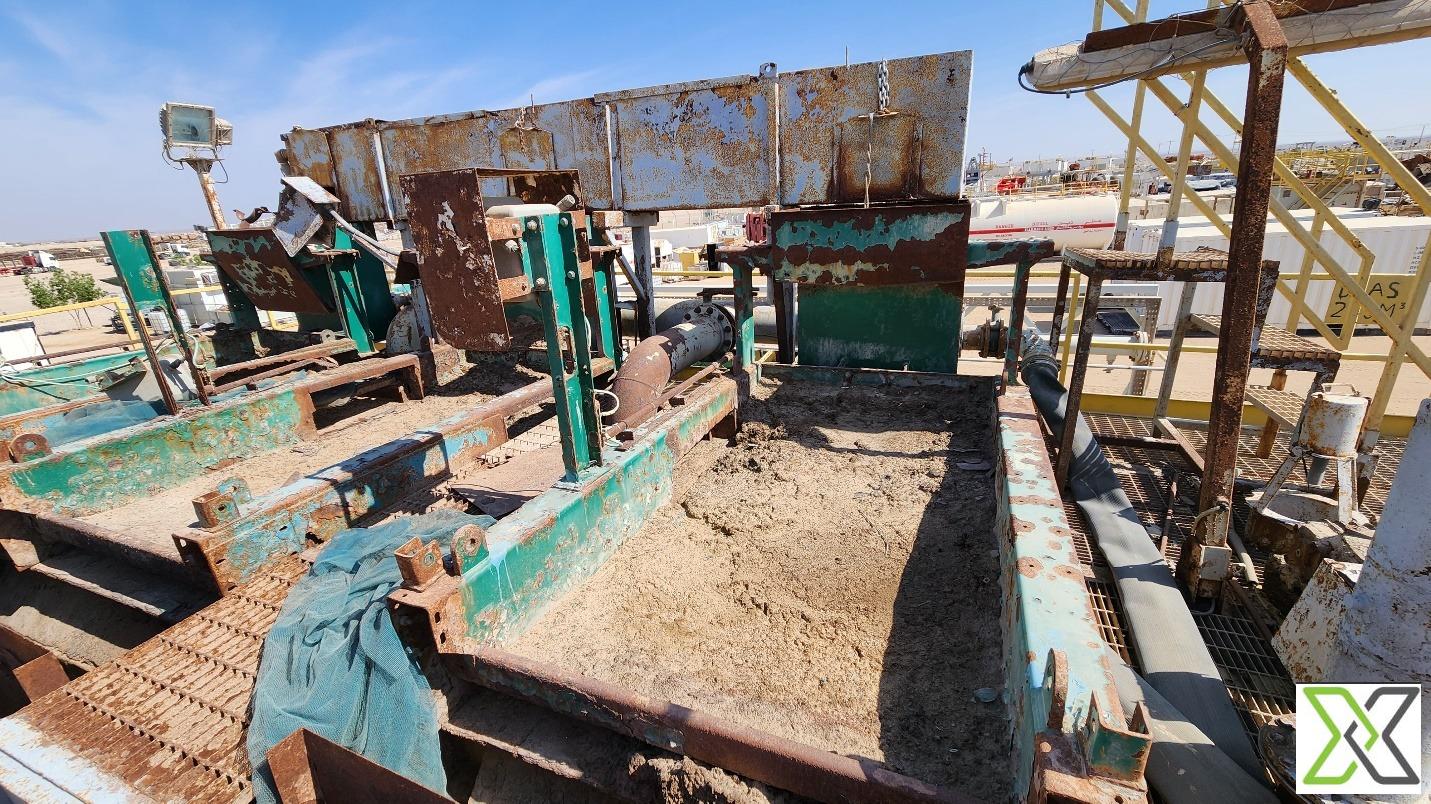

Shale shaker type: Derrick, linear

Active mud system: 1200 bbl

Reserve mud system: 1000 bbl

Water Tanks: 1000 bbl

ADDITIONAL EQUIPMENT

Anti-Collision System

CCTV Camera

KEMS

Last CAT IV inspection in 2016

Stacked since 2020

BOP, rig camp, tubulars, handling tools and other auxiliary equipment are not included.

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Oman
