TECHNICAL OVERVIEW

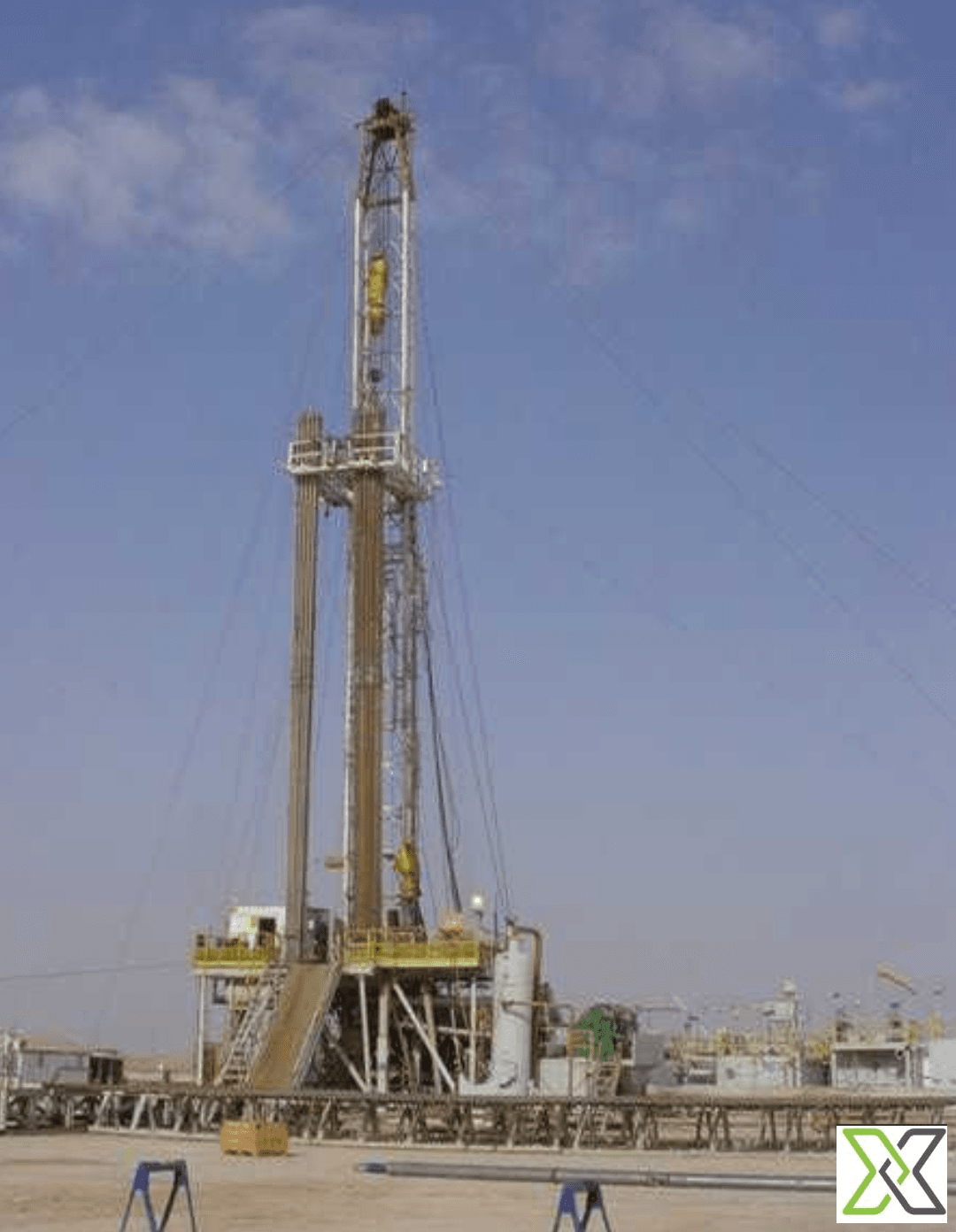

CARDWELL, MECHANICAL RIG
Rating: 800 HP

Hook load: 375,000 lbs @ 10 lines

Drilling depth: 10,000 ft (3048m)

Year of construction: 1988

Year of refurb.: 2010

MAST

Type: IPS Cardwell, 375-118 Telescopic

Height: 118 ft

Hook Load: 375,000 lbs

SUBSTRUCTURE

Type: Telescopic frame

Height: 19 ft.

Casing load: 375,000 lbs

Setback load: 285,000 lbs

DRAWWORKS

Type: KB-700

Horsepower rating: 800 HP

Max line pull: 167,000 daN with 10 lines

Drilling line diameter: 1-1/8”

Auxiliary brake: Parmac International Hydraumatic Model V80

TOP DRIVE

Type: NA

Capacity:

Torque cont.:

ROTARY TABLE

Type: Gardner Denver RT

Table Opening: 22 ½”

IRON ROUGHNECK

Type: NA

DRIVE GROUP

Engine type: Caterpillar D3408, D379

Horsepower rating: 2 x 400 HP, 2 x 610 HP

Generator type: LC7

Generator rating: 2 x 650 HP

Voltage: 400V, 60 Hz

Control Unit: MCC Panel

MUD SYSTEM

Pump type: 2 x Gardner Denver PZ-8

Horsepower rating: 750 HP each

Standpipe pressure: 5000 psi

Shale shaker type: 2 x Derrick-Flowline cleaners

Active mud system: 2 Tanks - 629 bbl

Reserve mud system: 2 Tanks - 1000 bbl.

Water Tank: 2 Tanks - 1000 bbl

BOP EQUIPMENT

Annular 13 5/8” - 5,000 psi

Double Ram 13 5/8” - 5,000 psi

CAMP EQUIPMENT

Full Rig Camp for 100 men

ADDITIONAL EQUIPMENT

CCTV CAMERA

KEMS

Stacked since June 2024

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Oman
