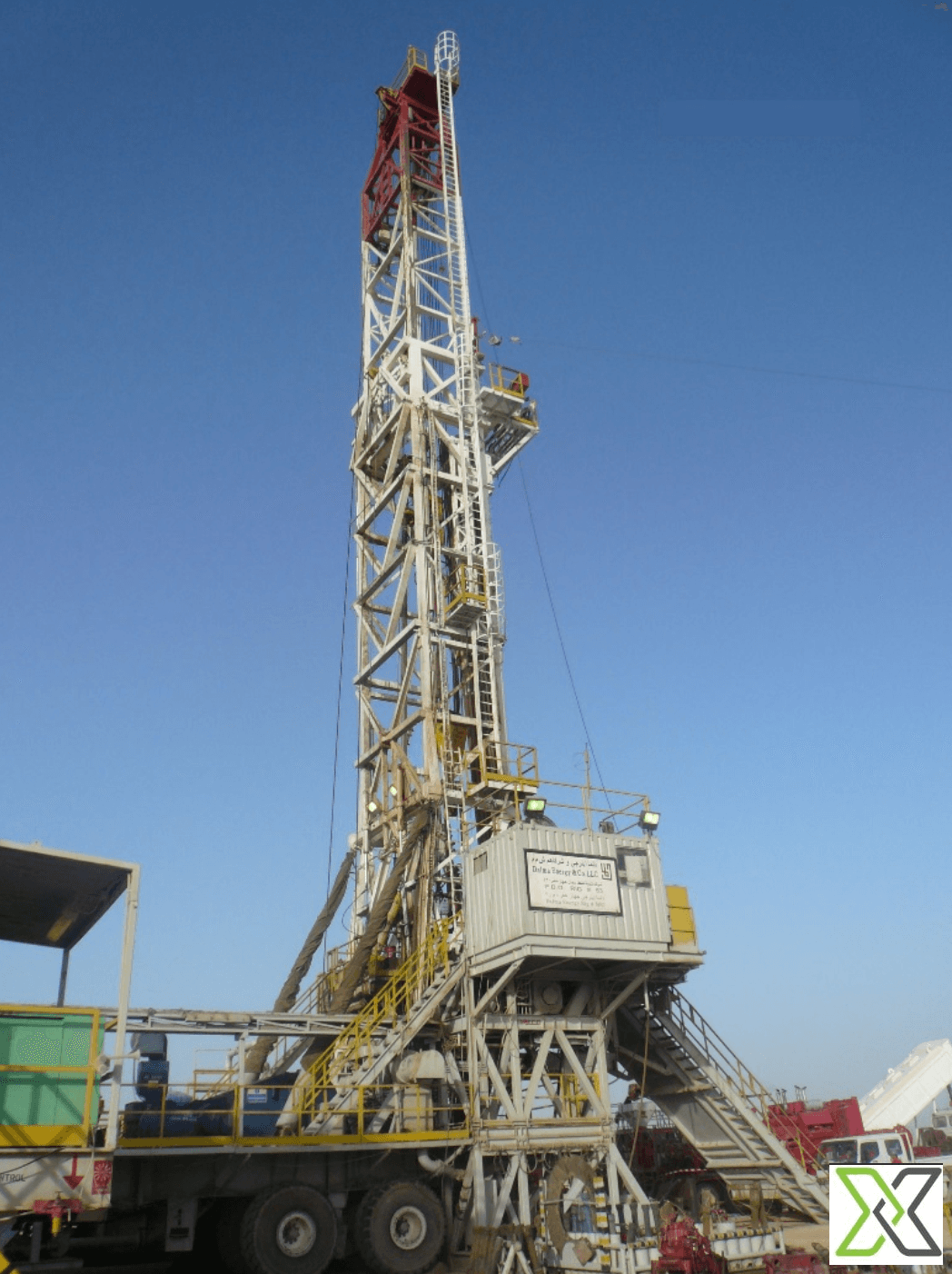

MOBILE DRILLING RIG, 800 HP, DRECO, DC, Oman, YoM 1995, refurb. in 2010

ReflowX SKU: REF-2958

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Oman
Condition

Used
OEM

DRECO (NOV)
Equipment code

Get Quotation Whatsapp

Short Description

MOBILE DRILLING RIG, 800 HP, DRECO, DC, Oman, YoM 1995, refurb. in 2010

Description

TECHNICAL OVERVIEW

HIGHLY MOBILE DESERT RIG

Rating: 800 HP

Hook load: 342,534 lbs with 10 lines

Drilling depth: 10,000 ft

Year of construction: 1995

Refurbished in 2010

MAST

Type: DRECO, V-Telescopic mast

Height: 108 ft

Hook Load: 342,534 lbs

SUBSTRUCTURE

Type: DRECO

Height: 20 ft.

Casing load: 274,000 lbs

Setback load: 240,000 lbs

DRAWWORKS

Type: DRECO 800

Horsepower rating: 800 HP

Drilling line diameter: 1-1/8”

Auxiliary brake: Baylor, Eddy Current

TOP DRIVE

Type: N/A

ROTARY TABLE

Type: Gardner Denver C-275

Table Opening: 27 ½”

IRON ROUGHNECK

Type: NA

DRIVE GROUP

Engine type: Caterpillar 3508

Horsepower rating: 3 x 825 HP

Generator type: Caterpillar SR4

Generator rating: 3 x 540 KW @ 1200 rpm

Voltage: 600V, 60 Hz

Control Unit: SCR

MUD SYSTEM

Pump type: 2 x Ideco T-1000

Horsepower rating: 2 x 1000 HP

Standpipe pressure: 5000 psi

Shale shaker: 2 No.s

Shale shaker type: Derrick-Flo

Active mud system: 880 bbl

Reserve mud system: 500 bbl

Water Tank: 1000 bbl

BOP EQUIPMENT

Annular 13 5/8”, 5000 psi

Double Ram 13 5/8”, 5000 psi

CAMP EQUIPMENT

Full Rig Camp for 100 men

ADDITIONAL EQUIPMENT

Rig on carrier

Mud pumps and generators on wheels

CCTV CAMERA

KEMS

Stacked since Sep 2024

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Oman

Technical Details

Year of Manufacturing	1995
Manufacturer Name	DRECO
