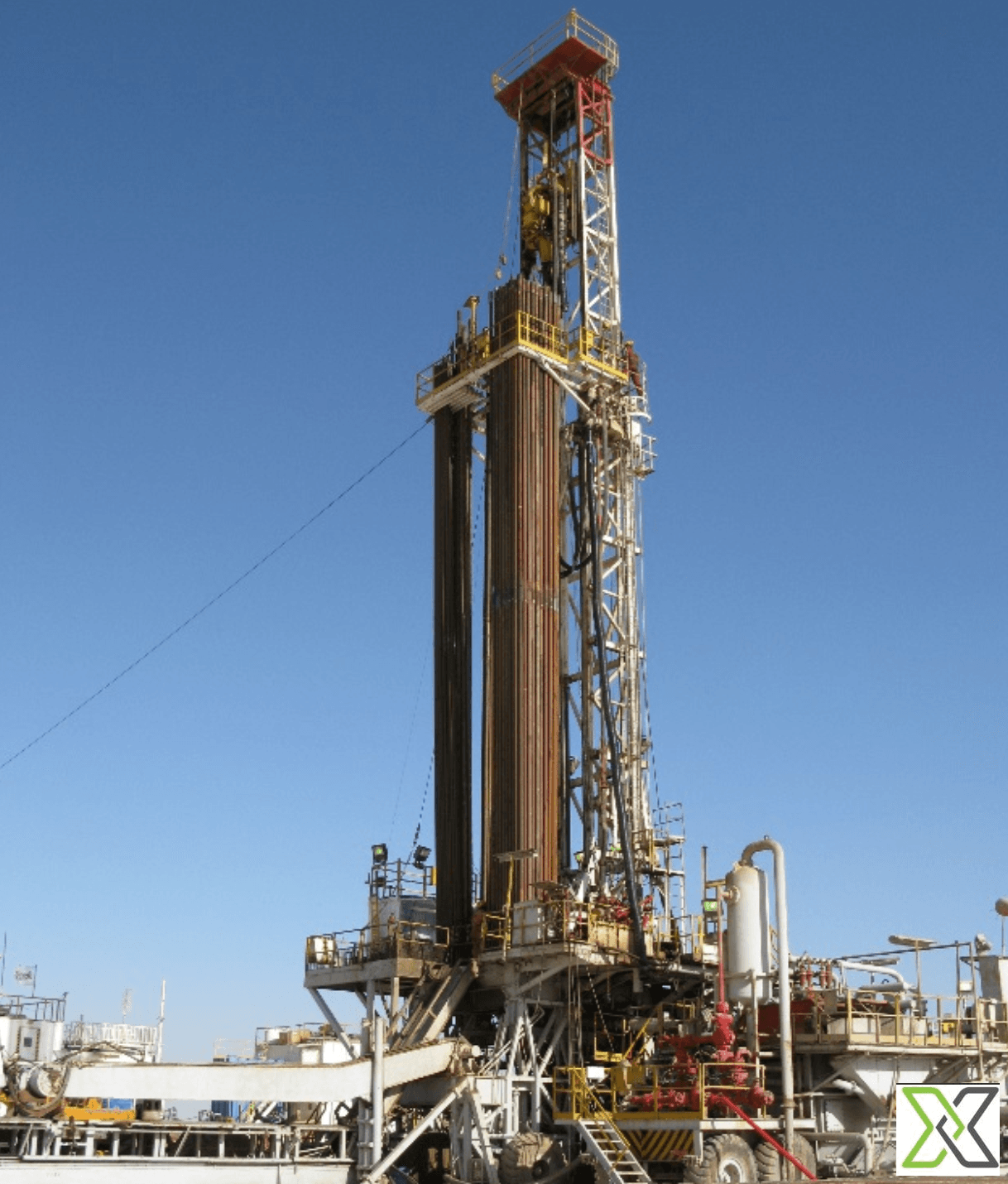

MOBILE DRILLING RIG, 800 HP, DRECO, DC, Oman, YOM 1993

ReflowX SKU: REF-3591

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

Oman
Condition

Used
OEM

DRECO (NOV)
Equipment code

Get Quotation Whatsapp

Short Description

MOBILE DRILLING RIG, 800 HP, DRECO, DC, Oman, YOM 1993

Description

TECHNICAL OVERVIEW
HIGHLY MOBILE DESERT RIG

Rating: 800 HP

Hook load: 170 Ton with 8 lines

Drilling depth: 10,000 ft

Year of construction: 1993

MAST

Type: DRECO V 108-10-446, Telescoping Free Standing, for Doubles

Height: 108 ft

Hook Load: 170 Ton

SUBSTRUCTURE

Type: Mobile, Tyre Mounted

Height: 20 ft.

Casing load: 170 Ton

Setback load: 125 Ton

DRAWWORKS

Type: Dreco DC Electric

Horsepower rating: 800 HP

Drilling line diameter: 1-1/8”

Auxiliary brake: Baylor Eddy Current, 7RD

TOP DRIVE

Type: Electric, 6027 AC, CANRIG

Capacity: 275 ton

Torque cont.: 30,000 ft-lbs

ROTARY TABLE

Type: Dreco-Dummy

Table Opening: 20 ½”

IRON ROUGHNECK

Type: Farr Tong

DRIVE GROUP

Engine type: 3 ea. x Caterpillar 3508

Horsepower rating: 825 HP

Generator type: Caterpillar

Generator rating: 540 KW

Voltage: 600 V

Control Unit: SCR

MUD SYSTEM

Pump type: 2 ea. x Gardner Denver PZ-8

Horsepower rating: 2 x 750 HP

Standpipe pressure: 5000 psi

Shale shaker: 2

Shale shaker type: Derrick Hyperpool

Active mud system: 2 tanks x 100 m3

Reserve mud system: 1 tank x 65 m3

Water Tank: 70 m3

BOP EQUIPMENT

Annular 11”, 5000 psi

Double Ram 11”, 5000 psi

CAMP EQUIPMENT

Full Rig Camp for 100 men

ADDITIONAL EQUIPMENT

Rig on carrier, mud pumps and generator on wheels

Air conditioned Driller Cabin

Soft Torque Rotary System (CANRIG)

MD TOTCO Instrumentation

KEMS

Javelin Pipe handler

Stacked since Dec 2023

The equipment is sold AS IS, WHERE IS

Delivery terms: EXW Oman

Technical Details

Year of Manufacturing	1993
Manufacturer Name	DRECO
