- HT10 1 Ton Mini Excavator with Cabin – CHANGCHAI Engine, 8.2kW Power
Description
Product Description
Overview

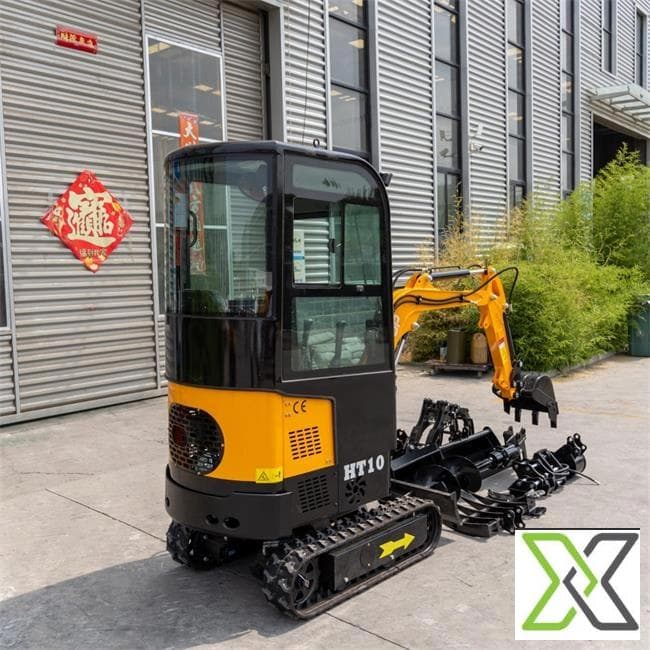

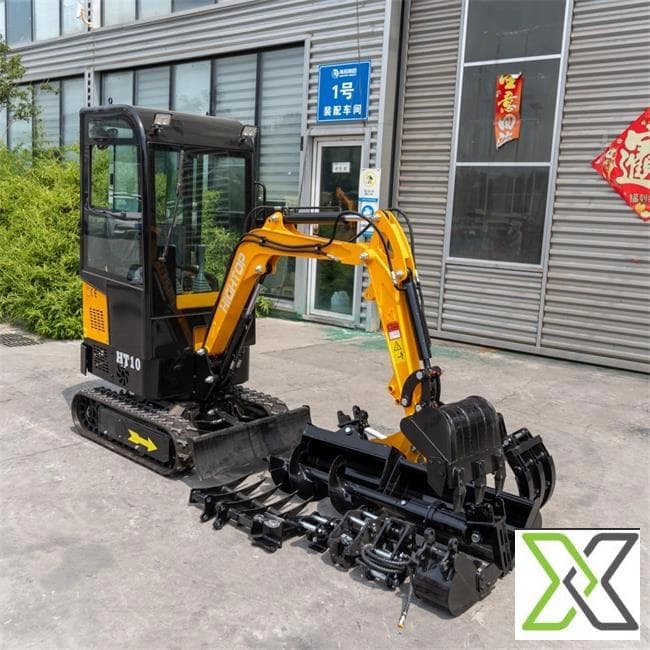

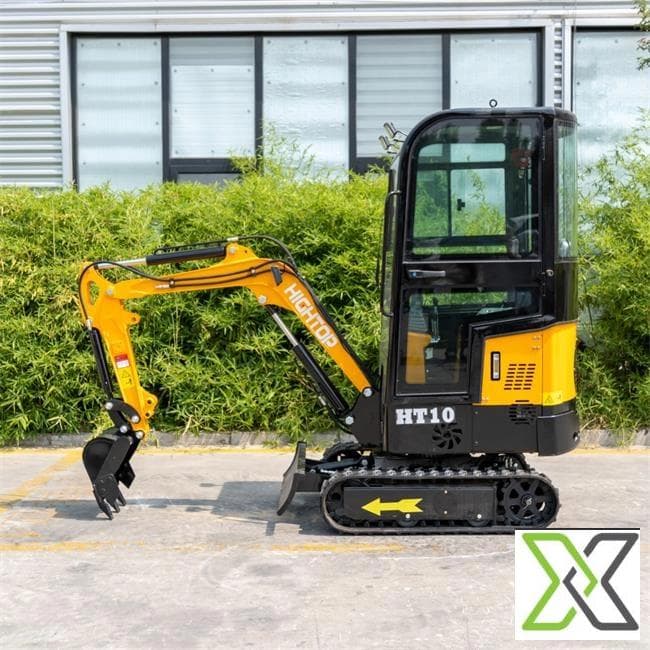

The HT10 1-Ton Mini Excavator is designed for compact jobs requiring efficiency and versatility. With a simple engine design and a spacious cabin, it is ideal for tasks like garden work, farmland projects, and trench digging. The mini excavator is easy to maintain and offers excellent value for small-scale operators. Its retractable tracks and customizable color options provide flexibility for a variety of job sites and user preferences.
Key Features
| Feature | Specification |
|---|---|
| Engine | CHANGCHAI 192FAM (Single Cylinder, Fan Cool) |
| Optional Engines | Briggs & Stratton, Yanmar, Koop Engine |
| Rated Power | 8.2 kW at 3600 RPM |
| Main Pump | G5-6 with 6.8 ml/r displacement |
| Traveling Motor | SANYANG BMT-245 |
| Swing Motor | SANYANG BMRS-250 |
| Travel Speed | 1.5 km/h |
| Overall Dimensions (L x W x H) | 2775 x 930 x 2219 mm |
| Track Width | 180 mm |
| Chassis Ground Clearance | 132 mm |
| Platform Ground Clearance | 380 mm |
| Max Digging Depth | 1650 mm |
| Max Dumping Height | 1850 mm |
| Max Digging Radius on Ground | 2850 mm |
| Max Upgrade Height of Blade | 345 mm |
| Max Digging Depth with Blade | 255 mm |
Customization & Certification
Optional Boom Swing: Available upon request
Color Options: Red, Yellow, Blue, or custom colors available
Certification: EPA/CE/ISO certified for global operations
Oil Supply System
Includes a pressure alarm system to protect the machine if oil levels are low
High precision filters for air and oil with a 1-micron filtration accuracy
Magnetic hydraulic oil tank entrance to prevent debris contamination
Cooling & Stability
Built-in sealed exhaust fan and optimized cooling system for reliability
High-strength hydraulic components ensure a stable and long-lasting operation
Safety & Comfort
Waterproof key and safety seat with seatbelt for added protection
Spacious cabin with good visibility for ease of operation
If you require any further information on this listing please contact info@reflowx.com
Technical Details
| Model Number | HT10 1-Ton |
|---|---|
| Year of Manufacturing | 2026 |
