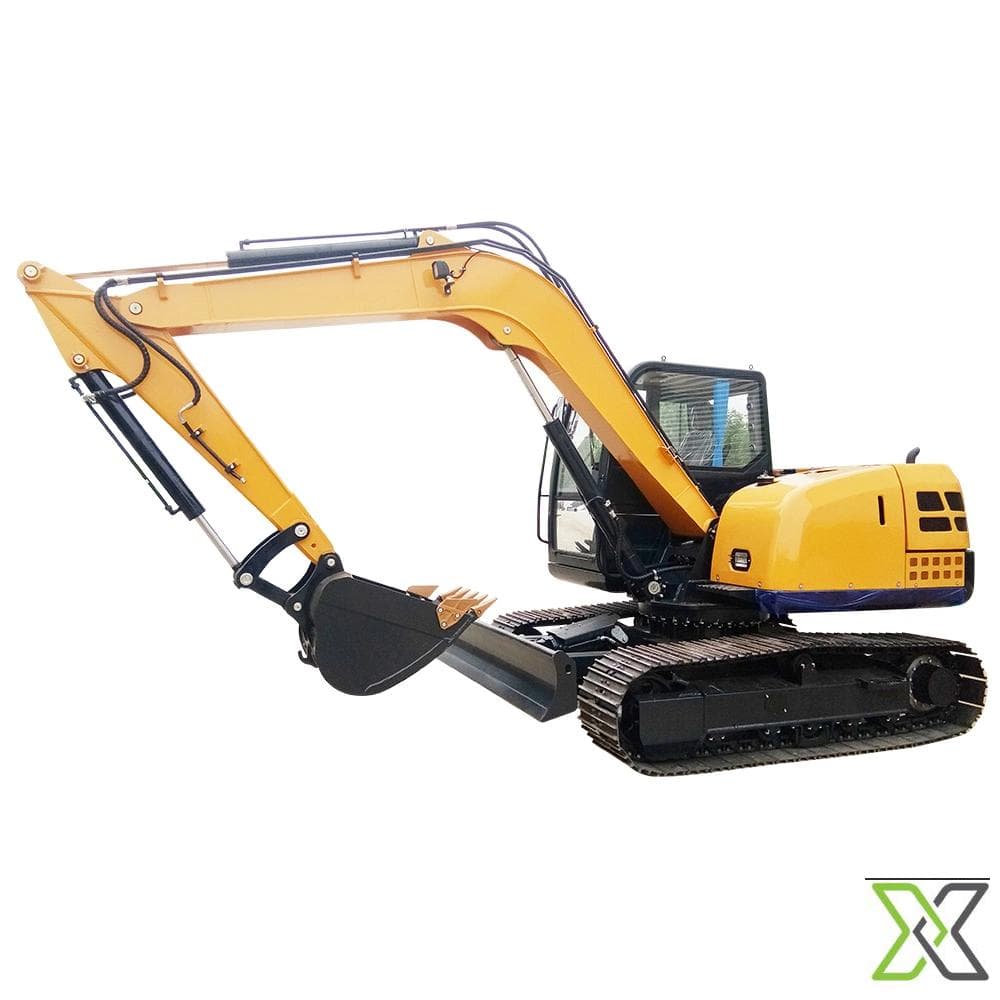

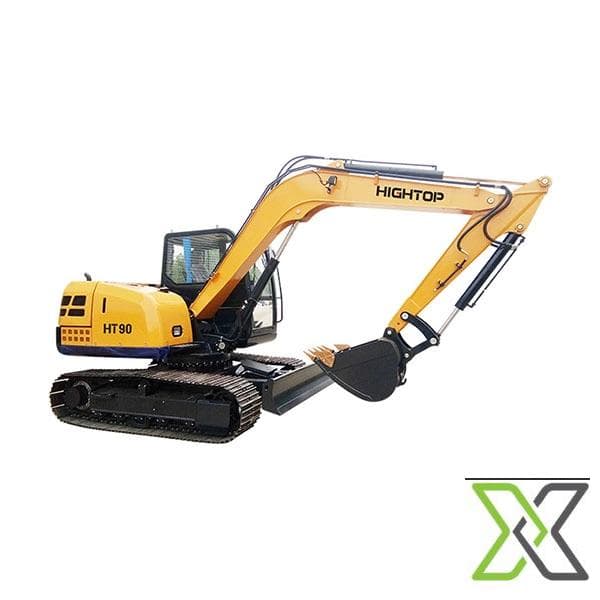

- HT90 9T Crawler Excavator – CUMMINS Engine, 53kW Power, 9000kg
Description
Product Description
Overview
The HT90 9T Crawler Excavator is a robust and powerful machine designed for demanding excavation tasks. Equipped with a CUMMINS engine and advanced fuel-efficient technology, it offers excellent power output and reduced operational costs. Its small turning radius allows for flexible operation in confined spaces, making it suitable for various construction, road maintenance, and water conservancy projects. The machine's durable structure ensures longevity and reliability under harsh working conditions.
Key Features
| Feature | Specification |
|---|---|
| Engine | CUMMINS QSF2.8 |
| Rated Power | 53 kW (72 HP) @ 2200 rpm |
| Hydraulic System Pressure | 27.5 Mpa |
| Swing Speed | 12 rpm |
| Fuel Tank Capacity | 110 L |
| Hydraulic Oil Tank Capacity | 100 L |
| Max. Digging Depth | 4015 mm |
| Max. Dumping Height | 5188 mm |
| Max. Digging Height | 7050 mm |
| Max. Vertical Digging Depth | 3550 mm |
| Max. Bucket Digging Force | 58 kN |
| Max. Arm Digging Force | 40 kN |
| Max. Travel Speed | 2.3 / 4 km/h |
| Maximum Grade Ability | 35° |
| Track Shoe Width | 450 mm |
| Number of Track Shoes per Side | 39 pcs |
| Number of Bottom Rollers per Side | 5 |
| Number of Upper Rollers per Side | 1 |
| Track Length on Ground | 2209 mm |
| Width of Track Shoe | 450 mm |
| Maximum Lifting Height of Blade | 370 mm |
| Maximum Cutting Depth of Blade | 344 mm |
| Machine Weight | 9000 kg |
| Swing Radius at Tail | 1813 mm |
| Track Gauge | 1750 mm |
| Minimum Ground Clearance | 375 mm |
| Emission Standard | Tier 3 / Stage III |
Performance & Flexibility
Small Turning Radius: Allows operation in tight spaces, ideal for urban and confined areas
High Digging Force: Delivers powerful digging capabilities, making it perfect for tough excavation tasks
Fuel Efficiency: Advanced technology optimizes fuel consumption, reducing operating costs and improving project efficiency
Hydraulic System: Provides smooth and reliable performance with 27.5 Mpa pressure
Applications
Municipal Engineering: Suitable for road maintenance, pipeline laying, and urban excavation tasks
Construction: Ideal for foundation excavation, site leveling, and material handling
Water Conservancy Projects: Handles tasks like channel digging and river dredging efficiently
Small-Scale Mining Operations: Can perform excavation and loading tasks in mining environments
If you require any further information on this listing please contact info@reflowx.com
Technical Details
| Year of Manufacturing | 2026 |
|---|---|
| Model Number | HT90 9T |
