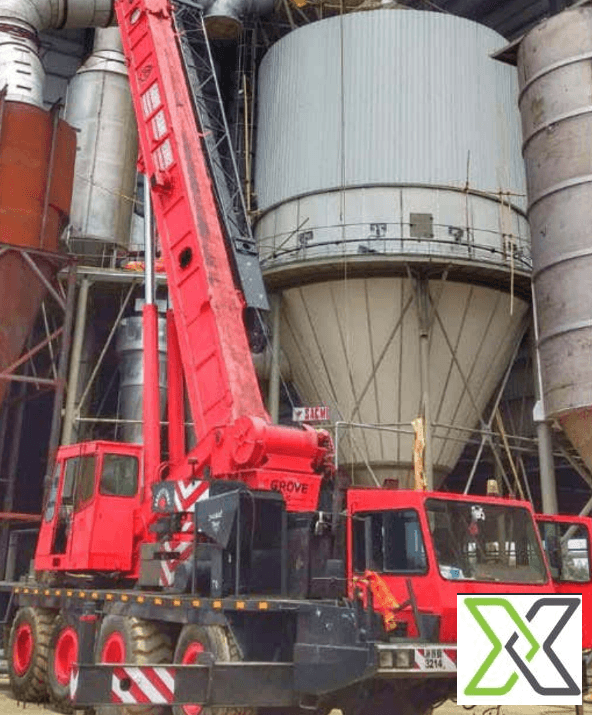

80 US Ton Rough Terrain Hydraulic Crane with 4-Section Telescopic Boom - 2008

This 80 US ton (72.5 metric tonne) rough terrain crane is designed for high-performance lifting operations in challenging environments. It features a robust 4-section full-power hydraulic telescoping boom extending up to 138 ft (42.0 m) and an optional 56 ft (17 m) bi-fold lattice swingaway jib that provides a maximum tip height of up to 194 ft (59.1 m). The crane is equipped with a hydraulically driven main winch, optional auxiliary winch, and wire rope rated for heavy loads, making it suitable for industrial, construction, and energy-sector lifting operations. The 4x4 rough terrain chassis supports various steering modes for excellent maneuverability, while the enclosed cab with joystick controls and load moment indicator (LMI) ensures safe and ergonomic operation.

Specifications:

– Maximum Lifting Capacity: 80 US tons (72.5 metric tonnes)
– Main Boom Length: 38 ft to 138 ft (11.6 m to 42.0 m)
– Boom Type: 4-section, full-power telescopic hydraulic boom
– Optional Jib: 33 ft to 56 ft (10 m to 17 m) bi-fold lattice swingaway
– Max Tip Height (with Jib): Up to 194 ft (59.1 m)
– Boom Elevation Range: -3° to +78°
– Max Line Pull: 9,000–10,000 lbs (single line, depending on winch)
– Line Speed: ~400 ft/min (load and layer dependent)
– Main Winch: Hydraulic, with multi-disc brake
– Auxiliary Winch: Optional
– Wire Rope: 250–300 ft of 5/8" or 3/4" diameter
– Chassis Type: Tyre-mounted, 4x4 rough terrain
– Drive Mode: 4-wheel drive
– Steering Modes: Front, rear, crab, coordinated
– Max Travel Speed: 25–30 km/h (16–18 mph)
– Turning Radius: Compact, optimized for confined spaces
– Engine Make: Cummins / Detroit Diesel (variant-specific)
– Engine Output: 200–230 HP
– Fuel Type: Diesel
– Transmission: Powershift, multi-gear forward/reverse
– Fuel Tank Capacity: 300–350 liters
– Pump Type: Variable displacement piston pump
– Hydraulic Reservoir Capacity: 250 liters
– System Pressure: ~280 bar (4,000 psi)
– Control Valves: Load-sensing, pressure-compensated
– Outriggers: Four hydraulic, independently controlled
– Float Dimensions: ~600 mm round pads
– Outrigger Sensing: Automatic position monitoring
– Leveling Capability: Engineered for uneven terrain
– Operator Cab: Enclosed, tilting cab with wide visibility
– Cab Controls: Joystick + lever hydraulic interface
– Display & Indicators: LMI, anti-two block, fault display
– Air Conditioning & Heating: Optional
– Safety Features: Emergency stop, backup alarm, camera (optional)
– Overall Length: 12.5–14 m
– Overall Width: ~3 m (transport width)
– Overall Height: ~3.8 m
– Gross Vehicle Weight: 45,000–48,000 kg
