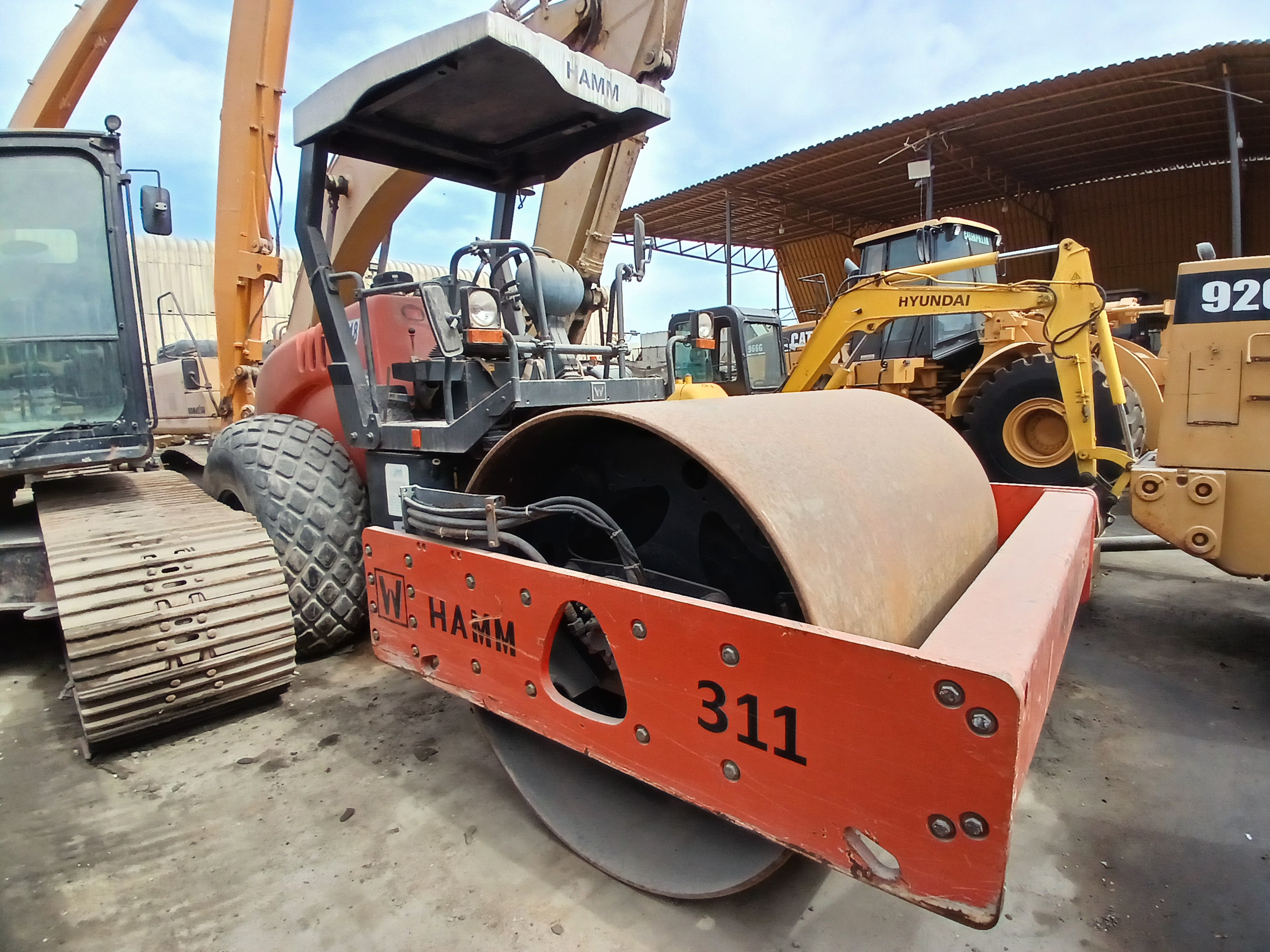

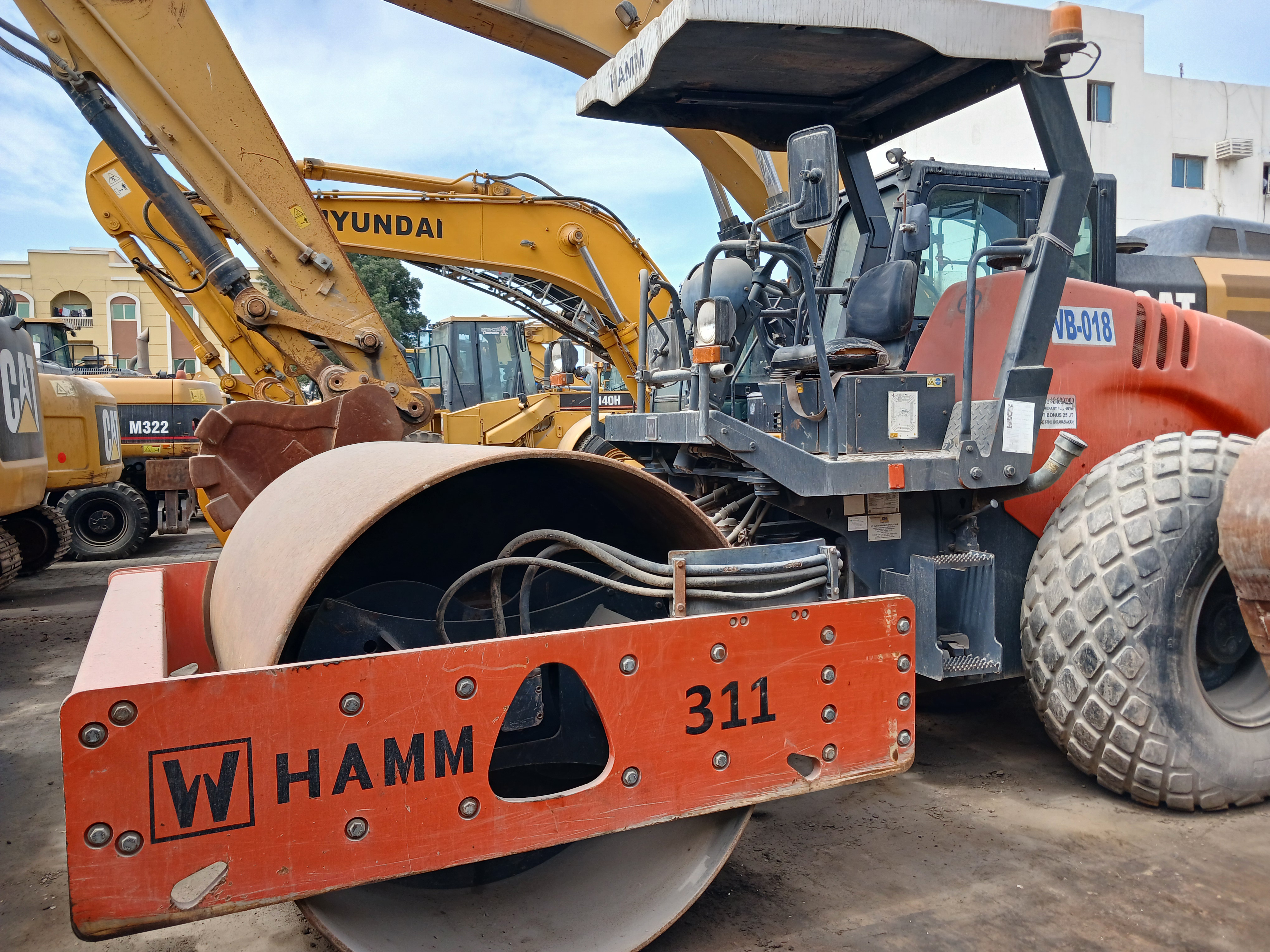

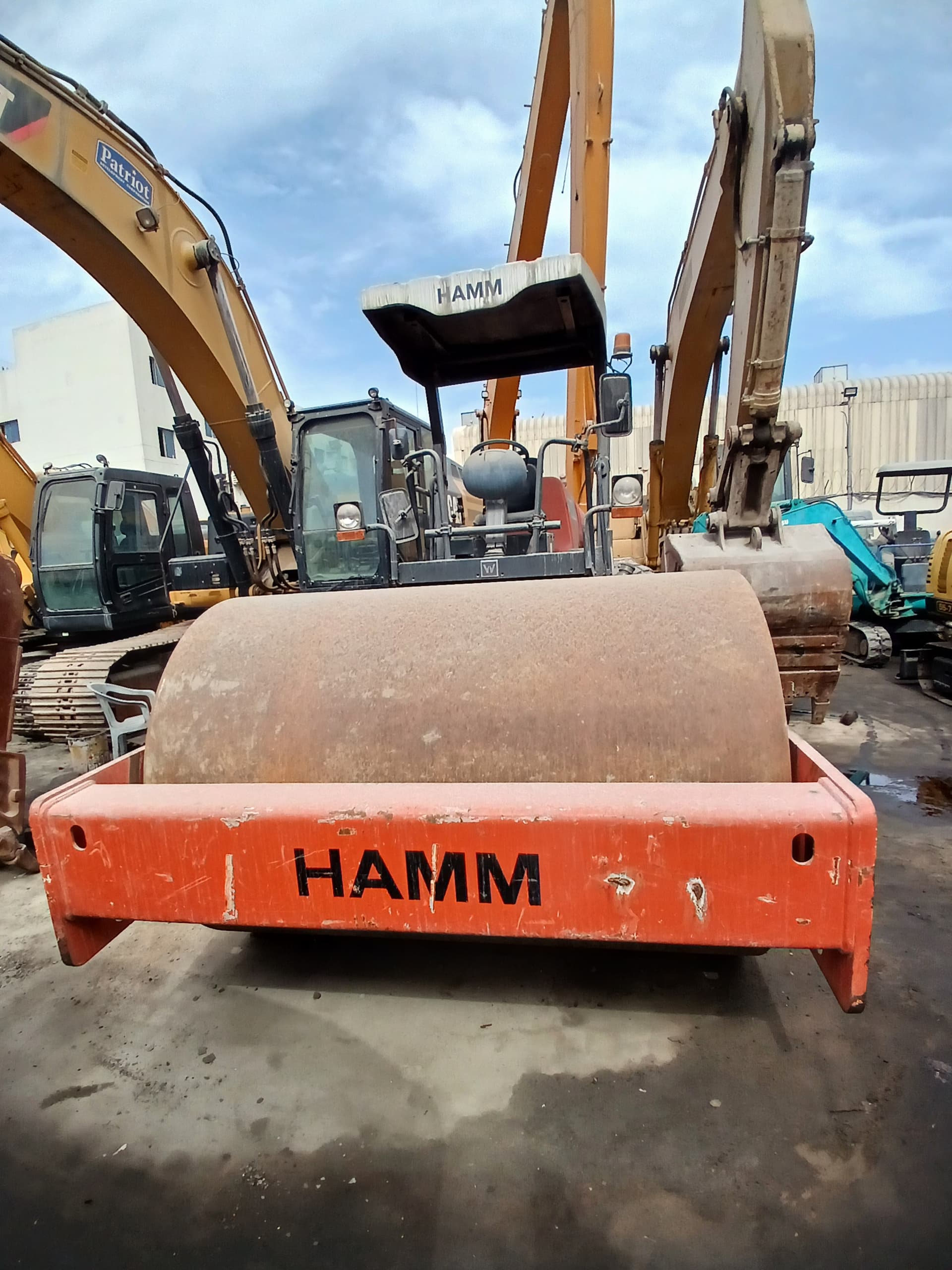

HAMM AG Soil Compactor - HAMM 311D - 2017

ReflowX SKU: REF-9678

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

HAMM AG, Hammstraße 1, D-95643 Tirschenreuth, Germany
Equipment code

Get Quotation Whatsapp

Short Description

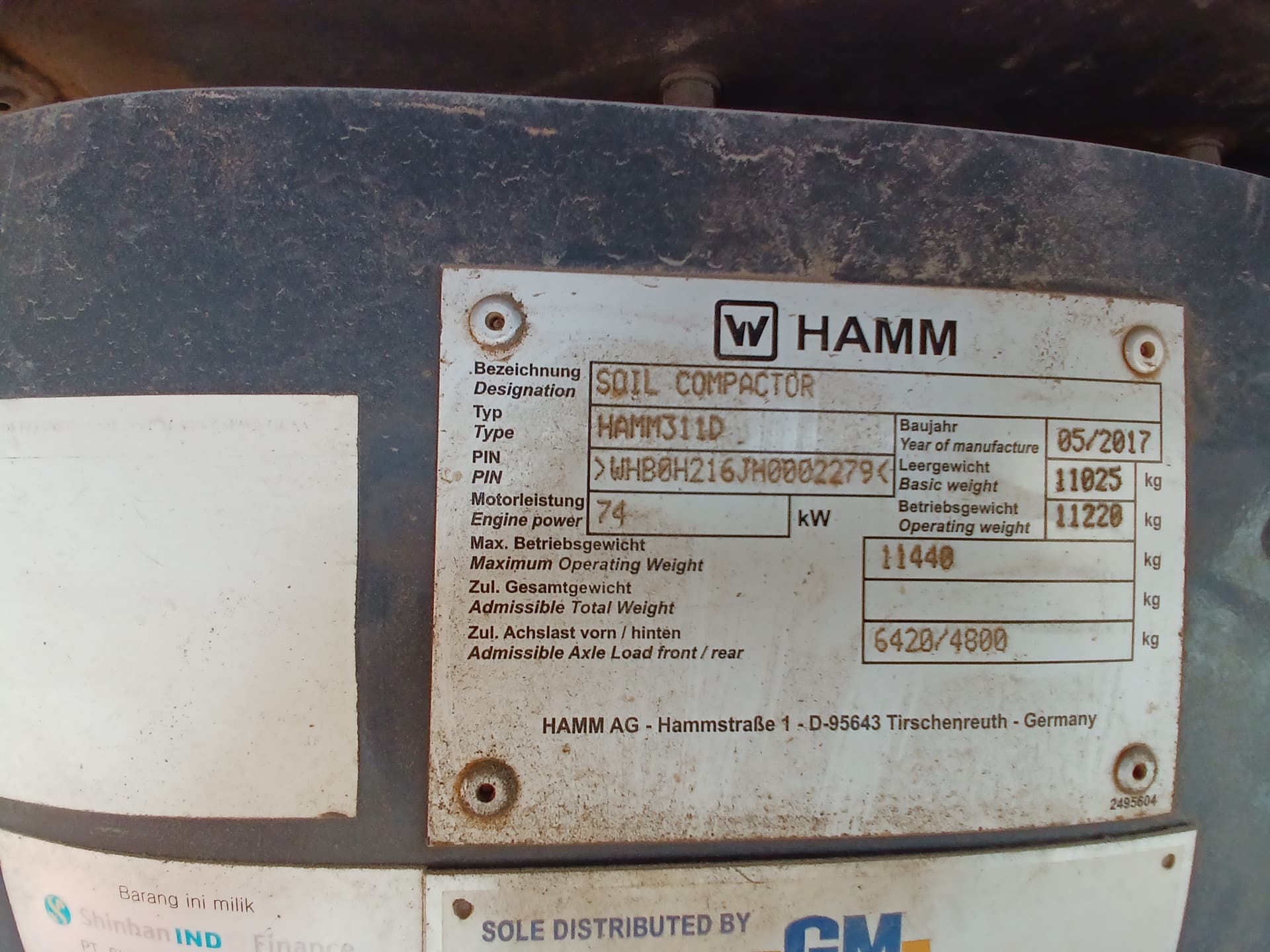

Manufacturer: HAMM AG Model: HAMM 311D Type: Soil Compactor Serial Number / PIN: H18DH216JH0002279 Engine Power: 74 kW Basic Weight: 11,025 kg Operating Weight: 11,220 kg Max. Operating Weight: 11,440 kg

Description

Specifications

General Information

Brand: HAMM AG

Model: HAMM 311D

Year: 2017

Type: Soil Compactor

Operating Weight: 11,400 kg (25,132 lbs)

Engine Power: 85 kW (113 HP)

Compaction Width: 1,680 mm (5.5 ft)

Engine Specifications

Engine Model: Deutz TCD 3.6 L4

Engine Type: 4-Cylinder, Turbocharged Diesel

Power Output: 85 kW (113 HP) @ 2,200 rpm

Displacement: 3.6 L

Fuel Tank Capacity: 130 L

Emission Standard: Stage IIIA

Compaction Performance

Max Compaction Depth: 500 mm (19.7 in)

Nominal Amplitude: 1.6 mm

Centrifugal Force (Max): 310 kN (69,700 lbs)

Vibration Frequency: 2,200 vpm (vibrations per minute)

Operating Speed: 6 km/h (3.7 mph)

Maximum Speed: 12 km/h (7.5 mph)

Vibration Mode: Two-Stage (High and Low)

Dimensions & Weight

Overall Length: 4,900 mm (16.1 ft)

Overall Width: 2,290 mm (7.5 ft)

Overall Height: 2,650 mm (8.7 ft)

Wheelbase: 2,500 mm (8.2 ft)

Ground Clearance: 300 mm (11.8 in)

Operating Weight: 11,400 kg (25,132 lbs)

Undercarriage & Mobility

Tires: 14.00-24 (Radial)

Drive: 2WD

Turning Radius: 4.7 m (15.4 ft)

Gradeability: 30%

Hydraulic Drive Motors: Independent drive to each drum for enhanced maneuverability

Operational & Safety Features

Hydraulic Drum Drive for Maximum Compaction Efficiency

ROPS/FOPS Certified Operator Cab for Safety

Ergonomic Joystick and Steering Control

Vibration Control System for Smooth Operation

Centralized Service and Maintenance Points for Easy Access

Built-In Anti-Slip Control System for Operator Stability

Advanced Vibration Monitoring System for Precision

Comfortable Suspension Seat for Operator Fatigue Reduction

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	HAMM AG - HAMM 311D
Year of Manufacturing	2017
Height	2,650 mm (8.7 ft)
Width	2,290 mm (7.5 ft)
Length	4,900 mm (16.1 ft)
Weight	11,400 kg
Color	Orange
