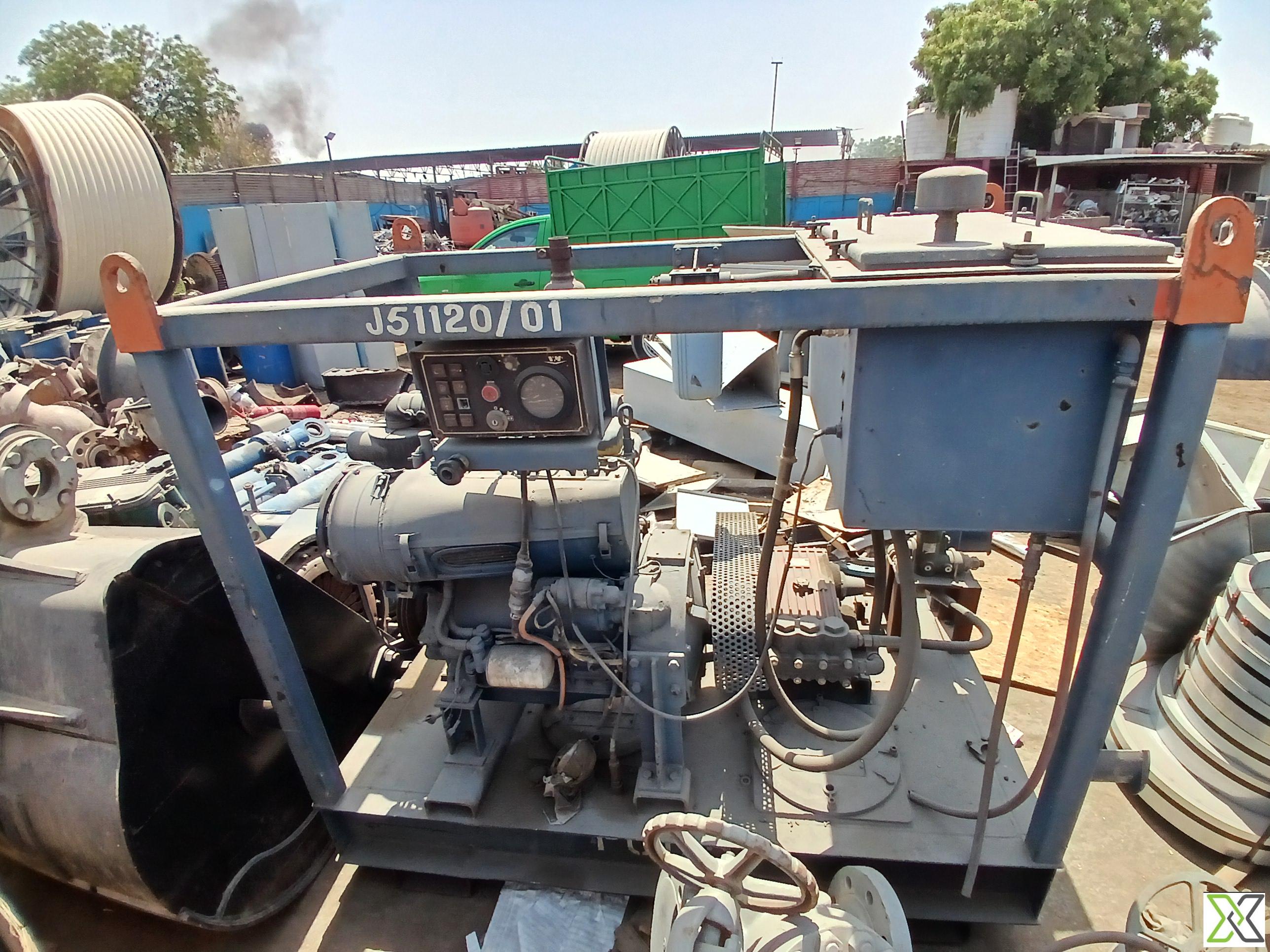

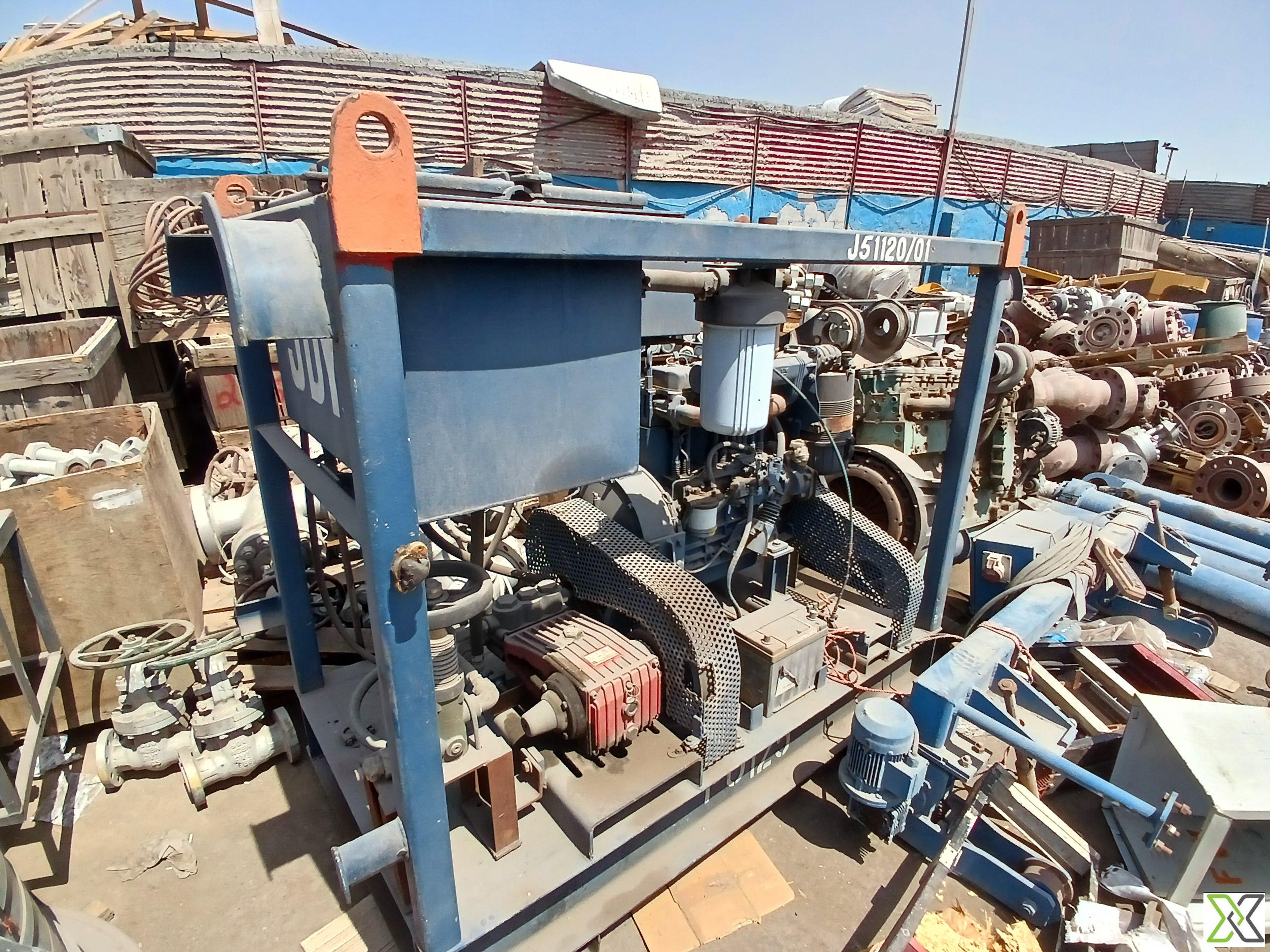

Speck PB 357-400 Reciprocating Plunger Pump – 400 L/min, 100 bar, 30 kW

ReflowX SKU: REF-1271

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Speck-Kolbenpumpenfabrik (Germany)
Equipment code

Get Quotation Whatsapp

Short Description

High-performance Speck PB 357-400 reciprocating plunger pump delivering 400 L/min at 100 bar. Designed for continuous-duty industrial use with direct drive, stainless steel head, and baseplate skid mounting.

Description

Speck PB 357-400 Reciprocating Plunger Pump – 400 L/min, 100 bar, 30 kW

The Speck PB 357-400 is a robust reciprocating plunger pump engineered for demanding industrial fluid handling applications. Manufactured by Speck-Kolbenpumpenfabrik in Germany, this high-pressure unit operates at 370 rpm and delivers up to 400 liters per minute at a maximum pressure of 100 bar. It is designed for continuous-duty performance and mounted on a welded steel base skid with vibration isolation. The pump is typically direct coupled to a 30 kW electric motor via flexible coupling or gearbox and features a high-pressure sealing system suitable for water, emulsions, or light oil, depending on plunger configuration and seal material. The pump head is constructed from stainless steel for corrosion resistance and long service life. The system operates with ambient air cooling and requires a flooded suction or a minimum NPSH of 2.5 meters.

Specifications:

– Pump Type: Reciprocating Plunger Pump
– Manufacturer: Speck-Kolbenpumpenfabrik, Germany
– Model: PB 357-400
– Serial Number: 928860083
– Rated Flow Rate: 400 L/min
– Max Working Pressure: 100 bar
– Operating Speed: 370 rpm
– Power Requirement: 30 kW
– Motor Voltage (Est.): 400 V (3-phase, 50 Hz)
– Drive Type: Electric Motor (direct coupled)
– Direction of Rotation: CW or CCW (per arrow on pump)
– Seal Type: High-pressure plunger sealing system
– Pump Head Material: Stainless Steel (confirm with OEM)
– Cooling Type: Ambient air / Passive
– Suction Requirement: Flooded suction or NPSH ≥ 2.5 m
– Mounting Arrangement: Baseplate mounted on skid
– Frame Type: Welded steel base skid
– Asset/Frame Code: J51120/01
– Drawing Reference: 1023 / 102F (OEM specific)
– Finish: Industrial-grade epoxy paint
– Installation: Vibration-isolated, floor-mounted
– Dimensions: Skid approx. 2.0–2.5 m (estimated)
– Weight: Approx. 600–1,200 kg (configuration-dependent)
– Working Duty: Continuous operation
– Fluid Compatibility: Water, emulsions, light oil (verify with plunger & seal materials)
– Temperature Range: Ambient to ~60°C
– Environment: Industrial, onshore

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	PB 357-400
Height	1,200 mm (1.2 meters)
Width	1,000 mm (1.0 meter)
Length	2,200 mm (2.2 meters)
Weight	950 kg
