Hitachi ZX140W Wheel Excavator – 14 Ton Class - 2016

ReflowX SKU: REF-8249

Product Details

Quantity

1
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition

Surplus
OEM

HITACHI
Equipment code
Total Price
Per Unit Price

$ 129,000.00

Short Description

The 2016 Hitachi ZX140W is a versatile 14-ton class wheeled excavator featuring a 133 HP Isuzu turbocharged diesel engine, a 0.6 m³ bucket, and high mobility for urban and general construction applications.

Description

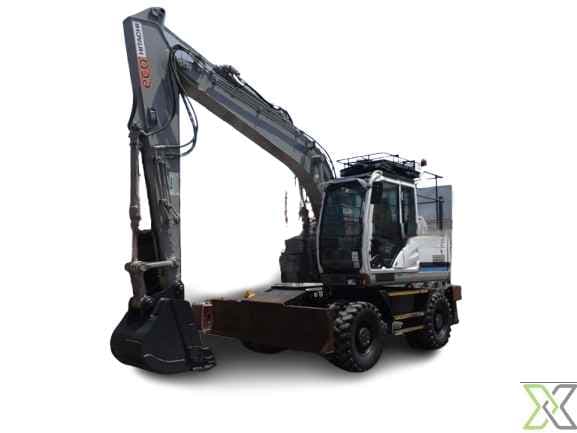

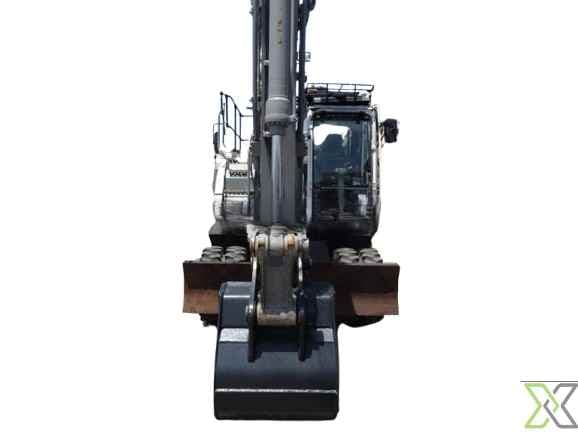

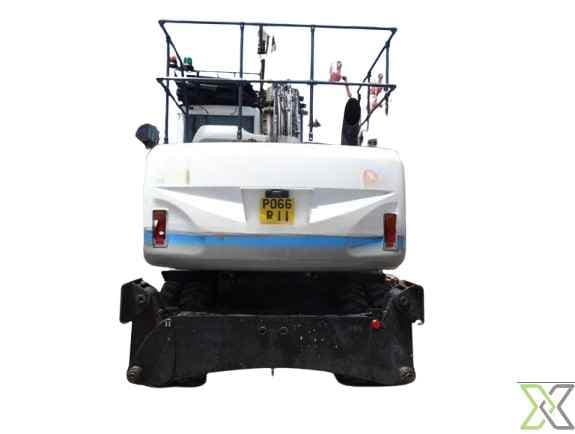

Hitachi ZX140W Wheel Excavator – 14 Ton Class - 2016

The Hitachi ZX140W Wheel Excavator (2016) is engineered for maximum mobility, power, and precision in medium-duty excavation and utility work. Built on a wheeled chassis for enhanced maneuverability, it provides optimal performance on paved and urban job sites.

At its core is the Isuzu 4JJ1X turbocharged diesel engine, delivering 99 kW (133 HP) of power for reliable, fuel-efficient operation. A variable displacement piston pump drives the hydraulic system, offering a maximum flow rate of 2 x 170 liters/min with an operating pressure of 34.3 MPa (350 bar)—sufficient for demanding lifting, trenching, and loading tasks.

The machine weighs approximately 14,000 kg, with a maximum lift capacity of 4,350 kg at a 7.5 m radius. It comes equipped with a 5,650 mm boom and 2,570 mm arm, and a 0.6 m³ bucket (varies depending on job requirements).

With an overall length of 7,695 mm, a width of 2,500 mm, and a tail swing radius of 1,960 mm, the ZX140W is compact enough for urban environments while still providing robust performance. The machine sits on a 2,600 mm wheelbase and offers 370 mm ground clearance, enhancing off-road capability.

Specifications:

– Model: Hitachi ZX140W
– Year: 2016
– Machine Type: Wheeled Excavator
– Operating Weight: 14,000 kg (14 tons)
– Engine Model: Isuzu 4JJ1X
– Engine Power: 99 kW (133 HP)
– Engine Type: 4-cylinder, Turbocharged Diesel
– Fuel Tank Capacity: 185 liters
– Max Lifting Capacity: 4,350 kg (at 7.5 m reach)
– Hydraulic System: Variable displacement piston pump
– Max Hydraulic Flow: 2 x 170 liters/min
– Operating Pressure: 34.3 MPa (350 bar)
– Boom Length: 5,650 mm
– Arm Length: 2,570 mm
– Bucket Capacity: 0.6 m³ (varies with configuration)

Dimensions:
– Overall Length: 7,695 mm
– Overall Width: 2,500 mm
– Overall Height (Cab): 2,670 mm
– Wheelbase: 2,600 mm
– Ground Clearance: 370 mm
– Tail Swing Radius: 1,960 mm
– Track Shoe Width (Typ.): 600 mm (Not tracked but included for comparison)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
