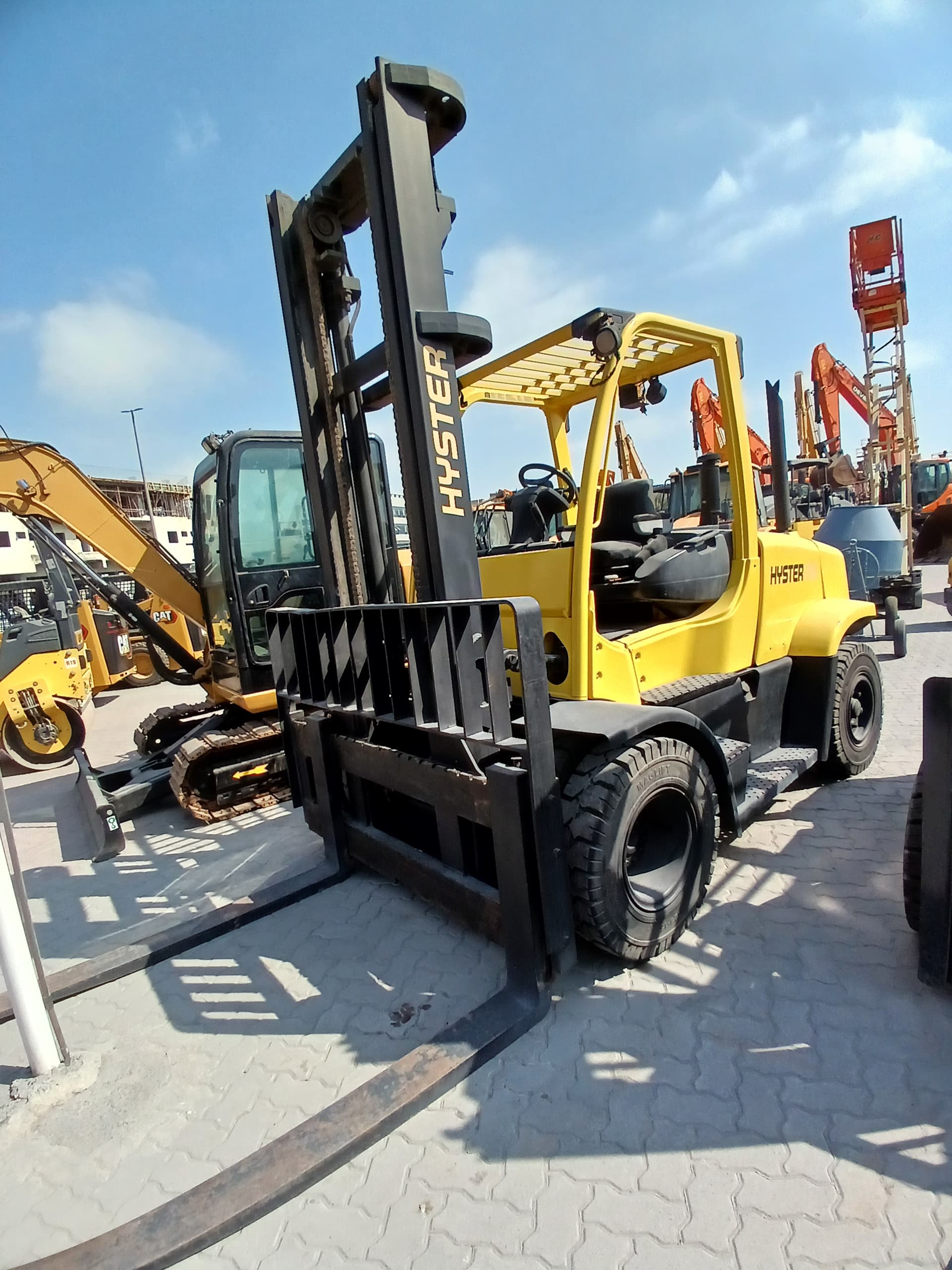

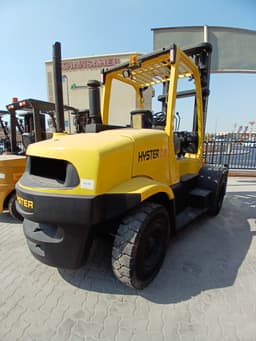

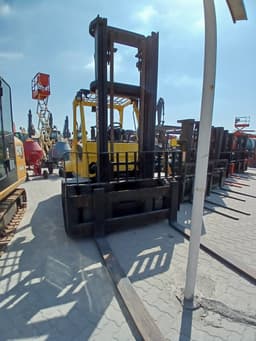

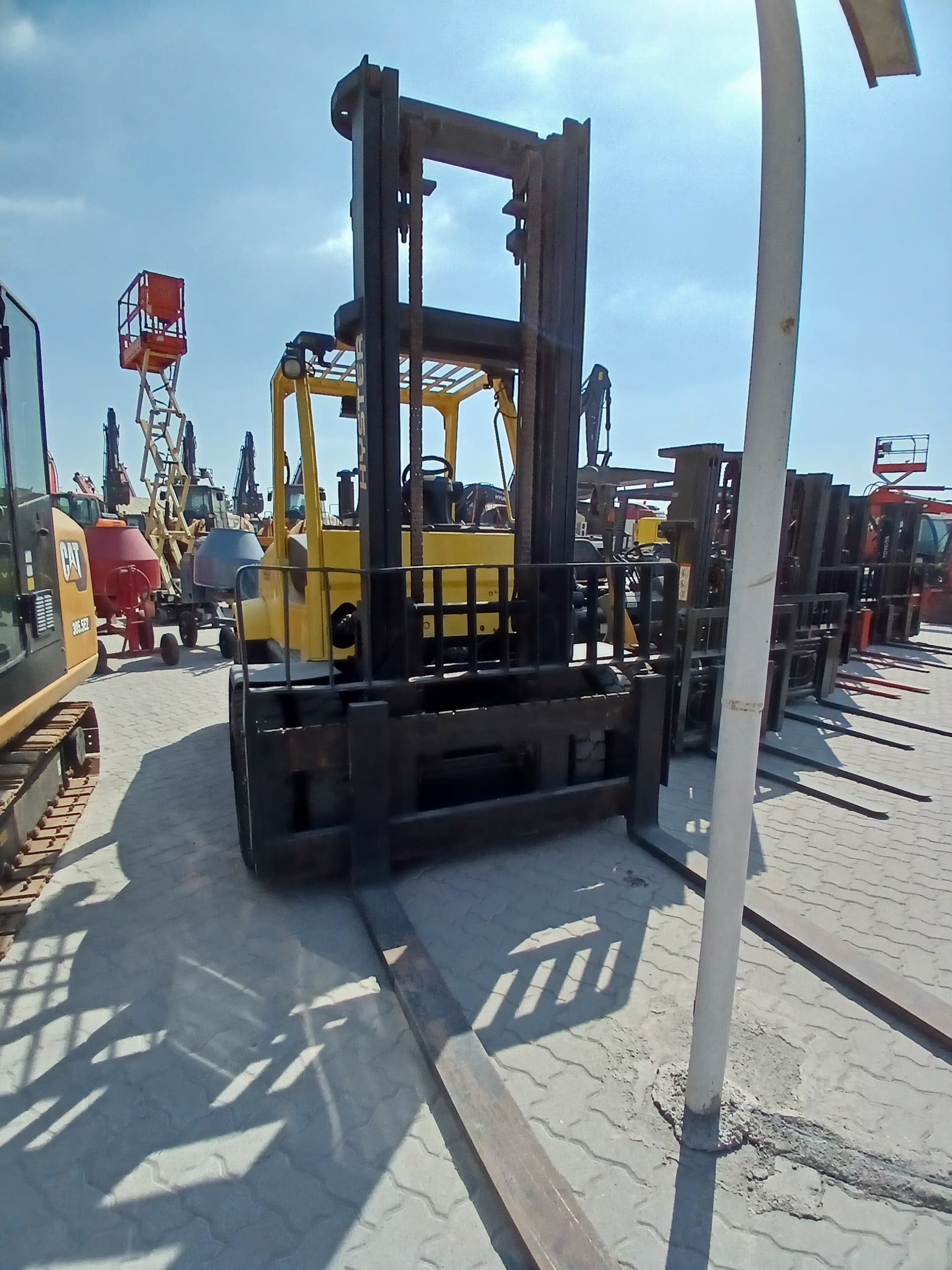

Hyster Diesel Forklift Truck : H7.0FT

ReflowX SKU: REF-943

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Hyster Forklift Truck
Equipment code

Get Quotation Whatsapp

Short Description

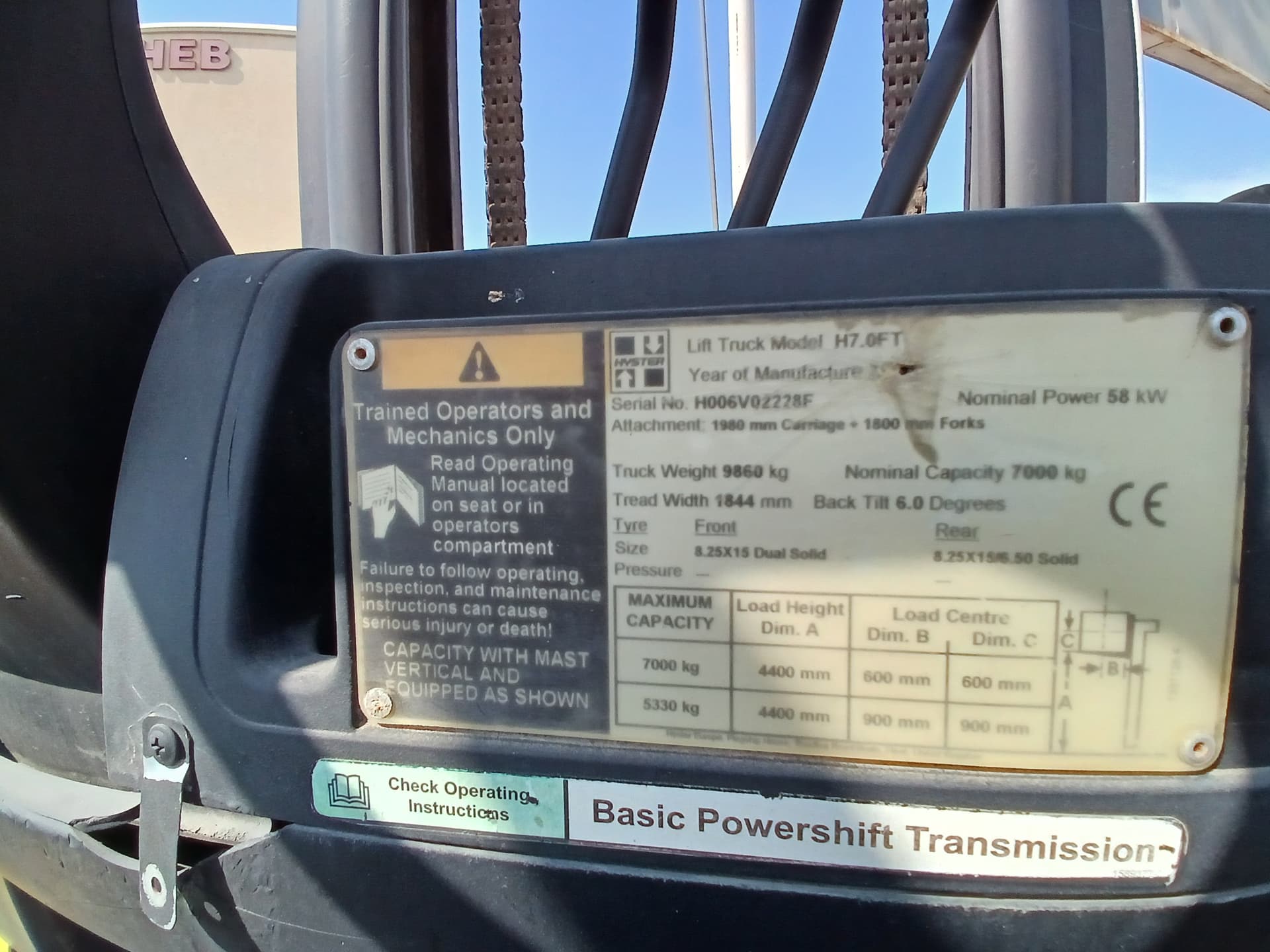

Brand: Hyster Model: H7.0FT Type: Diesel Forklift Truck Serial No.: H006V02228F Nominal Power: 58 kW Truck Weight: 9,860 kg

Description

Specifications

General Information

Brand: Hyster

Model: H7.0FT

Type: Diesel Forklift Truck

Load Capacity: 7,000 kg (15,500 lbs)

Load Center: 600 mm (23.6 in)

Lift Height: 6,055 mm (238.3 in) (varies based on mast option)

Mast Tilt (Forward/Backward): 6° / 12°

Fork Dimensions (Standard): 1,220 mm (48 in) Length × 150 mm (5.9 in) Width × 60 mm (2.4 in) Thickness

Wheelbase: 2,300 mm (90.6 in)

Engine Specifications

Engine Model: Cummins QSB 3.3 / Kubota 3.8L Diesel

Engine Type: 4-Cylinder, Water-Cooled, Turbocharged Diesel

Displacement: 3.3 - 3.8 L (varies by engine choice)

Power Output: 82 kW (110 HP) @ 2,300 rpm

Torque: 420 Nm (310 lb-ft) @ 1,600 rpm

Fuel Tank Capacity: 140 L (37 gal)

Emissions Compliance: Tier 4 Final / EU Stage V

Transmission & Drive System

Transmission Type: Electronic Powershift with 3-speed forward and 2-speed reverse

Drive Axle: Heavy-duty industrial axle with oil-immersed disc brakes

Steering System: Hydrostatic Power Steering

Travel Speed (Loaded/Unloaded): 25 km/h (15.5 mph) / 27 km/h (16.8 mph)

Gradeability (Loaded): 32%

Hydraulic System

Hydraulic Flow Rate: 90 L/min (23.8 gal/min)

Hydraulic Pressure: 210 bar (3,045 psi)

Control System: Fingertip hydraulic control levers

Tires & Stability

Tire Type: Pneumatic or Solid (optional)

Front Tires: 8.25 - 15

Rear Tires: 7.00 - 12

Turning Radius: 3,370 mm (132.7 in)

Ground Clearance: 210 mm (8.3 in)

Operational & Safety Features

ROPS/FOPS Certified Enclosed Operator Cabin

Ergonomic Suspension Seat for Operator Comfort

Full LED Work Lights and Warning Indicators

Electronic Monitoring System for Real-Time Diagnostics

Overhead Guard for Operator Protection

Automatic Engine Shutdown in Case of Overheating or Low Oil Pressure

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	H7.0FT
Height	2,665 mm
Width	1,495 mm
Length	3,790 mm
Weight	9,980 kg
Color	Yellow
ISO 15926 Pt 4	CFIHOS-30000567
PCA RDS Code	RDS11590075
CFIHOS ID	8373

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
