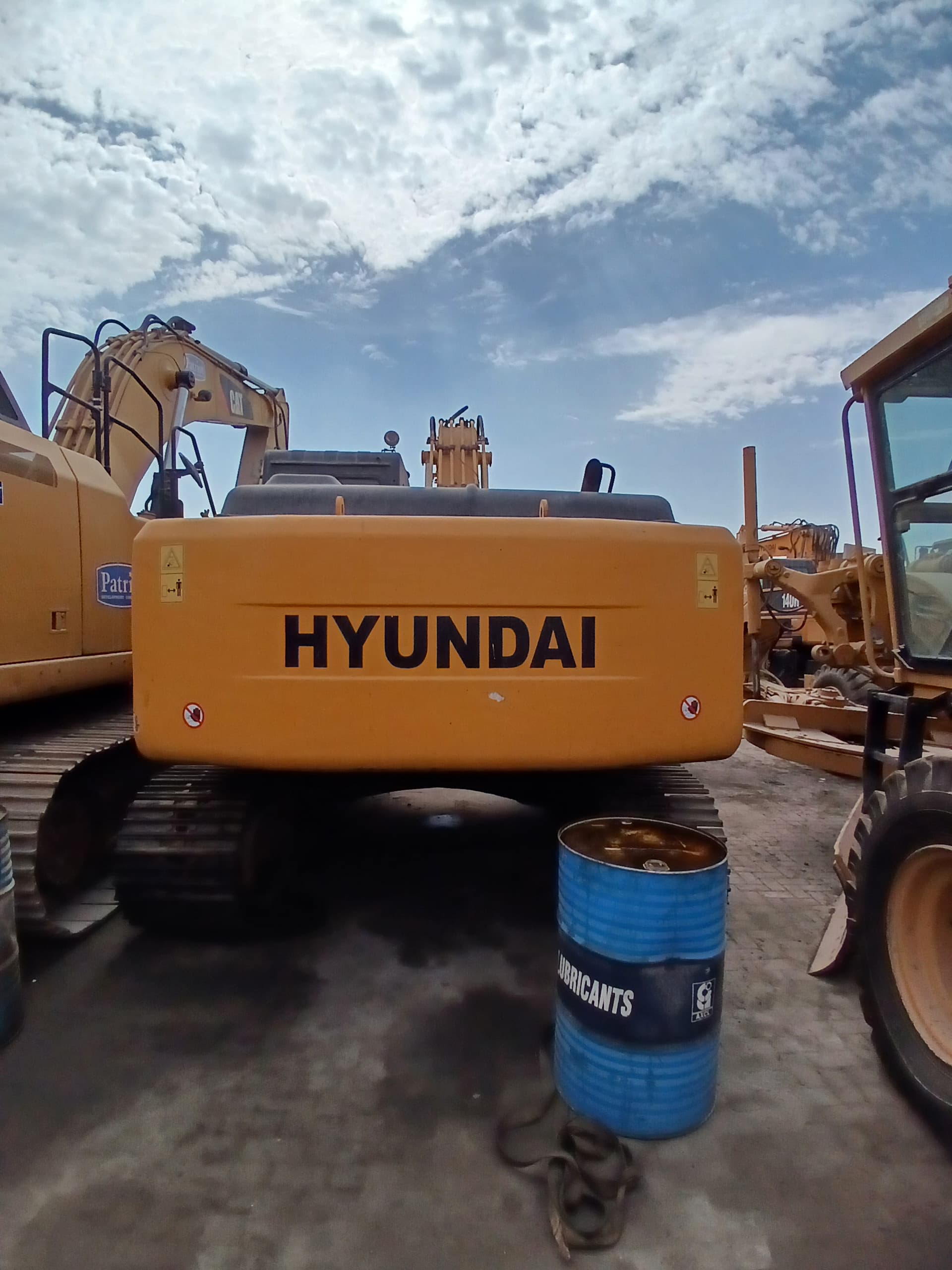

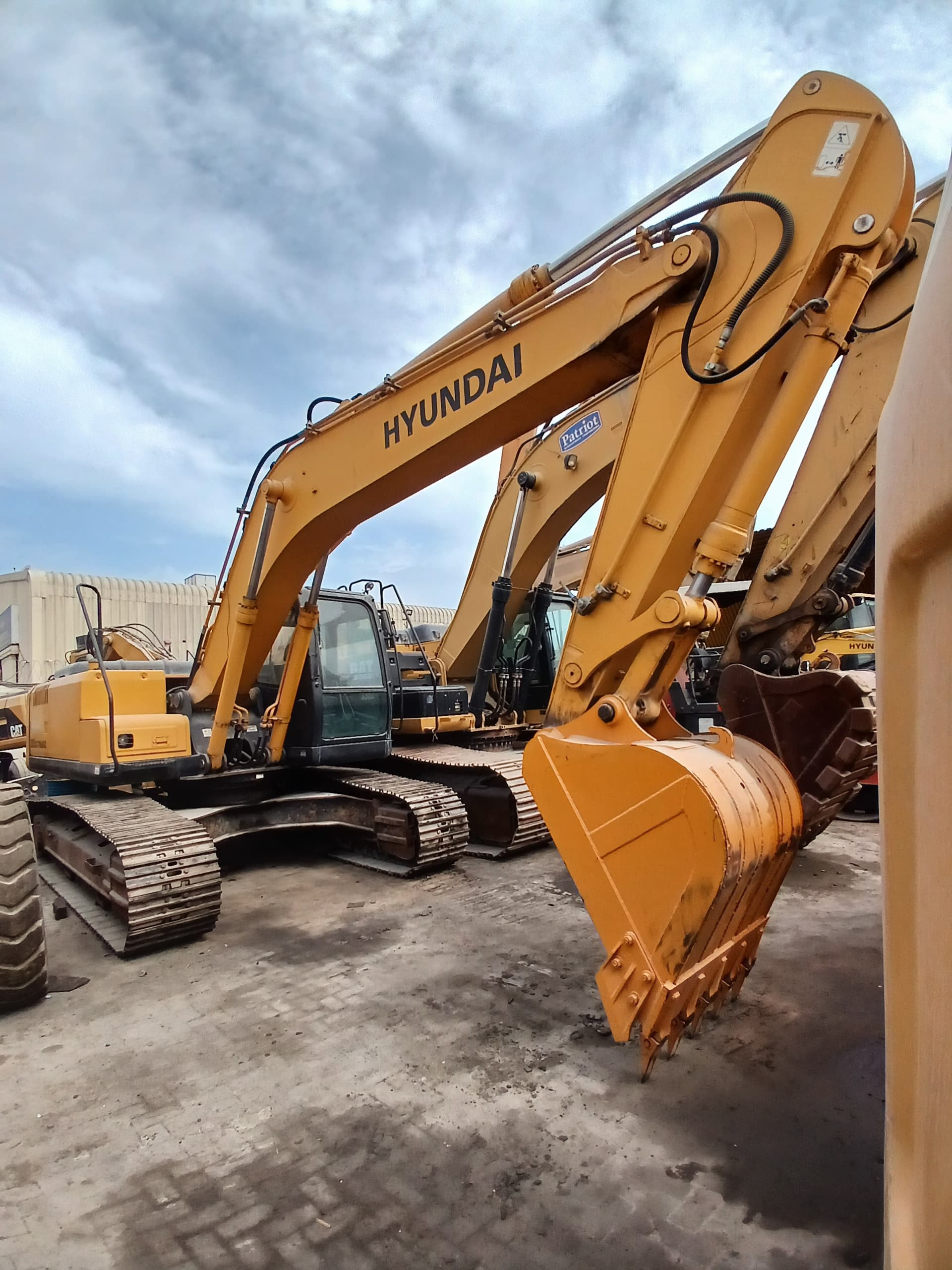

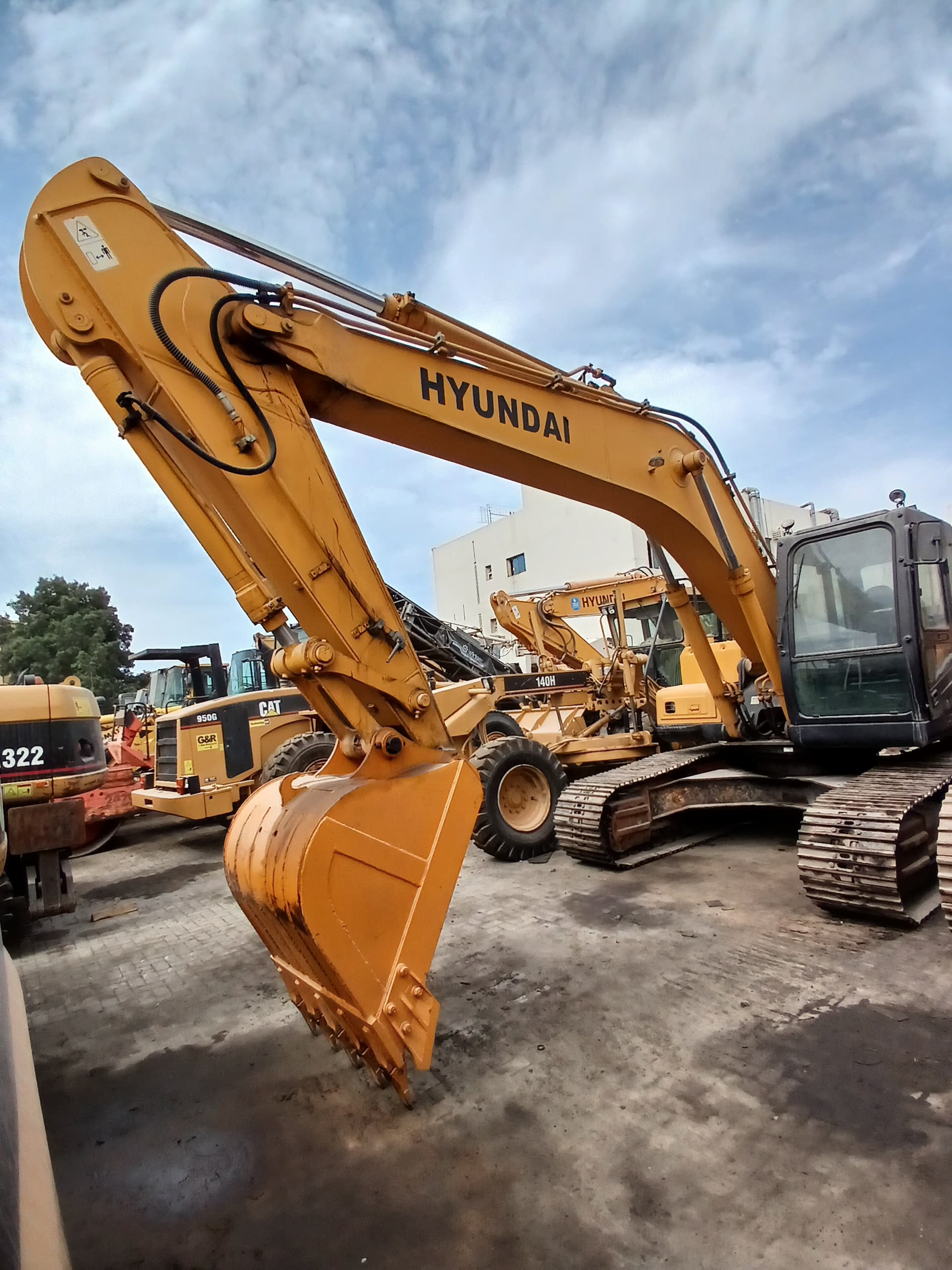

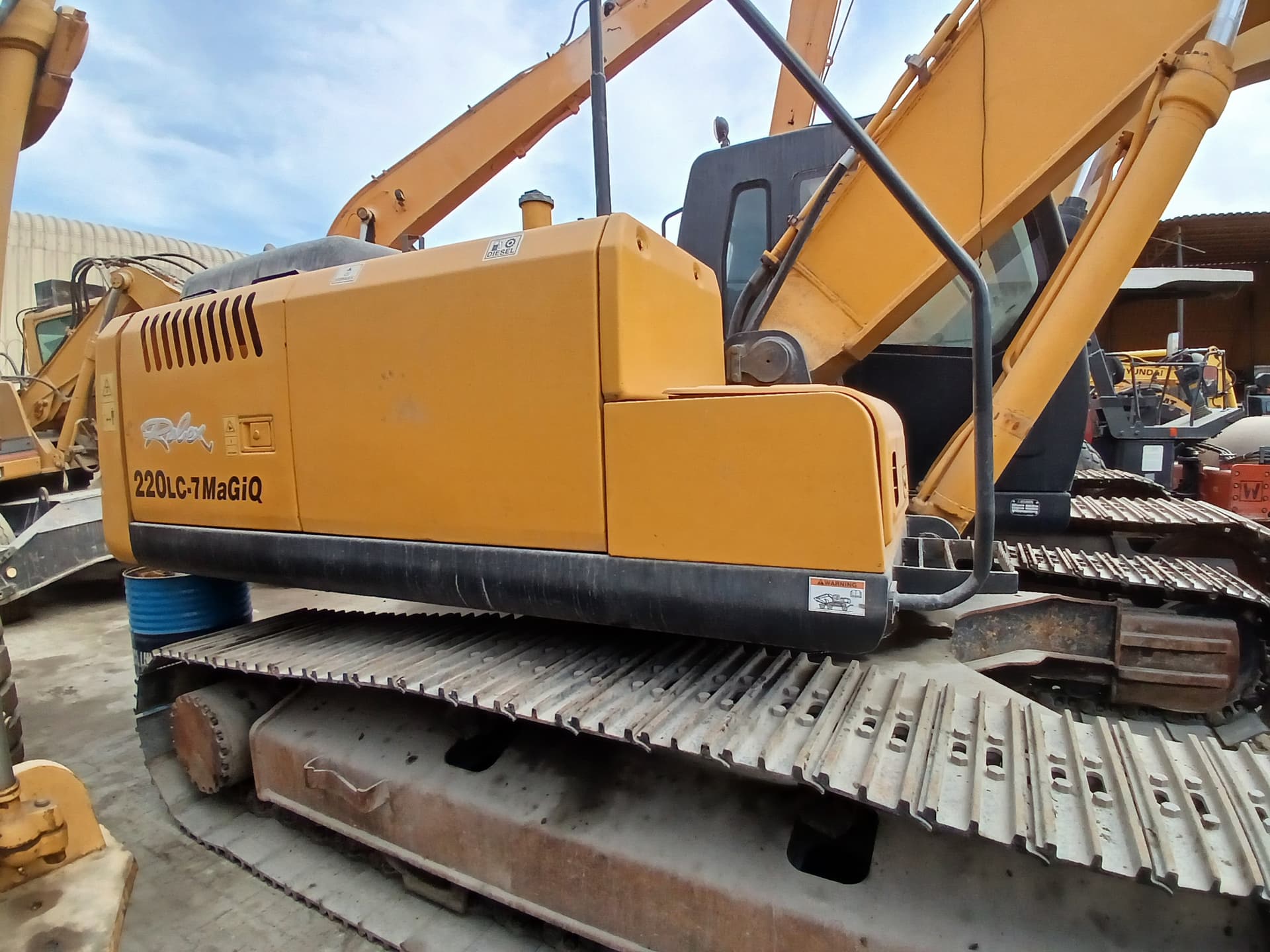

Hyundai R220LC-7 MaGiQ Crawler Excavator – 129 kW, 1.0 m³ Bucket, Tier 3 Engine

The Hyundai R220LC-7 MaGiQ is a powerful and durable crawler excavator built for high-efficiency earthmoving operations in construction, mining, and utility sectors. Equipped with the proven Cummins QSB6.7 turbocharged 6-cylinder diesel engine, this machine delivers 129 kW (173 HP) at 2,000 rpm and complies with Tier 3 emission standards.

Its robust undercarriage with heavy-duty steel tracks, two-speed travel drive, and excellent gradeability (30%) enable stable performance across challenging terrain. The R220LC-7 MaGiQ features a variable displacement piston pump delivering 543 L/min hydraulic flow at 350 bar pressure—providing powerful arm and boom movements for optimal productivity.

With a bucket capacity of 1.0 m³ and an operating weight of 22,000 kg, it is suited for medium-to-heavy-duty excavation tasks. The excavator offers a maximum swing speed of 10.5 rpm and travel speed up to 5.5 km/h, ensuring swift operation cycles. A spacious cab with ergonomic controls and good visibility enhances operator comfort and efficiency.

Designed with balanced dimensions and rugged construction, the R220LC-7 MaGiQ provides excellent digging depth, stability, and lifting capability—making it a versatile asset for contractors and heavy equipment operators.

Specifications:

– Model: R220LC-7 MaGiQ
– Brand: Hyundai
– Equipment Type: Crawler Excavator
– Engine Model: Cummins QSB6.7
– Engine Type: 6-cylinder, Turbocharged Diesel
– Engine Power: 129 kW (173 HP) @ 2,000 rpm
– Displacement: 6.7 L
– Emission Standard: Tier 3
– Fuel Tank Capacity: 400 L
– Hydraulic System: Variable Displacement Piston Pump
– Hydraulic Flow: 543 L/min
– Operating Pressure: 350 bar
– Bucket Capacity: 1.0 m³ (1.3 yd³)
– Drive Type: 2-Speed Travel (High/Low)
– Tracks: Heavy-duty Steel
– Maximum Travel Speed: 5.5 km/h (3.4 mph)
– Maximum Swing Speed: 10.5 rpm
– Gradeability: 30%
– Operating Weight: 22,000 kg (48,500 lbs)
– Overall Length: 9,320 mm (30.5 ft)
– Overall Width: 2,950 mm (9.7 ft)
– Overall Height: 3,330 mm (10.9 ft)
– Undercarriage Length: 4,080 mm (13.4 ft)
– Track Width: 600 mm (2.0 ft)
– Track Length on Ground: 3,600 mm (11.8 ft)
– Ground Clearance: 450 mm (1.5 ft)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
