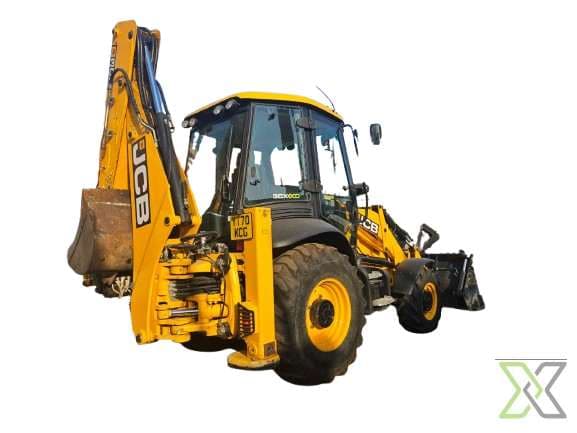

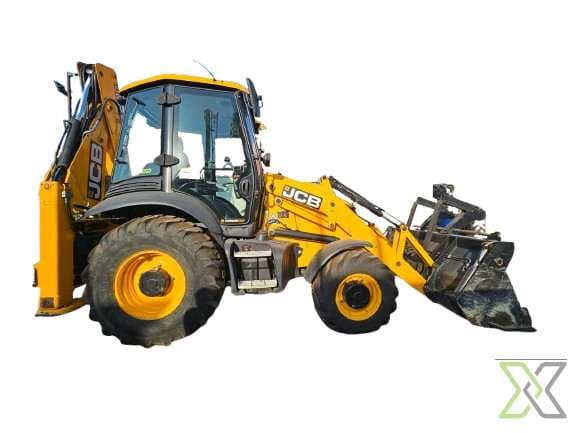

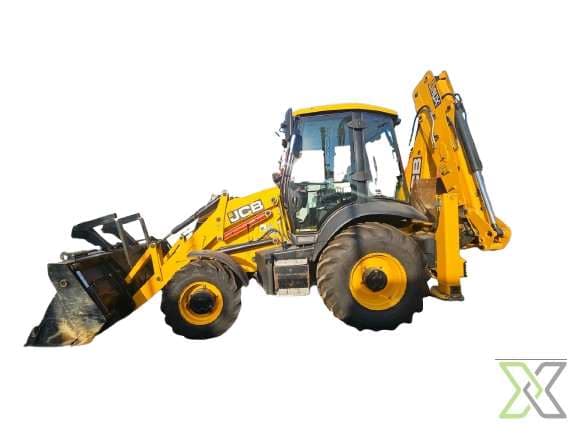

JCB 3CX Backhoe Loader, 8.3 Ton, 100 HP – 2020

The JCB 3CX Backhoe Loader (2020 model) is a highly versatile and productive machine designed for demanding construction and infrastructure applications. Featuring a JCB DieselMax 4-cylinder turbocharged engine delivering 74.6 kW (100 hp) of power and 440 Nm of torque at 1,600 rpm, the 3CX offers excellent performance in both loader and excavator functions.

With an operating weight of approximately 8,300 kg (18,300 lbs), the 3CX provides the ideal balance of power, stability, and maneuverability. The loader bucket holds up to 1.3 m³ (1.7 yd³), while the backhoe offers a maximum digging depth of 5,870 mm and a reach of 6,245 mm. This makes it well-suited for deep trenching, pipe laying, excavation, and loading tasks.

The hydraulic system delivers 160 L/min flow rate, enabling smooth and responsive operation for fast cycle times. The machine features a 4-speed powershift transmission with forward/reverse shuttle for enhanced drivability and productivity. The 3CX reaches a top speed of 40 km/h and is ideal for road travel and rapid site repositioning.

With operator comfort in mind, the machine includes ergonomic controls, excellent cab visibility, and reduced noise levels. The 130-liter fuel tank allows for extended operational periods without frequent refueling.

Technical Specifications:
– Product Type: Backhoe Loader
– Brand: JCB
– Model: 3CX
– Year: 2020
– Operating Weight: Approx. 8,300 kg (18,300 lbs)

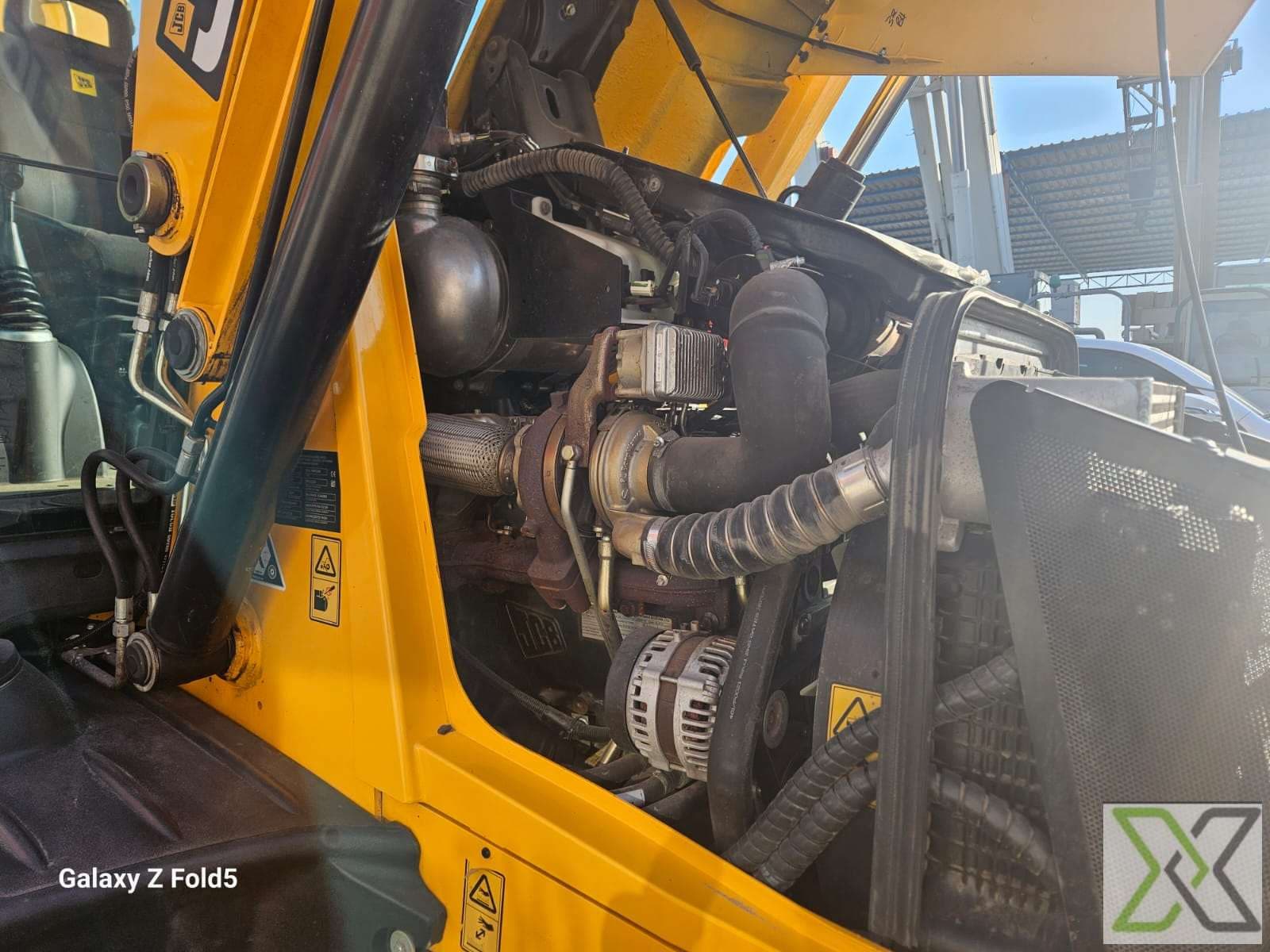

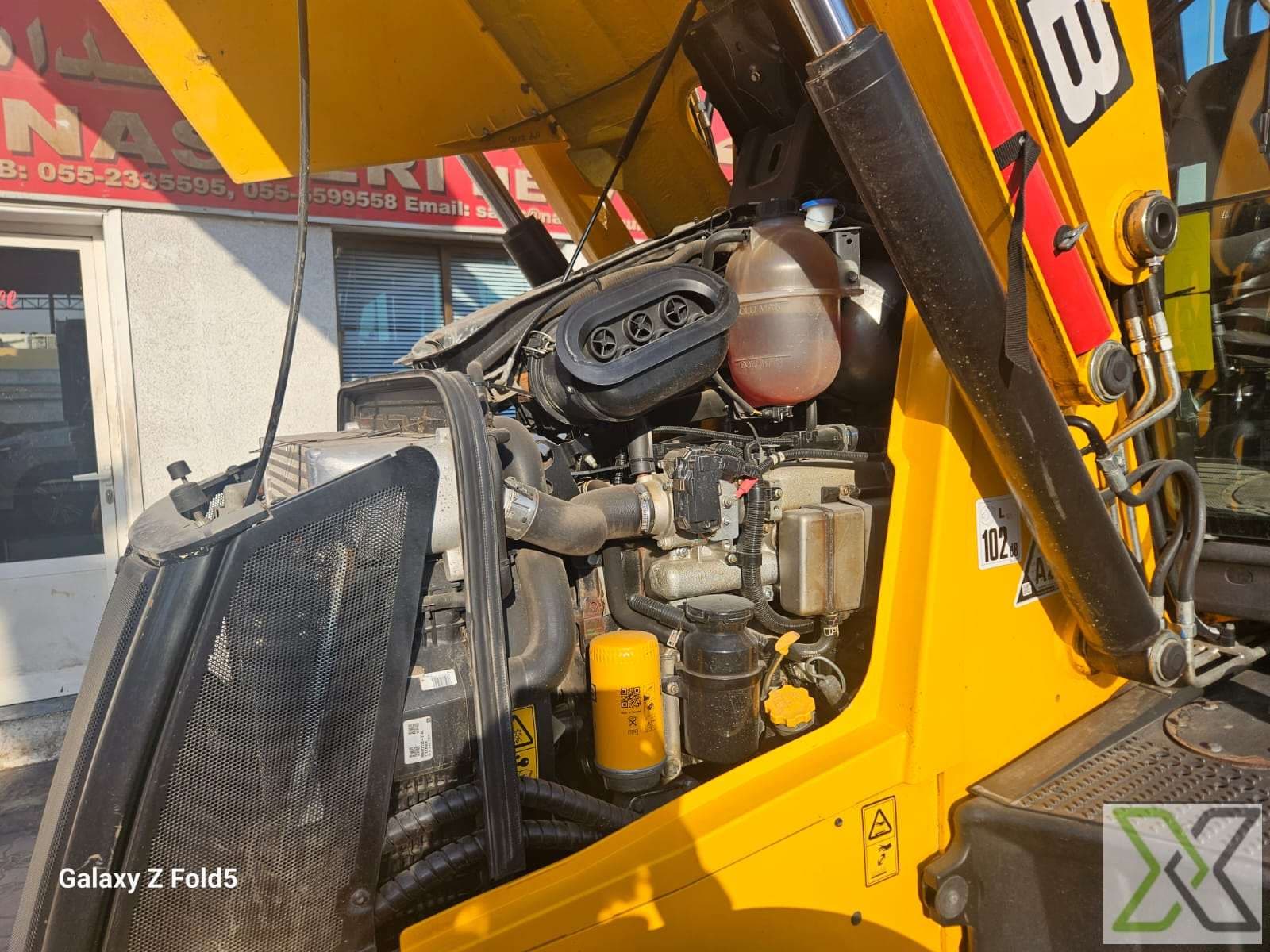

– Engine Model: JCB DieselMax
– Engine Type: 4-cylinder turbocharged diesel
– Engine Power: 74.6 kW (100 hp)
– Max Torque: 440 Nm at 1,600 rpm
– Loader Bucket Capacity: 1.0 – 1.3 m³ (1.3 – 1.7 yd³)
– Backhoe Bucket Capacity: 0.2 – 0.3 m³ (0.26 – 0.39 yd³)
– Max Digging Depth (Backhoe): 5,870 mm
– Max Reach from Swing Post: 6,245 mm
– Max Lift Capacity (Loader): 3,300 kg
– Travel Speed: Up to 40 km/h
– Fuel Tank Capacity: 130 liters
– Hydraulic System Flow: 160 L/min (42.2 gpm)
– Transmission: 4-speed powershift with torque converter and F/R shuttle
– Overall Length (with loader): 6,160 mm
– Overall Width: 2,400 mm
– Height to Top of Cab: 3,890 mm
– Wheelbase: 2,480 mm
– Ground Clearance: 380 mm
– Application Areas: Construction, trenching, utility work, road maintenance, excavation
