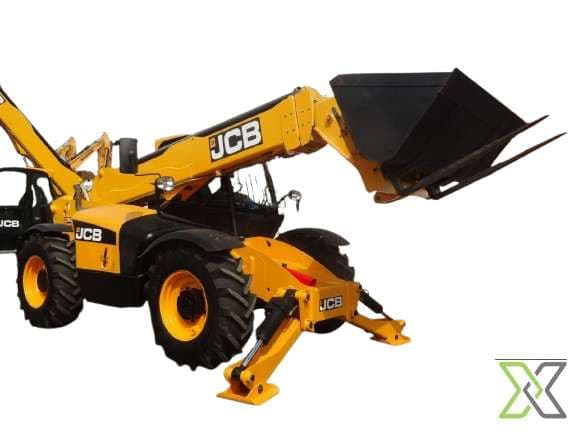

JCB 535-125 Telehandler – 12.5m Boom Loader - 2012

The JCB 535-125 Telehandler, manufactured in 2012, is a high-performance material handling machine engineered for medium-to-high lift applications in sectors such as construction, warehousing, prefabrication, and industrial logistics. With a maximum lift height of 12.5 meters and a horizontal reach of 8.75 meters, it provides reliable vertical and outreach performance for various load-handling needs.

It is equipped with a JCB Diesel by Kohler 4-cylinder turbocharged engine, producing 81 kW (109 HP), and paired with a hydrostatic 4x4 transmission for all-terrain maneuverability. The gear pump hydraulic system delivers a high-flow rate of 120 L/min, ensuring fast and efficient boom operation, achieving full lift in 11 seconds.

With a fuel capacity of 120 liters, 3.85 m turning radius, and 12.5/80-18 tires, the telehandler offers extended operation, excellent mobility in tight workspaces, and high gradability (45%). The operating weight of 7,800 kg provides stability and balance while handling demanding loads.

Specifications:

– Product Type: Telehandler / Boom Loader
– Brand: JCB
– Model: 535-125
– Year: 2012
– Max. Lift Capacity: 3,500 kg (3.5 tons)
– Max. Lift Height: 12.5 meters
– Max. Reach (Horizontal): 8.75 meters
– Engine Model: JCB Diesel by Kohler
– Engine Power: 81 kW (109 HP)
– Engine Type: 4-cylinder, Turbocharged Diesel
– Fuel Tank Capacity: 120 liters
– Hydraulic Pump Type: Gear Pump
– Hydraulic Flow Rate: 120 liters/min (High Flow)
– Max Lifting Speed: 11 seconds (fully raised)
– Max Travel Speed: 40 km/h
– Max Gradability: 45% (24°)
– Tires: 12.5/80-18 (standard)
– Operating Weight: 7,800 kg
– Length (without attachments): 4.56 meters
– Width: 2.31 meters
– Height: 2.55 meters
– Wheelbase: 2.55 meters
– Ground Clearance: 0.40 meters
– Turning Radius: 3.85 meters (outside of tire)
– Application Areas: Warehousing, infrastructure, construction, material handling

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
