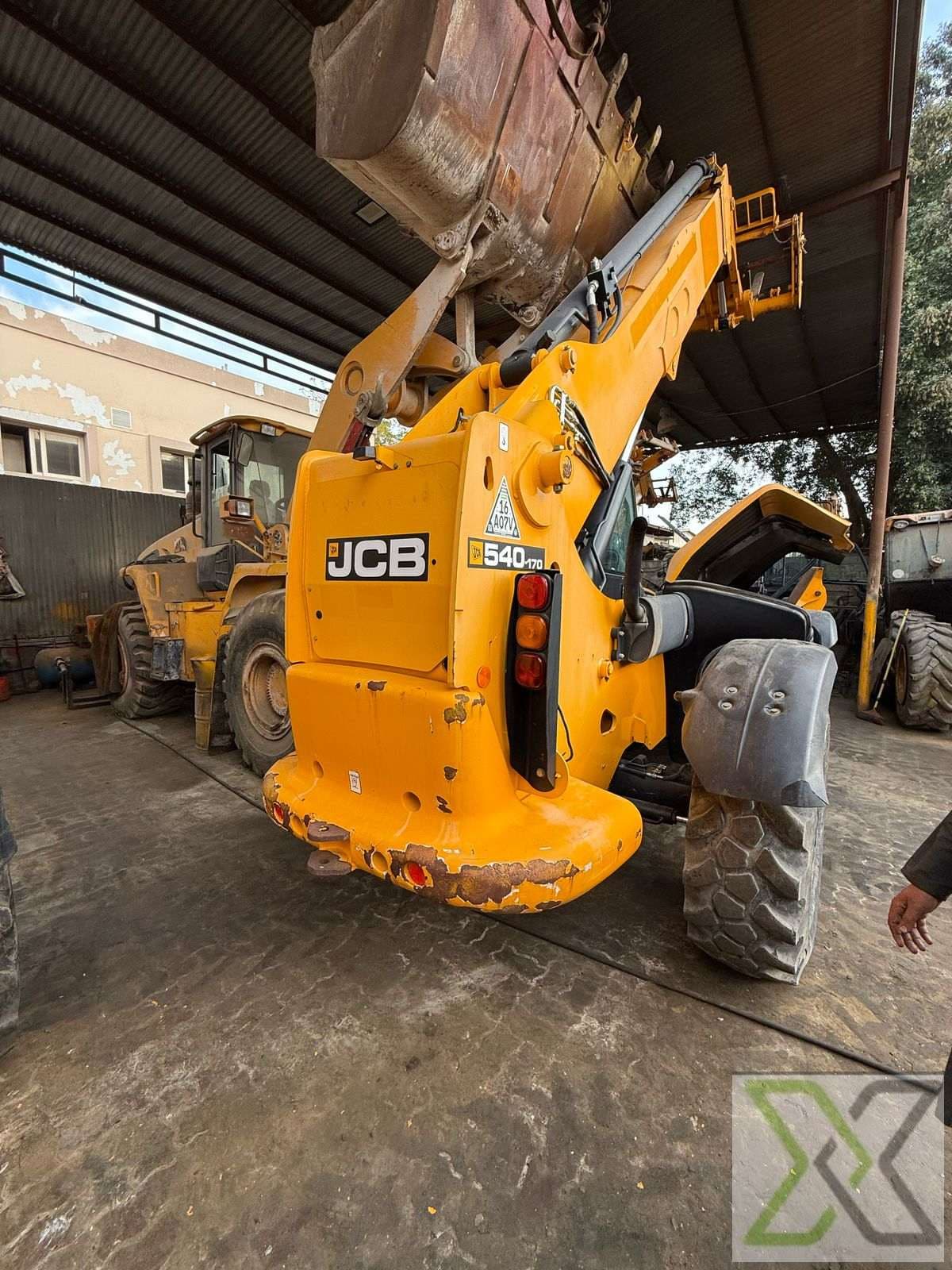

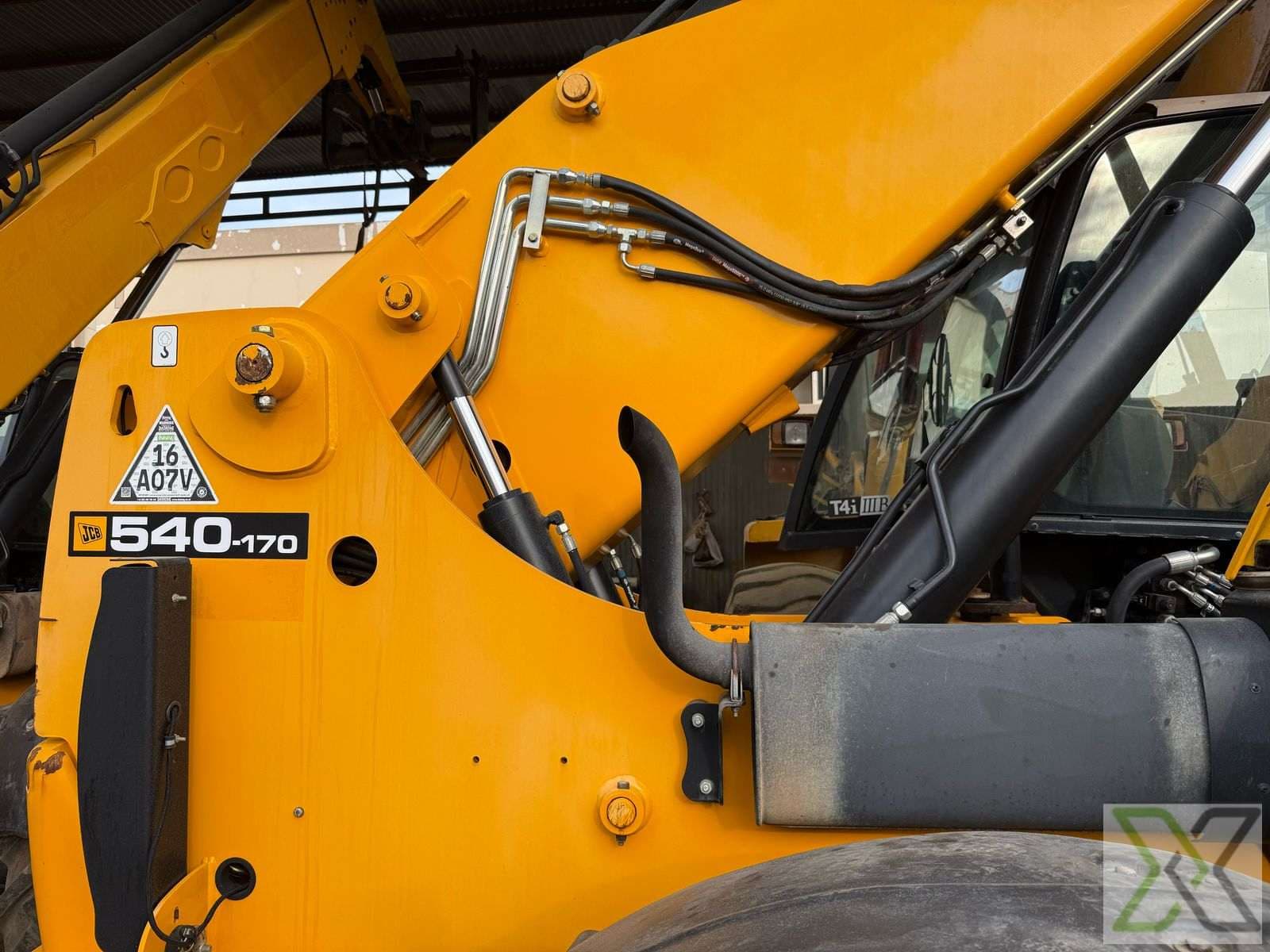

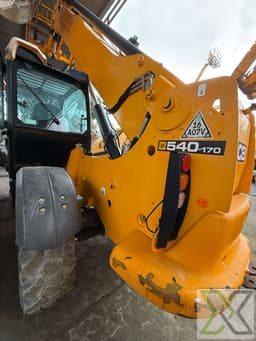

#1. JCB 540-170 Telehandler – 17m Boom Loader - 2018

The JCB 540-170 Telehandler, 2018 model (Unit 001), is built to handle high-reach lifting tasks in demanding industrial and construction environments. It provides a maximum lift height of 16.7 meters and a horizontal reach of 9.45 meters, enabling precise load placement in multi-level building and storage applications.

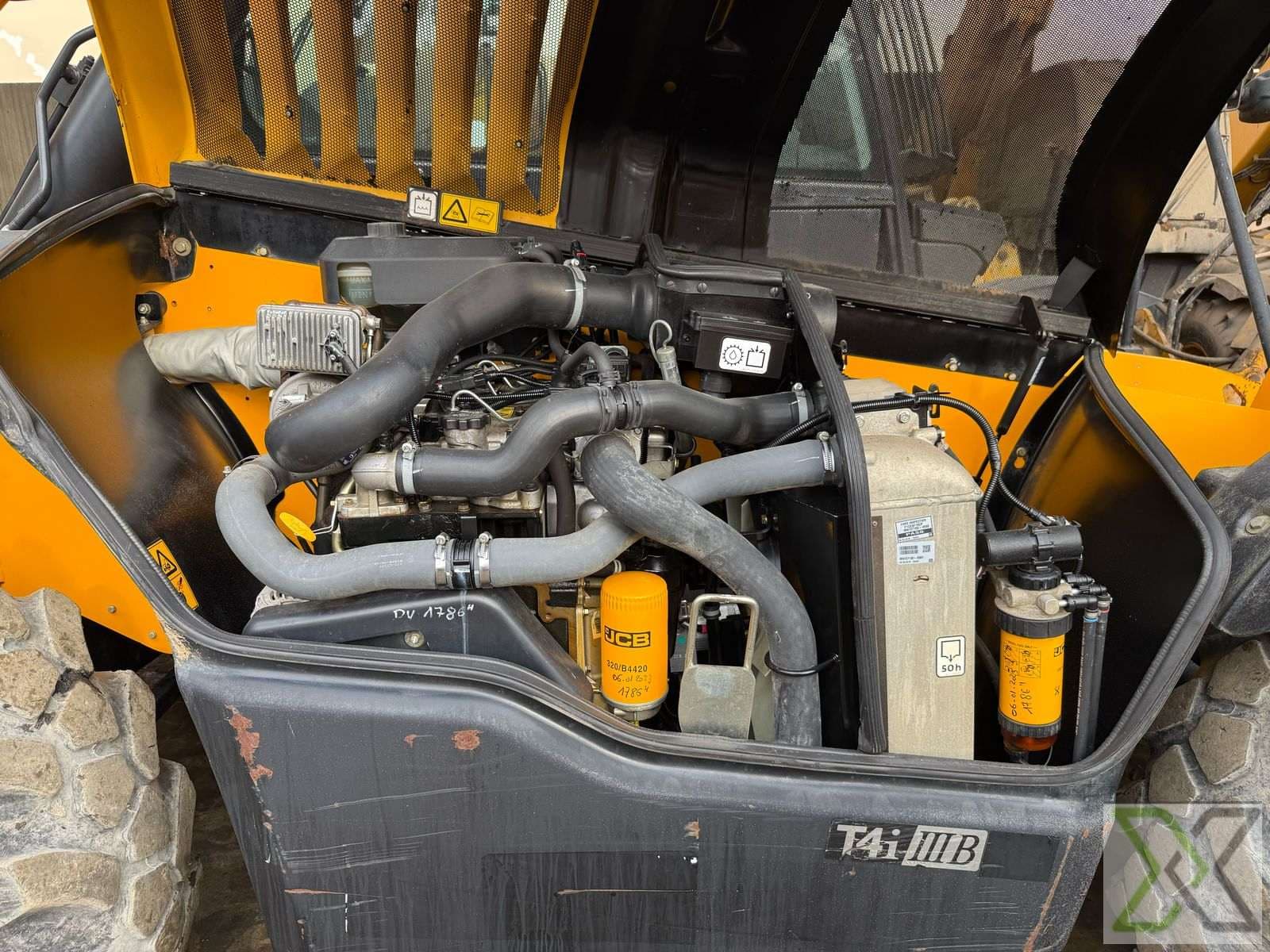

Equipped with a JCB Diesel by Kohler engine, this machine outputs 74.9 kW (100 HP) via a 4-cylinder turbocharged diesel system, ensuring strong performance and reliability on-site. The 160-liter fuel tank supports extended operations with minimal downtime.

The compact structure—4.35 meters in length, 2.30 meters in width, and 2.49 meters in height—makes it ideal for confined areas. A 3.90-meter turning radius and 0.40-meter ground clearance provide excellent maneuverability and terrain capability. The maximum lift capacity of 4,000 kg makes it ideal for handling heavy materials such as pallets, steel, and construction loads.

Specifications:

– Product Type: Telehandler / Boom Loader
– Brand: JCB
– Model: 540-170
– Year: 2018 (Unit 001)
– Max. Lift Capacity: 4,000 kg (4 tons)
– Max. Lift Height: 16.7 meters
– Max. Reach (Horizontal): 9.45 meters
– Engine Model: JCB Diesel by Kohler
– Engine Power: 74.9 kW (100 HP)
– Engine Type: 4-cylinder, Turbocharged Diesel
– Fuel Tank Capacity: 160 liters
– Length (without attachments): 4.35 meters
– Width: 2.30 meters
– Height: 2.49 meters
– Wheelbase: 2.56 meters
– Ground Clearance: 0.40 meters
– Turning Radius: 3.90 meters (outside tire)
– Application Areas: Construction, warehousing, logistics, material placement, industrial handling
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
