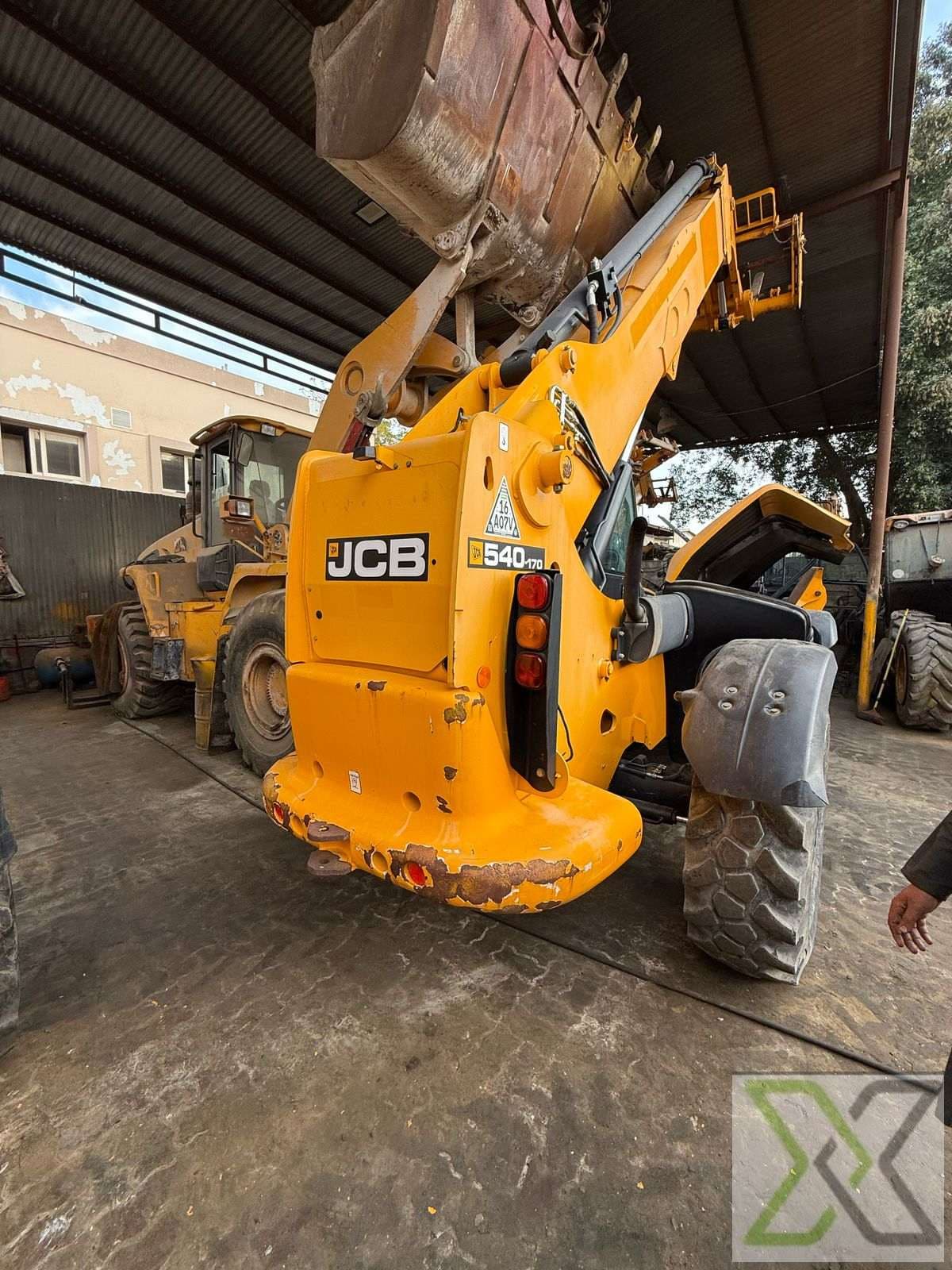

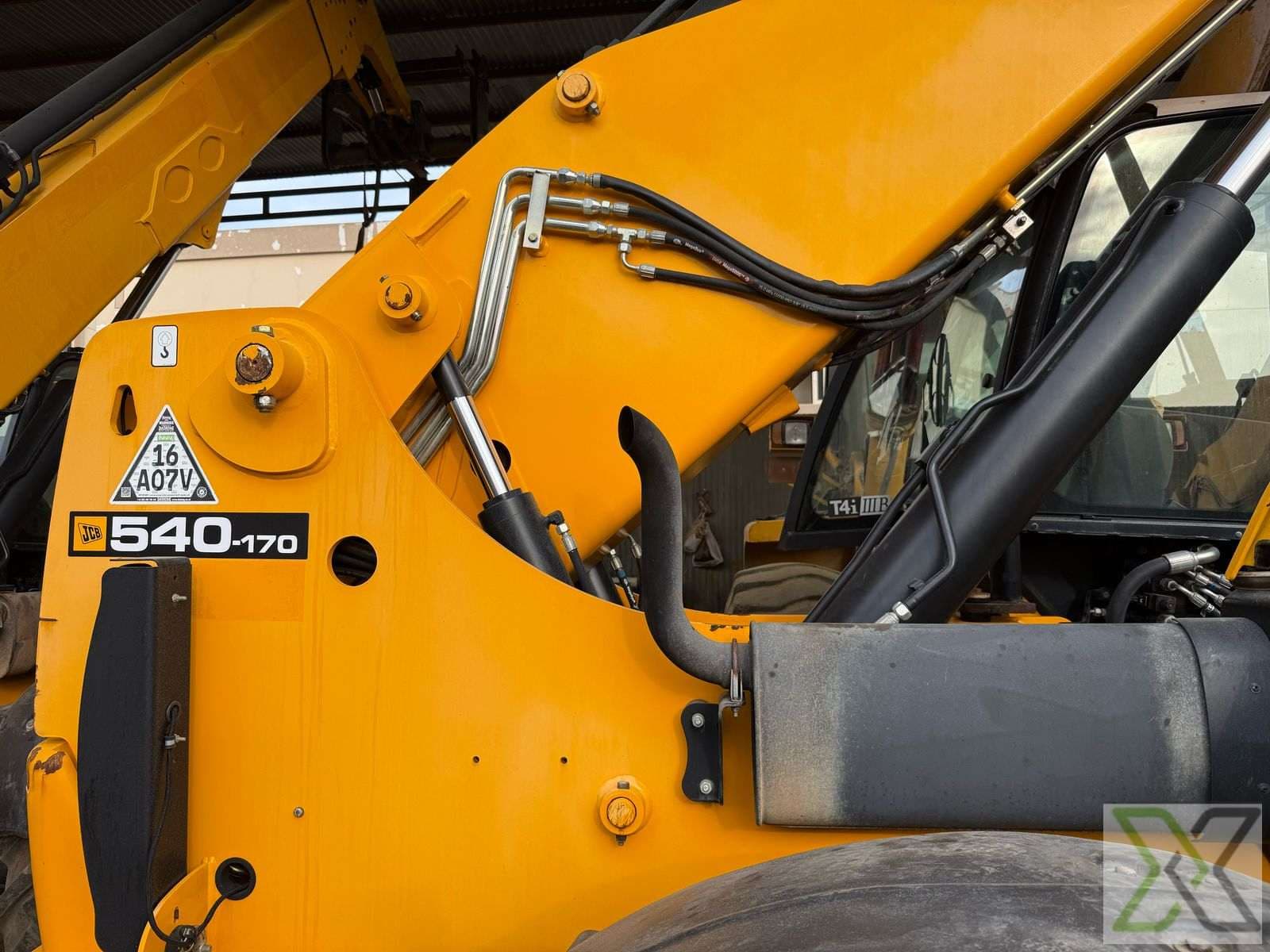

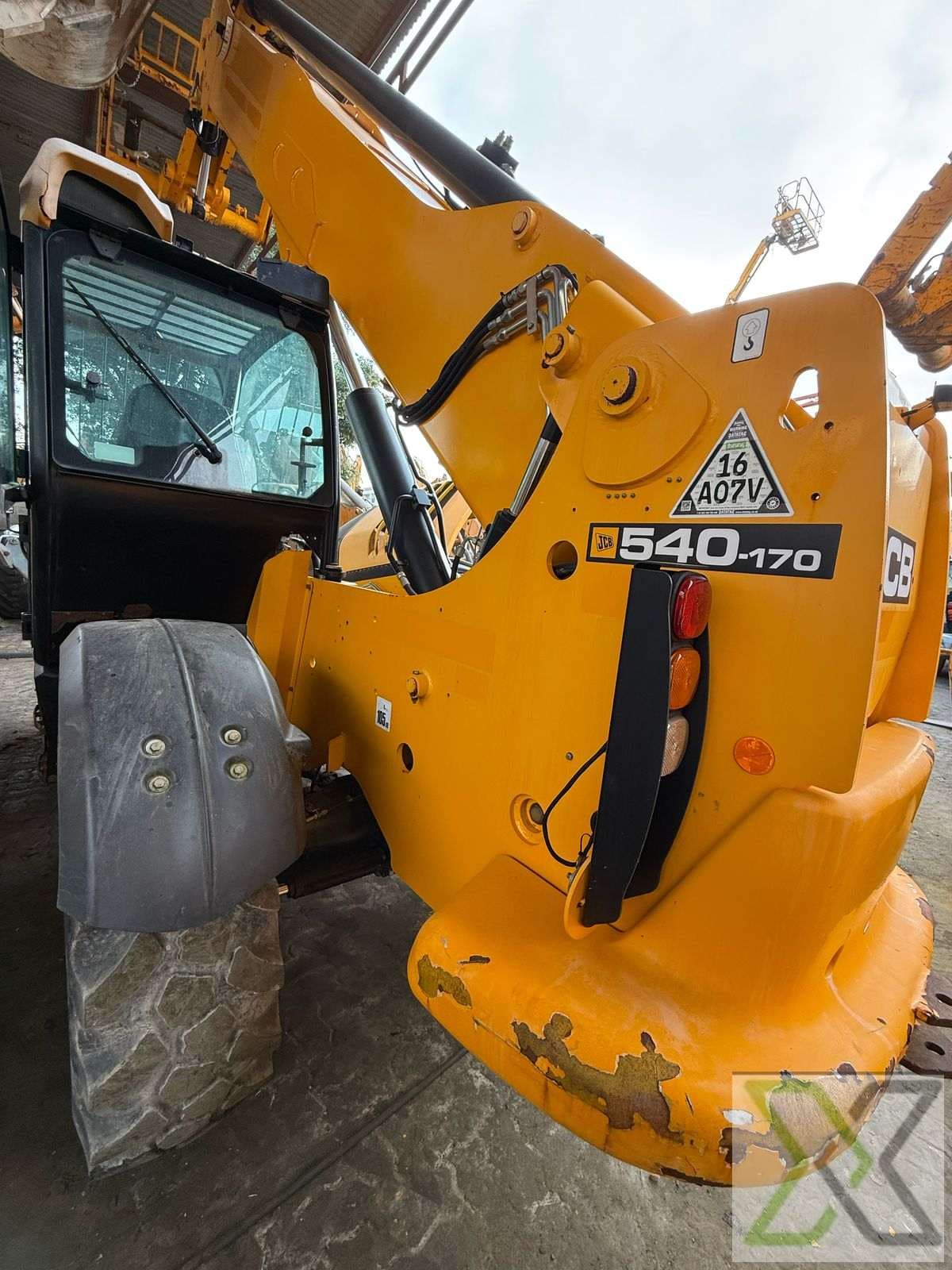

#2. JCB 540-170 Telehandler – 17m Boom Loader - 2018

The 2018 JCB 540-170 Telehandler is a versatile and robust boom loader engineered for high-reach material handling in construction, logistics, and industrial applications. With a maximum lift height of 16.7 meters and a maximum reach of 9.45 meters, it can place heavy loads with accuracy and ease in elevated or distant locations.

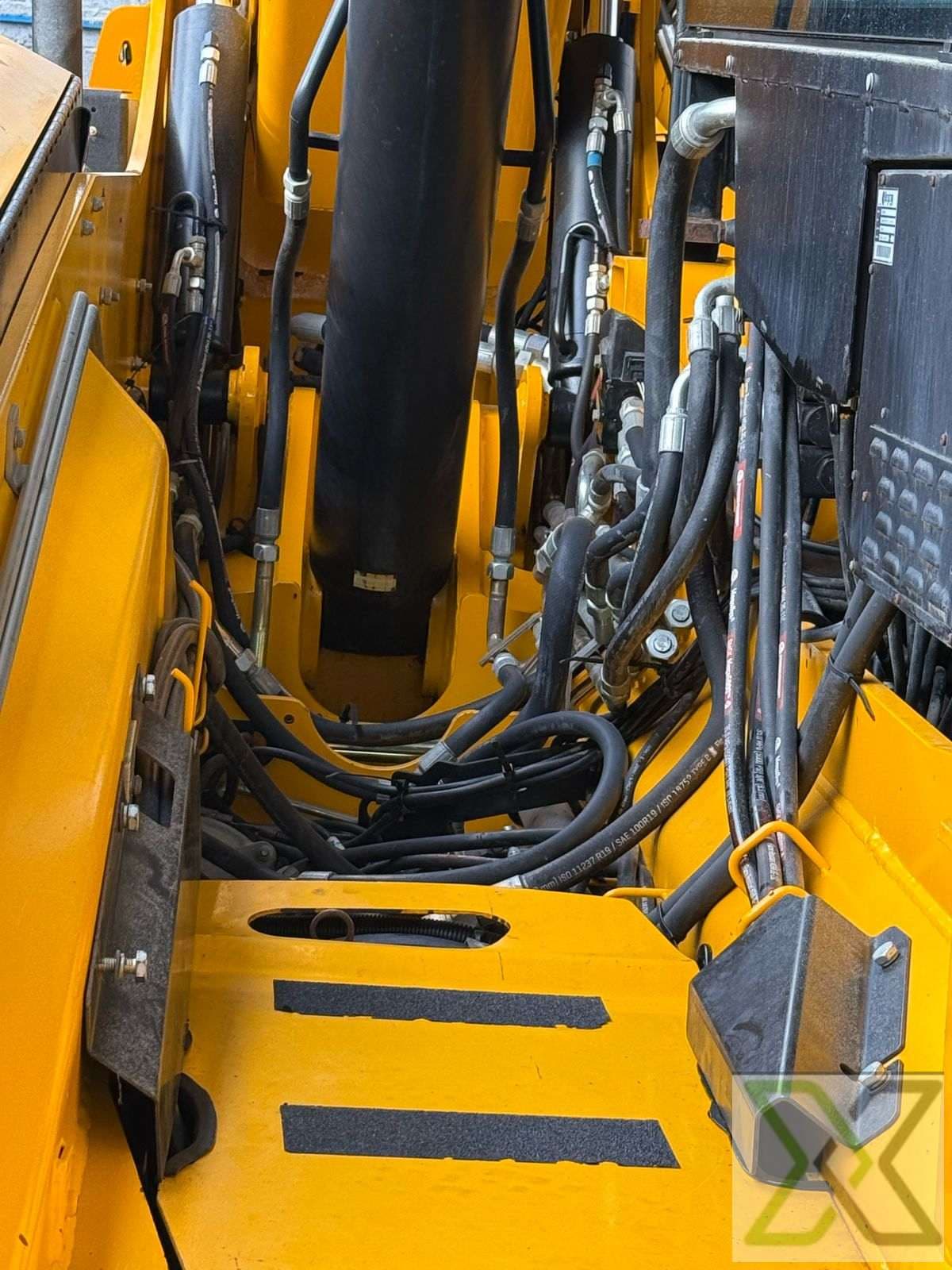

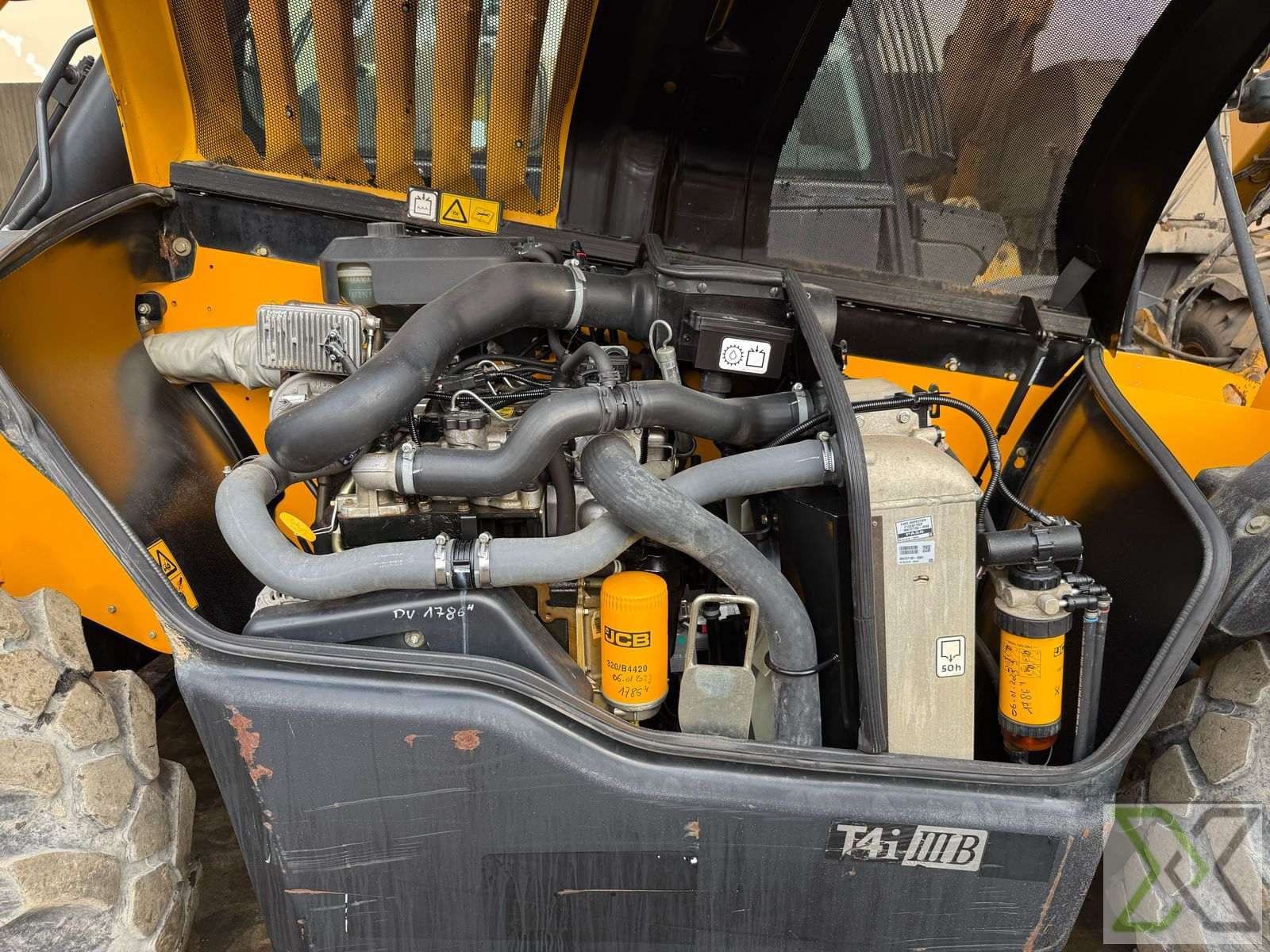

Powered by a 74.9 kW (100 hp) JCB Diesel by Kohler engine, the machine delivers reliable torque and fuel efficiency. Its 4-cylinder turbocharged diesel engine is built for durability under continuous load, making it ideal for extended duty cycles. The gear-type hydraulic pump delivers a high flow rate of 140 L/min, enabling quick lifting with a full boom raise time of just 12 seconds.

With compact dimensions—length of 4.35 m, width of 2.30 m, and height of 2.49 m—it is maneuverable in tight jobsite conditions. A turning radius of just 3.90 meters and ground clearance of 0.40 meters allow smooth operation on uneven terrain. The 160-liter fuel tank supports long shifts with minimal downtime.

Specifications:

– Product Type: Telehandler / Boom Loader
– Brand: JCB
– Model: 540-170
– Year: 2018 (Unit 002)
– Max. Lift Capacity: 4,000 kg (4 tons)
– Max. Lift Height: 16.7 meters
– Max. Reach (Horizontal): 9.45 meters
– Engine Model: JCB Diesel by Kohler
– Engine Power: 74.9 kW (100 HP)
– Engine Type: 4-cylinder, Turbocharged Diesel
– Fuel Tank Capacity: 160 liters
– Pump Type: Gear Pump
– Hydraulic Flow Rate: 140 L/min
– Max Lifting Speed: 12 seconds (fully raised)
– Length (without attachments): 4.35 meters
– Width: 2.30 meters
– Height: 2.49 meters
– Wheelbase: 2.56 meters
– Ground Clearance: 0.40 meters
– Turning Radius: 3.90 meters (outside tire)
– Applications: Material handling, pallet loading, site logistics, warehouse stacking
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
