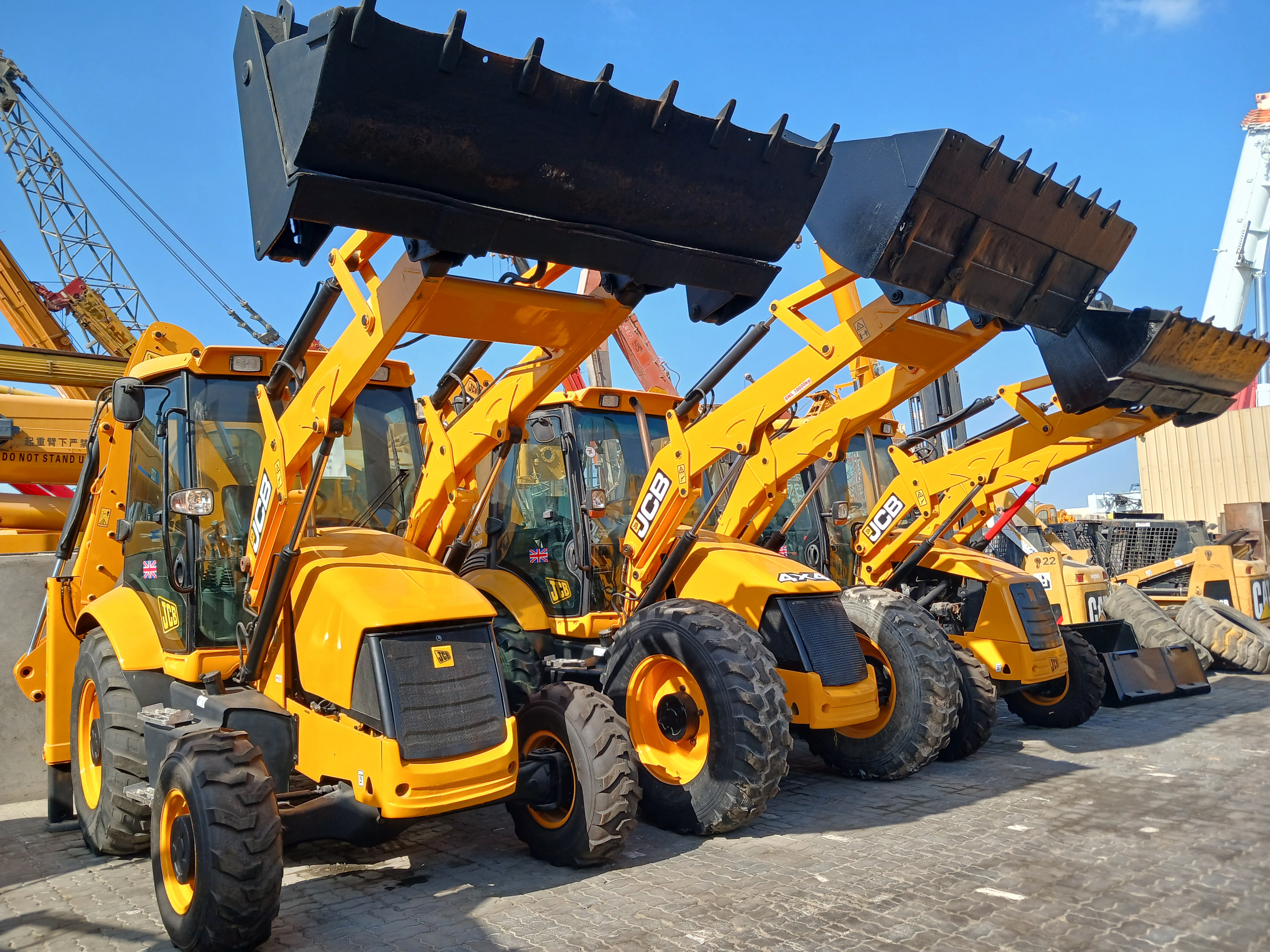

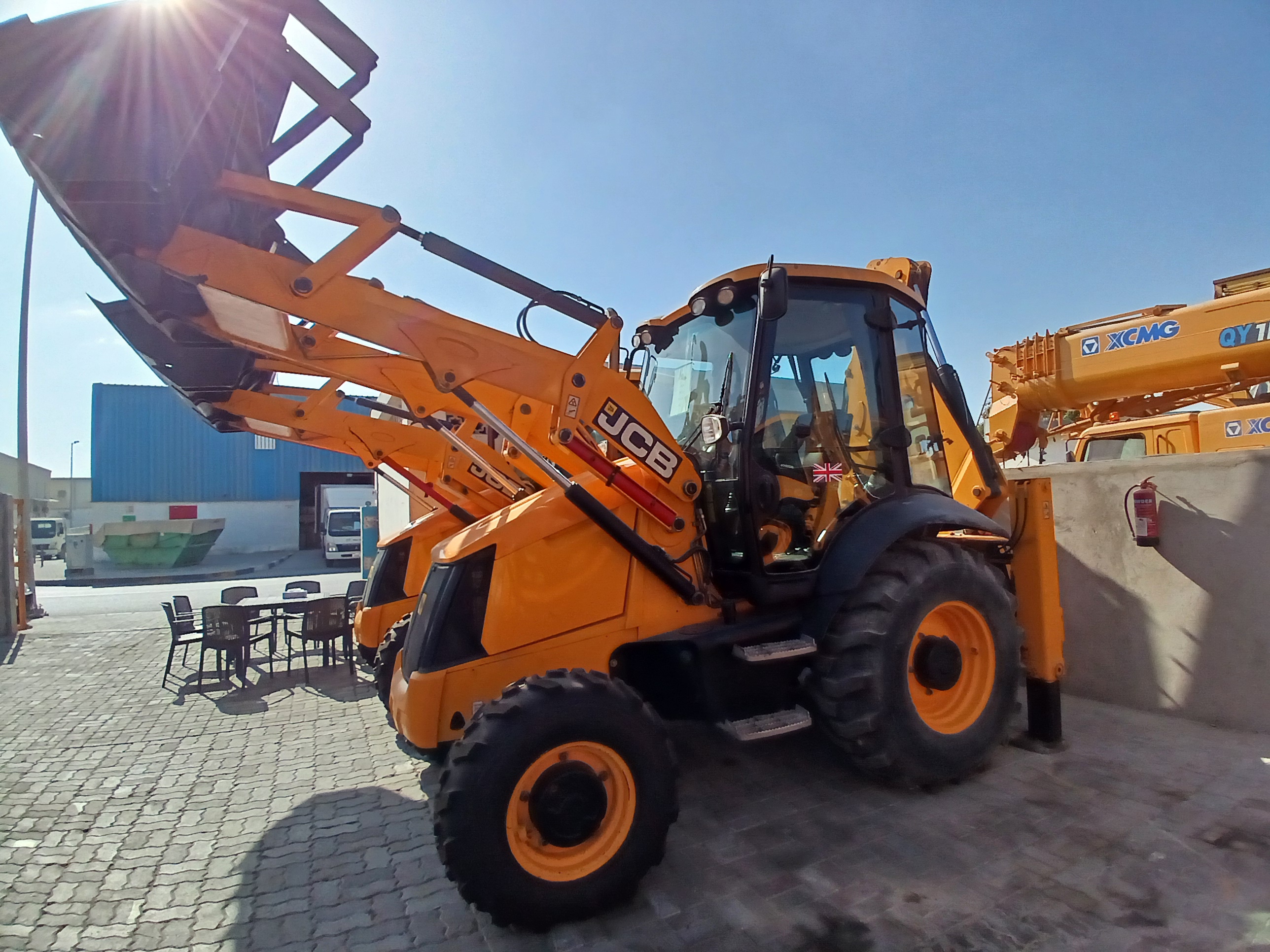

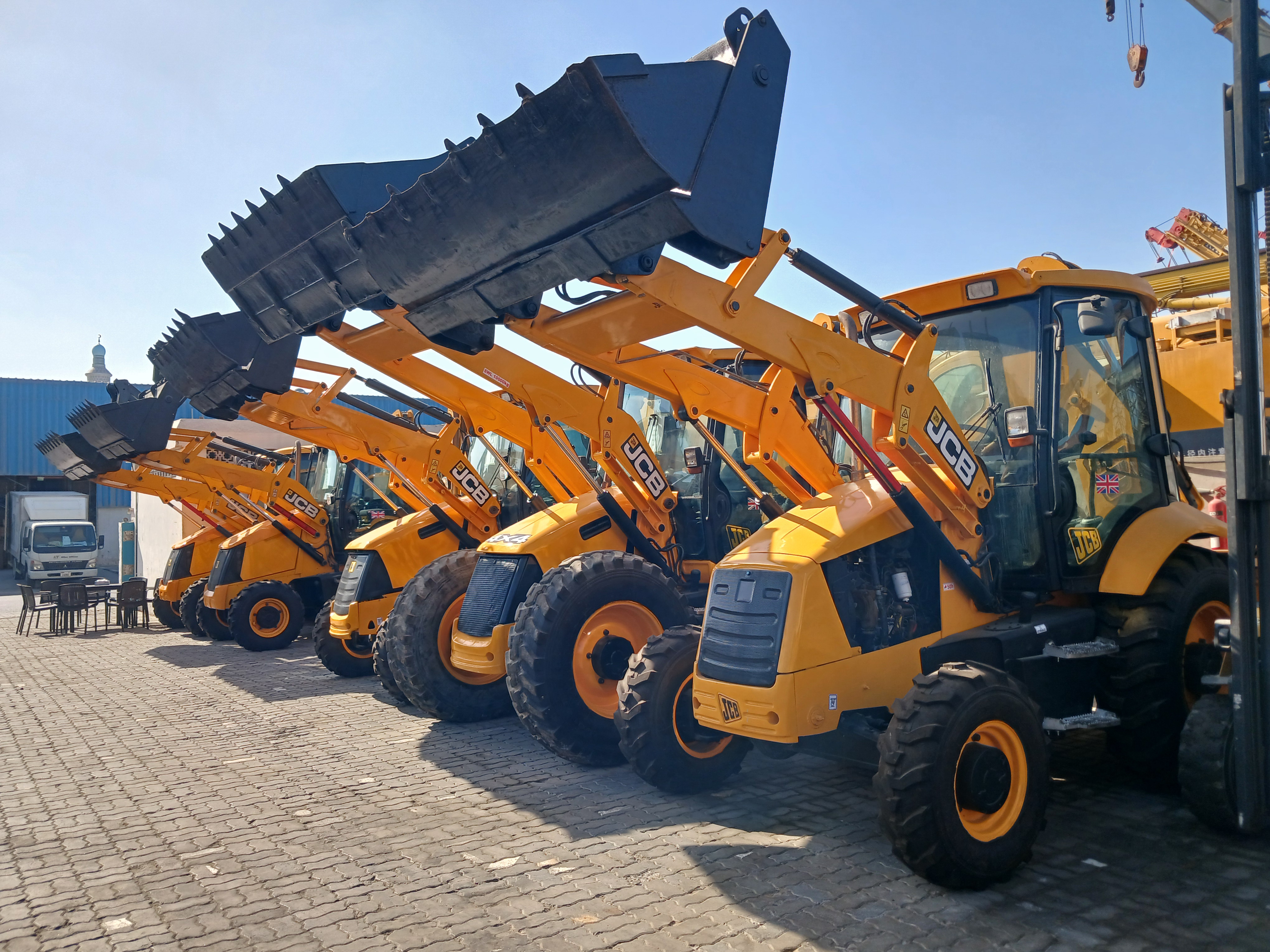

JCB Backhoe Loader - 3CX 14M2NM - 2018

ReflowX SKU: REF-6611

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

J.C. Bamford Excavators Ltd. United Kingdom
Equipment code

Get Quotation Whatsapp

Short Description

Manufacturer: J.C. Bamford Excavators Ltd. Model: 3CX 14M2NM Type: Backhoe Loader Product Identification Number (PIN): JCB3CX4TVH2512708 Operating Mass: 8,135 kg Engine Power: 68.6 kW @ 2200 rpm Year of Manufacture: 2018

Description

Specifications

General Information

Brand: JCB

Model: 3CX 14M2NM

Year: 2018

Type: Backhoe Loader

Maximum Operating Weight: 8,230 kg (18,145 lbs)

Engine Power: 81 kW (109 HP)

Bucket Capacity: 1.0 m³ (Loader)

Engine Specifications

Engine Model: JCB 4CX/4D-4

Engine Type: 4-Cylinder, Turbocharged Diesel

Power Output: 81 kW (109 HP) @ 2,200 rpm

Displacement: 4.4 L

Fuel Tank Capacity: 150 L

Emission Standard: EU Stage IIIB

Loader Performance

Loader Bucket Capacity: 1.0 m³

Loader Lift Capacity (Max): 3,400 kg (7,495 lbs)

Lift Height (Max): 4,120 mm (13.5 ft)

Dump Reach: 1,250 mm (4.1 ft)

Breakout Force: 5,600 kg (12,345 lbs)

Backhoe Performance

Digging Depth (Max): 5,900 mm (19.4 ft)

Reach from Swing Post (Max): 6,300 mm (20.7 ft)

Bucket Capacity: 0.3 m³ (Standard)

Backhoe Digging Force: 6,250 kg (13,780 lbs)

Hydraulic System

Pump Type: Load-Sensing Variable Displacement Pump

Hydraulic Flow: 115 L/min

Operating Pressure: 220 bar

Dimensions & Weight

Overall Length (With Loader Bucket): 5,970 mm (19.6 ft)

Overall Width: 2,250 mm (7.4 ft)

Overall Height: 3,970 mm (13.0 ft)

Wheelbase: 2,360 mm (7.7 ft)

Ground Clearance: 290 mm (11.4 in)

Operating Weight: 8,230 kg (18,145 lbs)

Undercarriage & Mobility

Tires: 12.5/80-18 (Radial)

Drive: 4WD

Maximum Speed: 40 km/h (25 mph)

Turning Radius: 4.5 m (14.8 ft)

Gradeability: 30%

Operational & Safety Features

Hydraulic Lifting System for Smooth Control

ROPS/FOPS Certified Cab for Operator Protection

Joystick Controls for Precision Handling

Selectable 4WD and 2WD Options

Stabilizer Legs for Stability During Digging

Advanced LCD Display and Diagnostics System

Eco Mode for Improved Fuel Efficiency

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	JCB: 3CX 14M2NM
Year of Manufacturing	2018
Height	3,970 mm (13.0 ft)
Width	2,250 mm (7.4 ft)
Length	5,970 mm (19.6 ft)
Weight	8,230 kg (18,145 lbs)
Color	Yellow
Fuel type	Diesel

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
