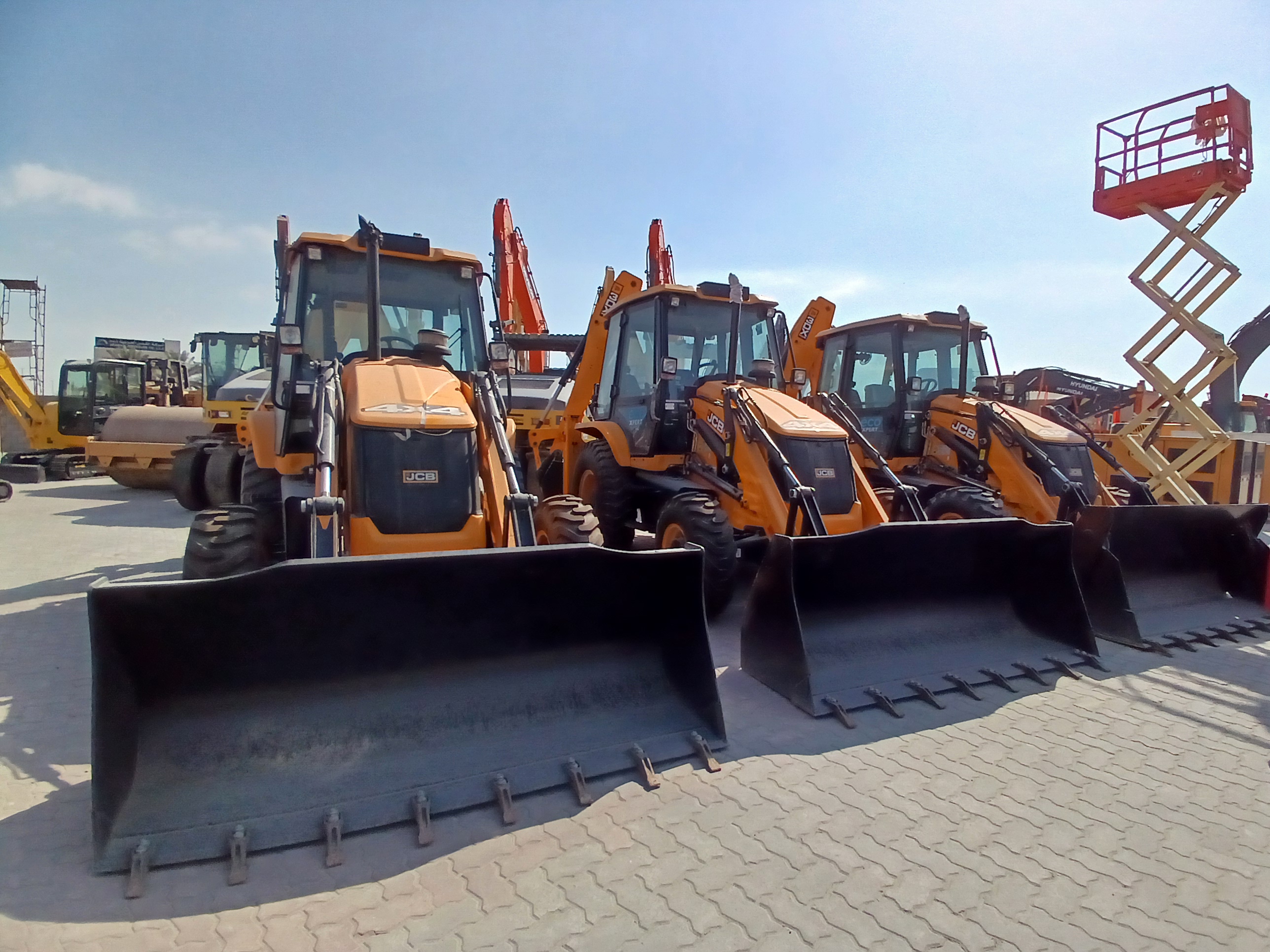

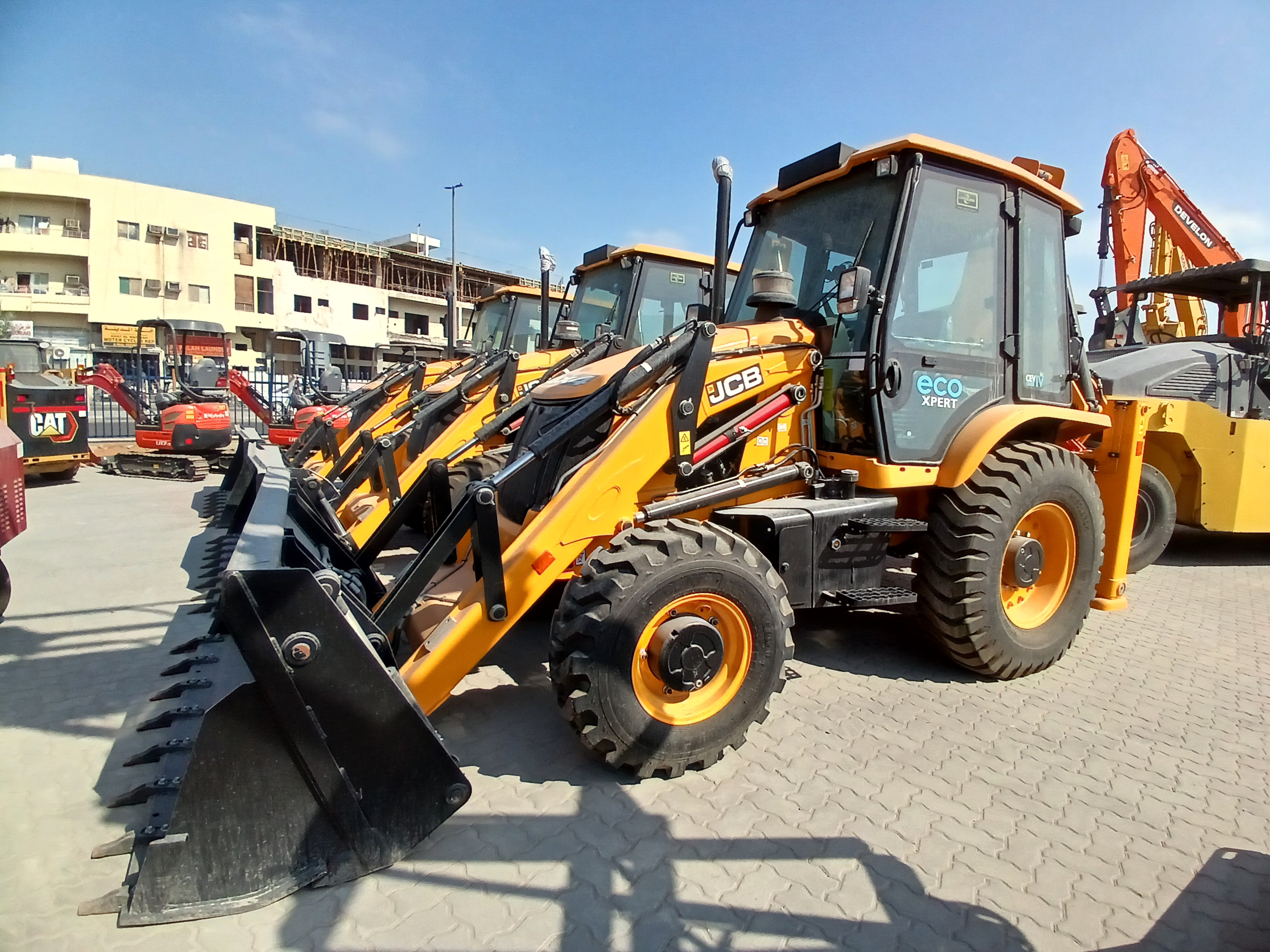

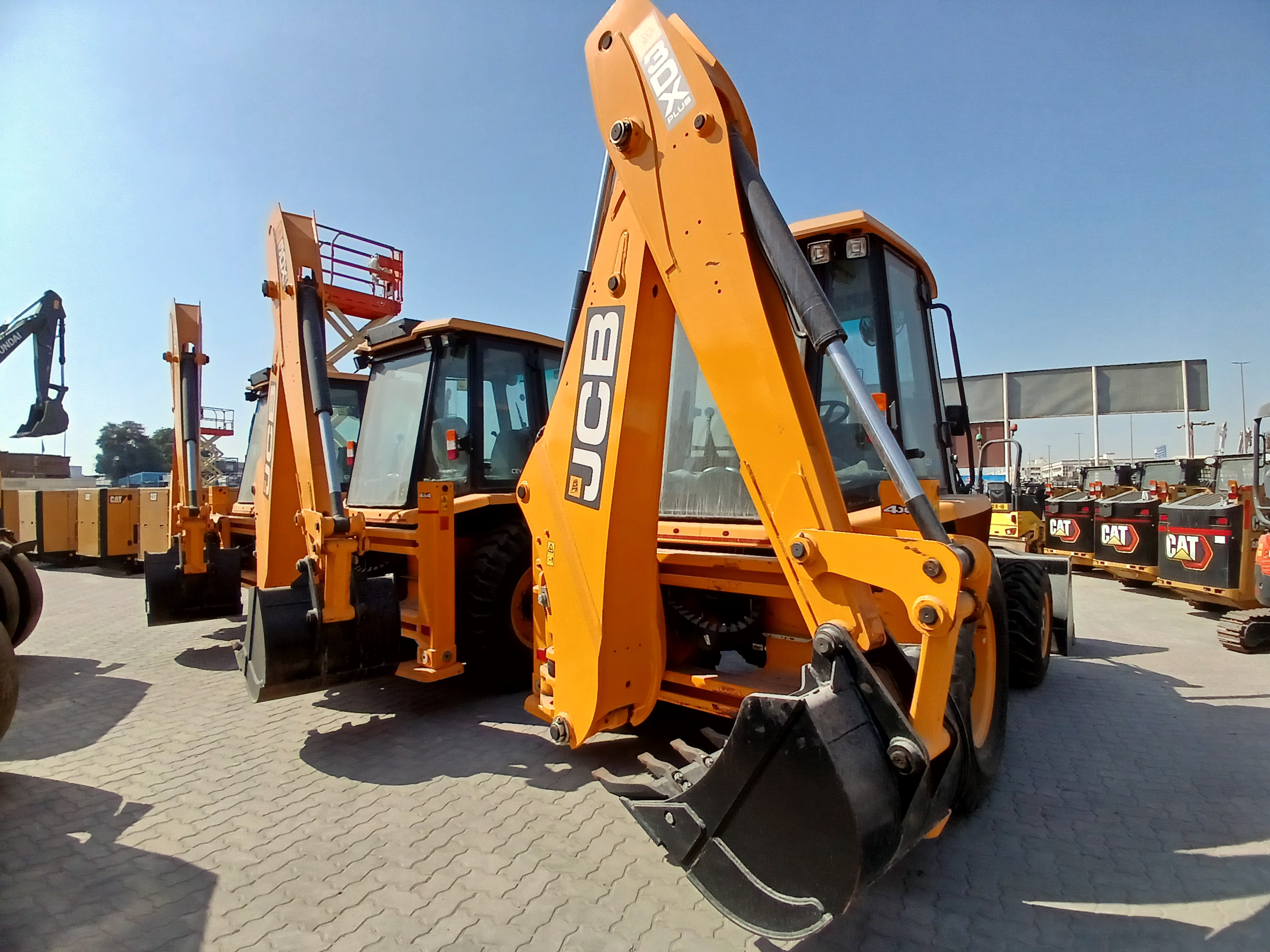

JCB Backhoe Loader : 3DX (BSIV) - 2024

ReflowX SKU: REF-6311

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

JCB India Limited, Mahindra World City, Jaipur
Equipment code

Get Quotation Whatsapp

Short Description

Brand: JCB Model: 3DX (BSIV) Type: Backhoe Loader Product Identification Number / Chassis Number: RAJ3DXS4E03428935 Engine Power: 55.2 kW @ RPM (ISO 14396)

Description

Specifications

General Information

Brand: JCB

Model: 3DX (BSIV)

Year: 2024

Type: Backhoe Loader

Emission Standard: Bharat Stage IV (BSIV)

Engine Specifications

Engine Model: JCB EcoMax BSIV

Engine Type: 4-Cylinder, Water-Cooled Turbocharged Diesel

Power Output: 55 kW (74 HP) @ 2,200 rpm

Torque: 400 Nm @ 1,300 rpm

Displacement: 3.0 L

Fuel Tank Capacity: 128 L

Cooling System: Water-Cooled

Starting System: Electric Start

Backhoe Performance

Max Digging Depth: 4,770 mm

Max Reach at Ground Level: 5,680 mm

Max Dump Height: 3,570 mm

Bucket Digging Force: 6,695 kgf

Dipper Digging Force: 3,680 kgf

Loader Performance

Max Loader Bucket Capacity: 1.1 m³

Max Lift Capacity: 3,100 kg

Dump Height: 2,740 mm

Breakout Force: 6,850 kgf

Transmission & Drive

Transmission Type: Synchro Shuttle (4 Forward & 4 Reverse Gears)

Max Travel Speed: 36 km/h

Drive System: 2WD / 4WD Option

Hydraulic System

Hydraulic Pump Type: Gear Pump

Max Hydraulic Flow: 113 L/min

Max Hydraulic Pressure: 250 bar

Dimensions & Weight

Overall Length: 7,400 mm

Overall Width: 2,350 mm

Overall Height: 3,580 mm

Operating Weight: 7,600 kg

Tires & Brakes

Front Tires: 9.0 × 16 – 16 PR

Rear Tires: 16.9 × 28 – 12 PR

Brake Type: Hydraulic Oil-Immersed Multi-Disc

Environmental & Safety Features

ROPS/FOPS: Standard Cabin Safety Structure

Noise Level: Low-Noise, Fuel-Efficient Operation

Eco Mode for Fuel Savings

Operator Cabin: Adjustable Seat & Ergonomic Controls

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	3DX (BSIV)
Year of Manufacturing	2024
Height	3,420 mm
Width	2,235 mm
Length	7,400 mm
Weight	7,600 kg (approx.)
Usage Hours	00
Color	Yellow

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
