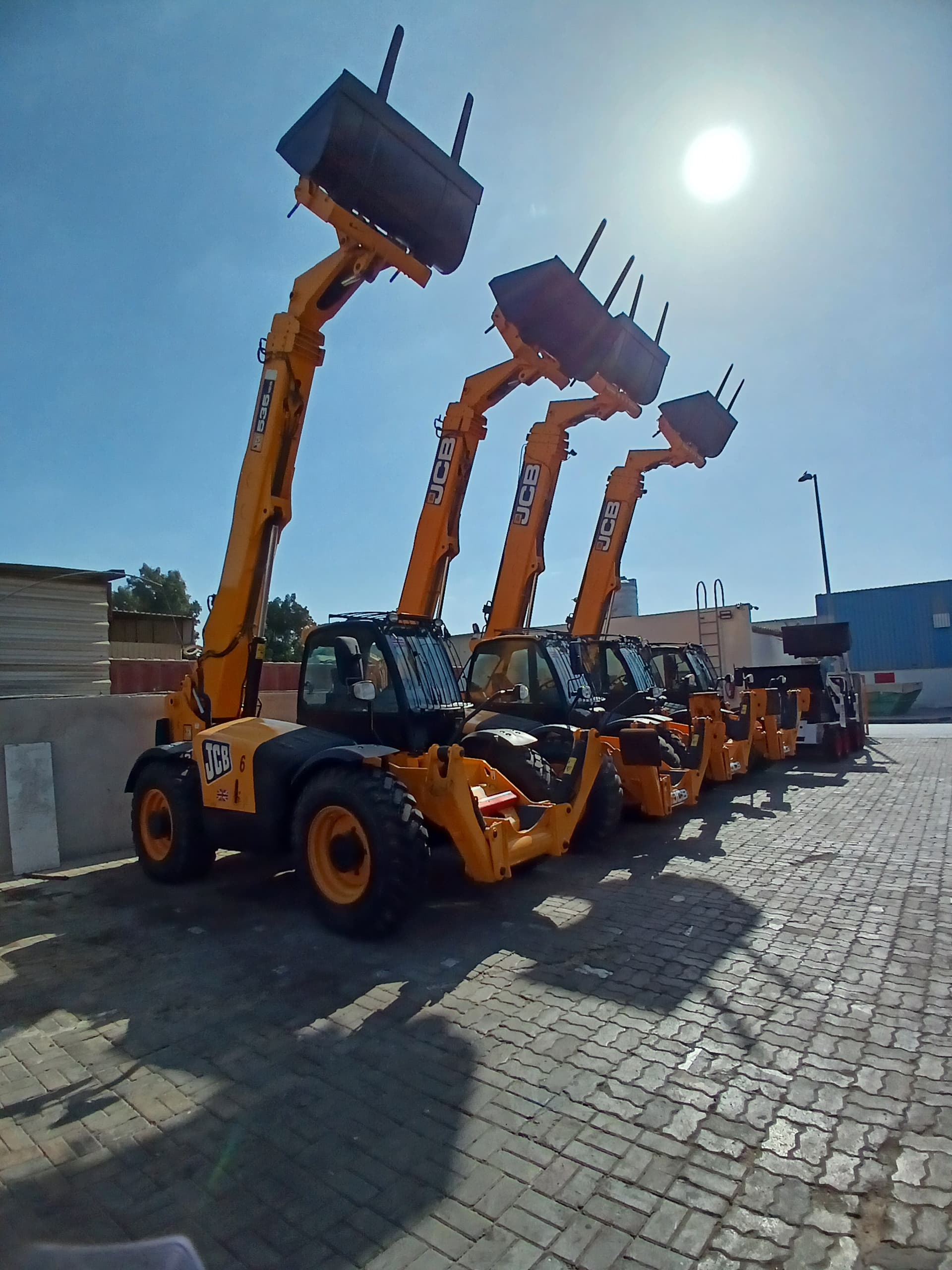

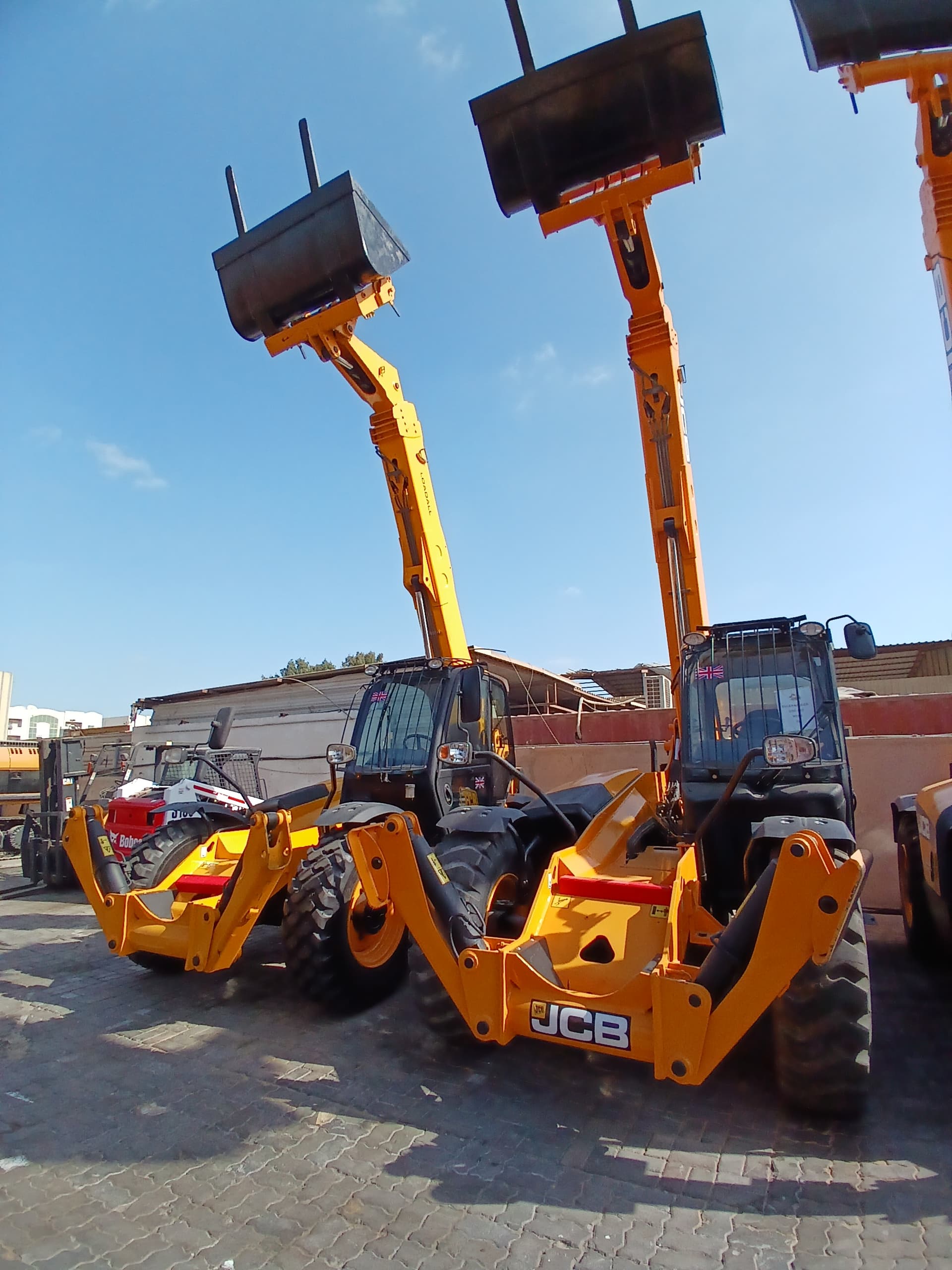

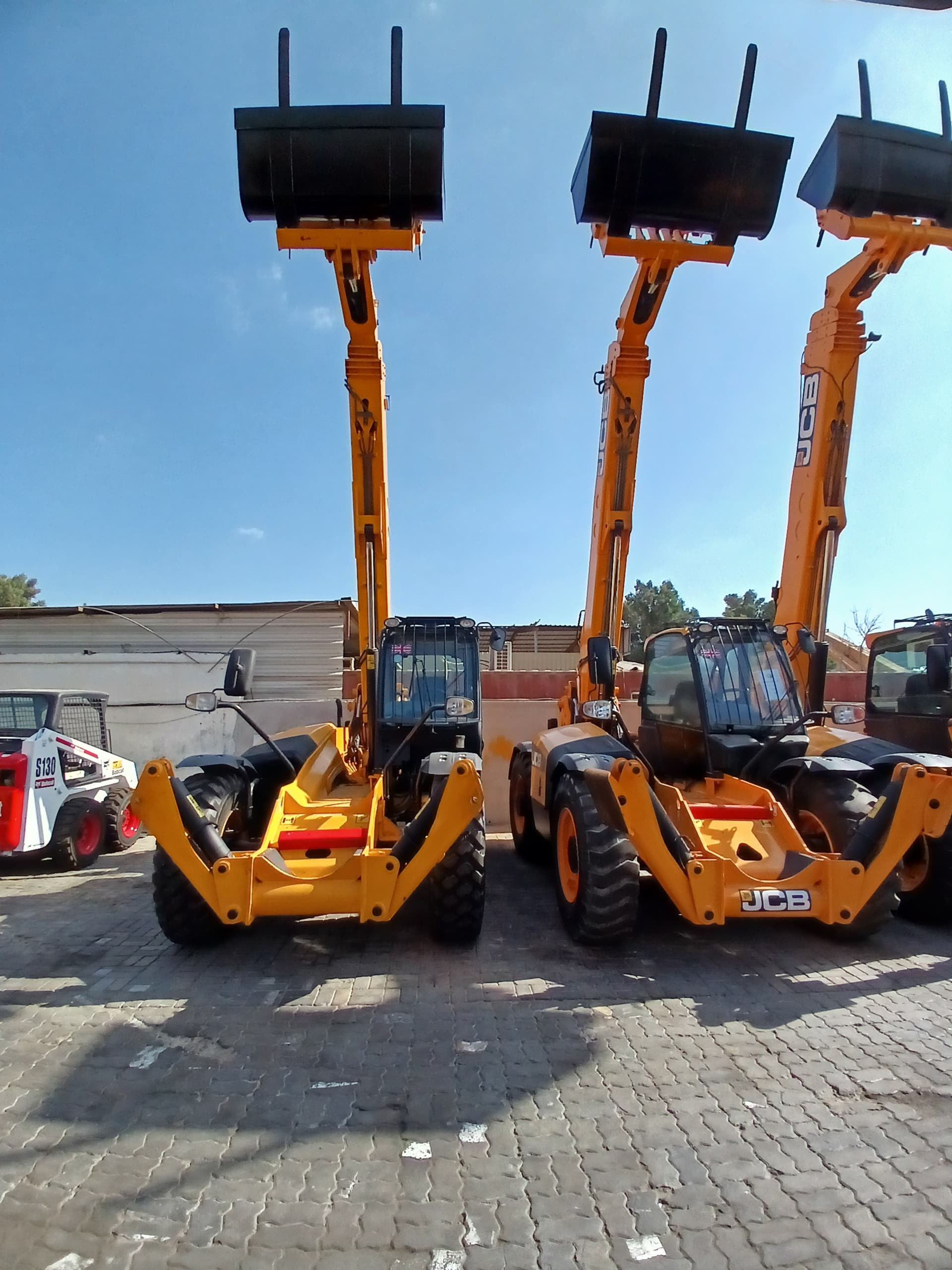

JCB Telehandler : 535-125 - 2019

ReflowX SKU: REF-8612

Product Details

Quantity

3
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

J.C. Bamford Excavators Limited
Equipment code

Get Quotation Whatsapp

Short Description

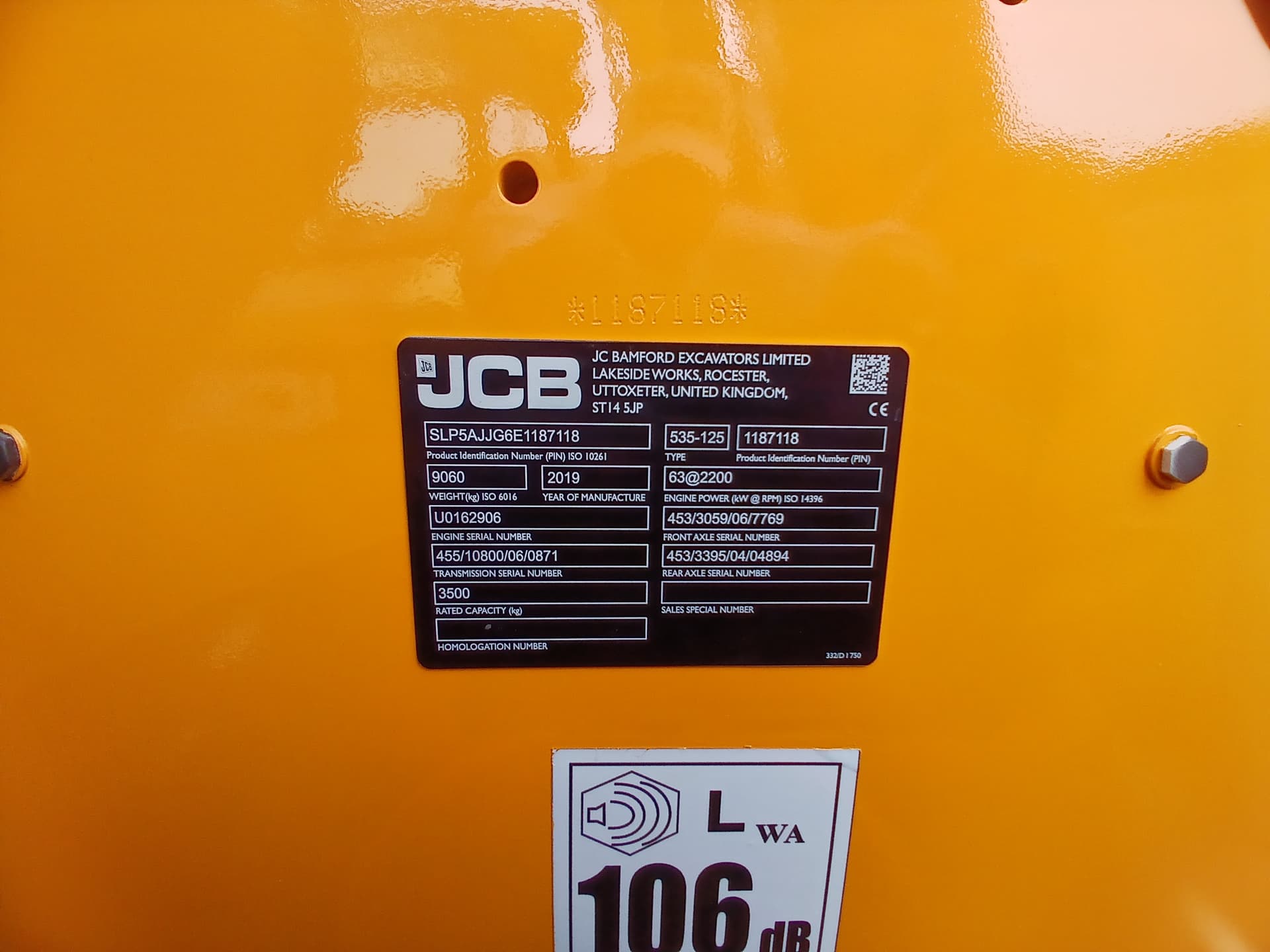

Manufacturer: J.C. Bamford Excavators Limited Model: 535-125 Type: Telescopic Handler (Telehandler) Product Identification Number (PIN): SLP5AJJG6E1187118 Year of Manufacture: 2019 Operating Weight: 9,060 kg Rated Lift Capacity: 3,500 kg Engine Power: 63 kW @ 2200 rpm

Description

Specifications

General Information

Brand: JCB

Model: 535-125

Year: 2019

Type: Telehandler (Telescopic Handler)

Maximum Lift Capacity: 3,500 kg (7,717 lbs)

Maximum Lift Height: 12.5 m (41 ft)

Max Forward Reach: 9 m (29.5 ft)

Engine Specifications

Engine Model: JCB 404D-22

Engine Type: 4-Cylinder, Turbocharged Diesel

Power Output: 81 kW (109 HP) @ 2,200 rpm

Displacement: 2.2 L

Fuel Tank Capacity: 100 L

Emission Standard: EU Stage IV

Lifting & Reach Performance

Max Lifting Height: 12.5 m (41 ft)

Max Lift Capacity at Full Height: 3,500 kg (7,717 lbs)

Max Forward Reach: 9 m (29.5 ft)

Lift Capacity at Max Reach: 1,250 kg (2,755 lbs)

Max Reach (at 1.5 m height): 5,000 kg (11,023 lbs)

Hydraulic System

Pump Type: Load-Sensing Variable Displacement Pump

Hydraulic Flow: 120 L/min

Operating Pressure: 240 bar

Dimensions & Weight

Wheelbase: 3,150 mm (10 ft 4 in)

Ground Clearance: 380 mm (15 in)

Undercarriage & Mobility

Tires: 16.0/70-20 (Radial)

Drive: 4WD

Maximum Speed: 40 km/h (25 mph)

Turning Radius: 4.0 m (13.1 ft)

Gradeability: 45%

Operational & Safety Features

Hydraulic Lifting System with Smooth Controls

ROPS/FOPS Certified Cab for Operator Protection

Joystick Controls for Precision Handling

Selectable 4WD and 2WD Options

Stabilizer Legs for Added Safety During Lifting

Advanced Display and Diagnostics System

Eco Mode for Improved Fuel Efficiency

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	JCB: 535-125
Year of Manufacturing	2019
Height	2,520 mm (8 ft 3 in)
Width	2,290 mm (7 ft 6 in)
Length	5,410 mm (17 ft 9 in)
Weight	10,290 kg
Color	Yellow
Fuel type	Diesel
