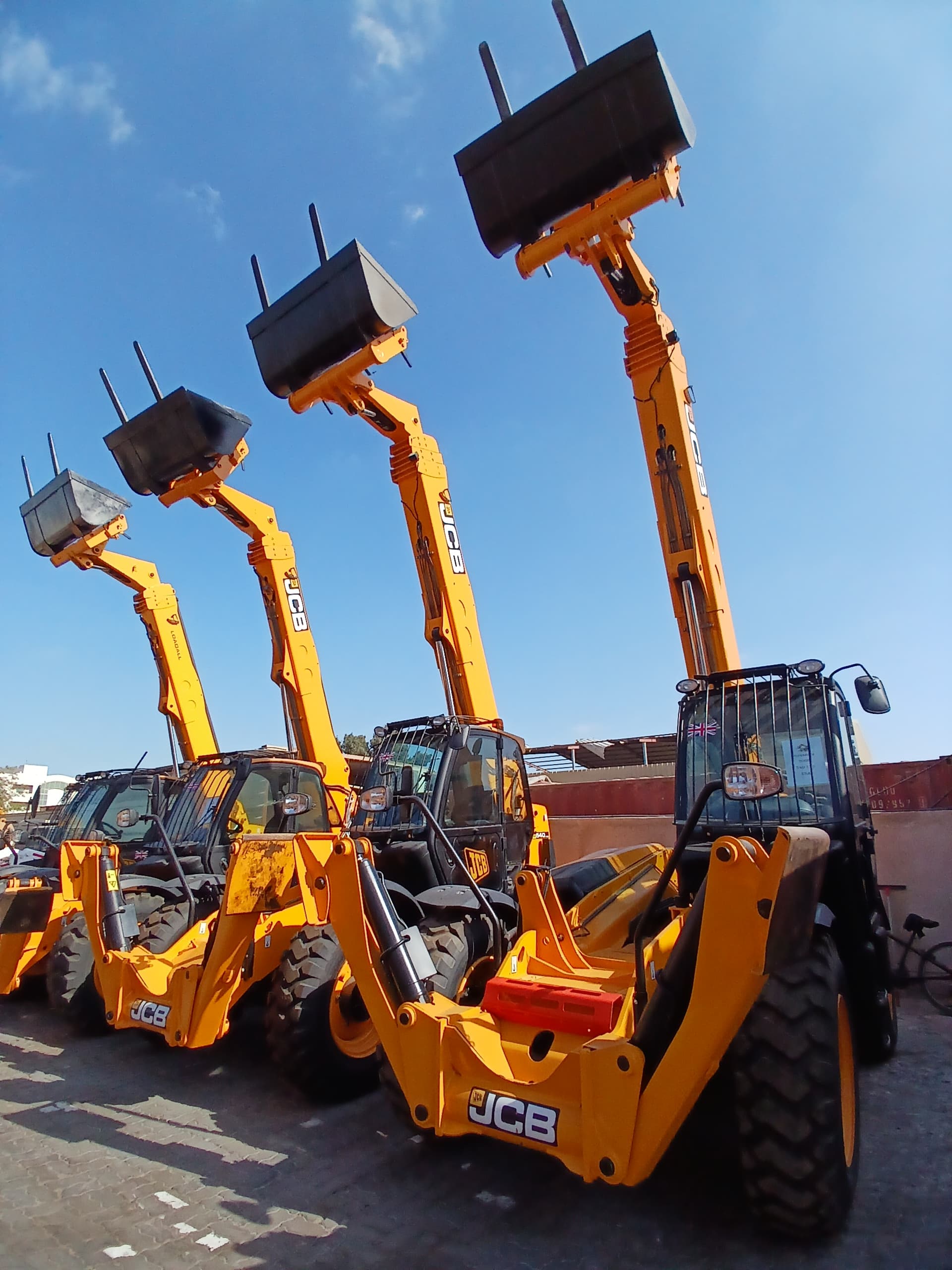

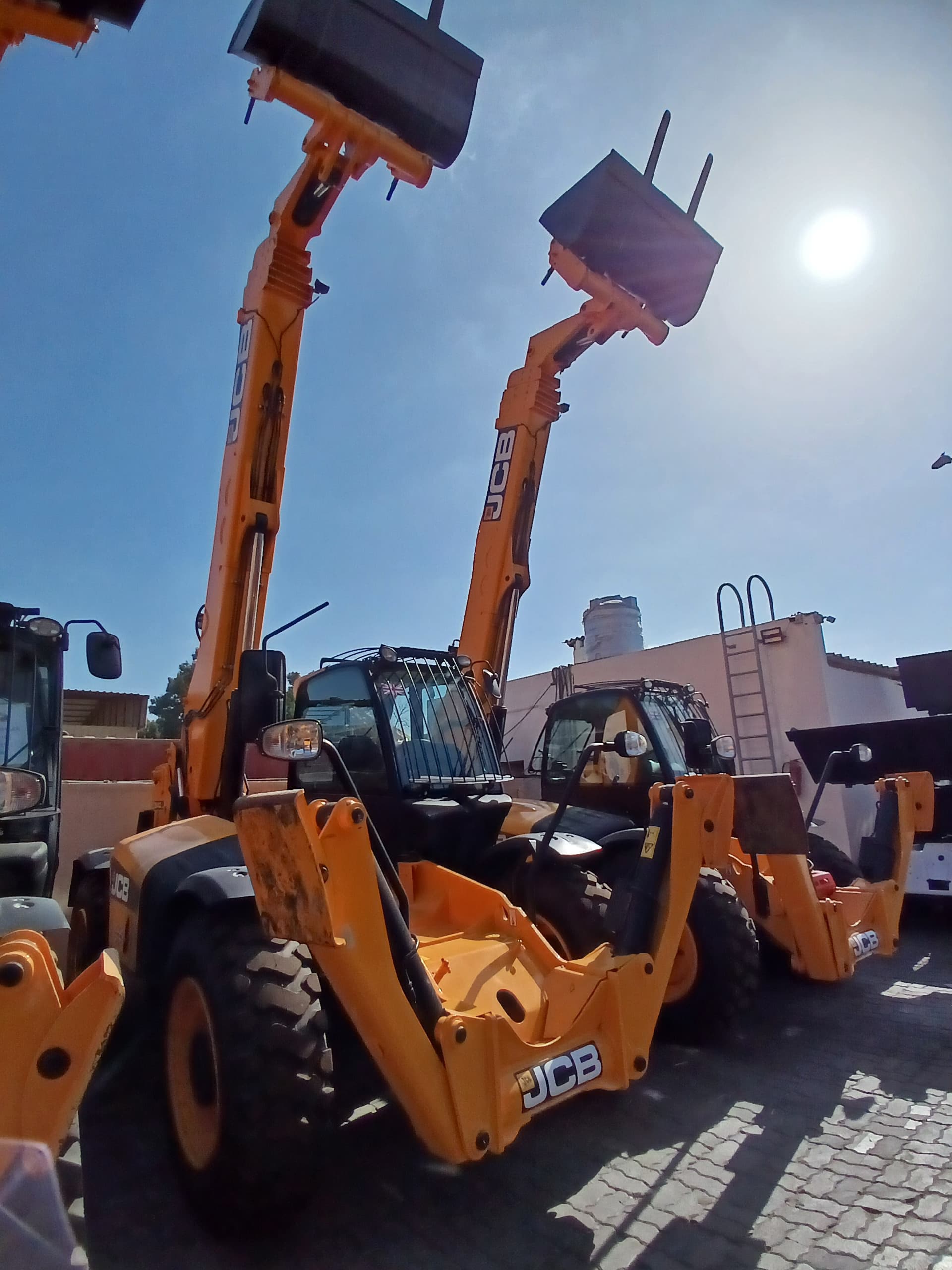

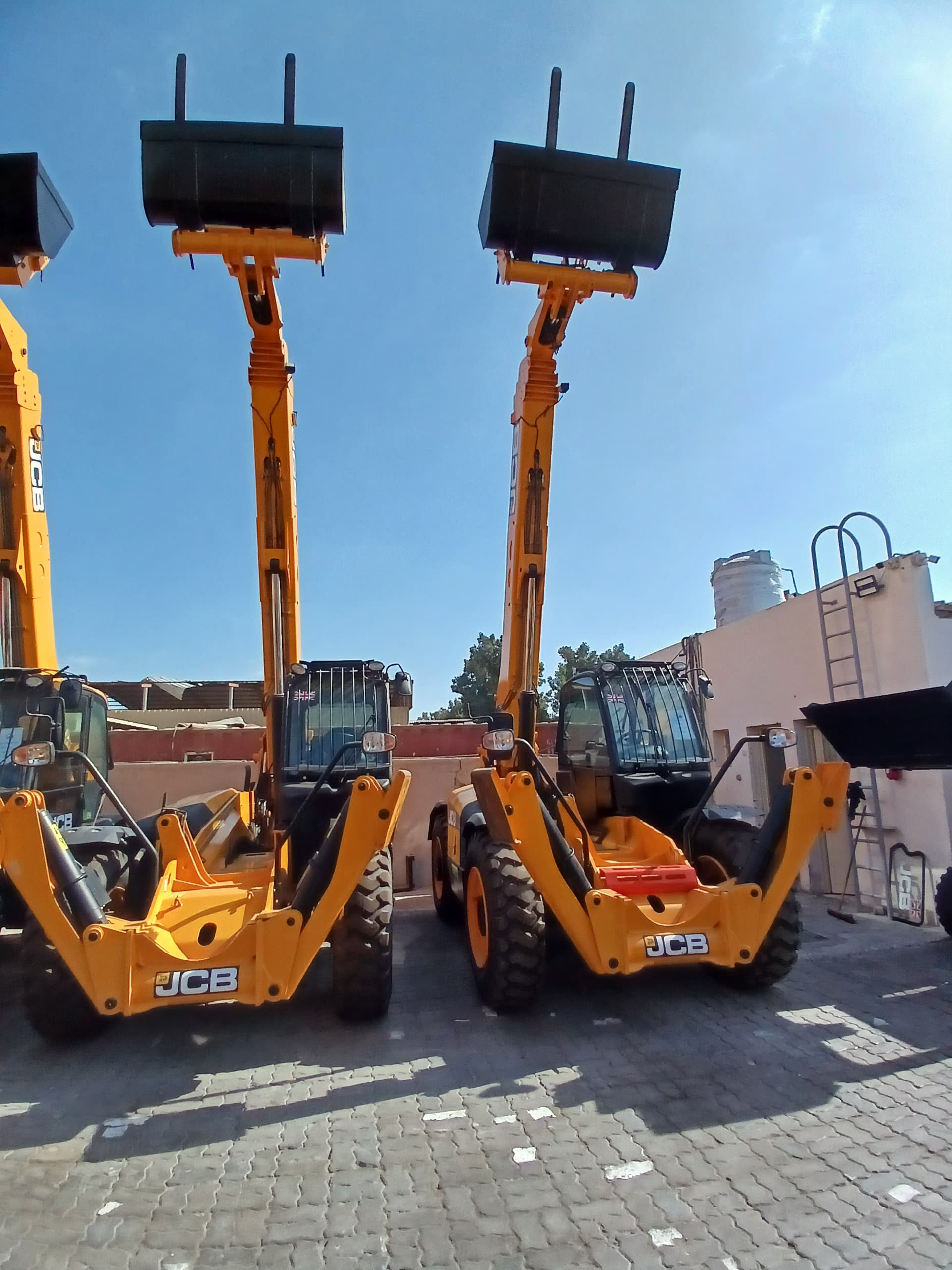

JCB Telehandler: 540-170 - 2008

ReflowX SKU: REF-3791

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

JCB Materials Handling Limited United Kingdom (UK)
Equipment code

Get Quotation Whatsapp

Short Description

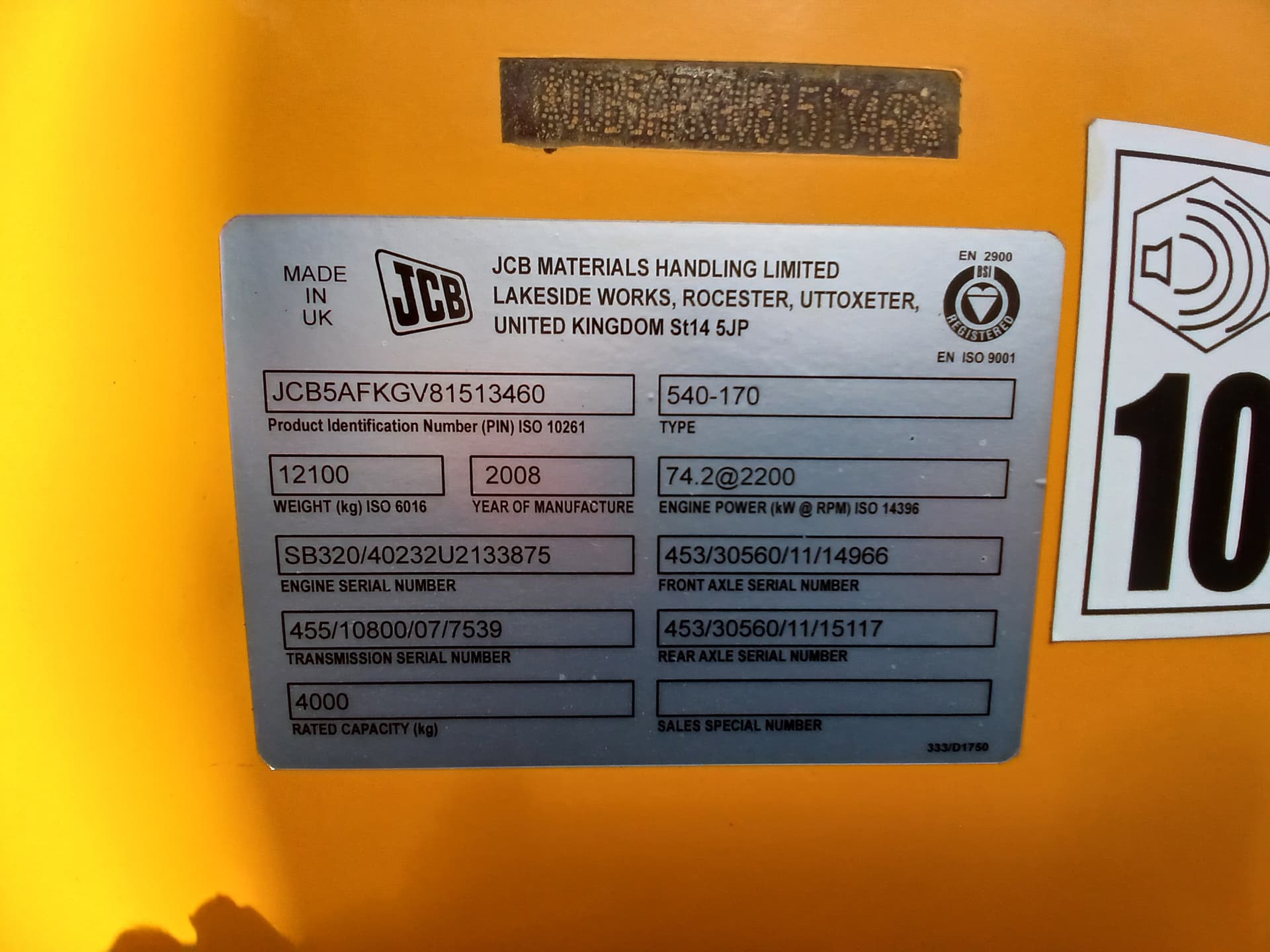

Manufacturer: JCB Materials Handling Limited Model: 540-170 Type: Telescopic Handler (Telehandler) Product Identification Number (PIN): JCB5AFKGV81513460 Year of Manufacture: 2008

Description

Specifications

General Information

Brand: JCB

Model: 540-170

Year: 2008

Type: Telehandler (Telescopic Handler)

Maximum Lift Capacity: 4,000 kg (8,818 lbs)

Maximum Lift Height: 17 m (55.8 ft)

Max Forward Reach: 13 m (42.7 ft)

Engine Specifications

Engine Model: Perkins 804D-33T

Engine Type: 4-Cylinder, Turbocharged Diesel

Power Output: 74 kW (99 HP) @ 2,200 rpm

Displacement: 3.3 L

Fuel Tank Capacity: 115 L

Emission Standard: EU Stage IIIB

Lifting & Reach Performance

Max Lifting Height: 17 m (55.8 ft)

Max Lift Capacity at Full Height: 4,000 kg (8,818 lbs)

Max Forward Reach: 13 m (42.7 ft)

Lift Capacity at Max Reach: 1,000 kg (2,204 lbs)

Max Reach (at 1.5 m height): 2,500 kg (5,512 lbs)

Hydraulic System

Pump Type: Load-Sensing Variable Displacement Pump

Hydraulic Flow: 120 L/min

Operating Pressure: 240 bar

Undercarriage & Mobility

Tires: 400/80-24 (Radial)

Drive: 4WD

Maximum Speed: 40 km/h (25 mph)

Turning Radius: 4.5 m (14.8 ft)

Gradeability: 45%

Operational & Safety Features

Hydraulic Lifting System with Smooth Controls

ROPS/FOPS Certified Cab for Operator Protection

Joystick Controls for Precision Handling

Selectable 4WD and 2WD Options

Stabilizer Legs for Added Safety During Lifting

Advanced Display and Diagnostics System

Eco Mode for Improved Fuel Efficiency

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	JCB: 540-170
Year of Manufacturing	2008
Height	2,690 mm
Width	2,350 mm
Length	6,260 mm
Weight	11,390 kg
Color	Yellow
Fuel type	Diesel
