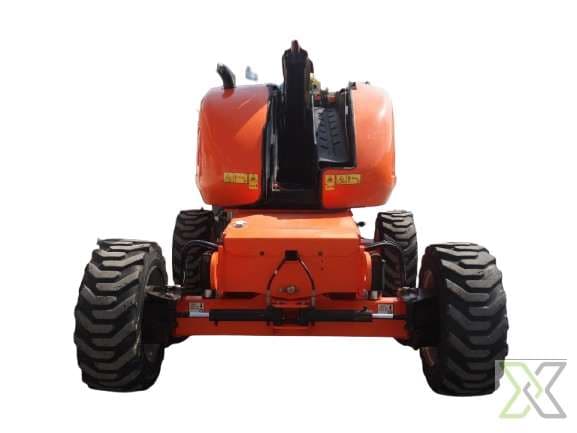

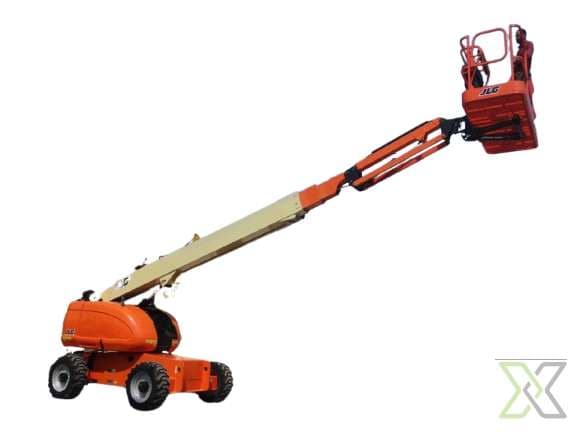

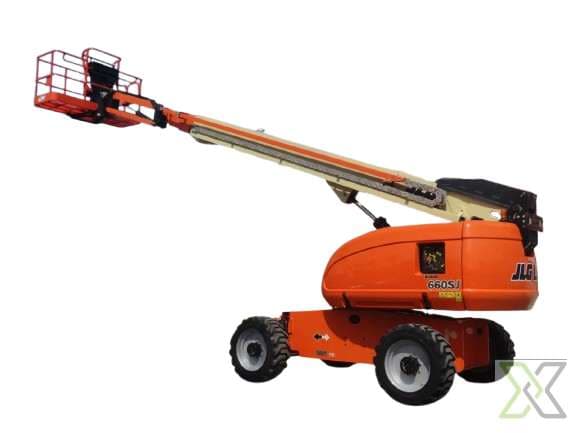

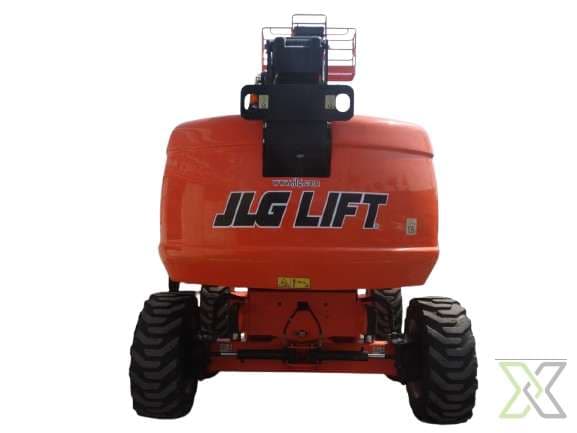

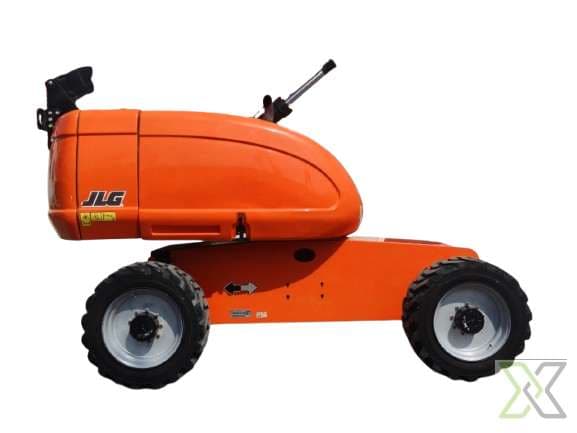

JLG 660-SJ Man Lift – Telescopic Boom Lift – 2014

The JLG 660-SJ (2014) is a powerful self-propelled telescopic boom lift engineered for high-reach aerial operations in industrial, construction, and maintenance environments. Offering a maximum working height of 22.86 meters (75 ft) and a platform capacity of 454 kg, it is designed to lift personnel and tools efficiently and safely to elevated positions.

This boom lift features a 20.86 m (68.4 ft) platform height and an impressive horizontal reach of 17.24 meters, ideal for reaching across large obstacles. The Perkins 804D-33T diesel engine delivers 55.4 kW (74 hp) and is mated to a robust hydrostatic 4-wheel drive system, ensuring reliable performance on uneven terrains with gradeability up to 45%.

The 2.44 m x 1.83 m platform offers a spacious working area and is mounted on a 360° continuous rotating turntable for optimal positioning. Advanced safety features include a tilt alarm and level indicators, enhancing operational safety on sloped surfaces.

With a lift speed of 90 seconds, drive speed of 6.0 km/h, and compact stowed dimensions, the JLG 660-SJ is designed for high-reach efficiency, maneuverability, and job site durability.

Specifications:

– Model: JLG 660-SJ
– Year: 2014
– Type: Self-Propelled Telescopic Boom Lift
– Category: Aerial Work Platform / Man Lift / Boom Lift

– Max Working Height: 22.86 m (75 ft)
– Max Platform Height: 20.86 m (68.4 ft)
– Platform Capacity: 454 kg (1,000 lbs)
– Platform Length: 2.44 m (8.0 ft)
– Platform Width: 1.83 m (6.0 ft)

– Max Horizontal Reach: 17.24 m (56.5 ft)
– Max Outreach at 45°: 12.2 m (40.0 ft)
– Turntable Rotation: 360° Continuous
– Turning Radius (Inside): 3.72 m (12.2 ft)
– Turning Radius (Outside): 6.1 m (20.0 ft)

– Overall Length: 10.16 m (33.3 ft)
– Overall Width: 2.49 m (8.2 ft)
– Overall Height: 2.55 m (8.4 ft)
– Ground Clearance: 0.30 m (11.8 in)

– Lift Speed: 90 seconds (to full height)
– Drive Speed (Max): 6.0 km/h (3.7 mph)
– Max Gradeability: 45% (varies by surface condition)
– Tilt Alarm & Level Indicators: Equipped

– Engine Model: Perkins 804D-33T
– Engine Type: 4-cylinder, Turbocharged Diesel
– Engine Power: 55.4 kW (74 HP)
– Fuel Type: Diesel
– Drive Type: 4WD, Hydrostatic Transmission

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
