KATO KR-35H-V Rough Terrain Crane – 35 Ton, Telescopic Boom - 2005

ReflowX SKU: REF-9252

Product Details

Quantity

1
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition

New
OEM

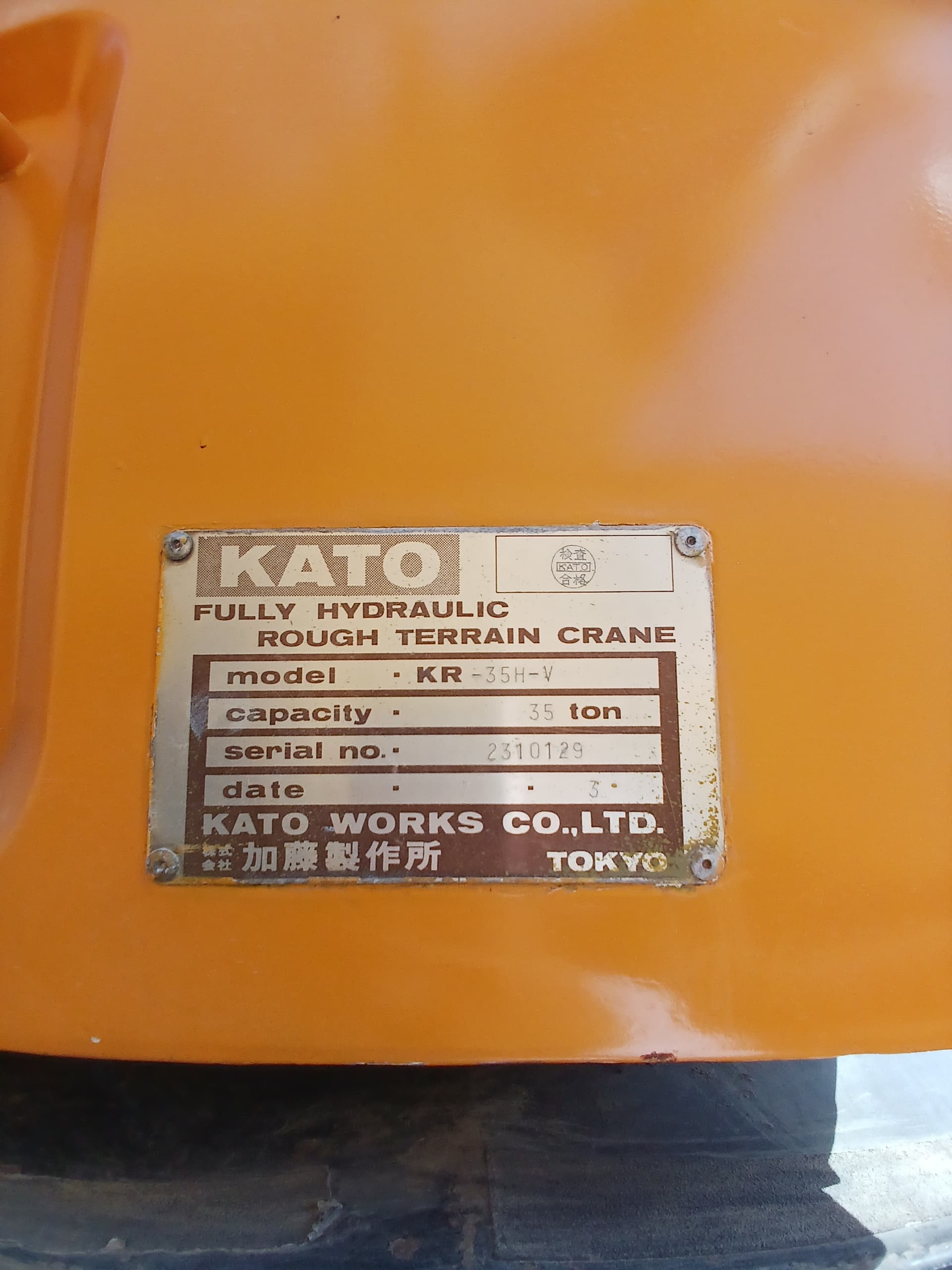

KATO WORKS CO., LTD. (Tokyo, Japan)
Equipment code

Get Quotation Whatsapp

Short Description

2005 KATO KR-35H-V fully hydraulic rough terrain crane with 35-ton lifting capacity, 28.8 m boom, Isuzu turbo diesel engine, and advanced load monitoring system. Ideal for off-road and compact job sites.

Description

KATO KR-35H-V Rough Terrain Crane – 35 Ton, Telescopic Boom - 2005

The KATO KR-35H-V is a powerful 35-ton rough terrain crane designed for high-performance lifting in construction, oil & gas, and heavy infrastructure projects. Built in 2005, this model features a 28.8-meter telescopic boom and 8.0-meter jib, providing a maximum lifting height of 31.5 meters and a reach of up to 27 meters.

Powered by a turbocharged Isuzu 6BD1T engine, the KR-35H-V delivers 140 kW (188 HP) at 2,200 rpm, backed by a 7.8-liter displacement and 160-liter fuel capacity, meeting Tier 2 emission standards. Its fully hydraulic telescoping boom system ensures smooth and precise extension for efficient material handling.

The crane includes a gear-type hydraulic pump with 200 L/min flow and 250 bar pressure, along with automatic outrigger leveling and a Load Moment Limiter (LMI) for safety. A real-time load chart display provides accurate lifting data, supporting secure operations across varying conditions.

This crane excels in compact and off-road work environments, with rugged construction, a high-tensile winch system, and advanced control features for professional-grade lifting solutions.

Specifications:

– Brand: KATO
– Model: KR-35H-V
– Year: 2005
– Type: Fully Hydraulic Rough Terrain Crane
– Max Lifting Capacity: 35,000 kg (77,161 lbs)
– Max Boom Length: 28.8 m (94.5 ft)
– Max Lifting Height (with Jib): 31.5 m (103.3 ft)
– Max Reach: 27 m (88.6 ft)
– Jib Length: 8.0 m (26.2 ft)
– Boom Extension: 4.7 m (15.4 ft)
– Lifting Capacity (Max Reach): 4,000 kg (8,818 lbs)
– Lifting Capacity (with Jib): 2,000 kg (4,409 lbs)
– Max Lifting Moment: 1,340 kNm (988,922 lbf-ft)
– Engine Model: Isuzu 6BD1T
– Engine Type: 6-Cylinder, Turbocharged Diesel
– Power Output: 140 kW (188 HP) @ 2,200 rpm
– Displacement: 7.8 L
– Fuel Tank Capacity: 160 L
– Emission Standard: Tier 2
– Swing Speed: 2.0 rpm
– Hydraulic Pump Type: Gear Pump
– Hydraulic Flow: 200 L/min
– Hydraulic Pressure: 250 bar
– Boom System: Fully Hydraulic Telescoping
– Winch Type: High-Tensile Steel Cable
– Outrigger System: Automatic Leveling with Load Moment Limiter (LMI)
– Load Chart Indicator: Real-Time Capacity Monitoring System
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	KR-35H-V
Year of Manufacturing	2005
Height	3,230 mm (10.6 ft)
Width	2,490 mm (8.2 ft)
Length	7,070 mm (23.2 ft)
Weight	21,000 kg (46,300 lbs)
Color	Yellow
ISO 15926 Pt 4	8929
PCA RDS Code	RDS5800251
CFIHOS ID	CFIHOS-30000597
Fuel type	Diesel
