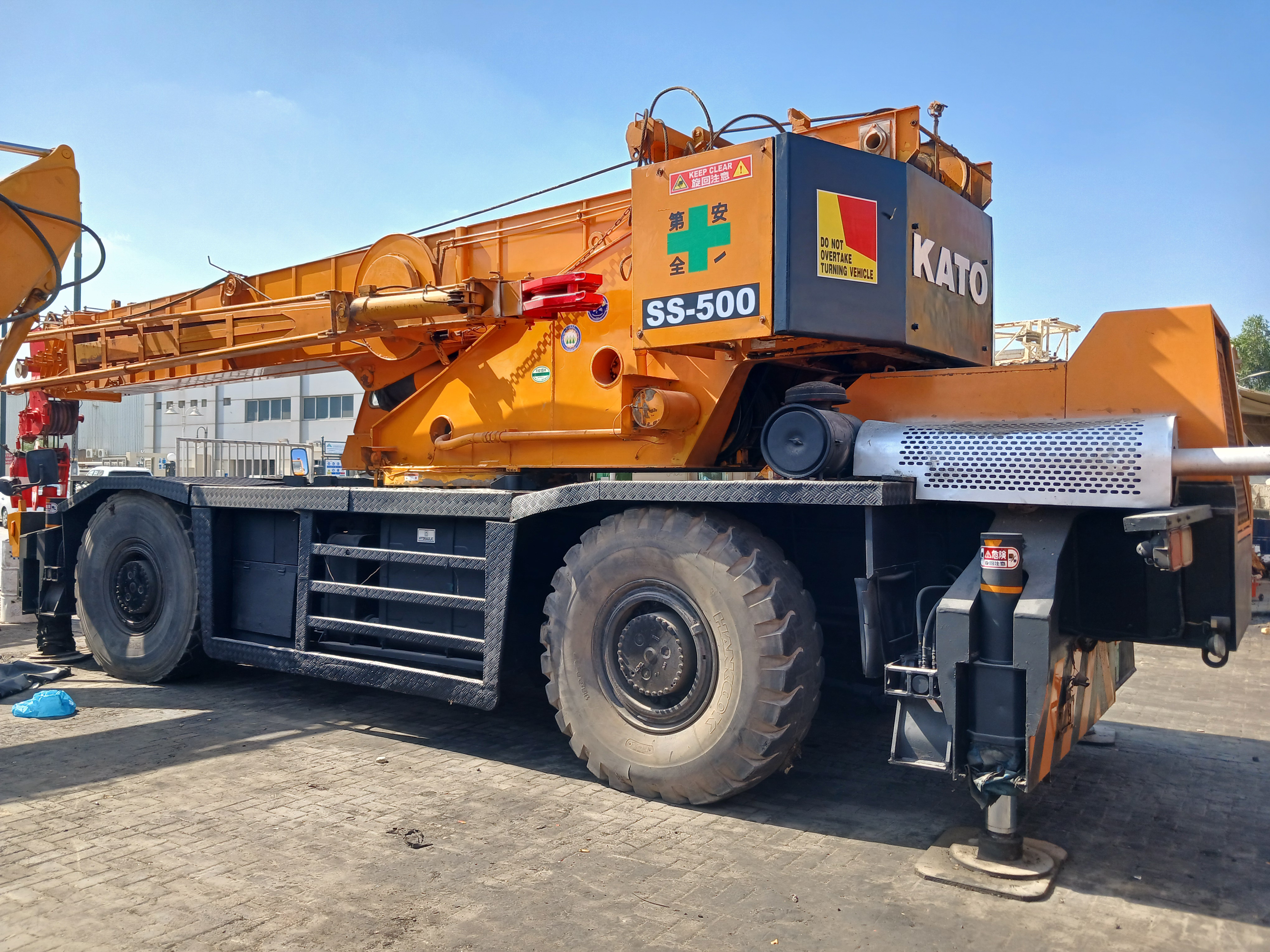

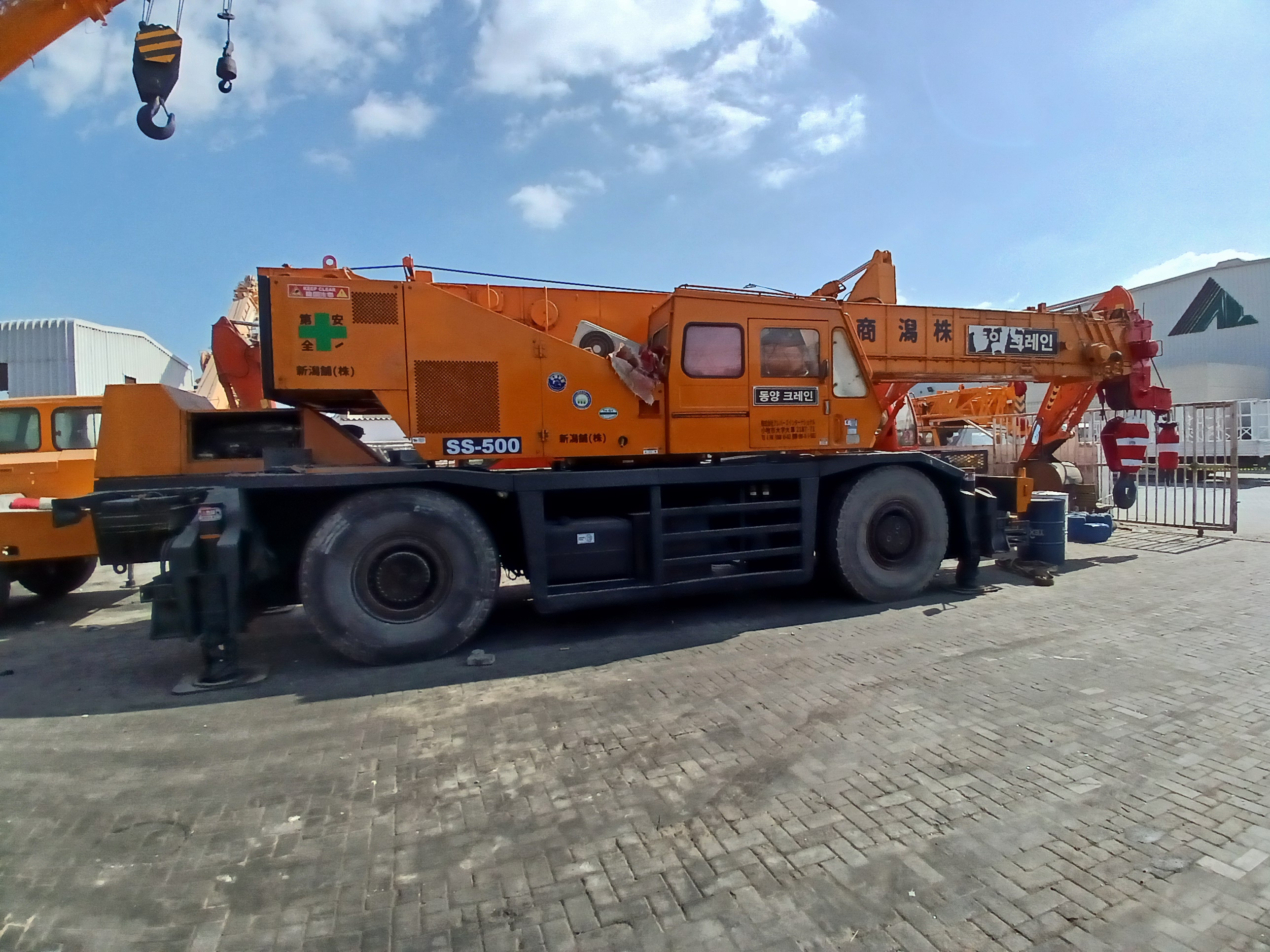

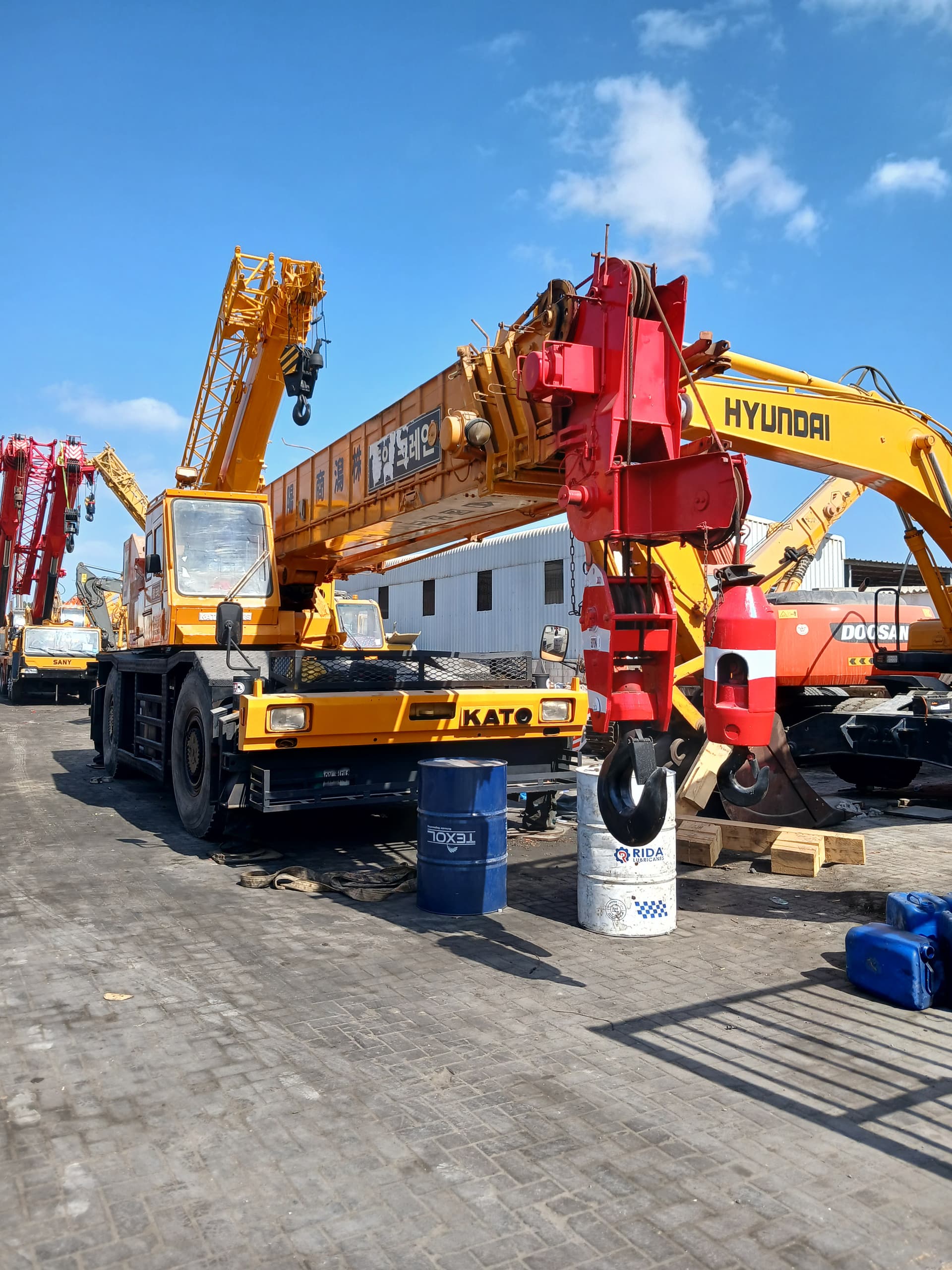

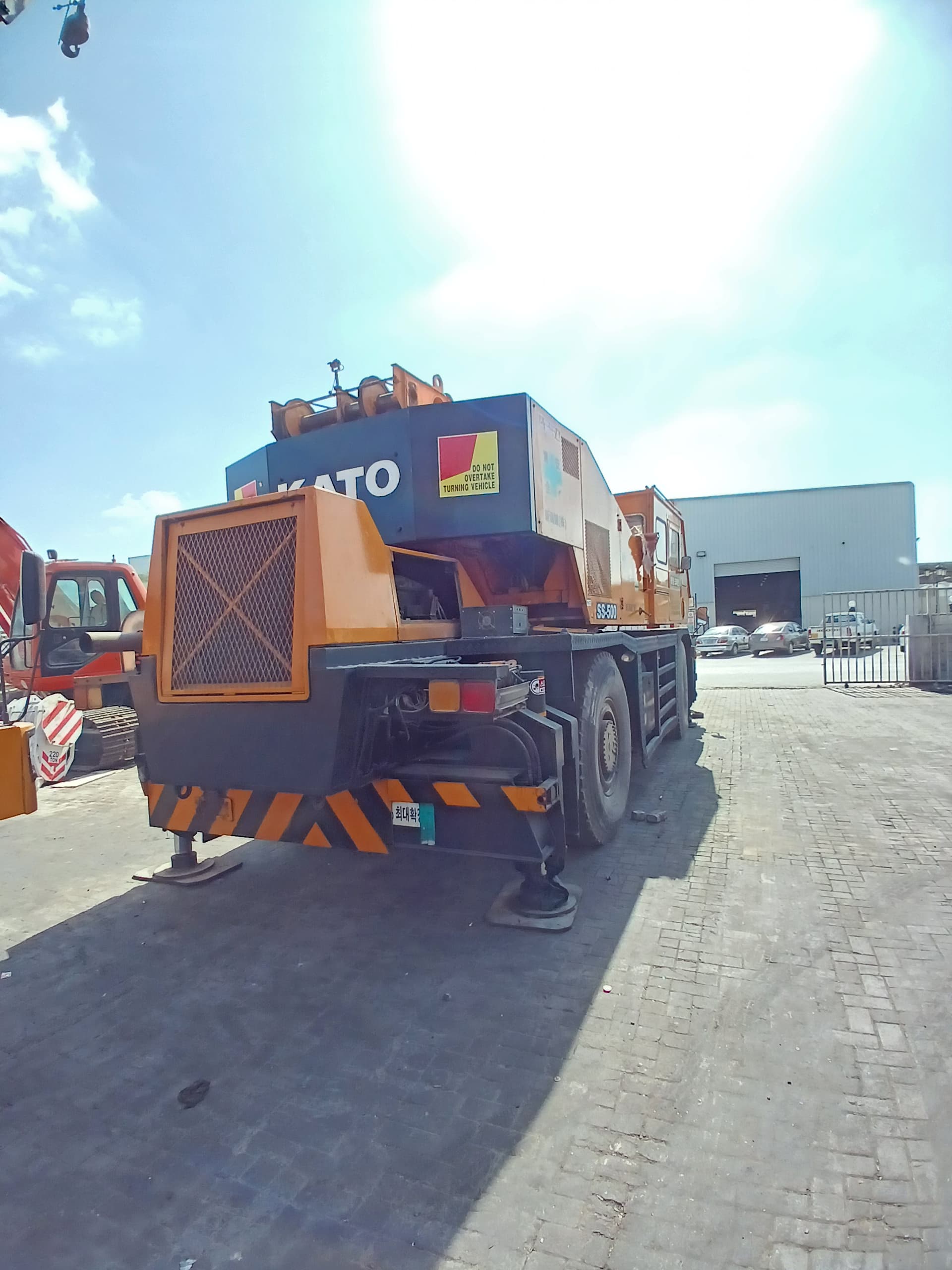

KATO Mobile Crane - SS-500

ReflowX SKU: REF-7040

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Japan (based on KATO origin)
Equipment code

Get Quotation Whatsapp

Short Description

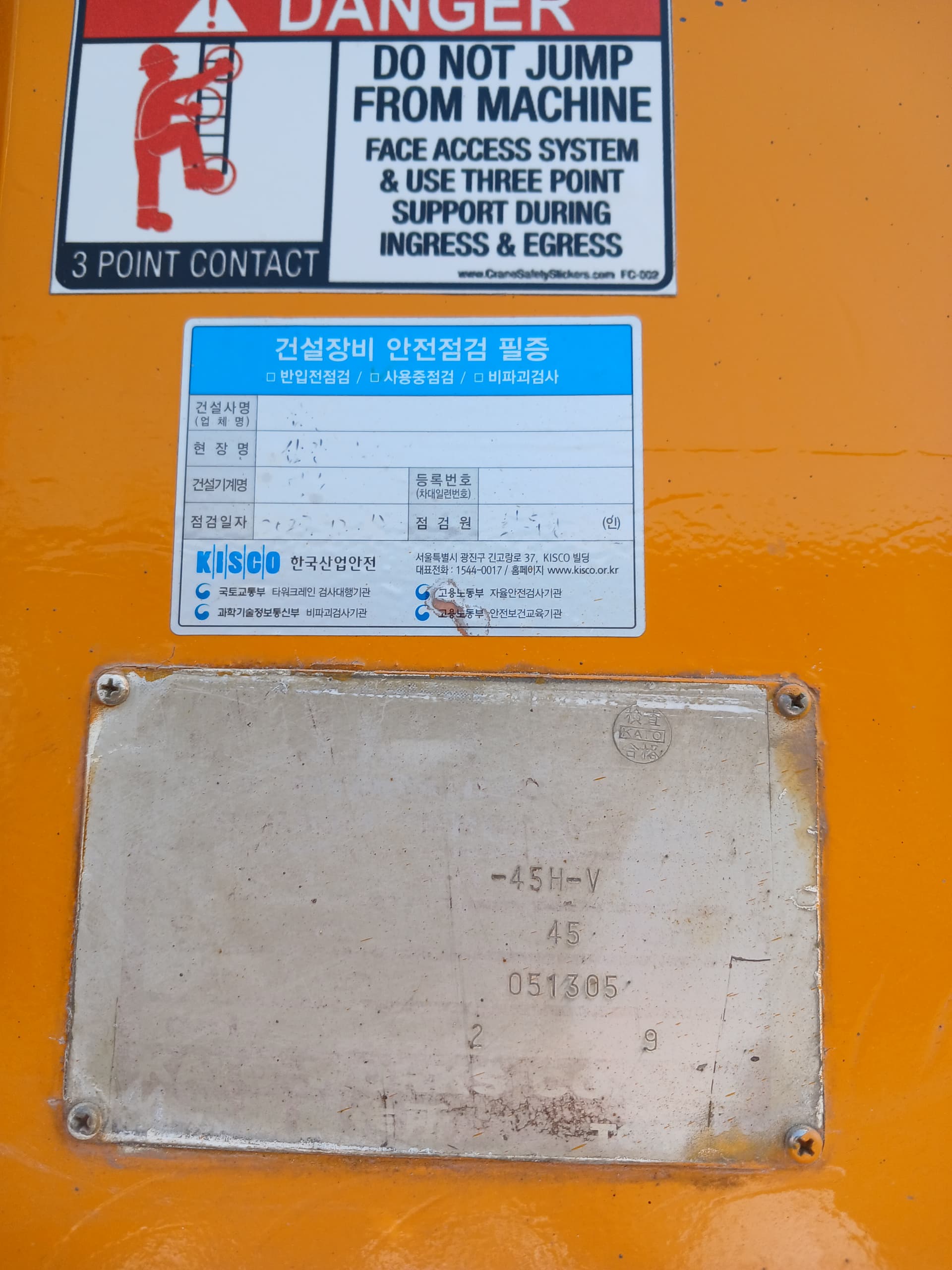

Brand: KATO Model: SS-500 Type: Truck Mounted Crane Plate Code (on machine): -45H-V / 45 / 051305 Manufacturer Country: Japan (based on KATO origin) Additional Markings: Korean safety inspection sticker visible Visual Note: Classic orange KATO livery with both Japanese and Korean safety signage

Description

Specifications

General Information

Brand: KATO

Model: SS-500

Type: Mobile Crane

Maximum Lifting Capacity: 50 Tons (50,000 kg)

Boom Type: Telescopic Hydraulic Boom

Drive Type: 8×4 (Four-Axle Truck)

Engine Specifications

Engine Model: Isuzu 6HK1-TC

Engine Type: 6-Cylinder, Turbocharged Diesel

Power Output: 230 kW (308 HP) @ 2,100 rpm

Displacement: 7.8 L

Fuel Tank Capacity: 300 L

Emission Standard: Euro III

Lifting & Boom Performance

Main Boom Length: 11.6 m – 39 m

Boom Sections: 5

Maximum Lifting Height (With Jib): 53 m

Jib Length: 16 m

Max Lifting Moment: 1,450 kN·m

Boom Elevation Range: -2° to 80°

Hydraulic System

Pump Type: Variable Displacement Piston Pump

Max Hydraulic Pressure: 32 MPa

Hydraulic Oil Tank Capacity: 480 L

Chassis & Mobility

Chassis Brand: KATO Custom Heavy-Duty Chassis

Axle Configuration: 8×4 (Four Axles)

Max Travel Speed: 80 km/h

Turning Radius: ≤12.5 m

Gradeability: 36%

Braking System: Air Brake with ABS

Operational & Safety Features

Full Hydraulic Control System for Precision Handling

Load Moment Limiter for Overload Protection

ROPS/FOPS Cabin with Air Conditioning

360° Slewing with Smooth Control

Extendable Outriggers for Stability on Uneven Surfaces

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	KATO: SS-500
Height	3,300 mm
Width	2,550 mm
Length	13,920 mm
Weight	50,000 kg
Color	Yellow
ISO 15926 Pt 4	8929
PCA RDS Code	RDS5800251
CFIHOS ID	CFIHOS-30000597
Fuel type	Diesel
