Kubota - Graders BW120 AD-5 Road Roller – 2013

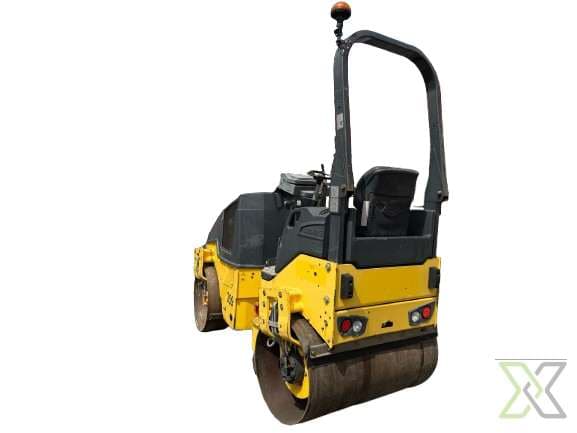

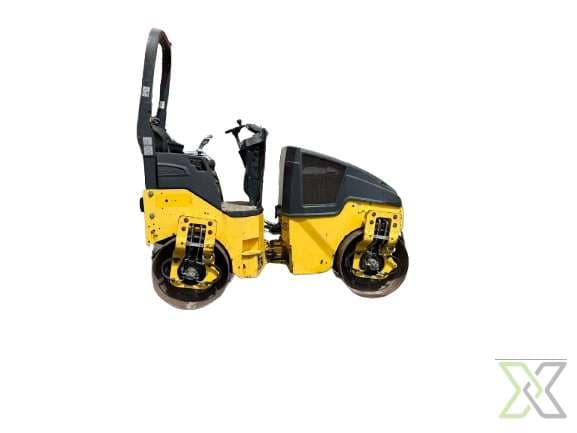

The Kubota BW120 AD-5 Road Roller, manufactured in 2013, is a robust double drum compactor designed for efficient performance in road construction and maintenance. Powered by the reliable Kubota V2403-M-DI 4-cylinder turbocharged diesel engine, it delivers 54.5 kW (73 HP), enabling smooth operation across tough work environments.

With an operating weight of 11,800 kg, the BW120 AD-5 features smooth double drums for uniform compaction. The roller offers a compaction width of 2,130 mm, with each drum having a diameter of 1,220 mm. The centrifugal force output is 57 kN, supported by a vibration frequency of 30 Hz and amplitude of 0.6 mm, which ensures efficient material density and surface finish.

Hydraulic functions are powered by a dual-piston variable displacement pump, operating at 350 bar, and the system includes a 120-liter hydraulic reservoir. The 400-liter onboard water tank with drum scrapers supports extended wet compaction operations. Designed for productivity and mobility, the roller achieves a maximum travel speed of 10 km/h, with excellent traction and compaction balance.

Specifications:

– Model: Kubota BW120 AD-5
– Year: 2013
– Type: Tandem Vibratory Roller (Double Drum)
– Operating Weight: 11,800 kg (11.8 tons)

– Engine Model: Kubota V2403-M-DI
– Engine Power: 54.5 kW (73 HP)
– Engine Type: 4-cylinder, Turbocharged Diesel
– Fuel Tank Capacity: 120 liters

– Overall Length: 4,535 mm
– Overall Width: 2,300 mm
– Overall Height: 2,660 mm
– Wheelbase: 2,360 mm
– Ground Clearance: 330 mm

– Drum Type: Smooth drum
– Drum Width: 2,130 mm
– Drum Diameter: 1,220 mm
– Drum Drive: Hydraulic
– Compaction Width: 2,130 mm
– Static Linear Load: 30.8 N/cm

– Centrifugal Force: 57 kN
– Vibration Frequency: 30 Hz
– Amplitude: 0.6 mm
– Vibration Type: Dual-frequency vibration

– Pump Type: Dual-piston variable displacement pump
– Hydraulic Pressure: 350 bar
– Hydraulic System Capacity: 120 liters

– Water Tank Capacity: 400 liters
– Water Distribution: Wetting system with drum scrapers

– Max Travel Speed: 10 km/h

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
