"2019 KUBOTA U48-4 Mini Excavator – Compact & High Performance"

#1. Kubota U48-4 Mini Excavator – 4.8 Ton Class - 2019

ReflowX SKU: REF-5138

Product Details

  • Quantity
    1
  • Availability (Lead Time)
    N/A
  • Product Location
    United Arab Emirates
  • Condition
    Surplus
  • OEM
    KUBOTA
  • Equipment code
  • Total Price
  • Per Unit Price
    $ 45,000.00
Whatsapp

Short Description

The Kubota U48-4 (2019) is a high-performance 4.8-ton compact mini excavator built for demanding urban and utility excavation. With zero tail swing, strong hydraulics, and a robust turbocharged diesel engine, it is ideal for tight job sites.

Description

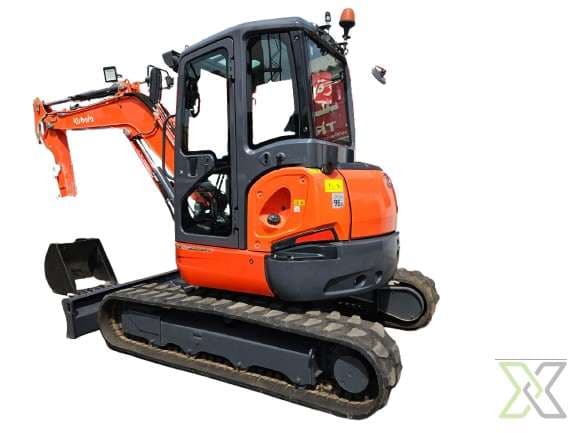

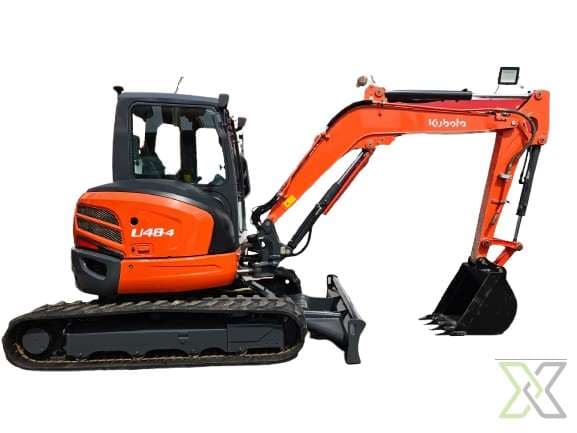

#1. Kubota U48-4 Mini Excavator – 4.8 Ton Class - 2019

The Kubota U48-4 Mini Excavator, model year 2019, delivers exceptional productivity and control in a compact package. With a zero-tail swing design and 47.6 HP (35.5 kW) of power from its Kubota V2403-M-DI-E4 turbocharged diesel engine, this machine is purpose-built for confined workspaces, offering outstanding maneuverability and lift capabilities.

It features a load-sensing, variable displacement hydraulic system with a maximum flow rate of 160 liters/min and pressure rated at 240 bar, providing smooth, responsive operation even in tough conditions. The operating weight of 4,820 kg and maximum lifting capacity of 1,590 kg at ground level allow this excavator to tackle various heavy-duty applications.

With a maximum digging depth of 3,300 mm, digging reach of 5,900 mm, and bucket digging force of 38.0 kN, the U48-4 is well-suited for trenching, grading, and materials handling. Its wide stance and expandable track width ensure enhanced stability, while the 4.3 km/h travel speed enables efficient repositioning on-site.

Specifications:

Model: Kubota U48-4
Year: 2019
Operating Weight: 4,820 kg

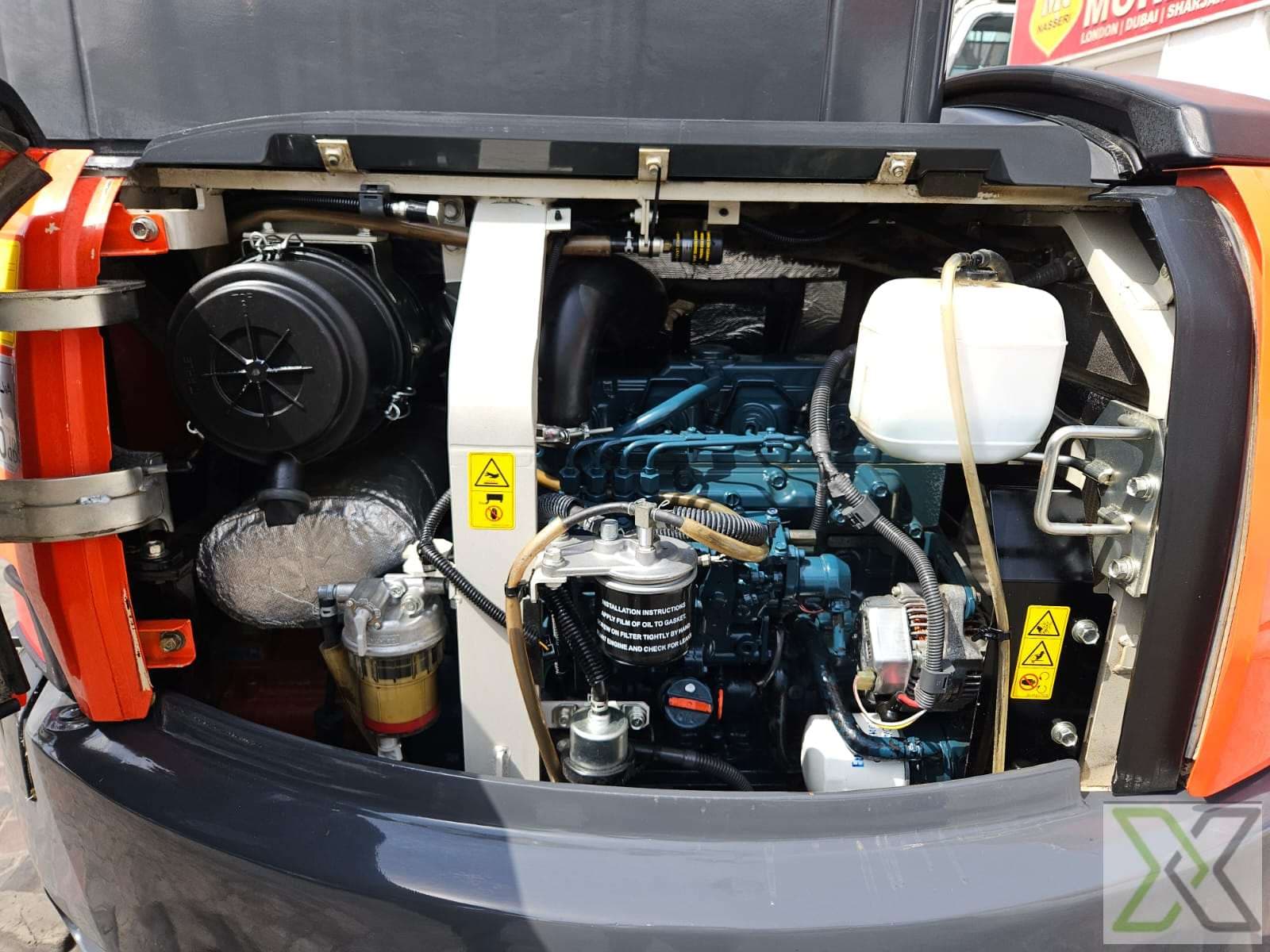

Engine Model: Kubota V2403-M-DI-E4
Engine Type: 4-cylinder, Turbocharged Diesel
Engine Power: 47.6 HP (35.5 kW)
Fuel Tank Capacity: 110 liters

Pump Type: Load sensing, variable displacement
Maximum Flow Rate: 160 liters/min
Hydraulic Pressure: 240 bar
Bucket Digging Force: 38.0 kN
Arm Digging Force: 30.2 kN

Max Digging Depth: 3,300 mm
Max Digging Reach: 5,900 mm
Max Dumping Height: 3,460 mm
Max Vertical Digging Depth: 2,380 mm
Max Lifting Capacity: 1,590 kg (at ground level)
Max Travel Speed: 4.3 km/h

Overall Length (with bucket): 5,625 mm
Overall Width: 1,960 mm (expandable track width)
Overall Height: 2,535 mm
Track Length: 2,340 mm
Ground Clearance: 270 mm
Tail Swing Radius: 1,385 mm

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
