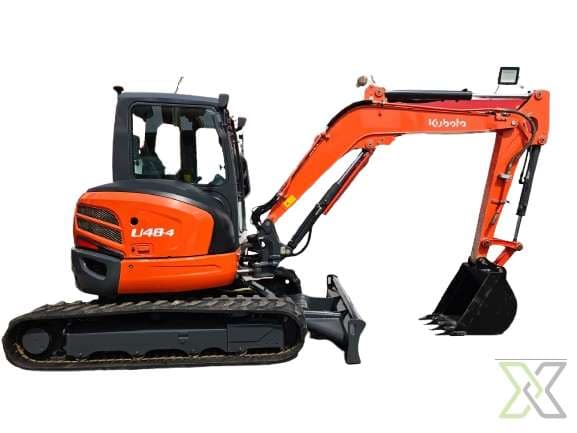

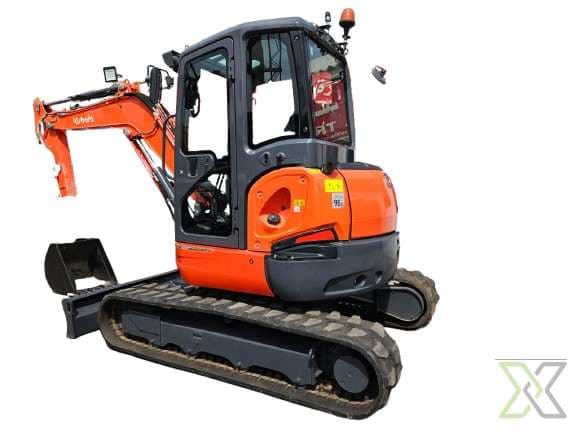

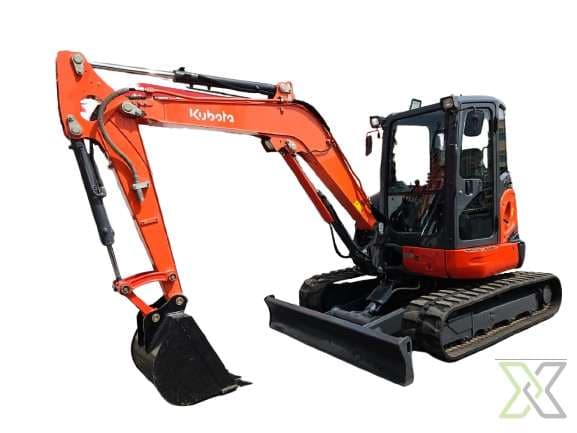

Kubota U48-4 Mini Excavator – 4.8 Ton - 2019

The Kubota U48-4 Mini Excavator (2019 model) offers high performance and maneuverability within a compact, zero-tail swing design. With an operating weight of 4,820 kg, this machine is engineered to handle demanding excavation and utility work with ease, especially in tight or urban spaces.

It is powered by the Kubota V2403-M-DI-E4, a reliable 4-cylinder turbocharged diesel engine delivering 47.6 HP (35.5 kW). The large 110-liter fuel tank provides extended operational endurance for full-day tasks.

The excavator features a load-sensing, variable displacement hydraulic system with a maximum flow rate of 160 liters/min and a system pressure of 240 bar, offering responsive and efficient operation. It achieves a bucket digging force of 38.0 kN and arm digging force of 30.2 kN, enabling strong performance in trenching, digging, and lifting.

The compact footprint (1,960 mm wide) and tail swing radius of 1,385 mm make it perfect for limited-access job sites. With a maximum digging depth of 3,300 mm, dumping height of 3,460 mm, and digging reach of 5,900 mm, it balances compactness with reach and capacity.

Specifications:

– Model: Kubota U48-4
– Year: 2019
– Type: Mini/Compact Excavator
– Operating Weight: 4,820 kg
– Engine Model: Kubota V2403-M-DI-E4
– Engine Power: 47.6 HP (35.5 kW)
– Engine Type: 4-cylinder, Turbocharged Diesel
– Fuel Tank Capacity: 110 liters
– Pump Type: Load sensing, variable displacement
– Max Flow Rate: 160 liters/min
– Hydraulic Pressure: 240 bar
– Bucket Digging Force: 38.0 kN
– Arm Digging Force: 30.2 kN
– Max Digging Depth: 3,300 mm
– Max Digging Reach: 5,900 mm
– Max Dumping Height: 3,460 mm
– Max Vertical Digging Depth: 2,380 mm
– Max Lifting Capacity: 1,590 kg (at ground level)
– Max Travel Speed: 4.3 km/h
– Overall Length: 5,625 mm (with bucket)
– Overall Width: 1,960 mm
– Overall Height: 2,535 mm
– Track Length: 2,340 mm
– Track Width: 1,960 mm (expandable)
– Ground Clearance: 270 mm
– Tail Swing Radius: 1,385 mm

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
