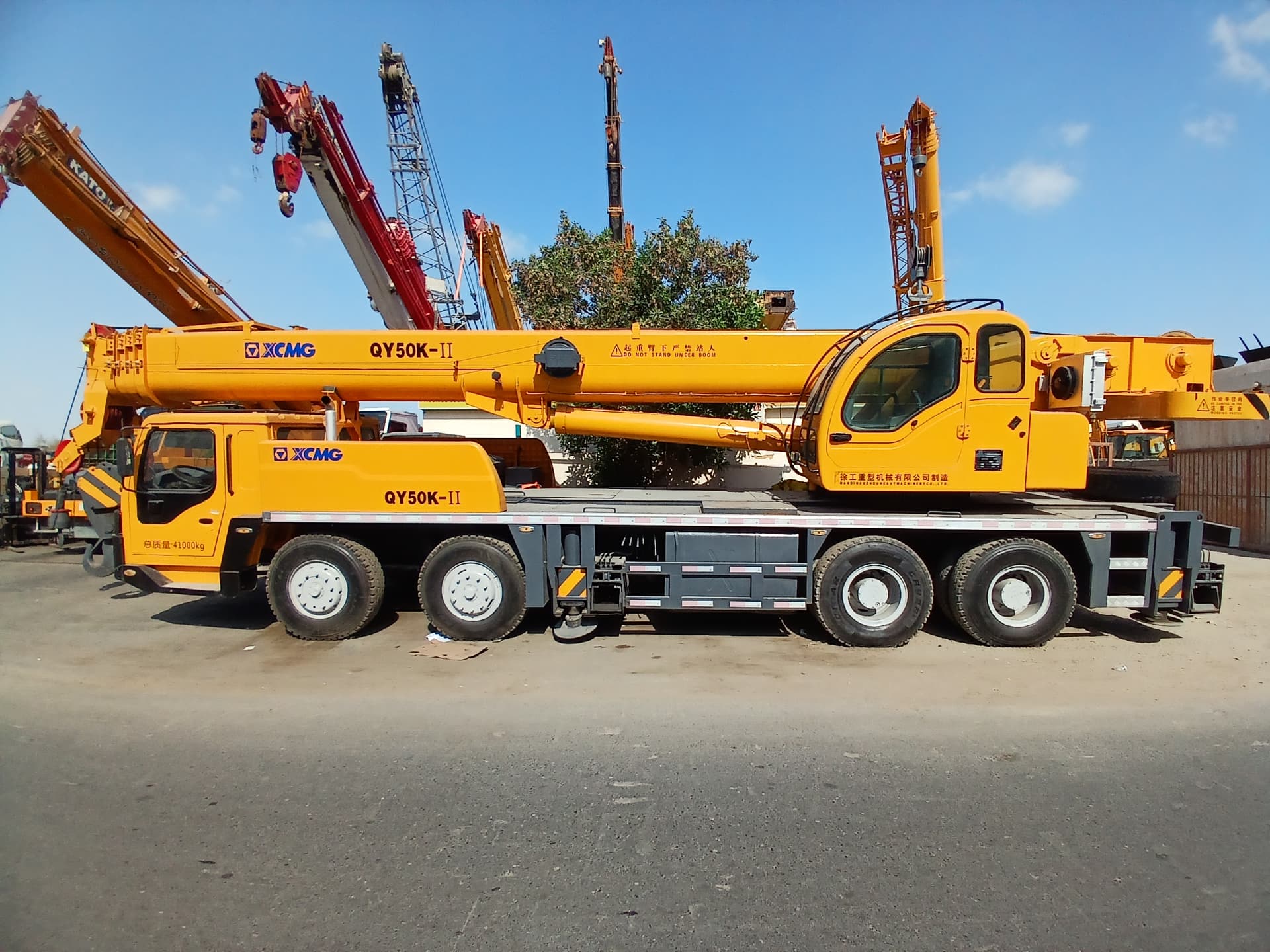

XCMG QY50K-II Mobile Crane – 50 Ton, 2022 Model, 8x4 Drive.

demanding lifting operations in construction, infrastructure, and energy sectors. Manufactured in 2022, this 50-ton capacity crane features a fully hydraulic, 5-section telescopic boom extending from 11.3 meters to 40.4 meters, with an optional jib extending total reach up to 58.1 meters.

Powered by a Weichai WD615.334 turbocharged 6-cylinder diesel engine, this unit delivers 247 kW (330 HP) at 2,200 rpm and boasts a fuel tank capacity of 300 liters, enabling extended field operation. The crane's 8x4 wheel drive and heavy-duty 12.00R20 tires provide excellent mobility on challenging terrain, while its gradeability of 40% and turning radius of 11.5 meters ensure maneuverability on tight job sites.

Ideal for both urban and off-road applications, the QY50K-II offers front twin-axle steering, a maximum travel speed of 80 km/h, and a robust lifting configuration that enhances safety and reliability.

Specifications:

– Brand: XCMG
– Model: QY50K-II
– Type: Mobile Truck Crane
– Year: 2022
– Lifting Capacity: 50 Tons (110,231 lbs)
– Boom Type: Fully Hydraulic, Telescopic
– Boom Length: 11.3 m – 40.4 m (37.1 ft – 132.5 ft)
– Jib Length: 8.3 m – 15.0 m (27.2 ft – 49.2 ft)
– Maximum Lifting Height (Boom Only): 40.4 m (132.5 ft)
– Maximum Lifting Height (with Jib): 58.1 m (190.6 ft)
– Number of Boom Sections: 5
– Engine Model: WD615.334 (Weichai Diesel)
– Engine Type: 6-Cylinder, Turbocharged Diesel
– Displacement: 9.726 L (593.3 in³)
– Power Output: 247 kW (330 HP) @ 2,200 rpm
– Fuel Tank Capacity: 300 L (79.3 gal)
– Drive Configuration: 8x4 (Eight-Wheel Drive)
– Steering Type: Front Two Axle Steering
– Maximum Travel Speed: 80 km/h (50 mph)
– Gradeability: 40%
– Tire Size: 12.00R20 (Heavy-Duty, All-Terrain)
– Turning Radius: 11.5 m (37.7 ft)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
