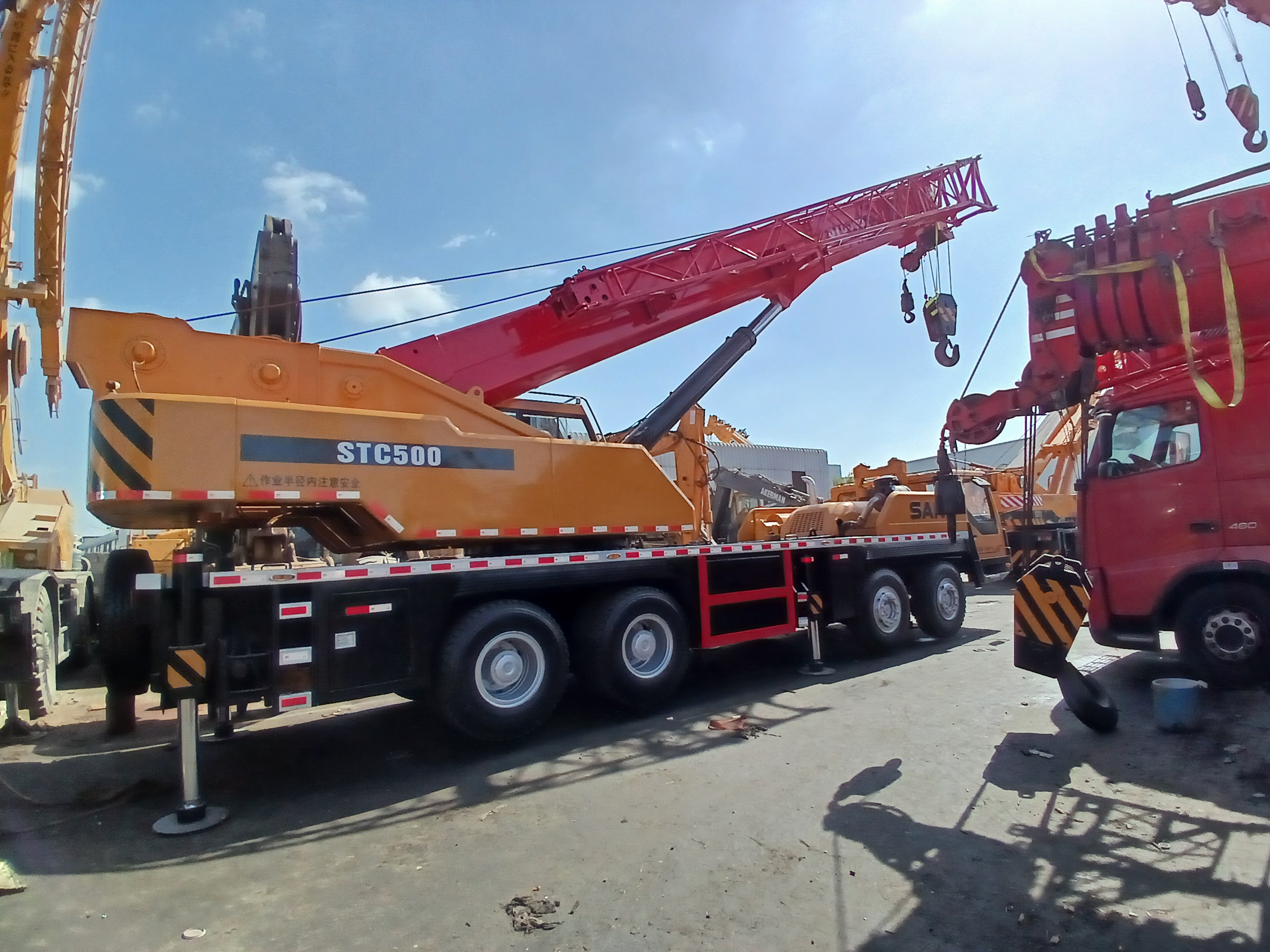

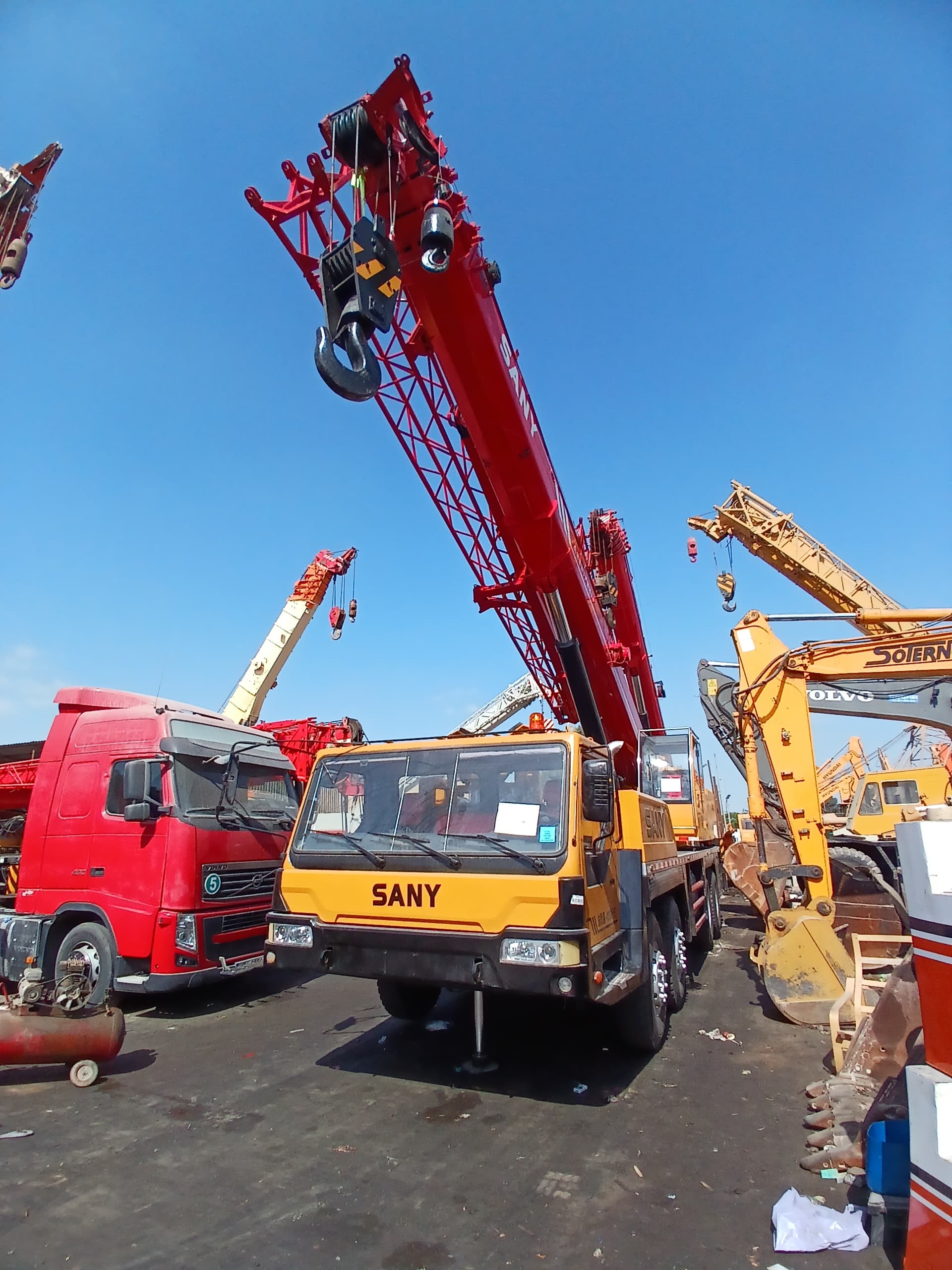

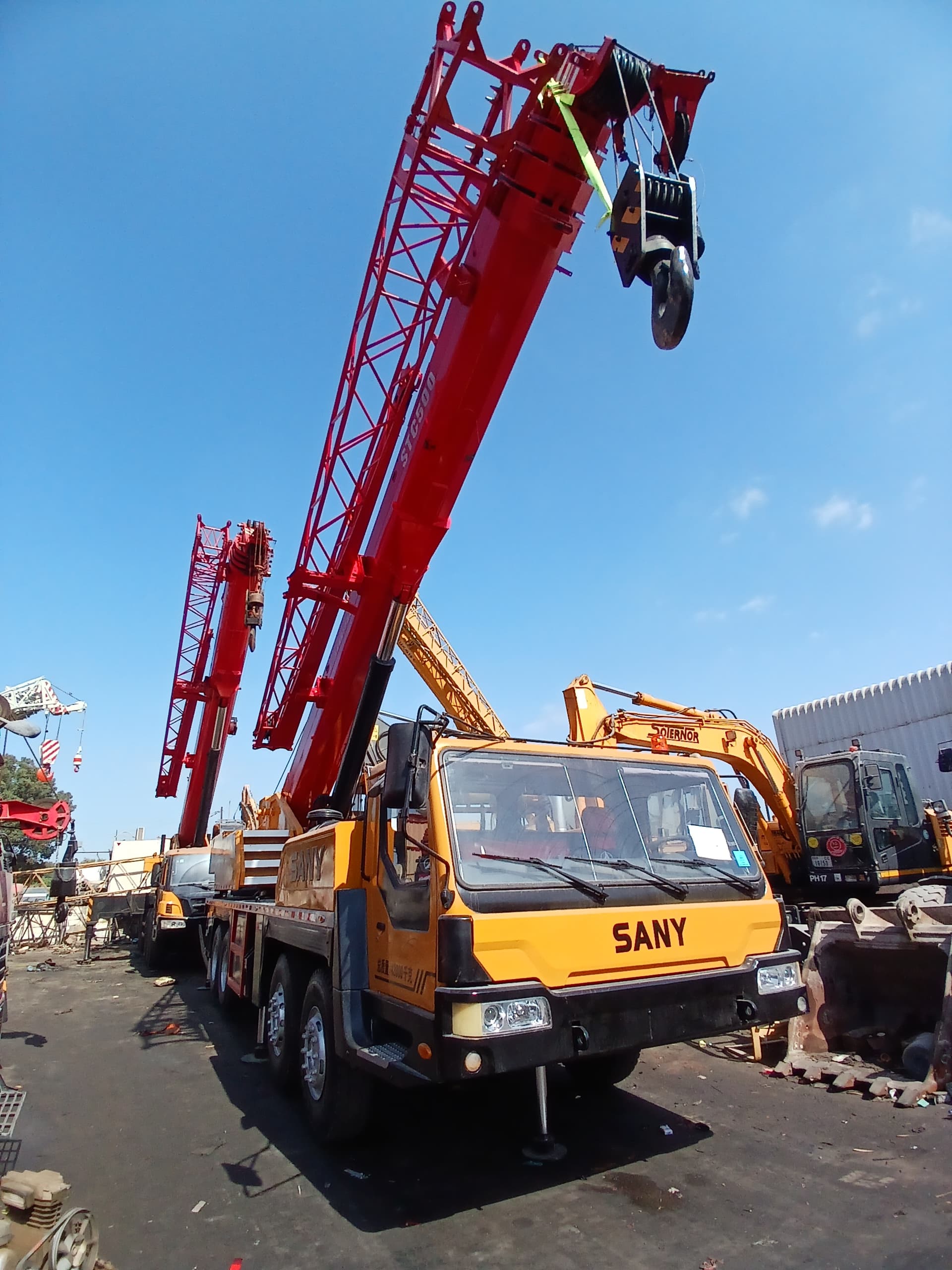

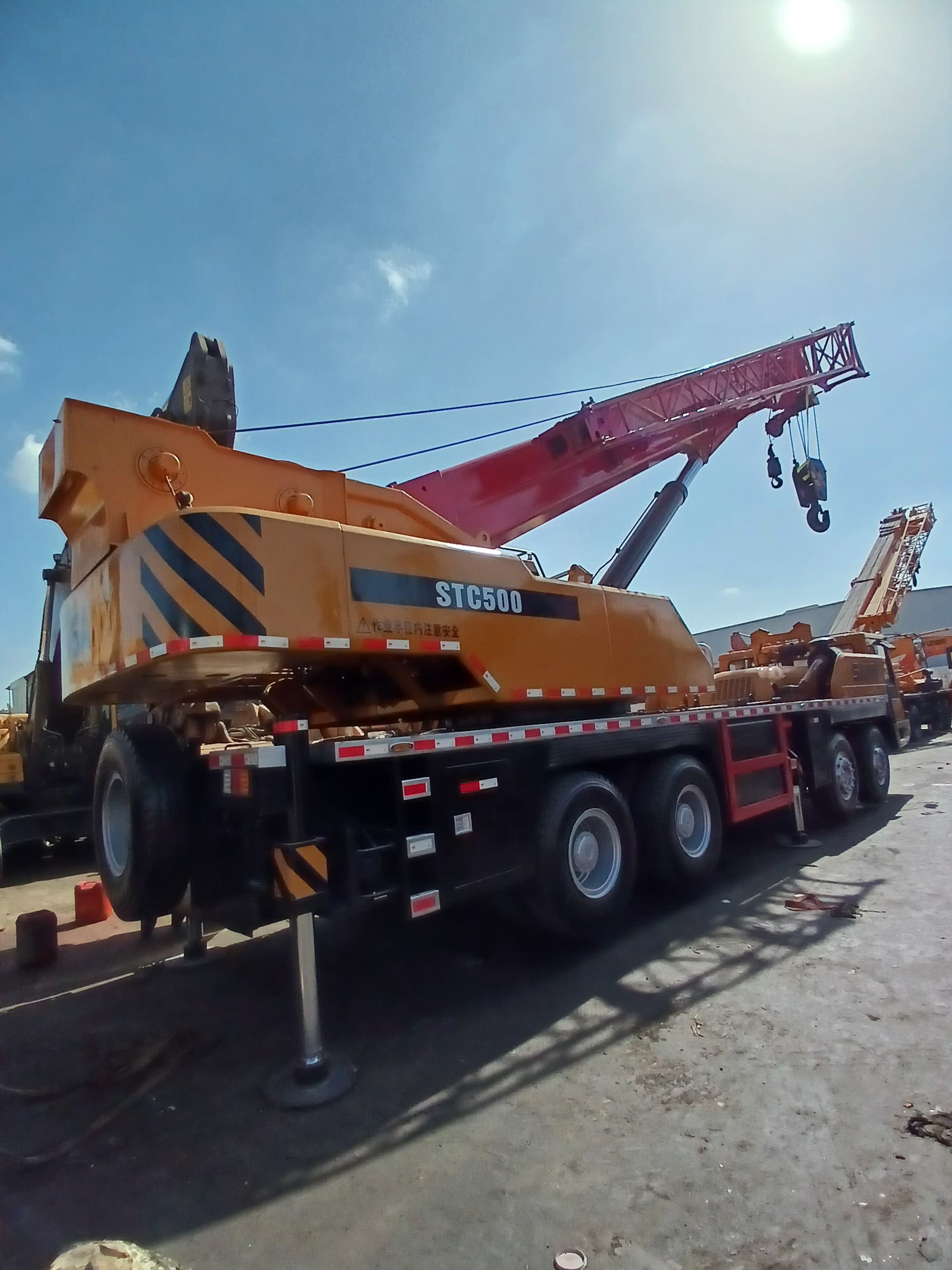

SANY STC500 Truck-Mounted Crane – 50 Ton - 2021

The SANY STC500 is a high-performance truck-mounted crane designed for superior lifting operations in construction, logistics, and infrastructure projects. Built on a rugged 8×4 heavy-duty chassis, the STC500 delivers exceptional mobility, stability, and lifting power. Its five-section telescopic hydraulic boom extends from 11.3 to 43.5 meters, with a maximum lifting height of 59.5 meters when equipped with the 16-meter jib. The unit is powered by a robust Weichai WP10.375E53 turbocharged diesel engine, delivering 276 kW (370 HP) of power and meeting Euro V emission standards. The crane incorporates a high-efficiency variable displacement piston pump, 500-liter hydraulic oil tank, and a 32 MPa hydraulic system to ensure precision control and smooth operation. Safety and performance are further enhanced by its air brake system with ABS, 38% gradeability, and a turning radius of 12 meters.

Specifications:

– Brand: SANY
– Model: STC500
– Year: 2021
– Type: Truck-Mounted Crane
– Maximum Lifting Capacity: 50 Tons (50,000 kg)
– Boom Type: Telescopic Hydraulic Boom
– Main Boom Length: 11.3 m – 43.5 m
– Boom Sections: 5
– Jib Length: 16 m
– Maximum Lifting Height (With Jib): 59.5 m
– Maximum Lifting Moment: 1,800 kN·m
– Boom Elevation Range: -2° to 80°
– Drive Type: 8×4 (Four-Axle Truck)
– Chassis Brand: SANY Custom Heavy-Duty Chassis
– Axle Configuration: 8×4
– Max Travel Speed: 85 km/h
– Turning Radius: ≤12 m
– Gradeability: 38%
– Braking System: Air Brake with ABS
– Engine Model: Weichai WP10.375E53 (or region-specific equivalent)
– Engine Type: 6-Cylinder, Turbocharged Diesel
– Power Output: 276 kW (370 HP) @ 1,900 rpm
– Displacement: 9.7 L
– Fuel Tank Capacity: 350 L
– Emission Standard: Euro V
– Hydraulic Pump Type: Variable Displacement Piston Pump
– Maximum Hydraulic Pressure: 32 MPa
– Hydraulic Oil Tank Capacity: 500 L
