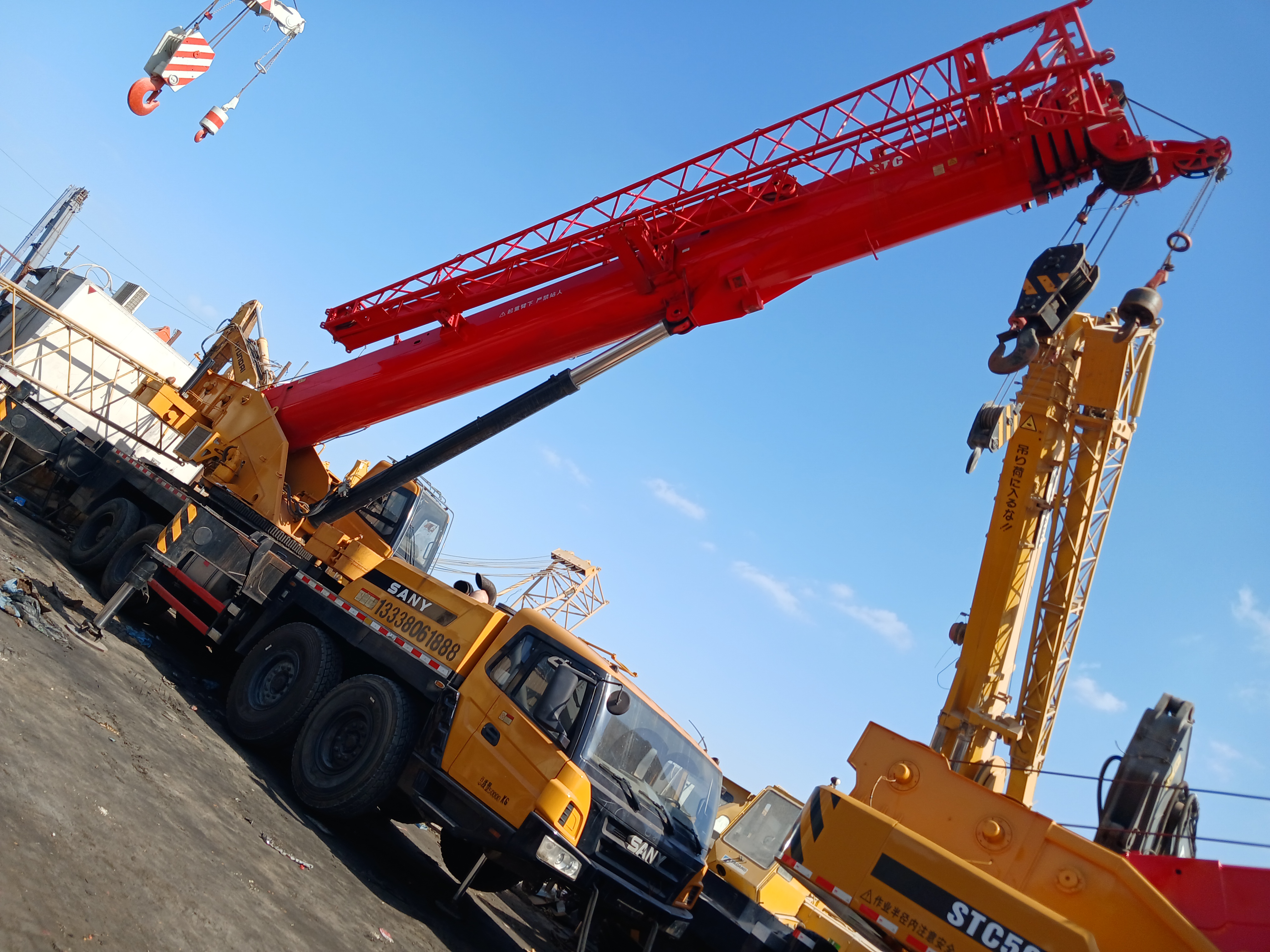

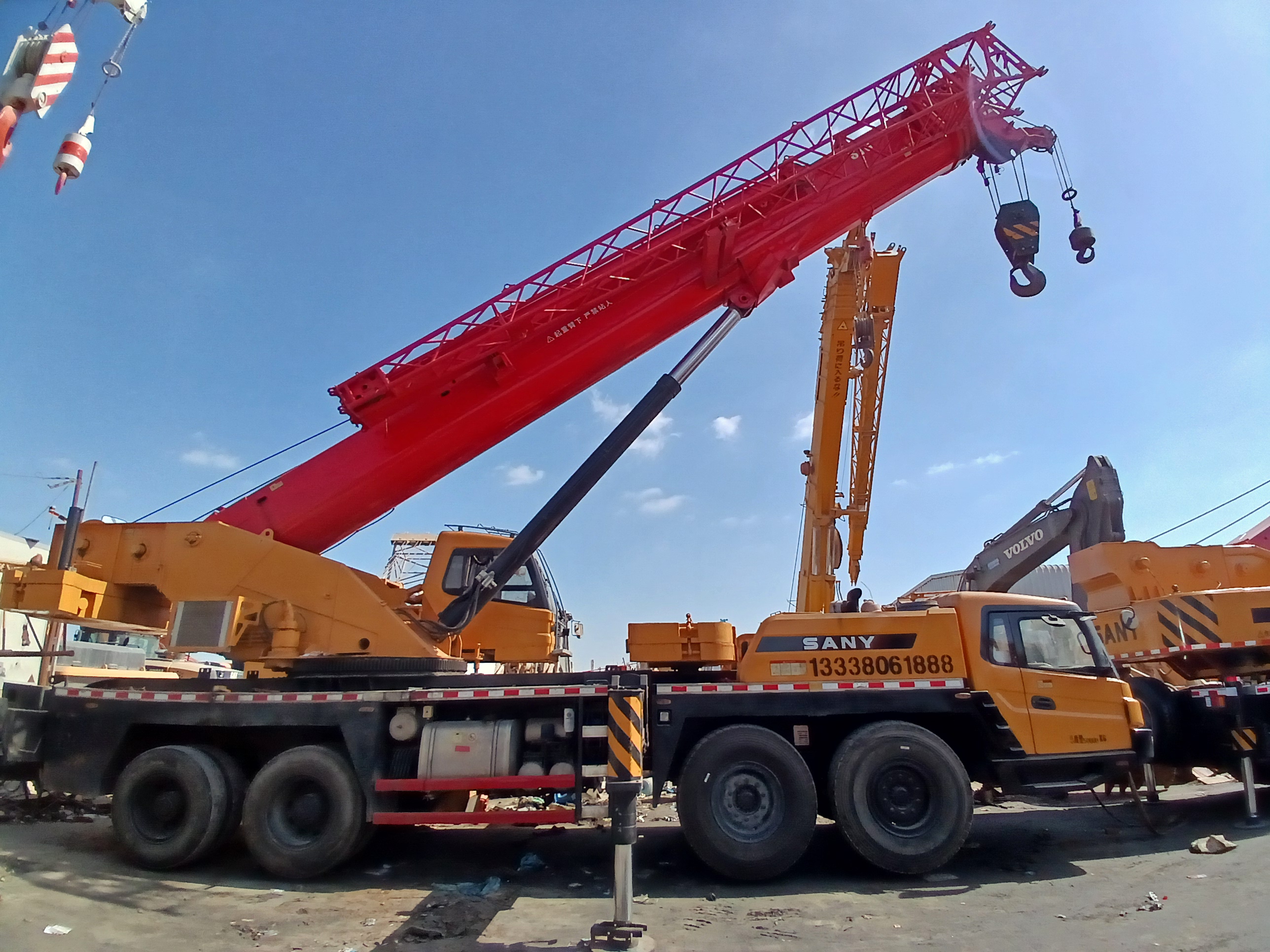

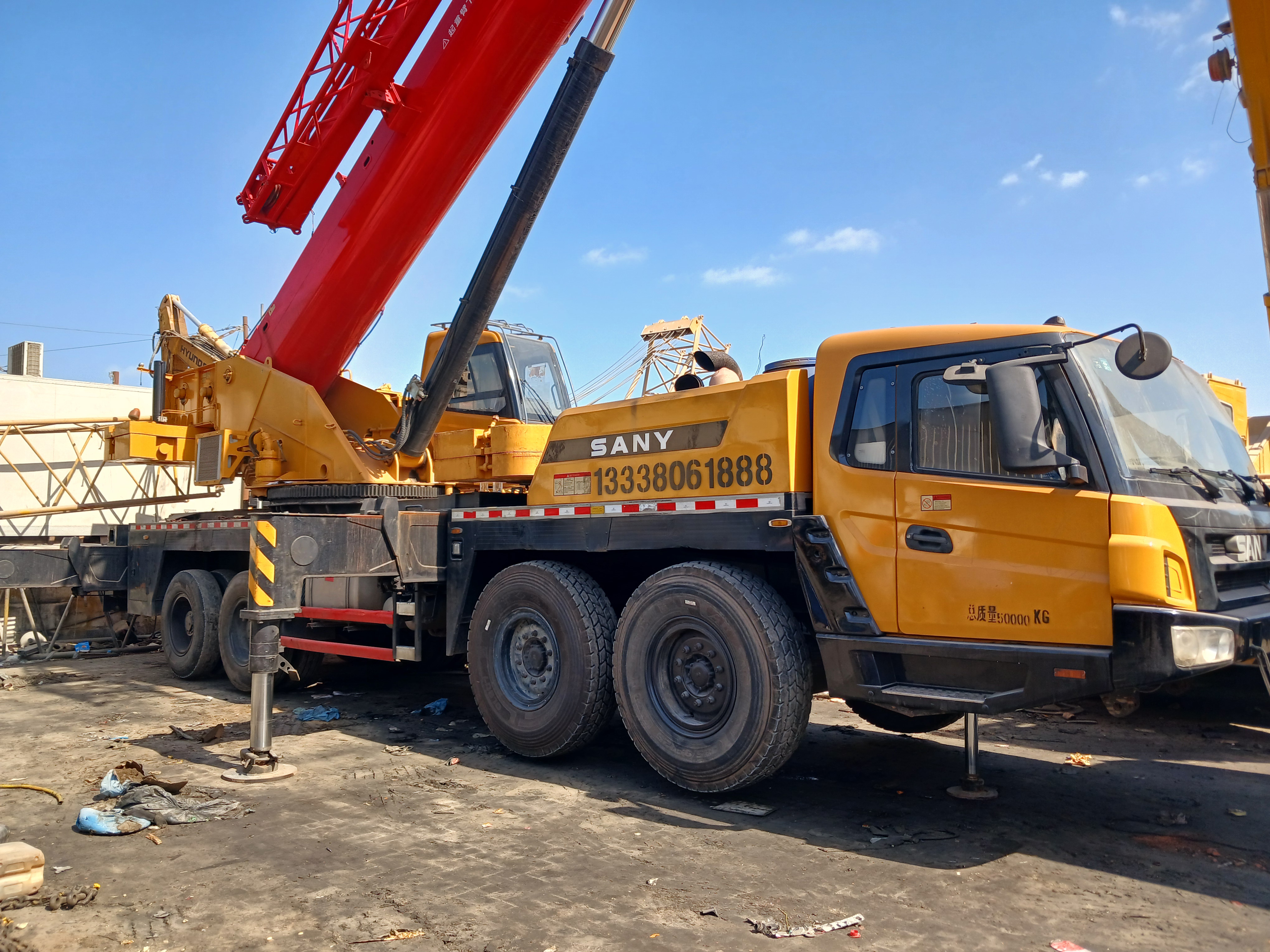

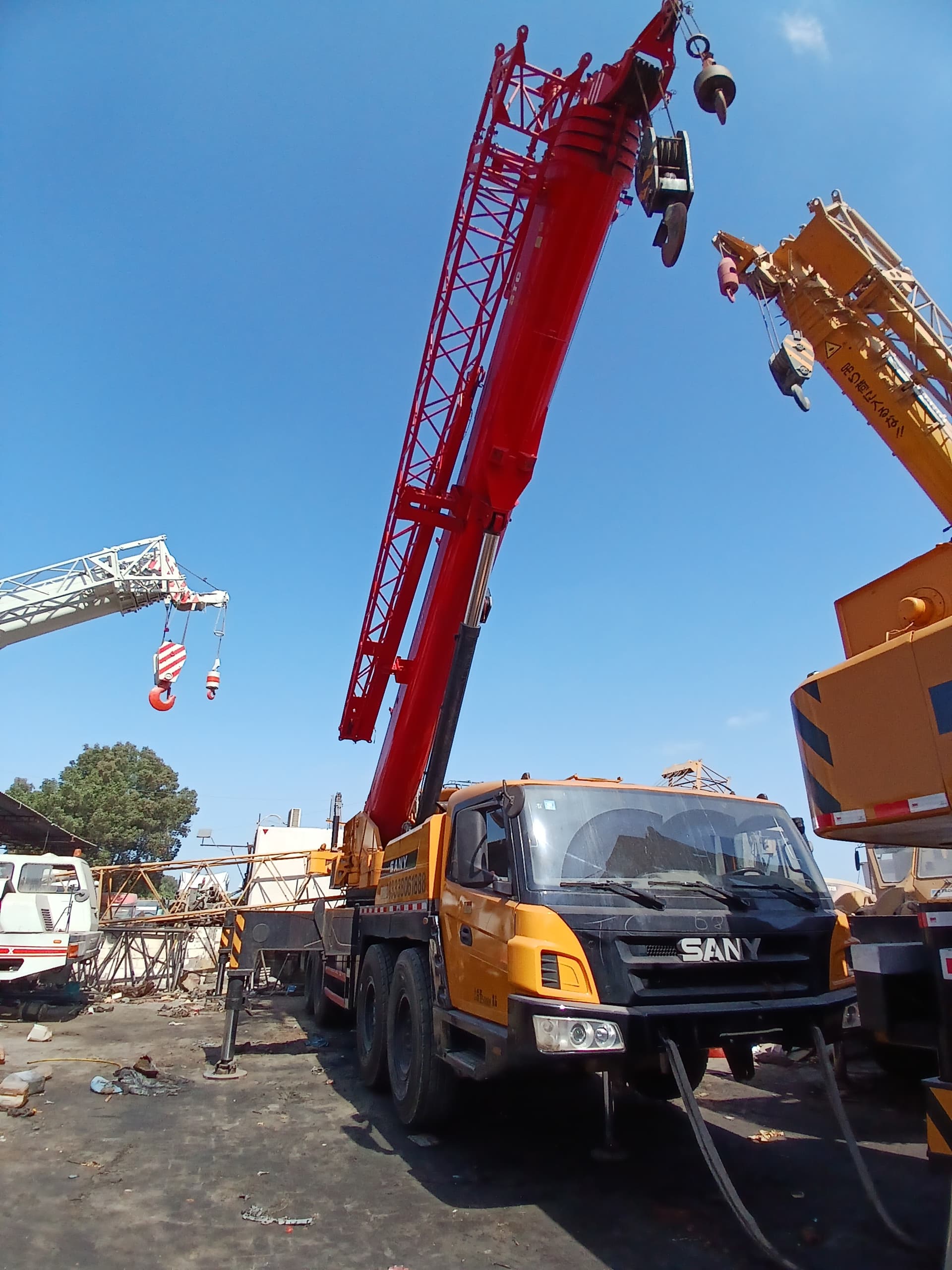

SANY Truck Crane STC800 - 2018

ReflowX SKU: REF-1008

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

SANY Automobile Manufacturing Co., Ltd.
Equipment code

Get Quotation Whatsapp

Short Description

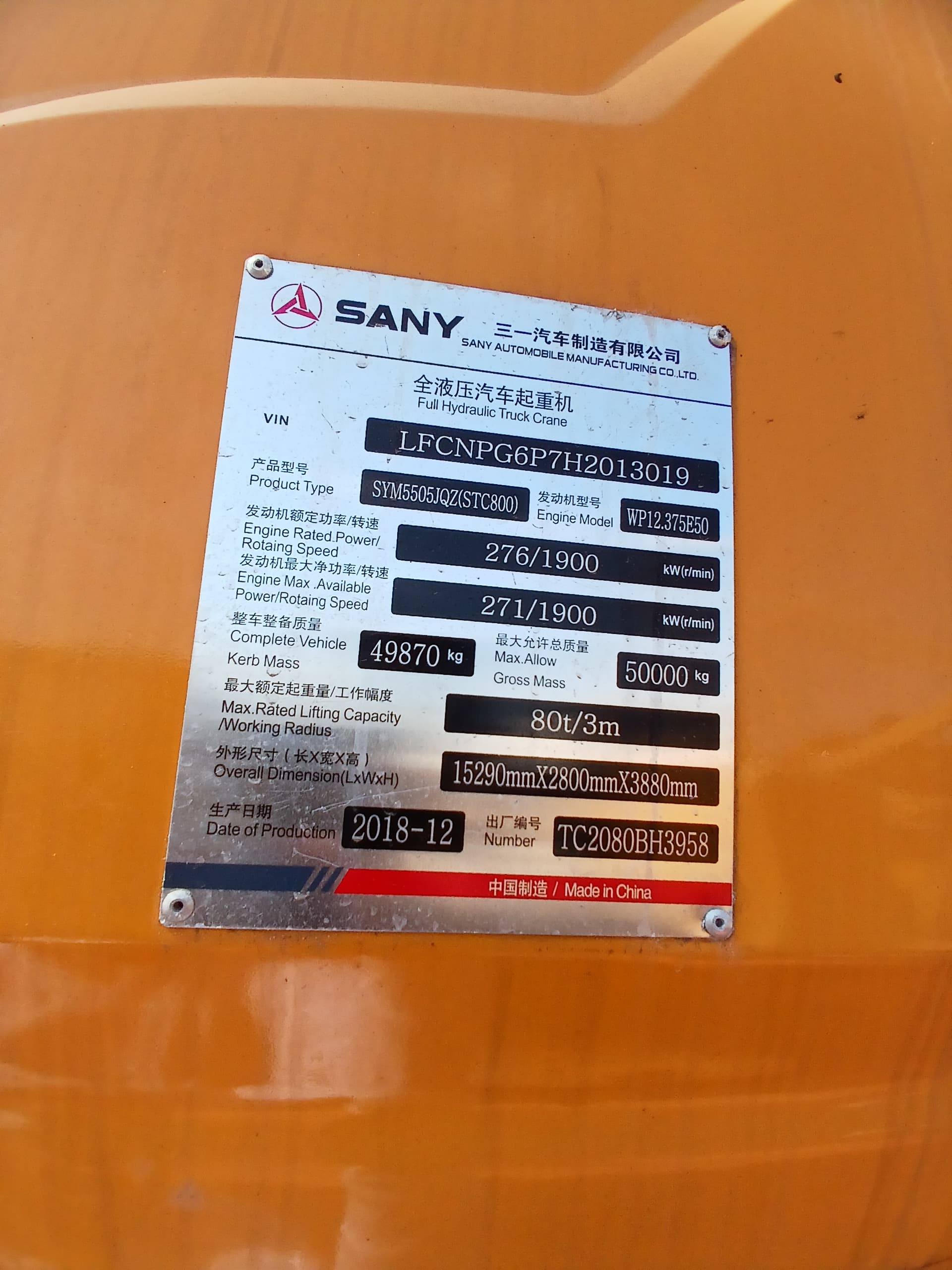

Manufacturer: SANY Automobile Manufacturing Co., Ltd. Model: STC800 Product Type: Full Hydraulic Truck Crane Chassis Model: SYM5505JQZ Engine Model: WP12.375E50 Engine Rated Power / Speed: 276 kW @ 1900 rpm Engine Max Available Power / Speed: 271 kW @ 1900 rpm VIN: LFCNPG6P7H2013019

Description

Specifications

General Information

Brand: SANY

Model: STC800

Year: 2018

Type: Truck-Mounted Crane

Maximum Lifting Capacity: 80 Tons (80,000 kg)

Boom Type: Telescopic Hydraulic Boom

Drive Type: 8×4 (Four-Axle Truck)

Engine Specifications

Engine Model: Mercedes-Benz OM460LA (or SANY-Supplied Engine)

Engine Type: 6-Cylinder, Turbocharged Diesel

Power Output: 324 kW (435 HP) @ 1,800 rpm

Displacement: 12.8 L

Fuel Tank Capacity: 400 L

Emission Standard: Euro III / IV

Lifting & Boom Performance

Main Boom Length: 12.2 m – 47 m

Boom Sections: 5

Maximum Lifting Height (With Jib): 64 m

Jib Length: 17.5 m

Max Lifting Moment: 3,200 kN·m

Boom Elevation Range: -1.5° to 82°

Hydraulic System

Pump Type: Variable Displacement Piston Pump

Max Hydraulic Pressure: 35 MPa

Hydraulic Oil Tank Capacity: 650 L

Chassis & Mobility

Chassis Brand: SANY Custom Heavy-Duty Chassis

Axle Configuration: 8×4 (Four Axles)

Max Travel Speed: 80 km/h

Turning Radius: ≤12 m

Gradeability: 40%

Braking System: Air Brake with ABS

Operational & Safety Features

Full Hydraulic Control System

Load Moment Limiter for Overload Protection

ROPS/FOPS Cabin with Air Conditioning

360° Slewing with Smooth Control

Outrigger System for Stability

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SANY: STC800
Year of Manufacturing	2018
Height	3,950 mm
Width	2,800 mm
Length	15,300 mm
Weight	48,000 kg
Color	Yellow
ISO 15926 Pt 4	8929
PCA RDS Code	RDS5800251
CFIHOS ID	CFIHOS-30000597
Fuel type	Diesel
