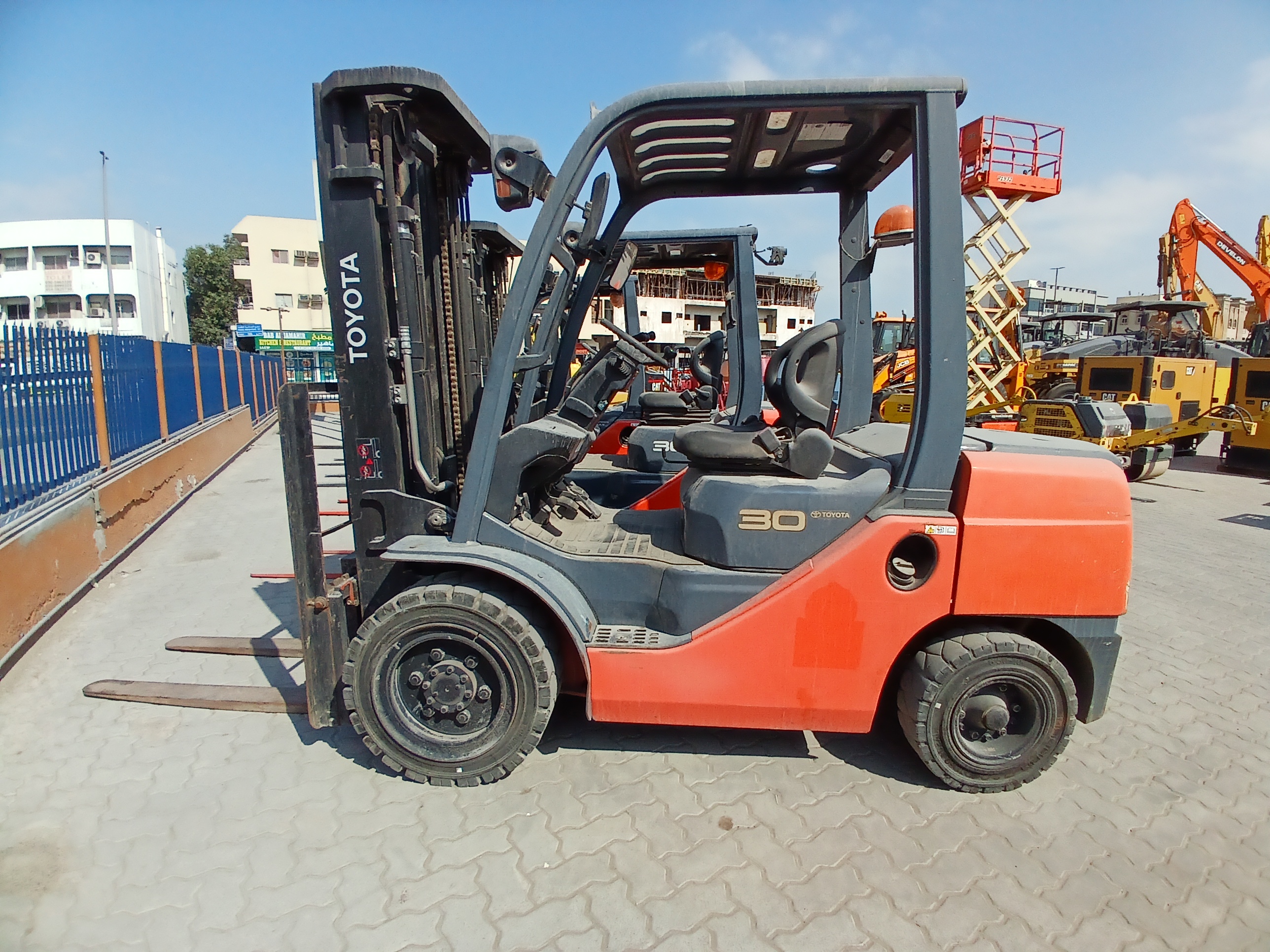

Toyota Diesel Forklift Truck – 62-8FD30, 3-Ton Capacity

ReflowX SKU: REF-1966

Product Details

Quantity

5
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Toyota Industries Corporation, Japan
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty diesel forklift truck from Toyota, model 62-8FD30, with 3,000 kg load capacity, 3.0L 1DZ-III diesel engine, and hydrostatic power steering for reliable industrial material handling.

Description

Toyota Diesel Forklift Truck – 62-8FD30, 3-Ton Capacity

The Toyota 62-8FD30 Diesel Forklift Truck is built for industrial strength and performance, offering a 3,000 kg load capacity with a 500 mm load center. Powered by the robust Toyota 1DZ-III diesel engine, it delivers 44 kW (59 HP) of power at 2,500 rpm and 190 Nm of torque at 1,600 rpm. Designed for durability and precision, the truck features a hydrostatic power steering system, automatic powershift transmission, and fingertip hydraulic controls for enhanced operational efficiency. With a lift height ranging from 3,000 to 6,000 mm and a compact wheelbase of 1,700 mm, the 62-8FD30 is ideal for maneuvering in tight warehouse or yard spaces. Its Tier 4 Final / EU Stage V compliance ensures reduced emissions, making it suitable for environmentally conscious operations.

Specifications:

– Brand: Toyota
– Model: 62-8FD30
– Type: Diesel Forklift Truck
– Load Capacity: 3,000 kg (6,614 lbs)
– Load Center: 500 mm (19.7 in)
– Lift Height: 3,000 - 6,000 mm (118 - 236 in), mast-dependent
– Mast Tilt: 6° forward / 11° backward
– Fork Dimensions: 1,070 × 125 × 45 mm (L × W × T)
– Wheelbase: 1,700 mm (66.9 in)
– Engine Model: Toyota 1DZ-III
– Engine Type: 4-Cylinder, Water-Cooled, Diesel
– Displacement: 3.0 L (183 in³)
– Power Output: 44 kW (59 HP) @ 2,500 rpm
– Torque: 190 Nm @ 1,600 rpm
– Fuel Tank Capacity: 65 L (17.2 gal)
– Emission Standard: Tier 4 Final / EU Stage V
– Transmission: Automatic Powershift
– Drive Axle: Heavy-duty with wet disc brakes
– Steering System: Hydrostatic Power Steering
– Travel Speed: 18 km/h (loaded), 19 km/h (unloaded)
– Gradeability (Loaded): 33%
– Hydraulic Flow Rate: 65 L/min
– Hydraulic Pressure: 200 bar (2,900 psi)
– Control System: Fingertip hydraulic levers
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	62-8FD30
Height	2,130 mm
Width	1,235 mm
Length	2,705 mm
Weight	4,280 kg
ISO 15926 Pt 4	8373
PCA RDS Code	RDS11590075
CFIHOS ID	CFIHOS-30000567
Fuel type	Diesel
