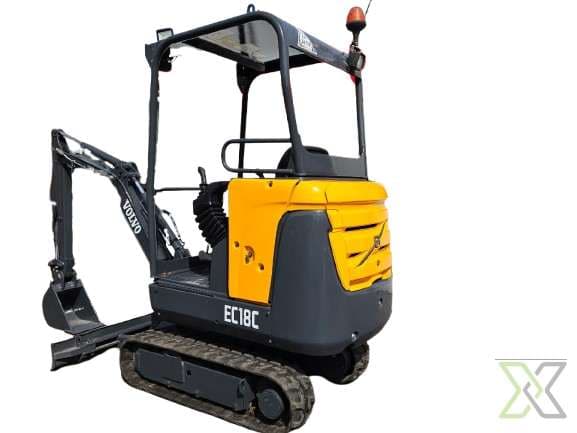

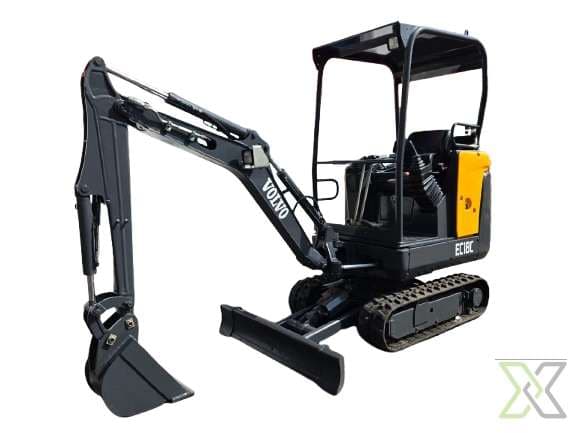

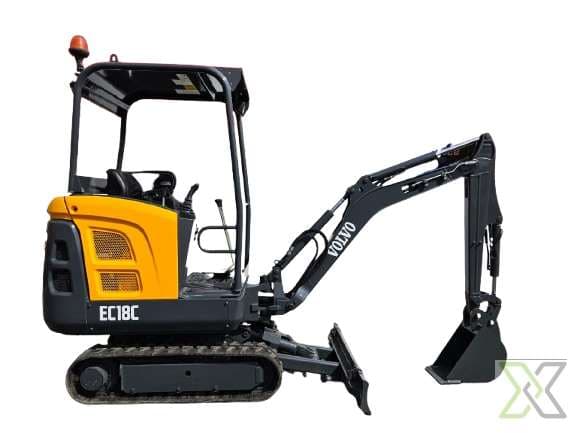

VOLVO EC18C Mini Excavator – 2015 Model

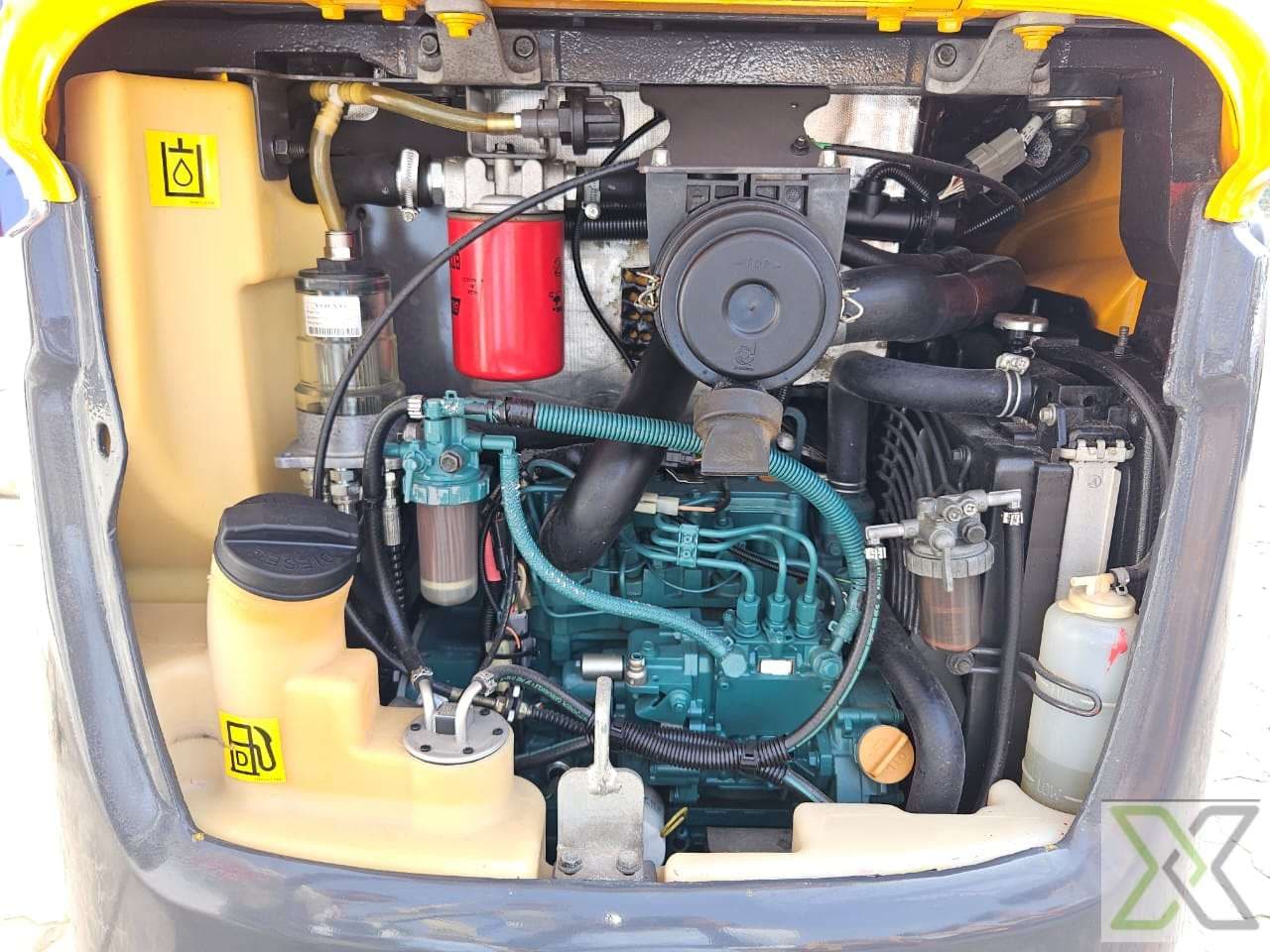

The Volvo EC18C Mini Excavator (2015) is a compact yet capable machine designed for tight job sites requiring precision and ease of operation. Powered by a Kubota D902 3-cylinder diesel engine, it produces 16.1 HP (12 kW) and maintains low fuel consumption with high reliability.

Weighing 1,860 kg, the EC18C delivers strong breakout forces with 13.5 kN on the bucket and 8.2 kN on the arm, ensuring effective digging in a variety of ground conditions. With a dig depth of 2,460 mm, a reach of 3,890 mm, and a dumping height of 2,440 mm, this excavator supports productivity while maintaining compact dimensions. Its tail swing radius of 1,030 mm allows operators to work close to obstacles and walls with confidence.

The hydraulic system features a gear pump delivering 33 liters/min at 210 bar, suitable for operating small hydraulic tools and attachments via the included auxiliary hydraulics. The EC18C achieves a max travel speed of 4.1 km/h, ideal for quick repositioning around job sites.

Specifications:

– Model: Volvo EC18C
– Year: 2015
– Engine Model: Kubota D902
– Engine Power: 16.1 HP (12 kW)
– Engine Type: 3-cylinder, Diesel
– Fuel Tank Capacity: 23.5 liters
– Operating Weight: 1,860 kg

– Overall Length (with bucket): 3,665 mm
– Overall Width: 1,560 mm
– Overall Height: 2,350 mm
– Track Length: 1,740 mm
– Track Width: 1,560 mm
– Ground Clearance: 180 mm
– Tail Swing Radius: 1,030 mm

– Pump Type: Gear pump
– Hydraulic Flow: 33 liters/min
– Hydraulic Pressure: 210 bar (3,045 psi)
– Auxiliary Hydraulics: Available

– Max Lifting Capacity: 1,000 kg (at ground level)
– Max Digging Depth: 2,460 mm
– Max Reach (Ground Level): 3,890 mm
– Max Dumping Height: 2,440 mm
– Max Vertical Digging Depth: 1,840 mm
– Arm Digging Force: 8.2 kN
– Bucket Digging Force: 13.5 kN
– Max Travel Speed: 4.1 km/h
