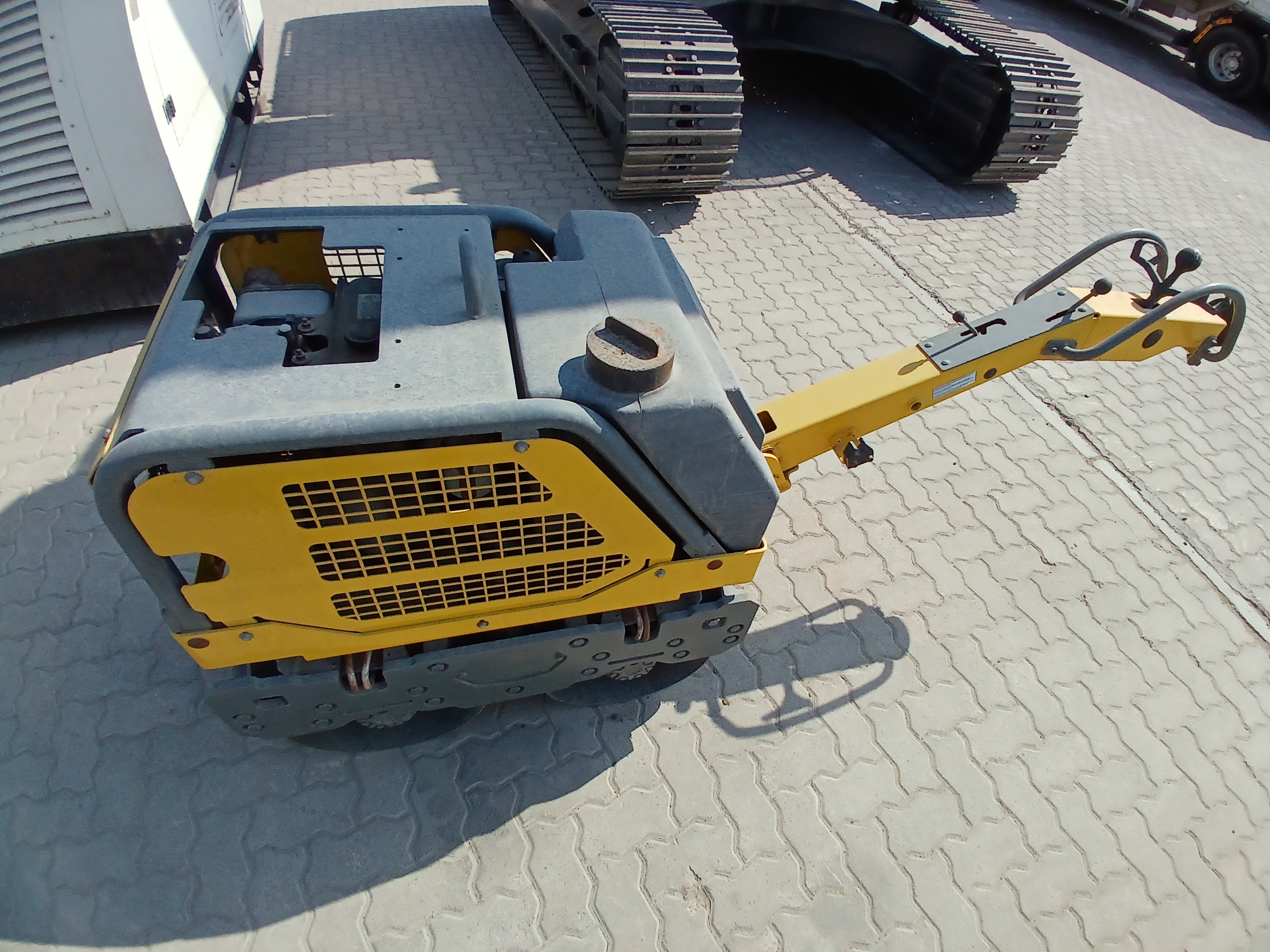

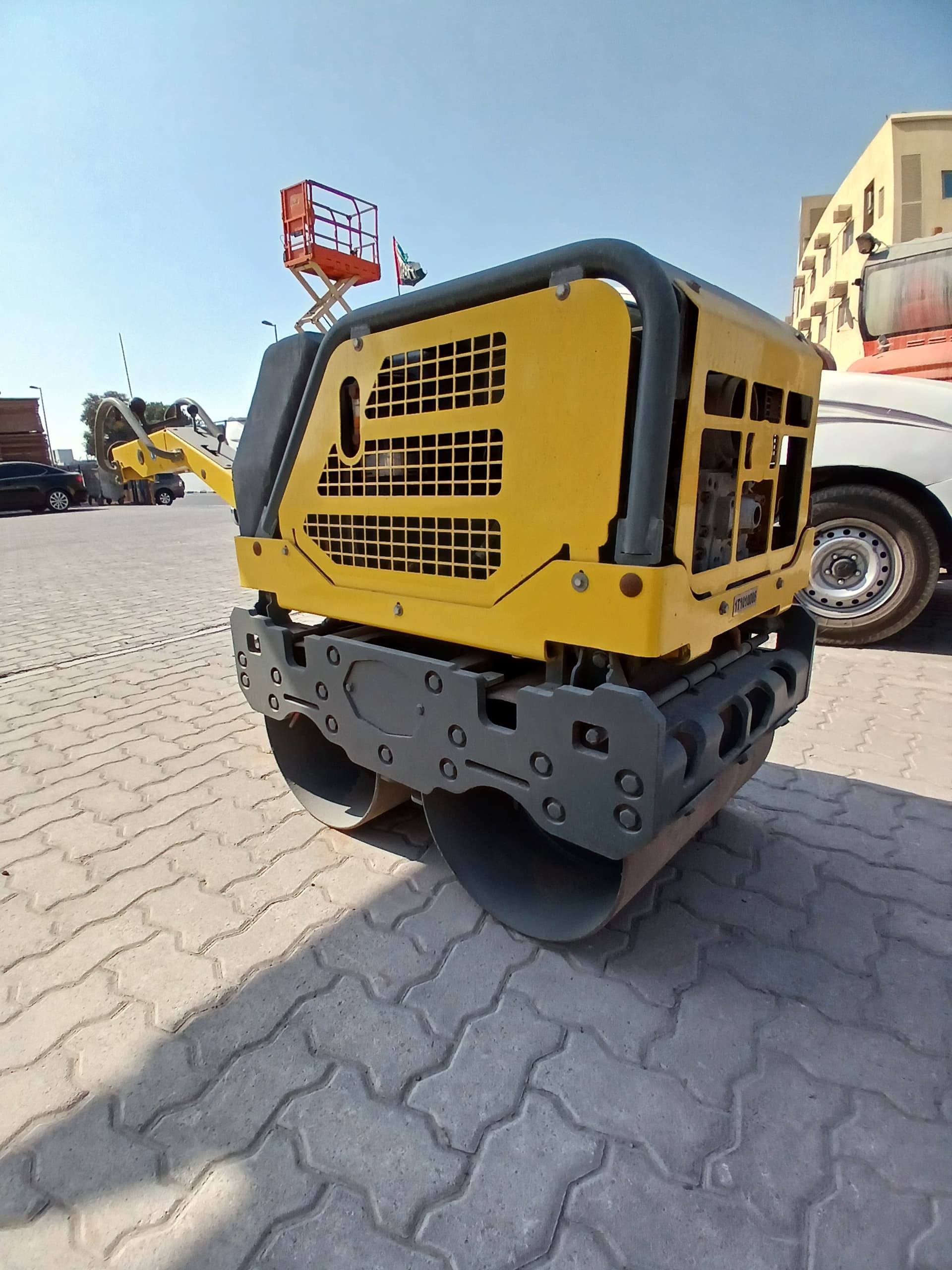

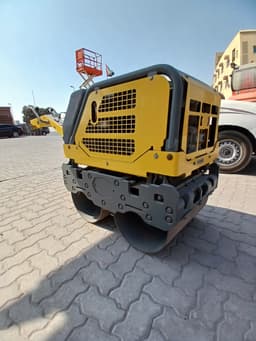

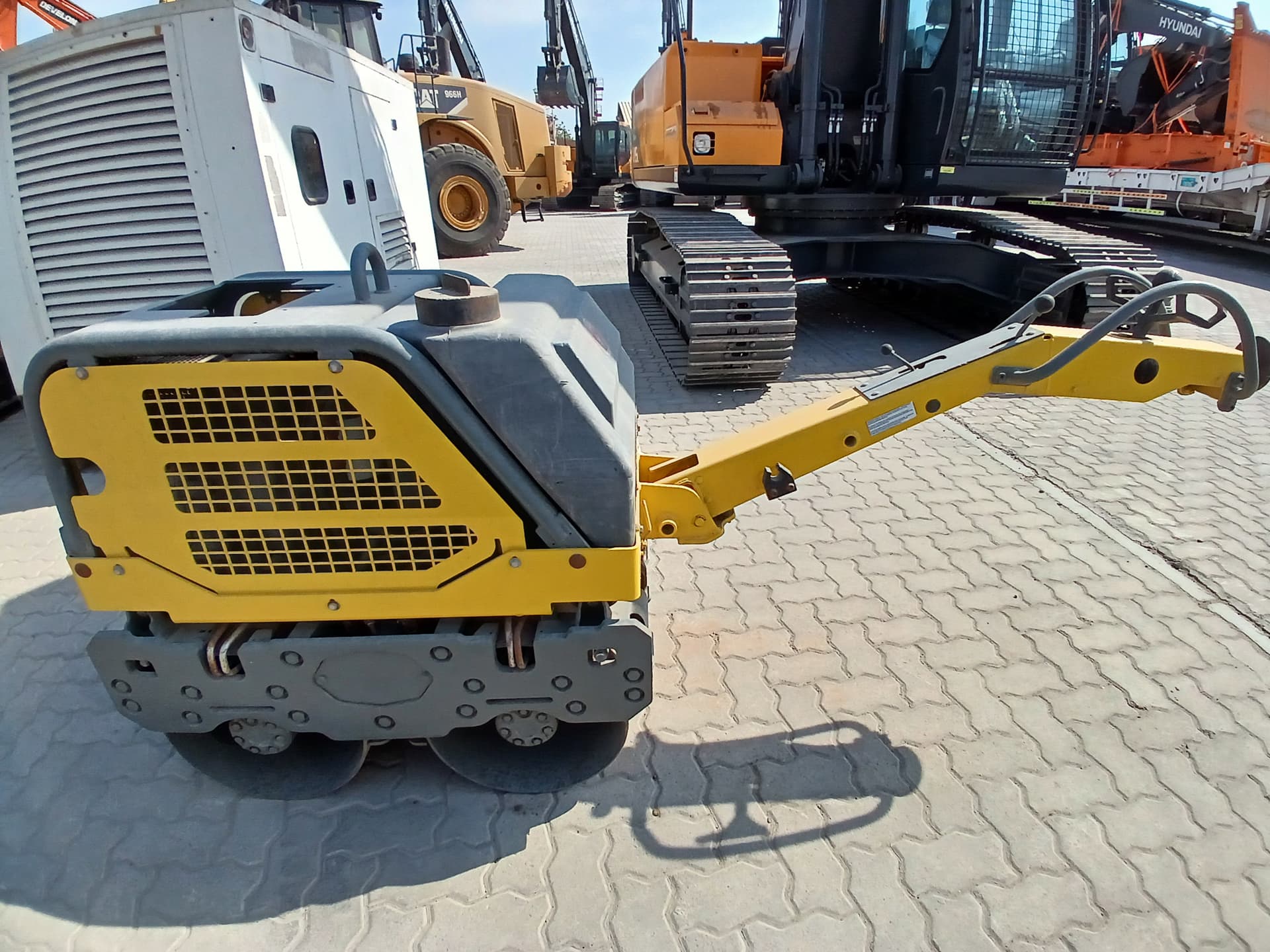

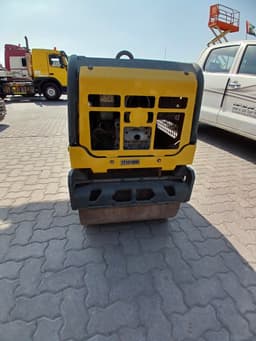

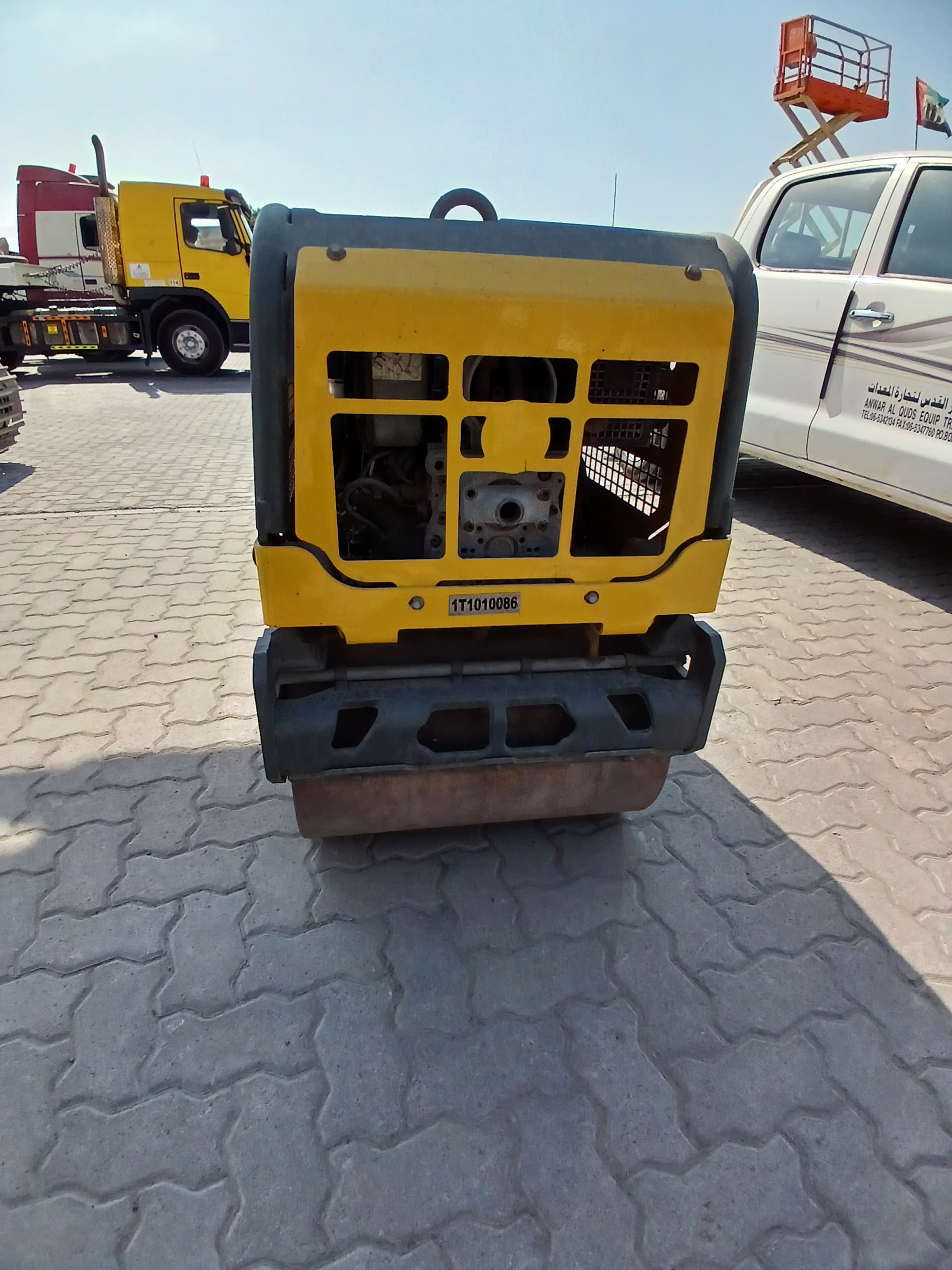

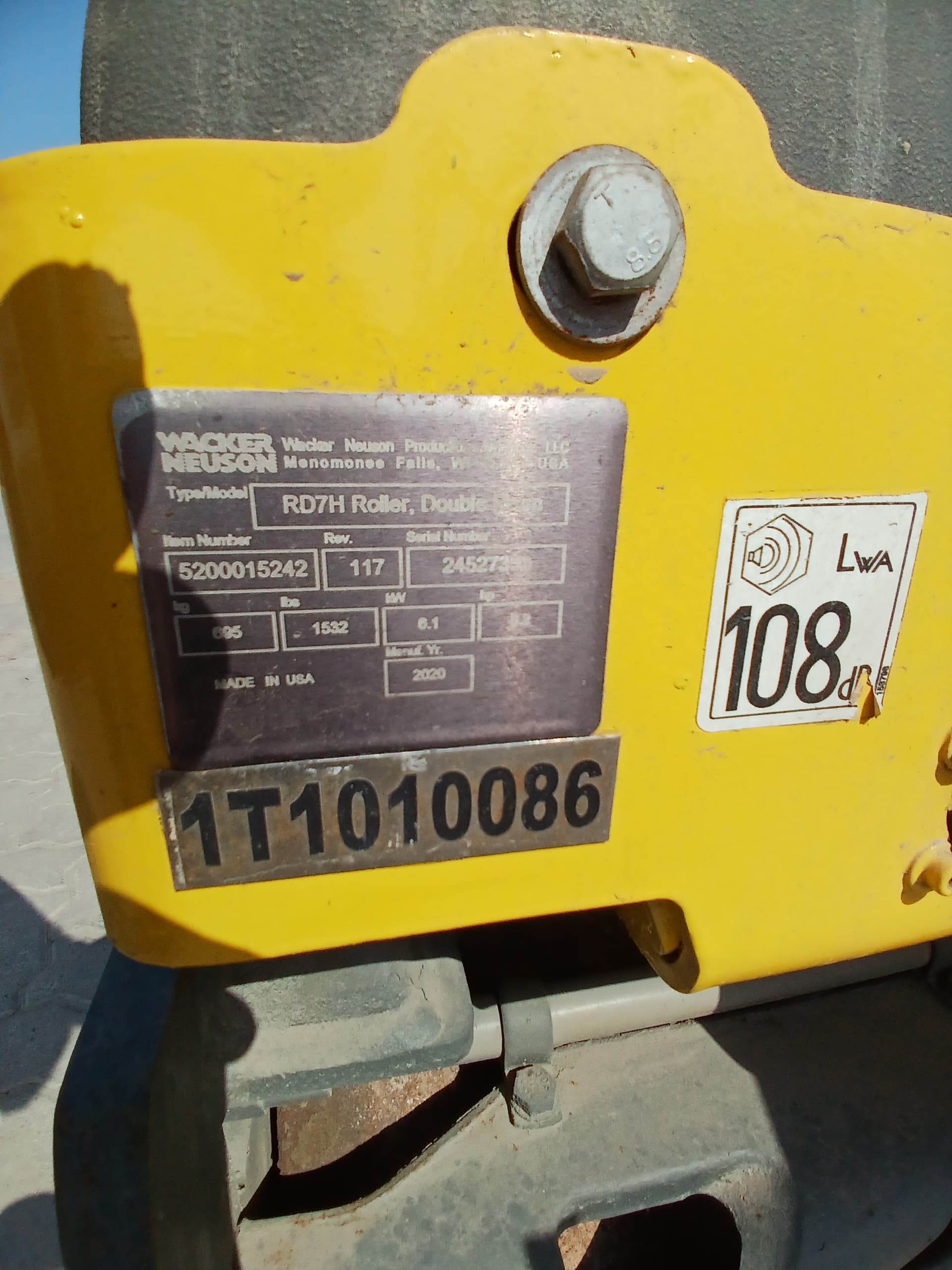

Walk-Behind Double Drum Vibratory Roller – RD7H

The RD7H Walk-Behind Double Drum Vibratory Roller is designed for high-performance compaction of soil, asphalt, and granular materials in tight or confined areas. Equipped with a powerful 4-stroke, air-cooled Honda GX630 gasoline engine producing 15.5 kW (20.8 HP), this roller delivers a centrifugal force of 21 kN and operates at a vibration frequency of 55 Hz for optimal compaction efficiency. The unit features dual 650 mm drums, a total working width of 1,300 mm, and a 60 L water tank for asphalt applications. A hydraulic drive system enables smooth travel at speeds up to 4.8 km/h, and the roller achieves gradeability of 35% without vibration and 30% with vibration. Its compact design, electric start, and hydrostatic braking system with emergency stop make it a reliable and operator-friendly choice for roadworks, landscaping, and construction sites.

Specifications:

– Brand: RD Series
– Model: RD7H
– Type: Walk-Behind Double Drum Vibratory Roller
– Application: Soil, Asphalt, and Granular Material Compactio

– Engine Model: Honda GX630
– Engine Type: 4-Stroke, Air-Cooled, Gasoline Engine
– Displacement: 688 cc (42.0 in³)
– Power Output: 15.5 kW (20.8 HP) @ 3,600 rpm
– Fuel Type: Gasoline
– Fuel Tank Capacity: 6.5 L (1.72 gal)
– Starting System: Electric Start

– Centrifugal Force: 21 kN (4,721 lbf)
– Vibration Frequency: 55 Hz (3,300 vpm)
– Amplitude: 0.5 mm (0.02 in)

– Drum Width: 650 mm (25.6 in) per drum
– Drum Diameter: 400 mm (15.7 in)
– Total Working Width: 1,300 mm (51.2 in)
– Operating Weight: 740 kg (1,631 lbs)

– Drive System: Hydraulic
– Travel Speed (Fwd/Rev): 0 – 4.8 km/h (0 – 3 mph)
– Gradeability Without Vibration: 35%
– Gradeability With Vibration: 30%
– Water Tank Capacity: 60 L (15.85 gal)
– Braking System: Hydrostatic Drive with Emergency Stop
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
