Description
Product Description

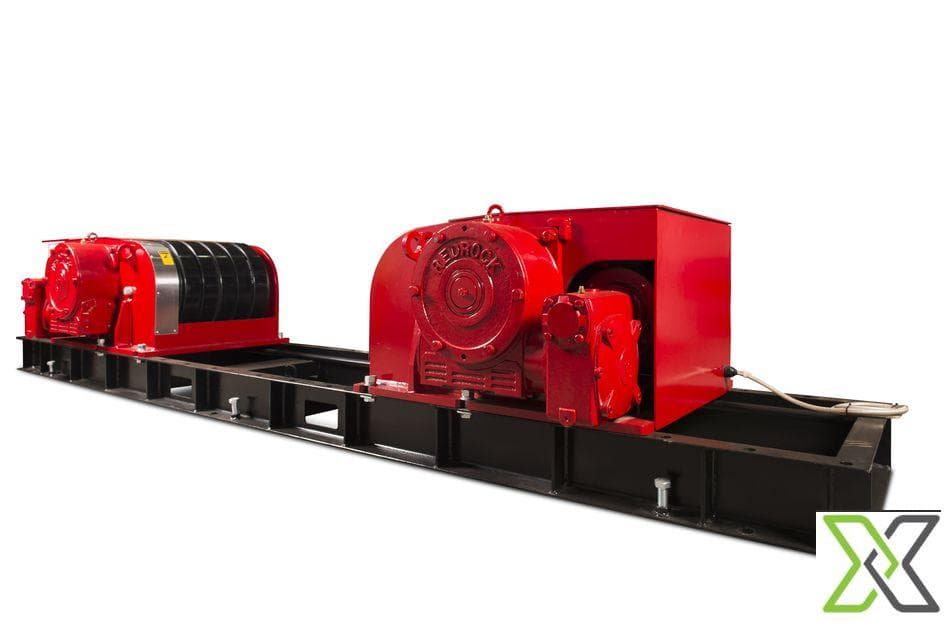

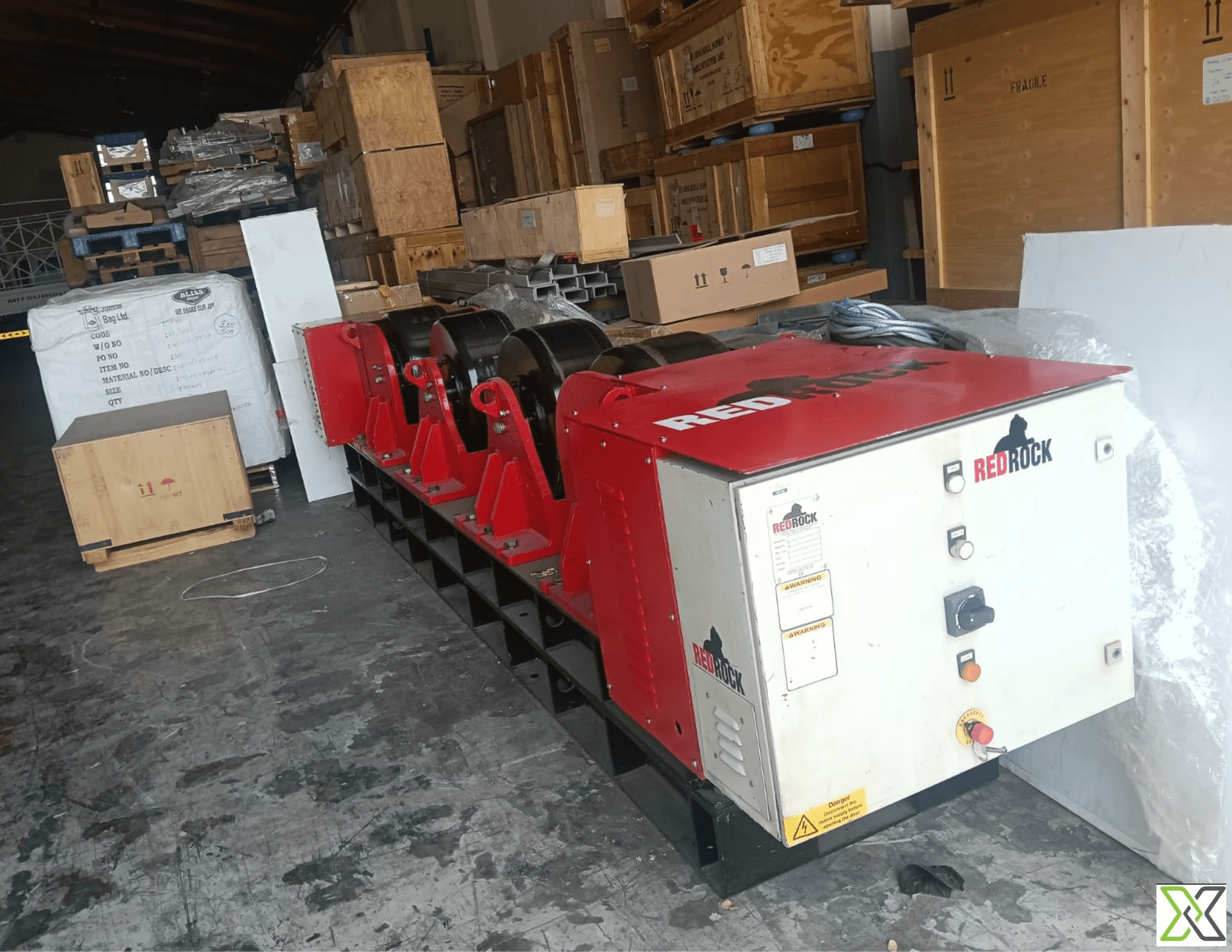

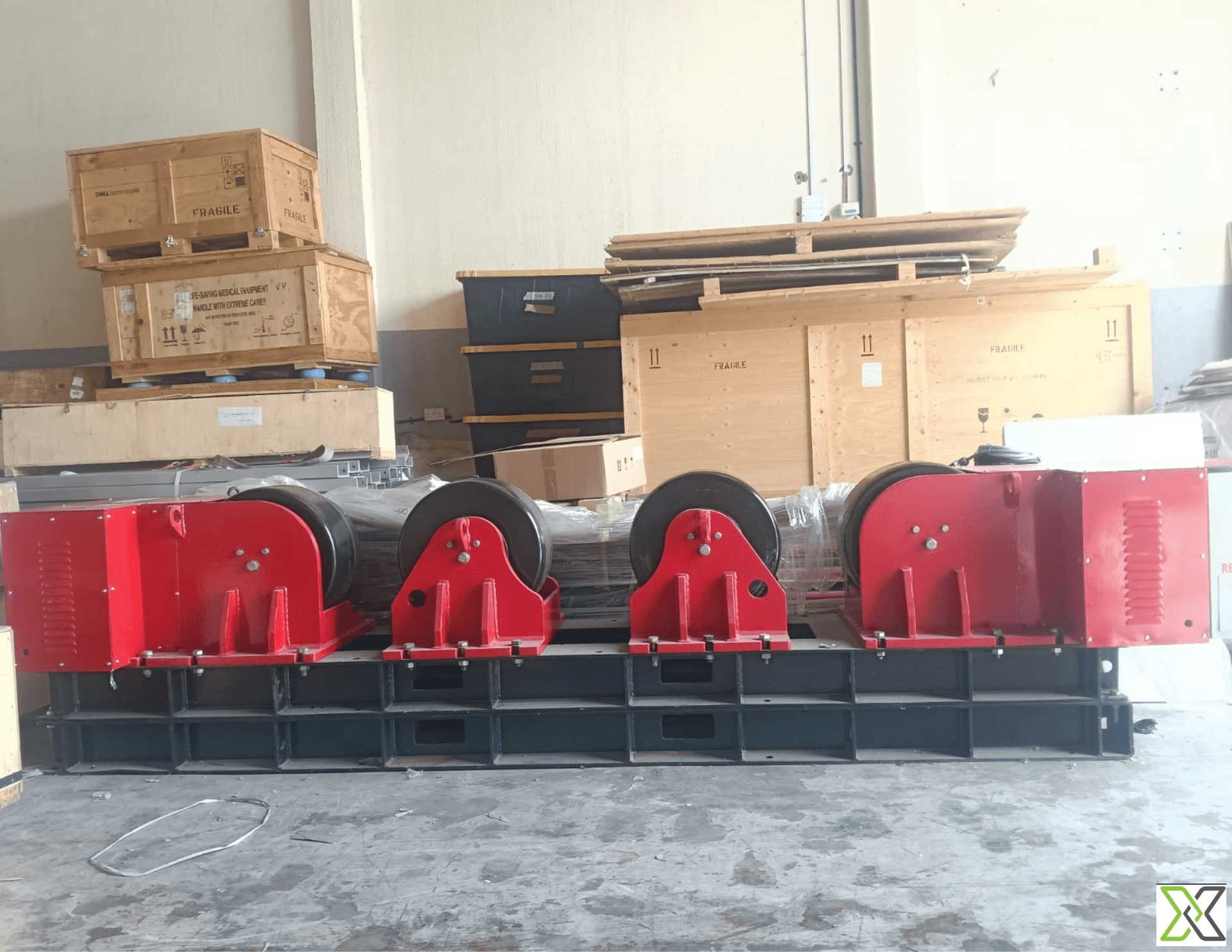

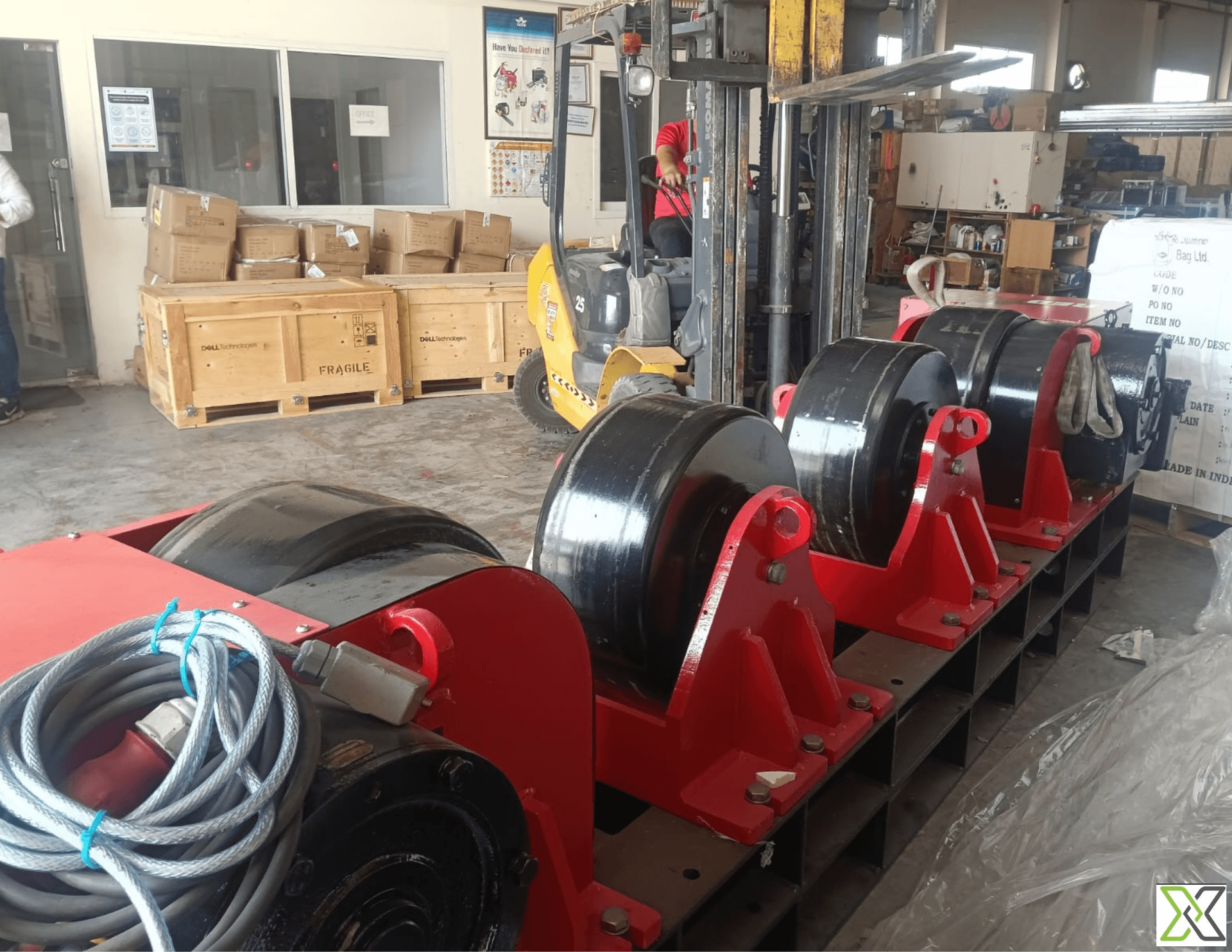

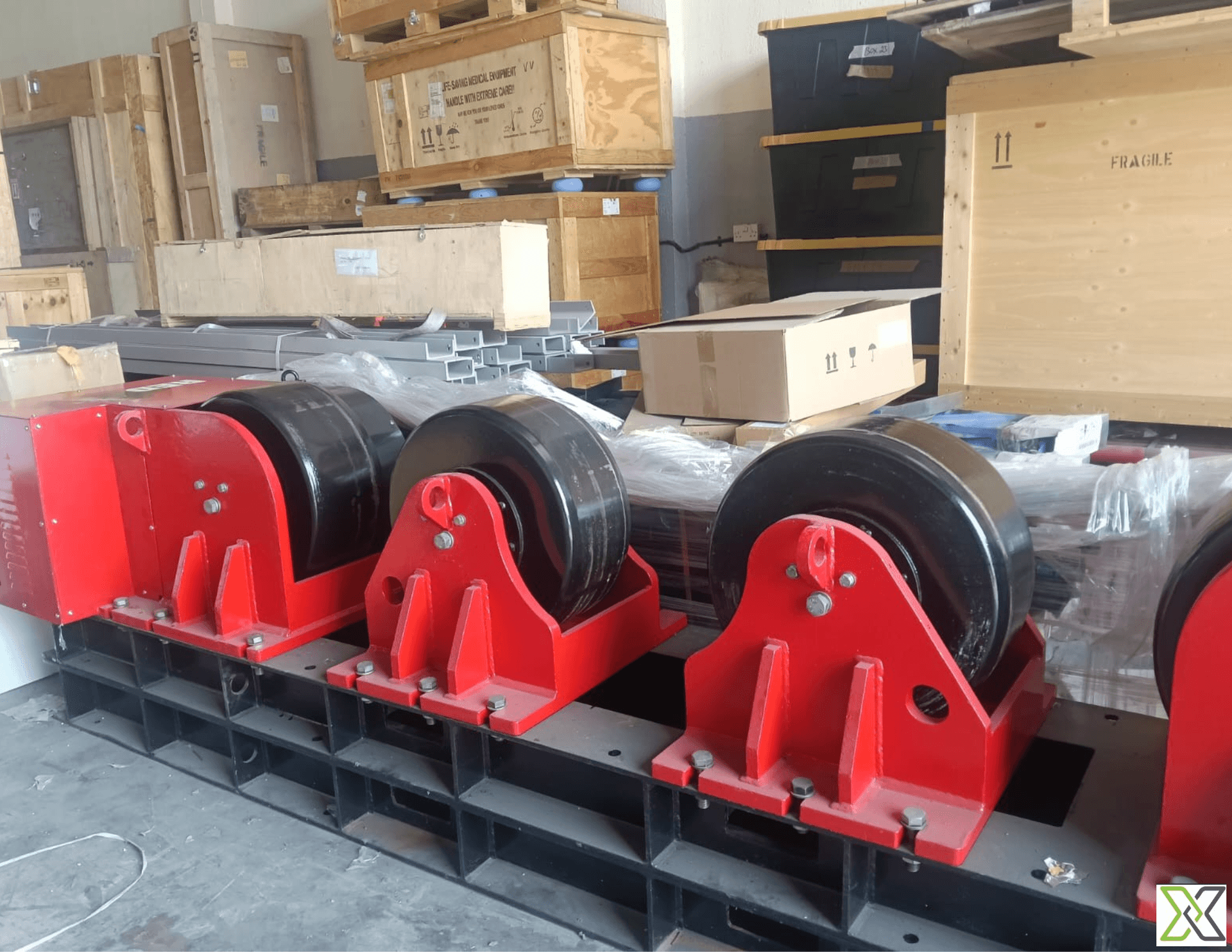

ReflowX is pleased to offer for sale a Refurbished RedRock 200-tonne welding rotator set, comprising one (1) powered drive unit (Model RWPS200/200-31-FM-WE) and one (1) matching idler unit (Model RWIS200-31-FM).

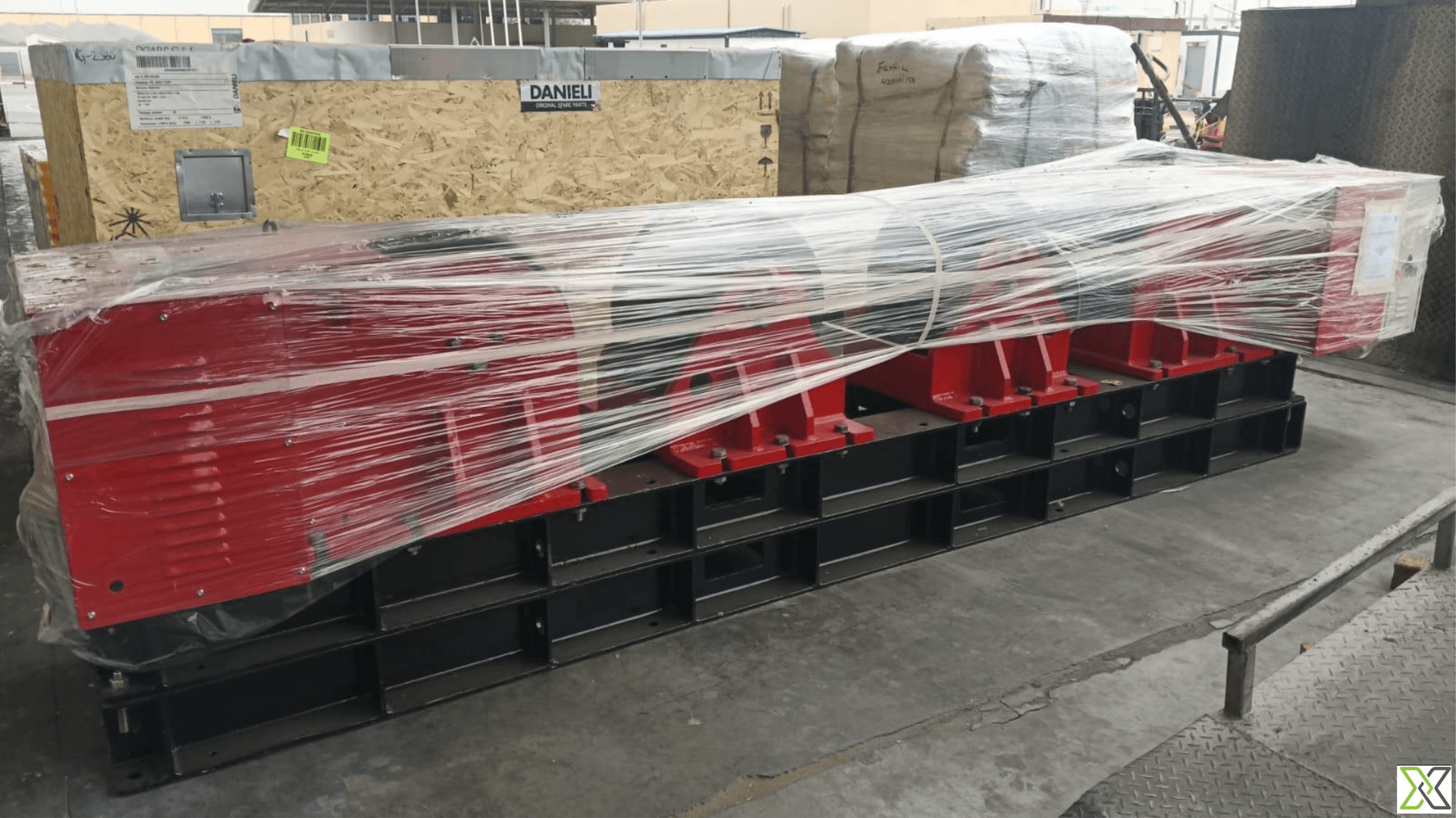

The unit was factory-tested on 18/11/2025, ready for immediate dispatch from Abu Dhabi.

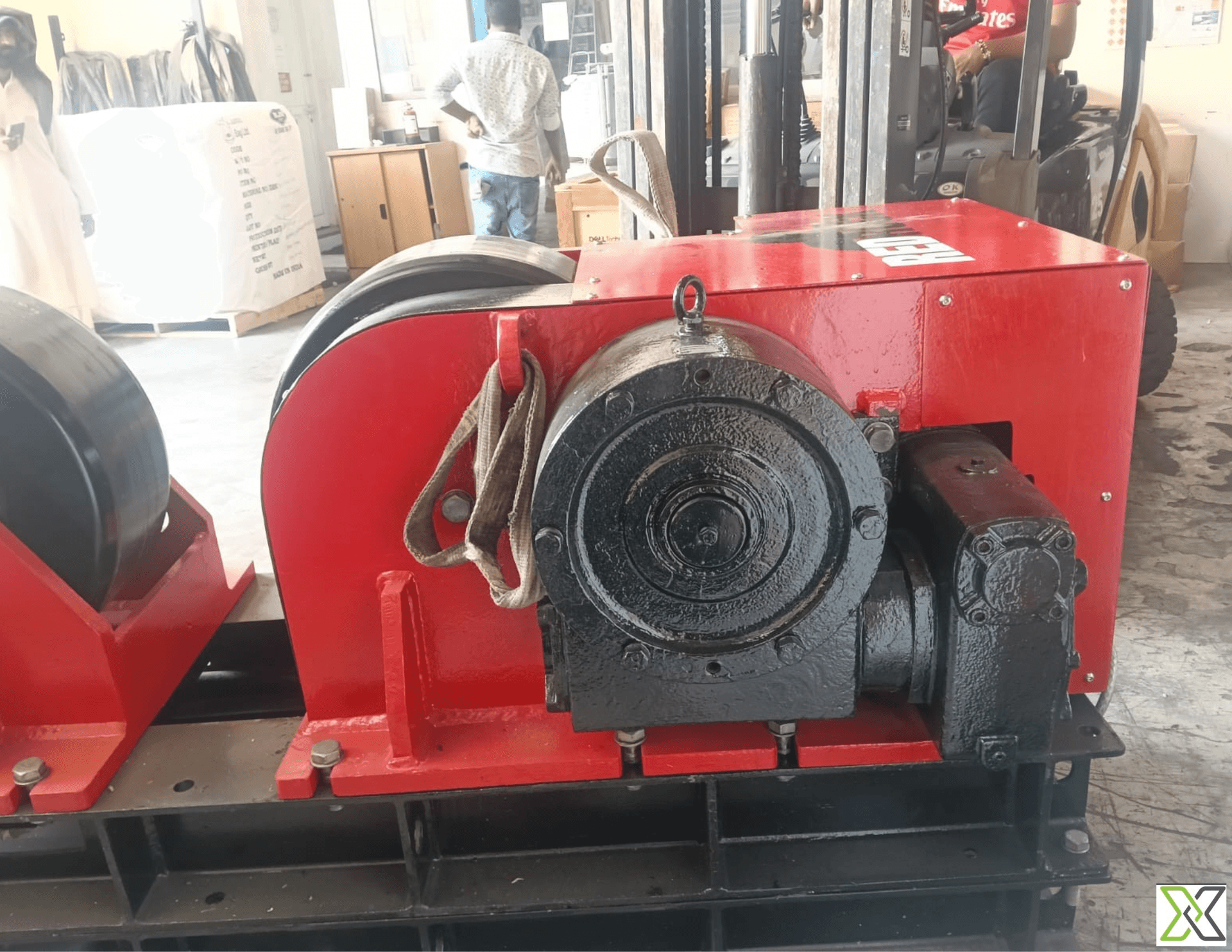

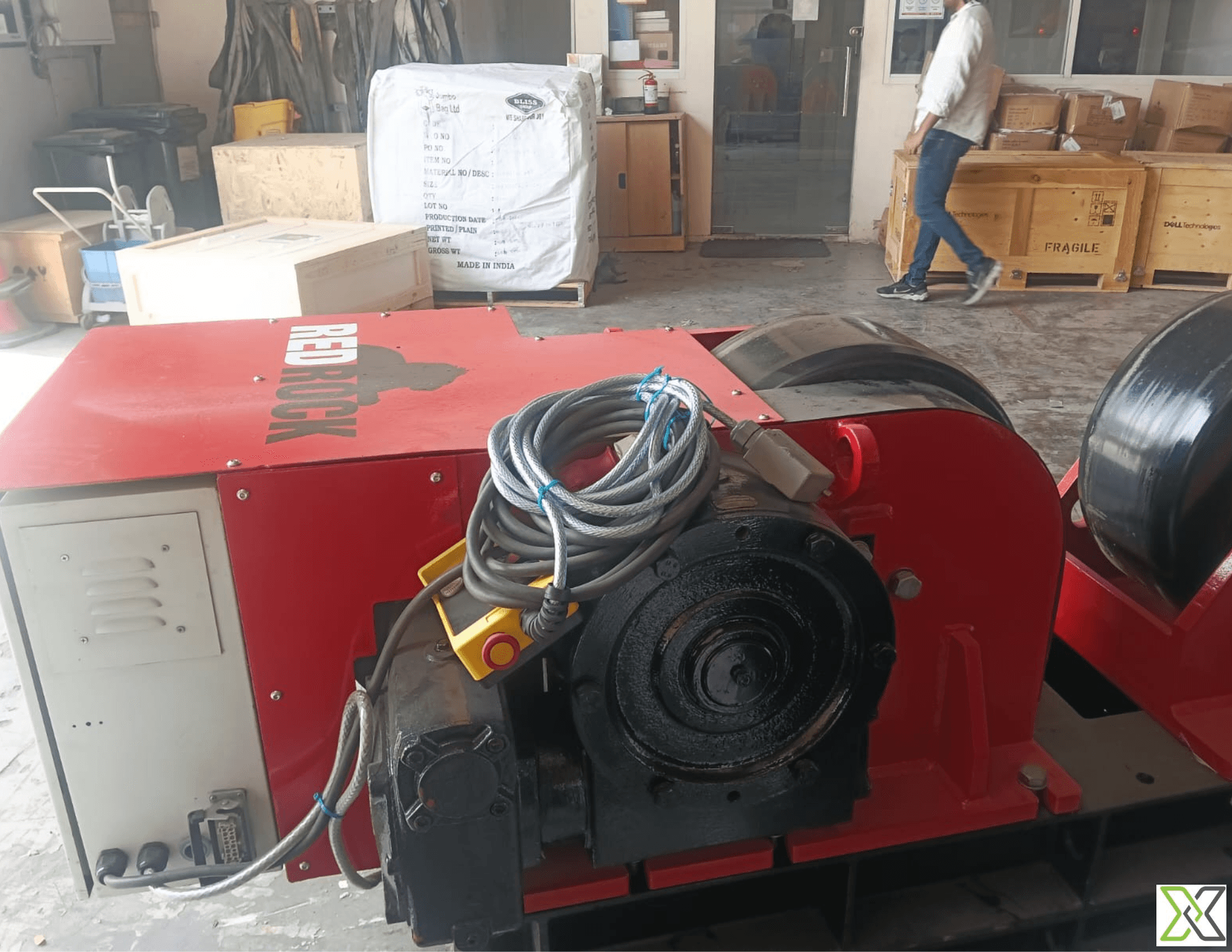

The powered drive unit drives all wheels synchronously via AC gear motors and the latest inverter control. A hand-held low-voltage control pendant on a 10 m cable provides the operator with full control of the rotator, including a potentiometer for speed variation, forward/reverse and stop. All RedRock rotators are grit-blasted to SA 2.5 on structural steel and finished with two coats of zinc phosphate plus one coat of polyurethane in RAL 3003 Red (skid in RAL 9005 Black).

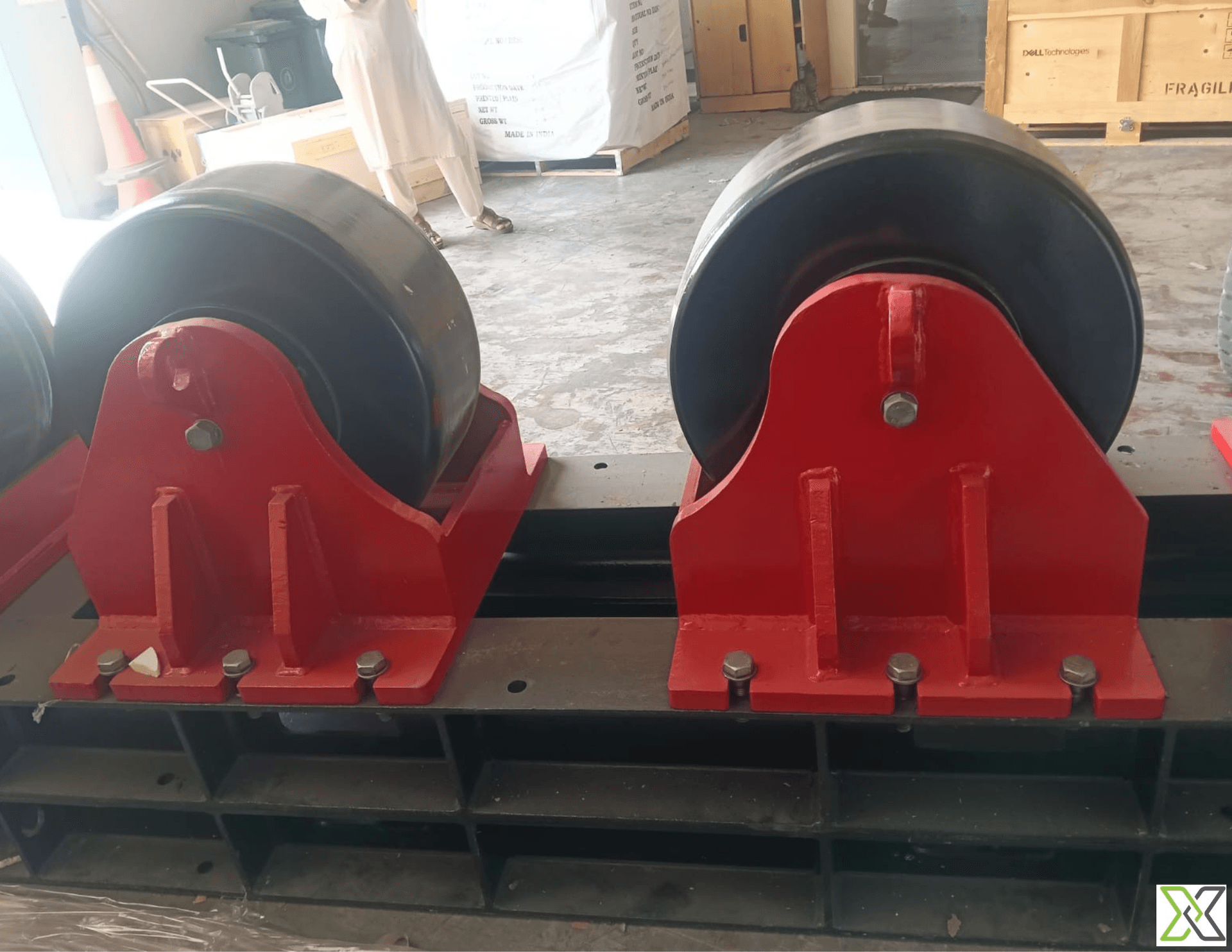

The idler roll has the same dimensions to match the powered drive unit.
| Parameter | Details |
|---|---|
| Product Type | Conventional Welding Rotator Set (Power + Idler) |
| Manufacturer (OEM) | RedRock Automation, Glasgow, UK |
| Power Unit Model | RWPS200/200-31-FM-WE |
| Idler Unit Model | RWIS200-31-FM |
| Serial Number | 1011-13-0504 |
| Year of Manufacture | 2013 |
| Tested Date | 18/11/2025 |
| Condition | Refurbished |
| Load Capacity | 200 MT (1 Power + 1 Idler) |
| Rotation/Turning Capacity | 200 MT (Power Unit) |
| Vessel Size — Min. | Ø410 mm at 90° included angle (C-C 700 mm) |
| Vessel Size — Max. | Ø7,520 mm at 45° included angle (C-C 3,100 mm) |
| Wheel Type & Size | Steel, Ø580 mm × 250 mm — crowned & hardened |
| Roller Speed | 140 – 1,400 mm/min (5–50 Hz) |
| Roller Drive Motor | 2 × AC 4 kW motors with forced cooling |
| Drive Control | AC 11 kW inverter (roller only) |
| Incoming Supply | 380/400/415 V – 3P – 50 Hz or 440/460/480 V – 3P – 60 Hz (wired 400 V default) |
| Control Voltage | 24 V AC |
| Control Means | Push-button pendant c/w 10 m cable |

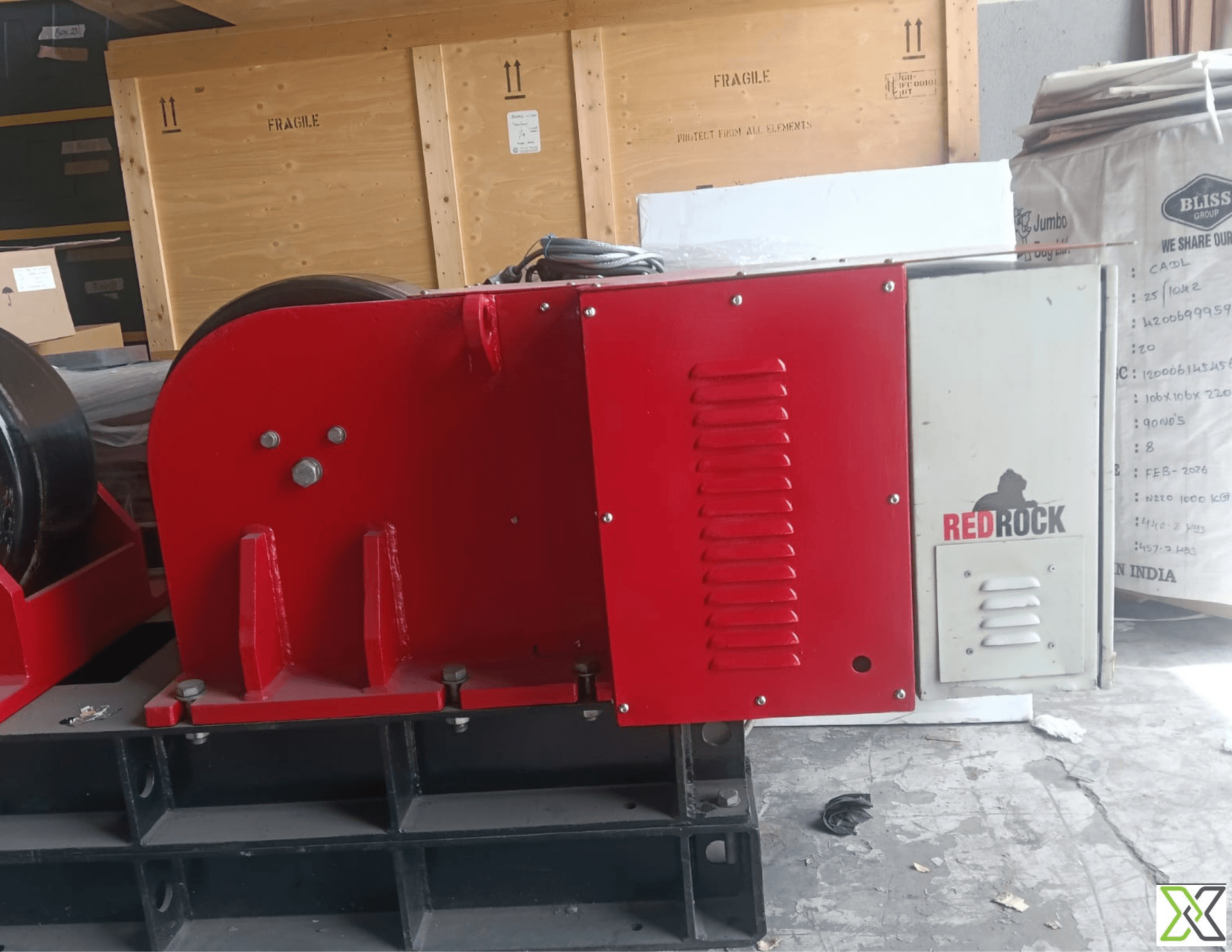

| Electrical Panel | Yes |
| C-C Adjustment Positions | 700 / 1,100 / 1,500 / 1,900 / 2,300 / 2,700 / 3,100 mm |
| Surface Preparation | Gritblast to SA 2.5 |
| Paint System | Lead-free, 2 coats zinc phosphate + 1 coat polyurethane |
| Colour | RAL 3003 Red (skid: RAL 9005 Black) |

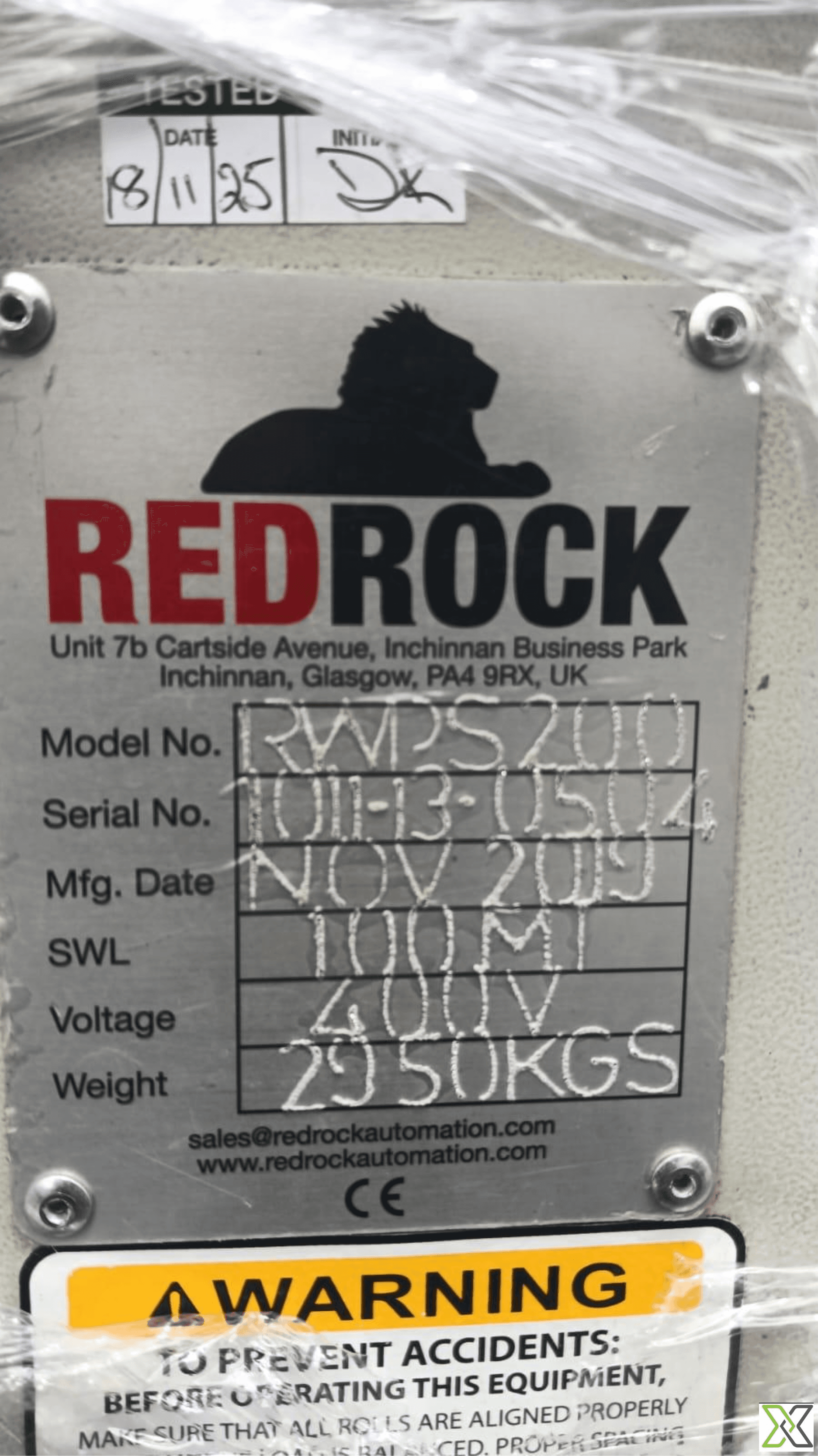

| Unit Weight (Data Plate) | 2,950 kg |
| Unit Dimensions | 3,970 × 840 × 710 mm (L×W×H) |
| Certification | CE Marked |
| Location | Abu Dhabi, UAE |
| Sale Terms | Ex Works (EXW) Abu Dhabi |
If you require any further information on this listing please contact info@reflowx.com.
